Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 020 | B-Safety

Features & Benefits of Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 020 | B-Safety

The Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 020 | B-Safety is a must-have safety tool for any industrial setting where eye protection is a priority. This reliable and efficient eye shower offers fast and effective rinsing in emergency situations, helping to prevent permanent eye injuries.

Designed for easy and immediate use, the ClassicLine Hand-held Eye Shower stands out for its advanced features and user-friendly design. Engineered with precision by B-Safety, it ensures safety and peace of mind in workplaces handling chemicals, dust, or other hazardous substances.

  • Optimal Rinsing Angle: The unique 45° spray head delivers a gentle, yet thorough water stream directly to the eyes, ensuring complete coverage and effective removal of contaminants.
  • Single Spray Head: The focused, single spray head is designed for targeted cleaning, minimizing water waste while maximizing safety.
  • Portable & Flexible: Its hand-held format gives users full control, allowing them to direct the flow exactly where it is needed, even in hard-to-reach areas.
  • Durable Construction: Built with sturdy, industrial-grade materials, this eye shower can withstand tough working environments and frequent use.
  • Easy Installation: The ergonomic design makes setup straightforward, fitting seamlessly into existing industrial safety systems.

With the Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 020 | B-Safety, instant response to eye accidents becomes simple and accessible. Its intuitive use means minimal training is required, making it suitable for all employees, regardless of experience level. The angled spray head provides a comfortable, natural position for the user, reducing discomfort and encouraging proper use in stressful situations.

Additional benefits include a corrosion-resistant finish and easy-to-clean surfaces, ensuring long-lasting hygiene and performance. This product reflects B-Safety’s commitment to combining advanced technology with practical design, helping industries maintain the highest safety standards.

  • Quick access in emergencies
  • Comfortable and efficient rinsing experience
  • Reliable protection for workers' eyes

Choose the Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 020 | B-Safety for proven performance and peace of mind in any industrial environment.

Datasheet and documents

Description

Technical Specifications

  • Material: brass, plastic
  • Color: grey, green, orange
  • Dimensions (H x W): 270 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed table mounting accessory, the hand-held eye shower can be mounted on the table. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

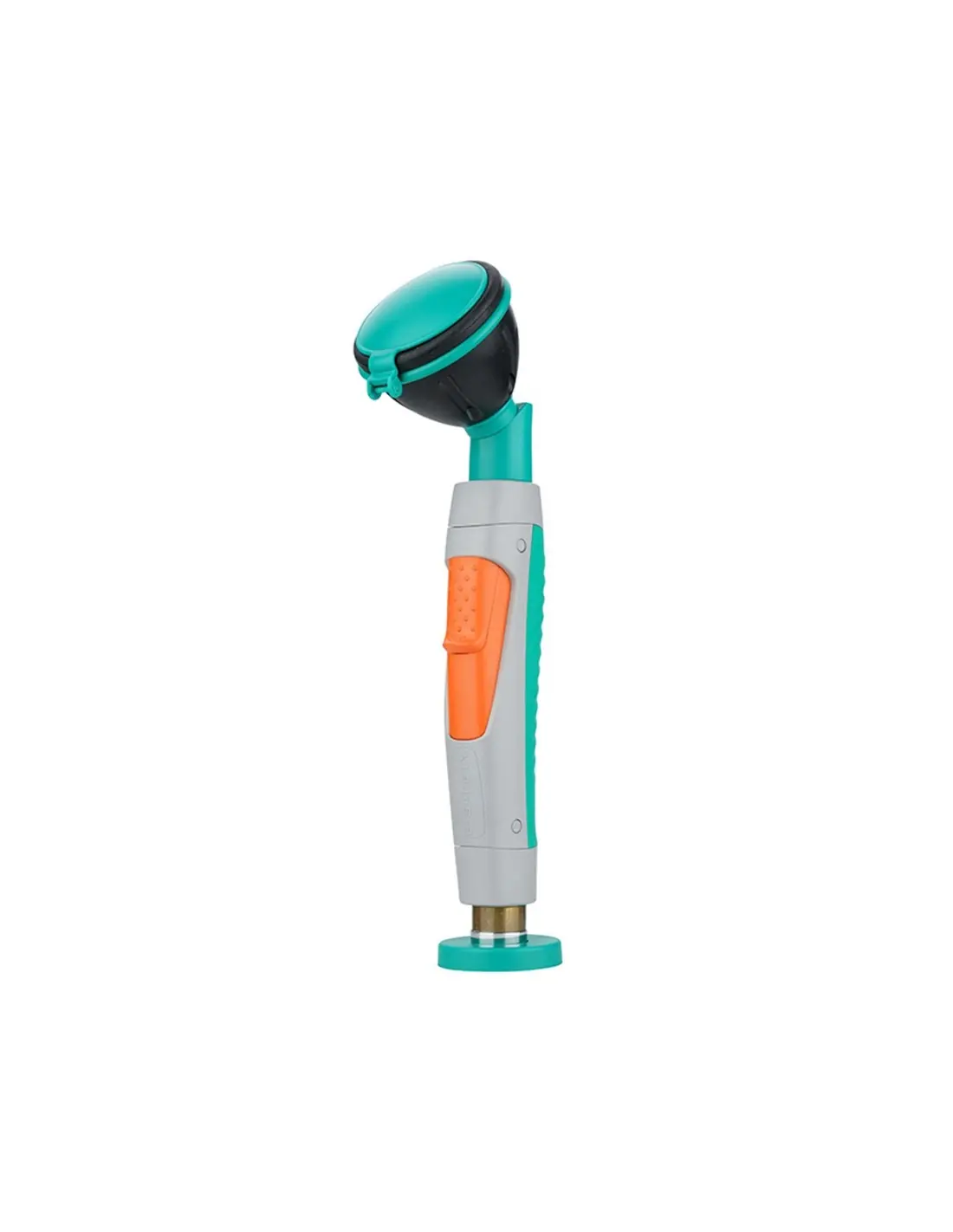

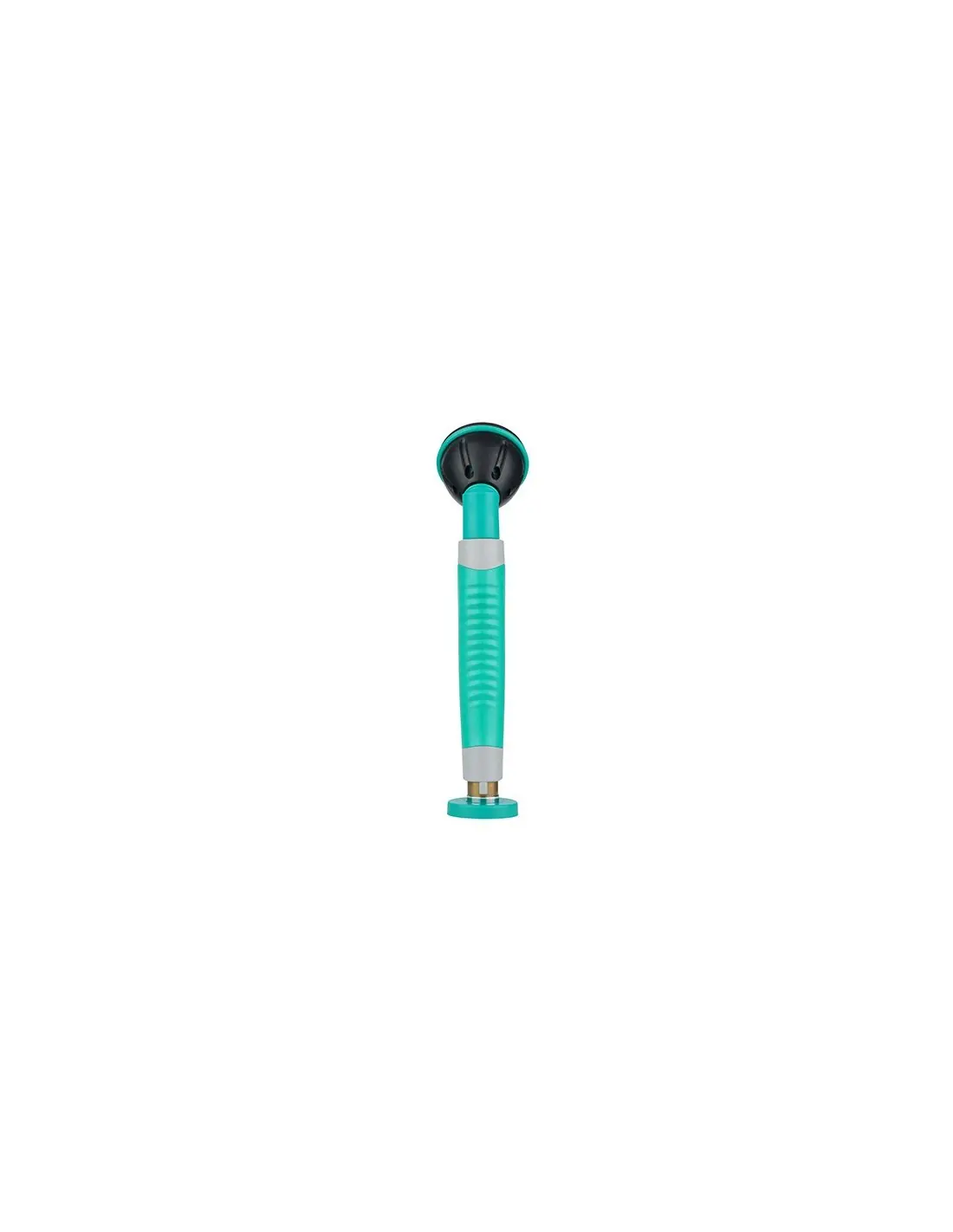

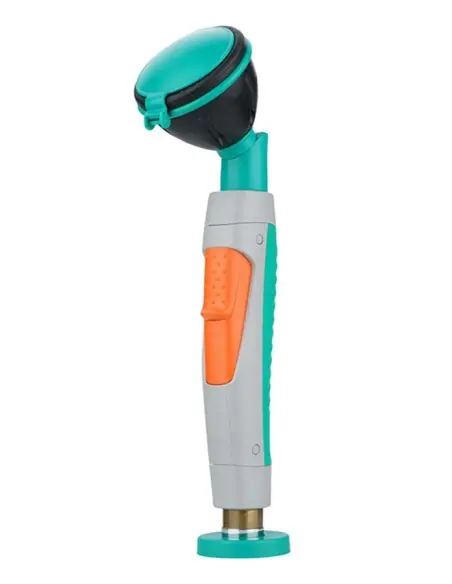

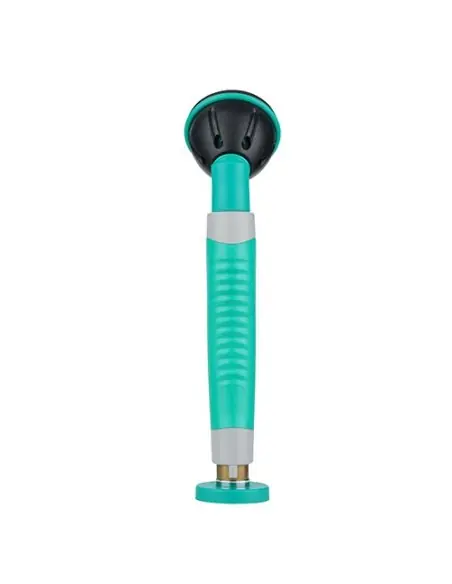

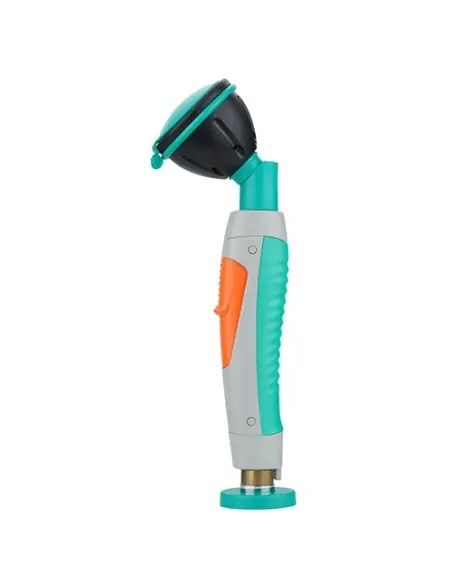

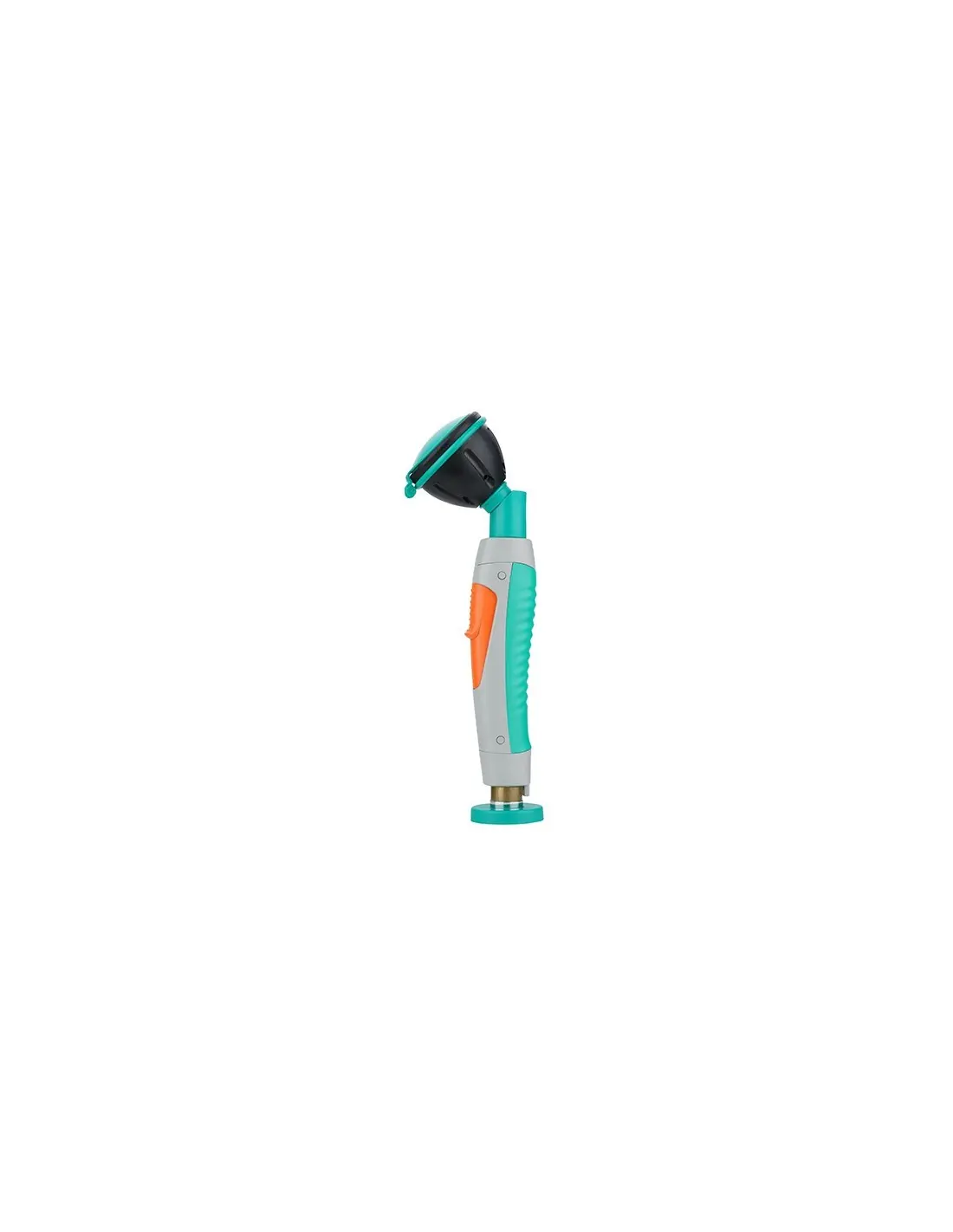

  • B-SAFETY ClassicLine hand-held eye shower with one spray head 45°, table mounted
  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeve and sealed dust cap with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • table mounting accessories M28x1,5x80mm made of stainless steel, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, rosette plastic, green, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • Mounting height 750 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
  • according to ANSI Z358.1-2014 and DIN EN 15154-2:2006
  • DIN-DVGW tested and certificated
