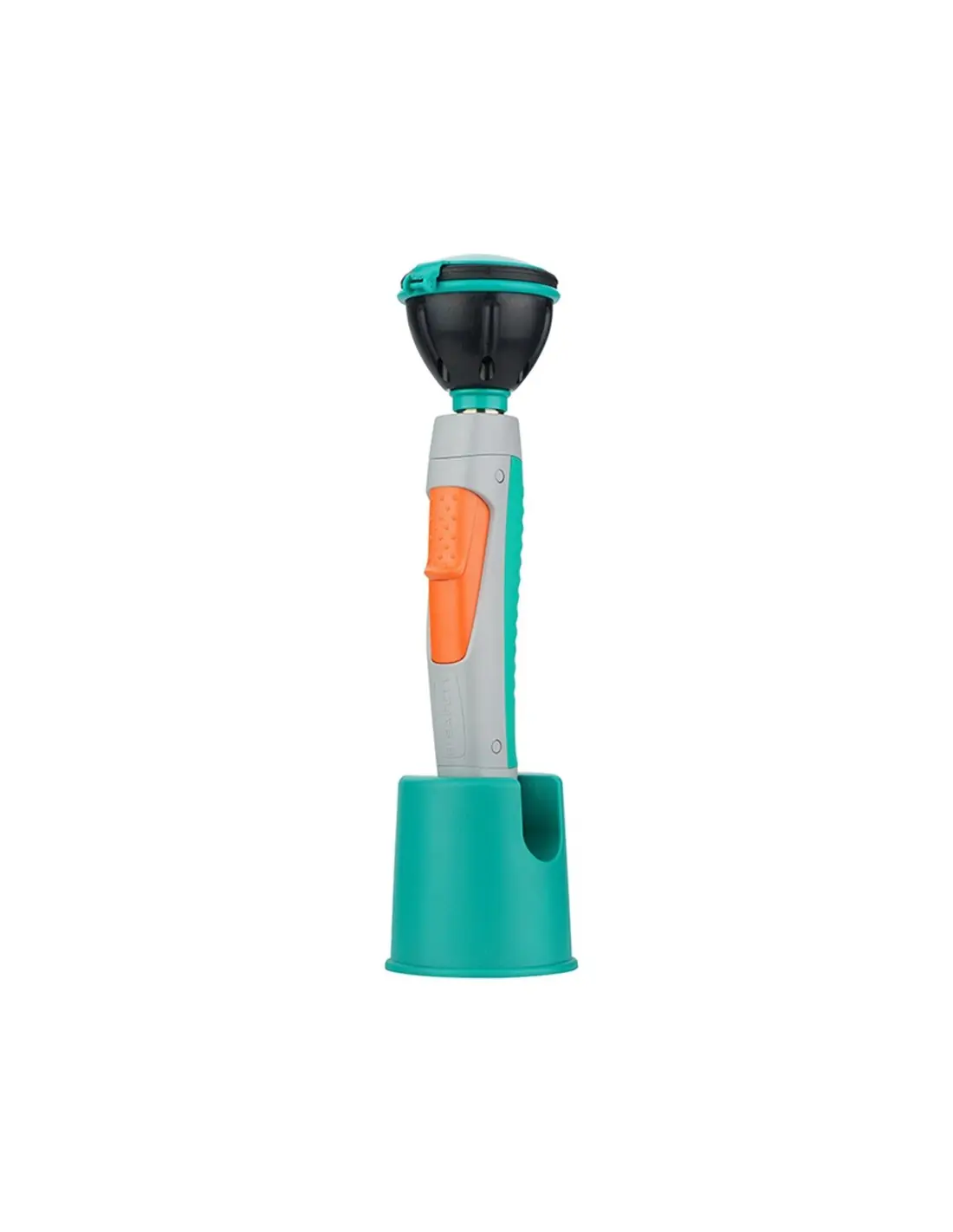

Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety

Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety: Safety and Comfort in Every Emergency

When swift action matters, the Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety delivers outstanding performance for industrial safety. Designed for immediate response, this eye shower ensures thorough and gentle rinsing, providing peace of mind in hazardous environments. Its practical design and advanced functionality make it an essential addition to any workplace where eye protection is a priority.

Features and Benefits of the Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety

  • Single Precision Spray Head: Targeted rinsing with a uniform, soothing flow that helps remove hazardous substances quickly, reducing potential eye damage.
  • Ergonomic Hand-held Design: Easy to operate, the compact handle provides a comfortable and secure grip, letting users direct the spray exactly where it’s needed.
  • Instant Activation: Ready for immediate use, ensuring no delays in case of accidents. Simply squeeze the lever for fast water flow.
  • High-Quality Construction: Built from robust, industrial-grade materials to withstand tough environments and frequent use, guaranteeing long-lasting reliability.
  • Flexible Hose: The practical hose offers ample reach and mobility, making it easy to use at any angle, even in tight spaces.
  • Consistent Water Pressure: Ensures a steady stream for thorough rinsing, while the specially designed nozzle delivers a gentle spray to avoid further irritation.

Designed specifically for industrial applications, the Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety is the perfect choice for workshops, laboratories, and factories. Its intuitive operation means minimal training is required, empowering staff to act quickly and confidently. The streamlined design makes it easy to install and maintain, while the bright, visible finish ensures it can be found instantly in an emergency.

Stay prepared and foster a safer work environment with this reliable, efficient solution. The Hand-held eye shower with one spray head - ClassicLine - BR 712 025 | B-Safety brings together durability, usability, and safety, giving every team member the security they deserve.

Datasheet and documents

Description

Technical Specifications

  • Material: brass, plastic
  • Color: grey, green, orange
  • Dimensions (H x W): 240 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

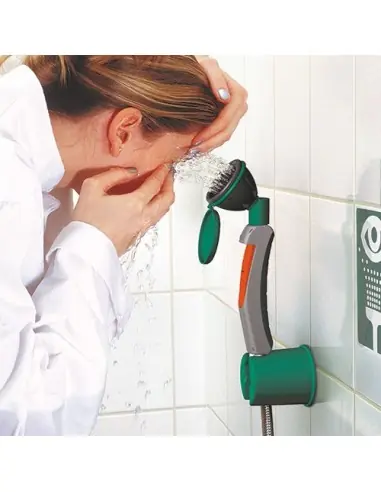

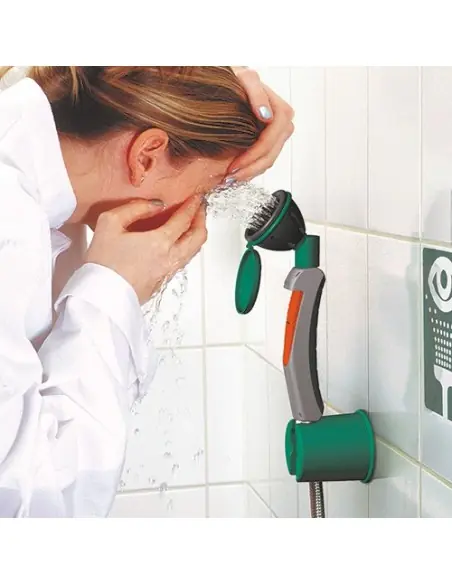

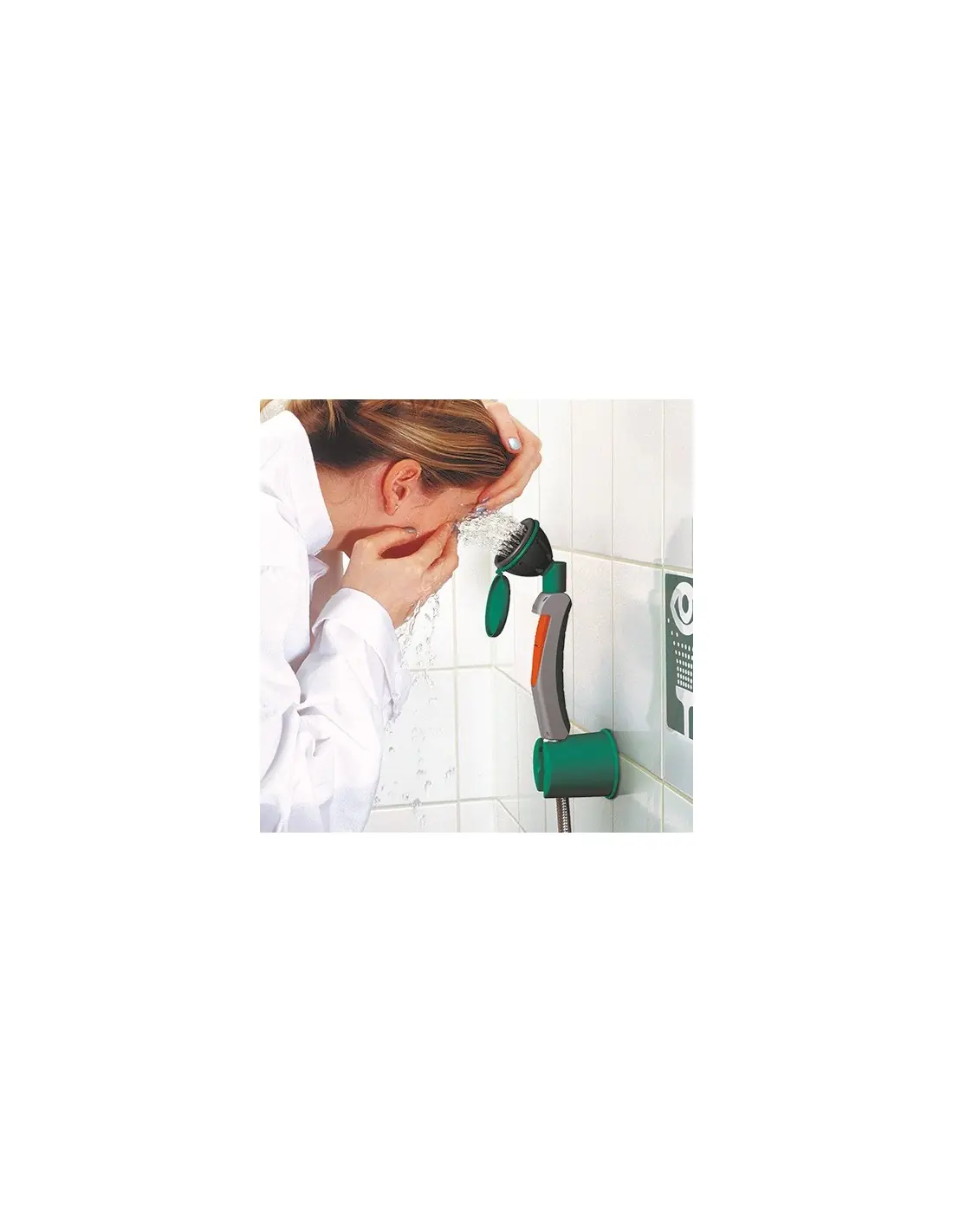

With the enclosed B-SAFETY combination bracket, the hand-held eye shower can be mounted on the wall or also on the table. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

Technical Description

  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, with plastic spray plate, low calcification, with rubber sleeves and sealed dust caps
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust table and wall mounting bracket with positioning of the shower, accessories M28 x 1,5 x 80 mm made of stainless steel incl. fastening-parts kit with nut M28 x 1,5 mm and 2 screws M5 for mounting difficult to access, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 770 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated

Certification

DVGW
