Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety

Features & Benefits of the Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety

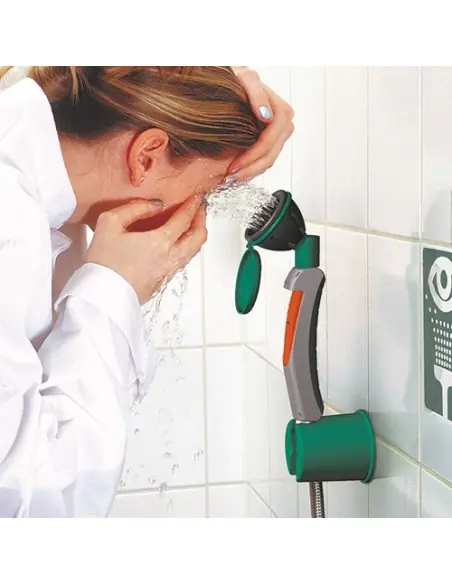

For workplaces where safety can never be compromised, the Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety is an essential addition. Specially designed for industrial environments, this eye shower provides fast and effective first aid for accidental exposure to hazardous substances. Its compact and user-focused design ensures maximum protection for every team member.

  • Reliable Emergency Response: The single spray head delivers a gentle yet thorough stream of water, helping to flush out dangerous chemicals, dust, or particles from the eyes quickly and comfortably.
  • Easy and Flexible Use: The hand-held design allows for direct and precise usage, making it suitable for various situations and user preferences. The ergonomic grip ensures stability even under stress, providing reassurance during urgent moments.
  • Robust and Hygienic Construction: Made from corrosion-resistant materials, the Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety stands up to harsh industrial environments and frequent cleaning, offering long-lasting performance.
  • Simple Maintenance: Its intuitive design means cleaning and maintenance are straightforward, ensuring that the unit is always ready for use when needed most.
  • Quick Installation: Compact and lightweight, this eye shower can be mounted wherever required, providing immediate accessibility in high-risk zones.

The Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety is a practical safety tool designed for industries such as laboratories, factories, and workshops. Its advanced spray head guarantees a consistent water flow to protect sensitive eyes and face during emergencies. With this eye shower, you can be confident that your workplace is better prepared for unforeseen accidents, reducing risks and supporting well-being for everyone on site.

Choose the Hand-held eye shower with one spray head - ClassicLine - BR 712 020 | B-Safety for straightforward operation, reliable protection, and peace of mind throughout your workday.

Datasheet and documents

Description

Technical Specifications

  • Material: brass, plastic
  • Color: grey, green, orange
  • Dimensions (H x W): 240 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed table mounting accessory, the hand-held eye shower can be mounted on the table. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

Technical Description

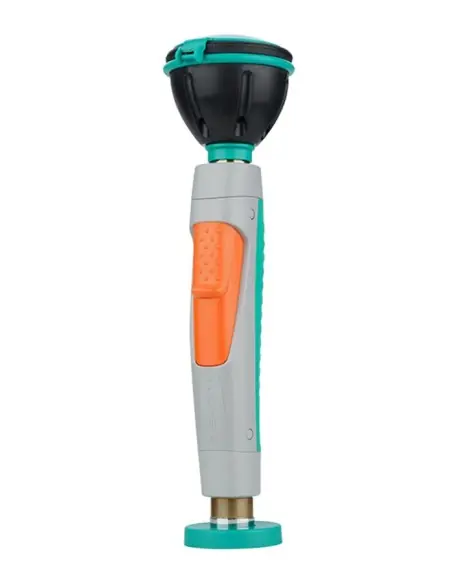

  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, with plastic spray plate, largely scale-free, with rubber sleeves and sealed dust caps
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • table mounting accessories M28x1,5x80mm made of stainless steel, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, rosette plastic, green, sealing to table surface with O-Ring
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • mounting height 770 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated

Certification

DVGW
