Exceptional Eye Safety: Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 025 | B-Safety

Experience immediate, reliable eye protection in any industrial environment with the Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 025 | B-Safety. Specially designed to provide fast, precise rinsing in emergencies, this indispensable device keeps workers safe from chemical splashes, dust, and other workplace hazards.

Features and Benefits of Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 025 | B-Safety

  • Ergonomic One-Hand Operation: The hand-held design allows quick, easy use—crucial when every second counts. Users can direct the gentle water stream precisely with just one hand, freeing the other for support or assistance.
  • Optimal Spray Angle: The spray head is set at a smart 45° angle, enabling thorough rinsing without awkward positioning. This ensures complete coverage of the affected area and reduces further risk.
  • Economical Water Flow: Engineered for effective use, the single spray head dispenses water at an ideal pressure—powerful enough to cleanse, gentle enough to protect sensitive eyes.
  • Durable Construction: Built with robust, industrial-grade materials, this eye shower withstands tough work environments and frequent usage. It stays reliable even under daily wear and tear.
  • Hygienic and Low Maintenance: Designed with easy-to-clean surfaces and minimal components, the unit helps maintain hygiene standards in any facility. Its straightforward setup means less time on maintenance and more on safety.
  • Versatile Installation: Lightweight and compact, the shower is suitable for various industrial settings—labs, factories, workshops, and more. Mounting is simple, ensuring that safety is always within reach.

The Hand-held eye shower with one spray head 45° - ClassicLine - BR 713 025 | B-Safety acts fast in emergencies, preventing serious injuries and boosting confidence on the job. Its intelligent design minimizes panic, giving users immediate relief and clear vision after exposure to harmful substances.

Choose this advanced eye shower and raise your workplace safety to the highest standard. Protect your team with swift, reliable, and effective first aid—because in emergencies, quality matters.

Datasheet and documents

Description

Technical Specifications

  • Material: brass, plastic
  • Color: grey, green, orange
  • Dimensions (H x W): 270 x 65 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 7 l/min
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with the B-SAFETY high-performance spray head, which not only meets the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the enclosed table mounting accessory, the hand-held eye shower can be mounted on the wall or also on the table. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

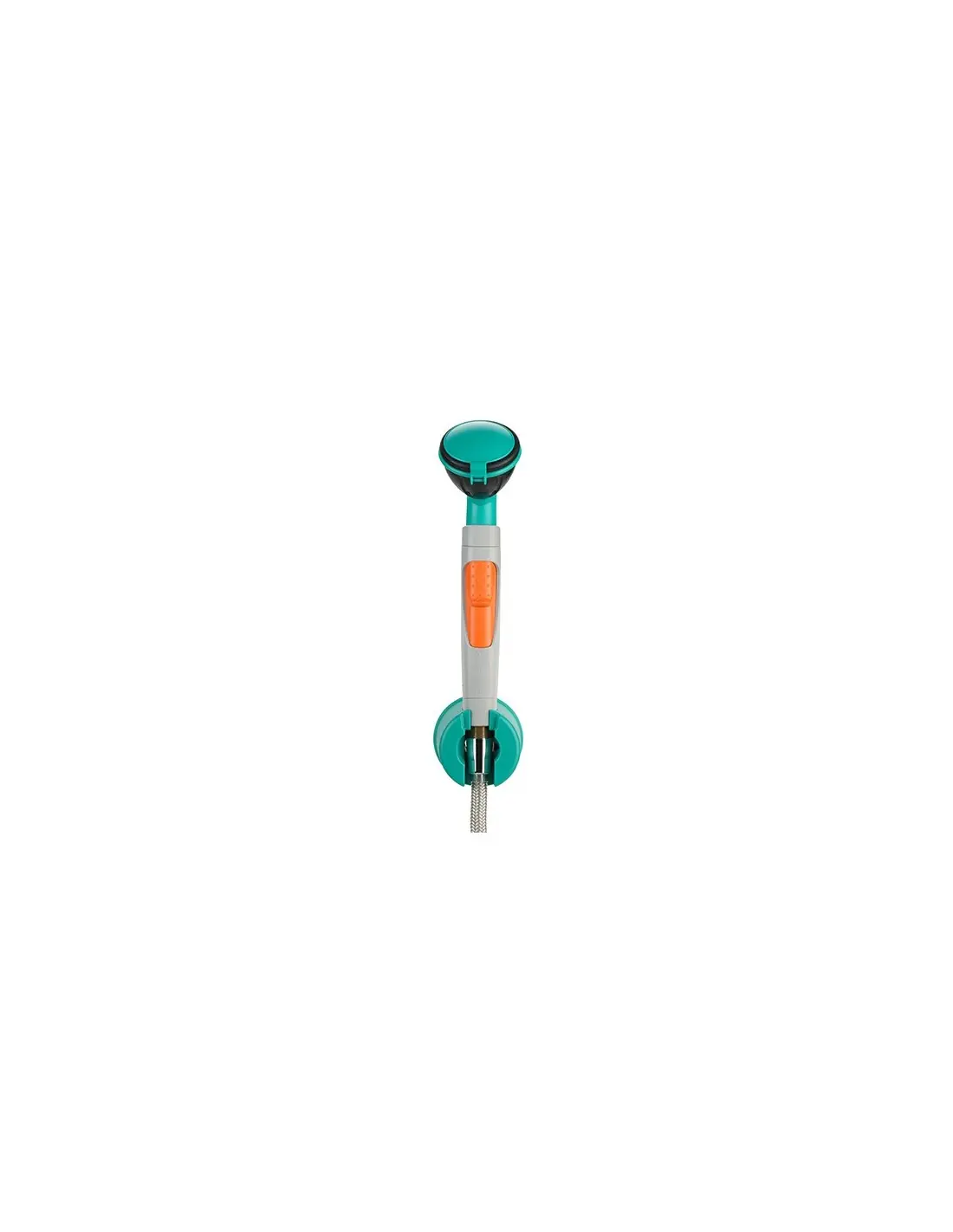

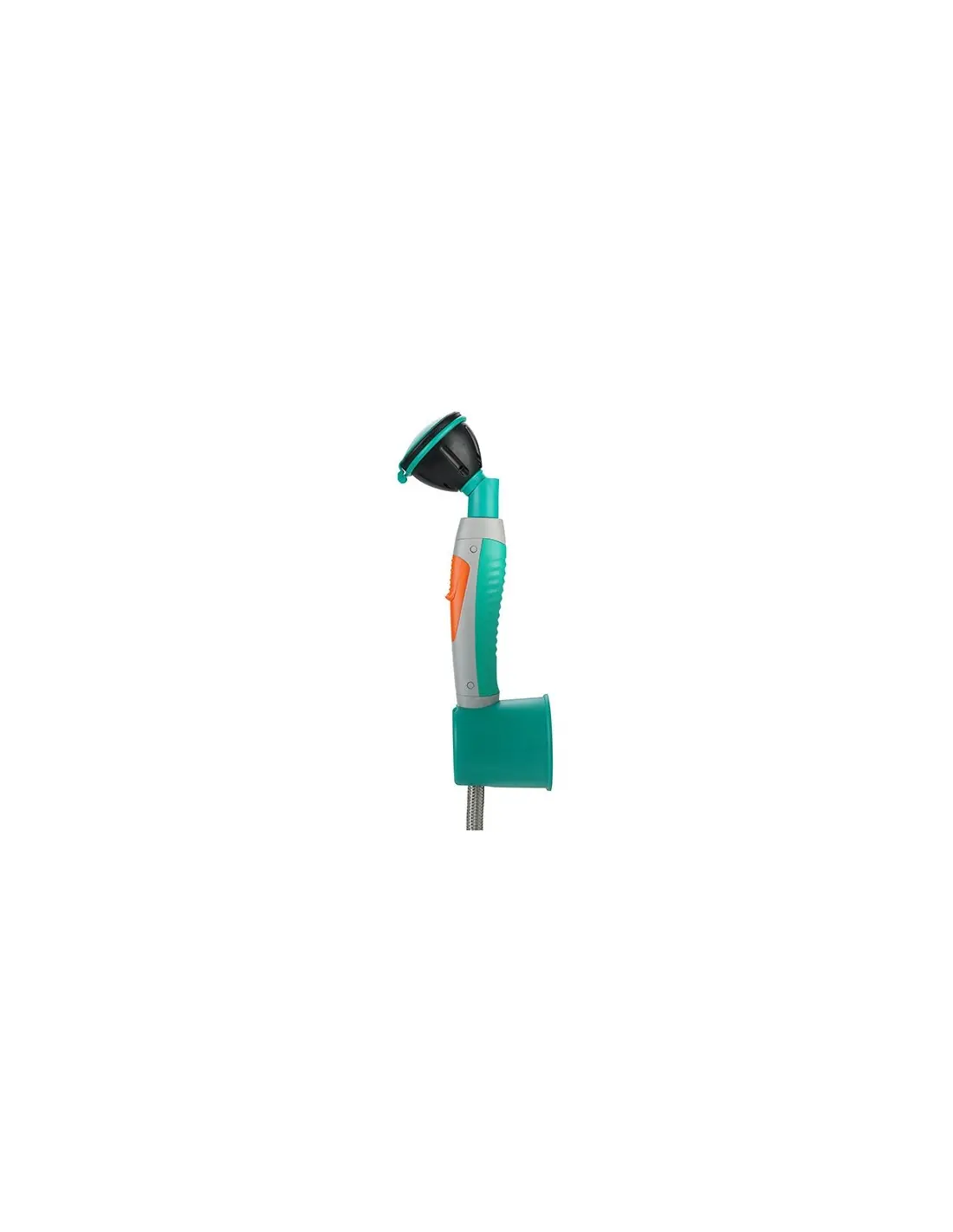

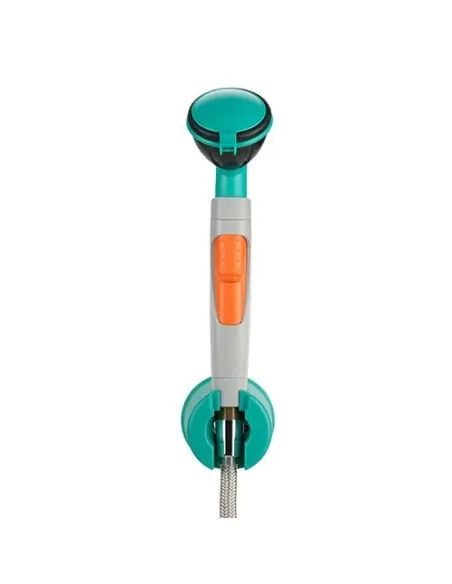

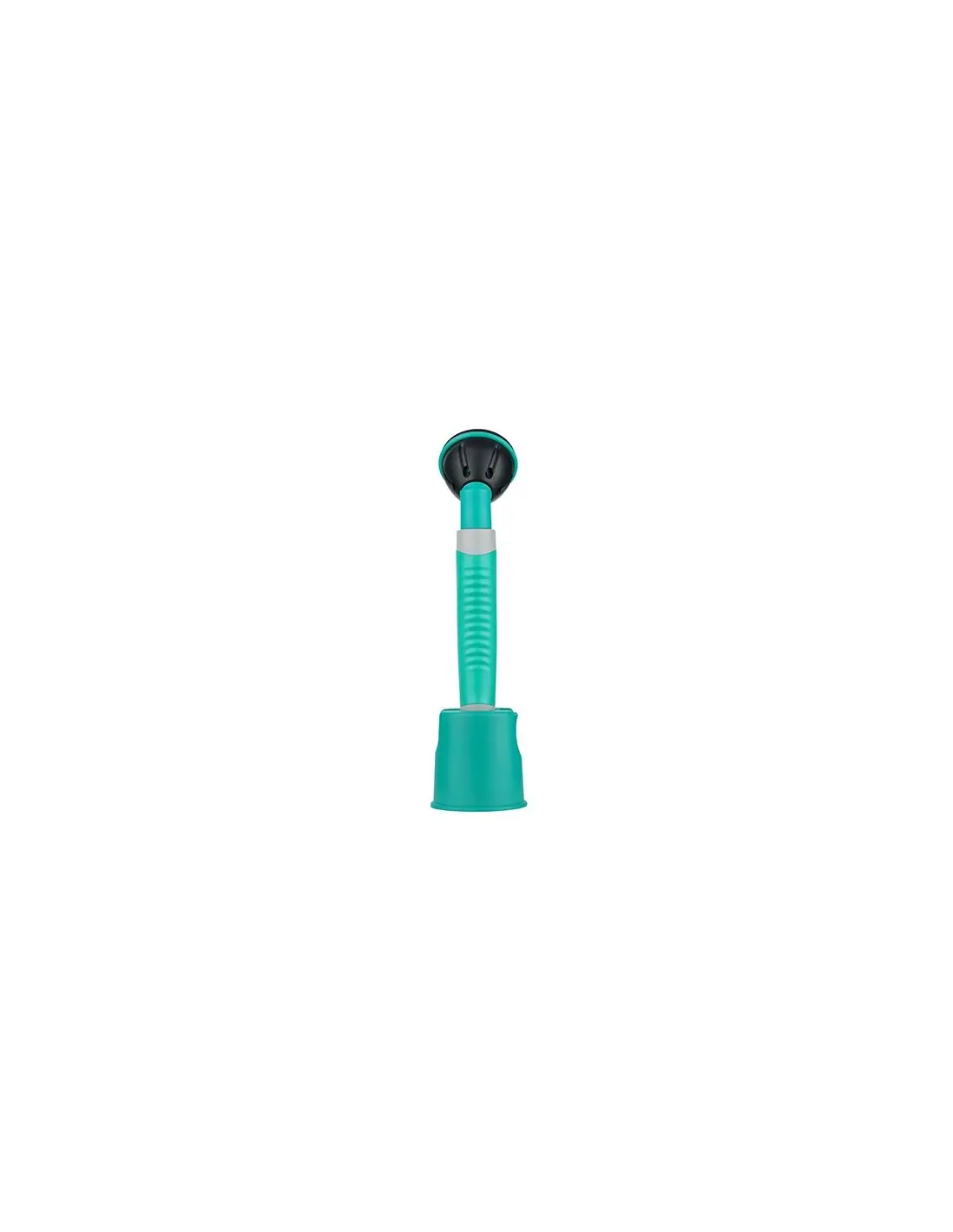

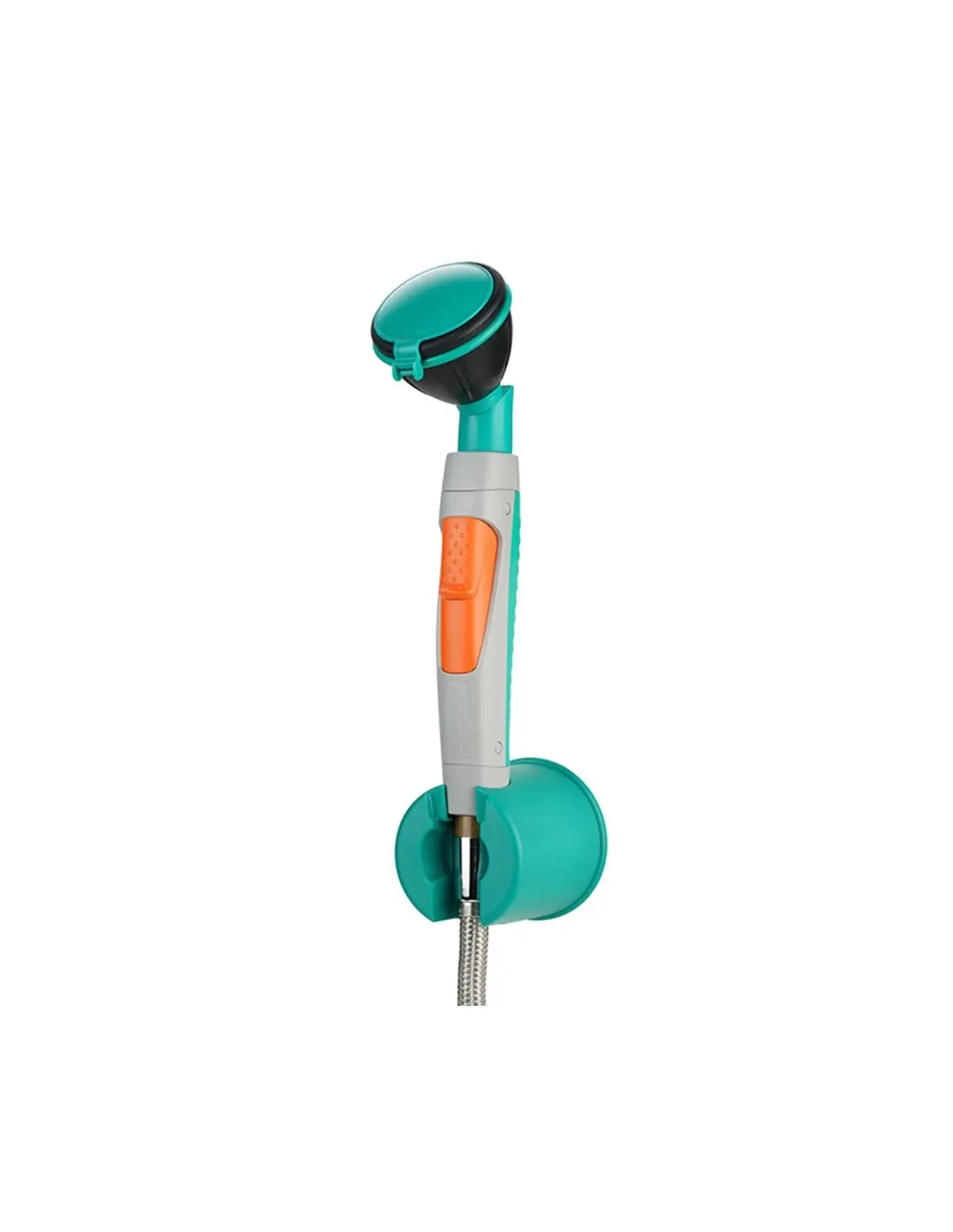

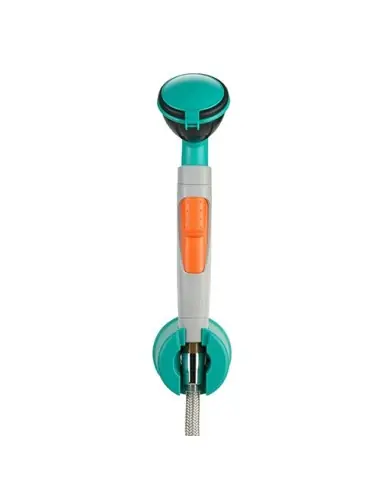

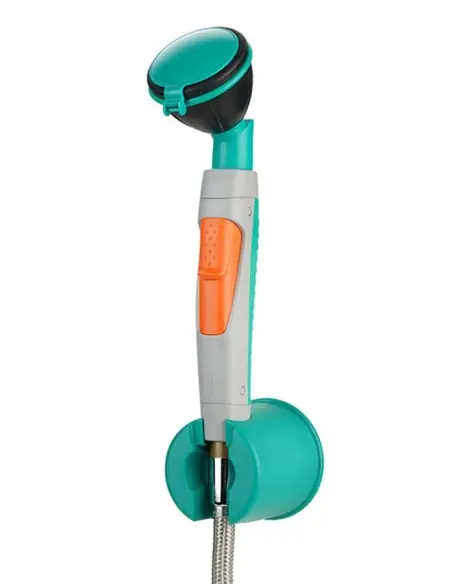

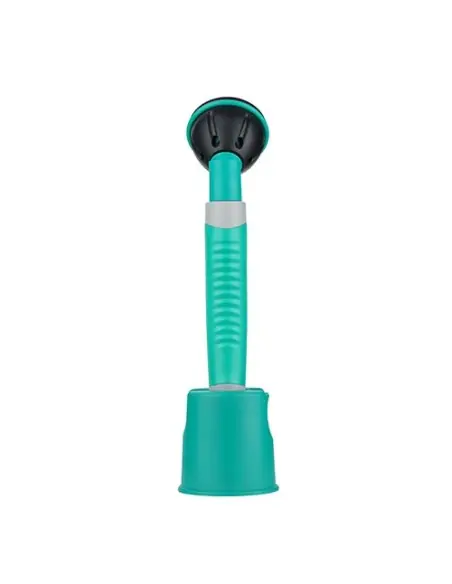

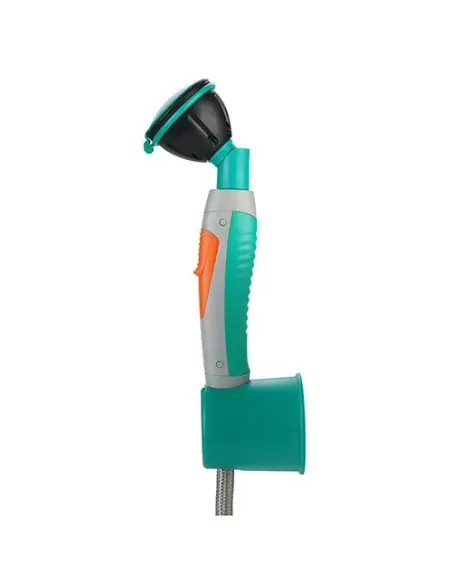

  • B-SAFETY ClassicLine hand-held eye shower with one spray head 45°, table mounted
  • ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
  • high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeve and sealed dust cap with folding mechanism
  • integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust table and wall mounting bracket with positioning of the shower, incl. fastening-parts kit with nut M28x1,5mm and 2 screws M5 for mounting difficult to access, sealing to wall/table surface by means of special seal
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • Mounting height 750 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
