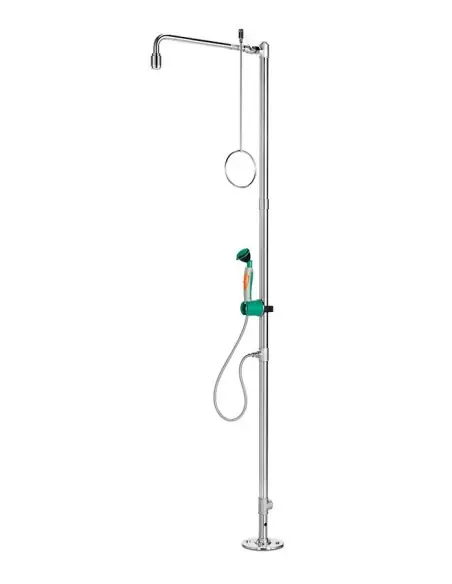

Industrial safety shower, freestanding, with hand-held eye shower with one spray head 45 - PremiumLine - BR 833 095 | B-Safety

Stay Safe and Prepared: Key Features and Benefits of Industrial safety shower, freestanding, with hand-held eye shower with one spray head 45 - PremiumLine - BR 833 095 | B-Safety

The Industrial safety shower, freestanding, with hand-held eye shower with one spray head 45 - PremiumLine - BR 833 095 | B-Safety is the reliable solution for emergency safety in any industrial environment. Designed to react quickly in unexpected situations, it offers immediate relief when every second counts.

Rapid Response: The shower delivers a powerful water flow to wash away hazardous substances instantly, protecting workers’ health and meeting strict safety regulations.
Hand-Held Eye Shower: The integrated eye shower, fitted with a single, effective spray head, is easily accessible and allows targeted flushing of eyes – vital for preventing long-term injuries from chemicals or debris.
Freestanding Design: Simple to install wherever needed without wall supports or complex set-up. Its sturdy construction ensures stability even in high-traffic areas.
Premium Materials: Built from corrosion-resistant materials, the shower is durable, long-lasting, and requires minimal upkeep, even under tough industrial conditions.
Easy Operation: Simple controls let anyone activate the shower or eye wash in seconds, with ergonomic levers and a clearly visible design for fast action, even in emergencies.

The unit’s thoughtful design ensures both immediate drenching and precision eye care in one piece of equipment, so you’re always ready for unplanned spills or splashes. Its compact, modern look fits seamlessly into any workspace while complying with workplace safety standards.

High-Visibility: Bright, clear markings and a recognizable design make it easy to find at a glance.
Adaptable Placement: Suitable for placement anywhere on site, from labs to production floors, without complicated installation.
Reliable Performance: Trusted by safety professionals, it provides peace of mind for workers and managers alike.

Choose the Industrial safety shower, freestanding, with hand-held eye shower with one spray head 45 - PremiumLine - BR 833 095 | B-Safety for uncompromised safety and quick action when it matters most. Protect your team, meet safety standards, and ensure a safer workplace every day.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel
Surface: polished
Total height: 2300 mm
Projection: 630 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: 1 ¼” female

Norms / Approvals

EN 15154-2:2006
EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
DIN-DVGW, DVGW, NW-0417CL0263
GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcificationand maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
base plate with 4 mounting holes of stainless steel, polished, diameter 200 mm
stand pipe 1 ¼” of stainless steel three-part, polished, with top and bottom water inlet 1 ¼” female, total height 2300 mm
connection piece of stainless steel, for easy installation and alignment of the shower
ball valve ¾” of stainless steel, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
pull rod with ring handle of stainless steel, polished, length 700 mm
wall shower arm ¾“ of stainless steel, polished, projection 630 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
inclusive ClassicLine hand-held eye shower with one spray head 45°, for mounting on standpipe, position and orientation freely selectable
ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
high-performance spray head for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism
integrated flow regulation 7 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
integrated backflow preventer to protect the drinking water
stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
sturdy wall bracket with positioning of the shower, including mounting kit for mounting on the standpipe
sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
