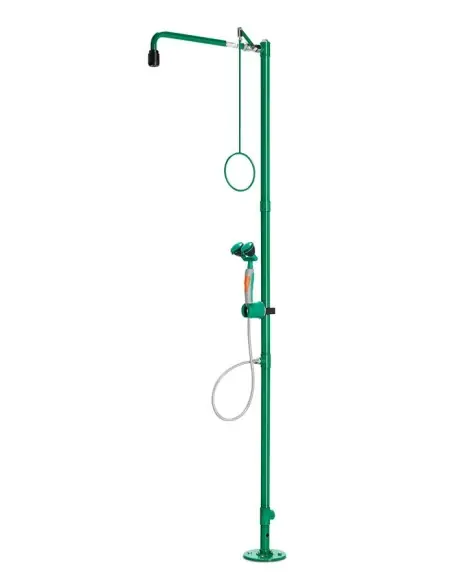

Industrial safety shower, freestanding, with hand-held eye shower with 2 spray heads 45° - ClassicLine - BR 834 085 | B-Safety

Features and Benefits of the Industrial safety shower, freestanding, with hand-held eye shower with 2 spray heads 45° - ClassicLine - BR 834 085 | B-Safety

Stay safe and protected in any industrial environment with the Industrial safety shower, freestanding, with hand-held eye shower with 2 spray heads 45° - ClassicLine - BR 834 085 | B-Safety. Designed for quick emergency response, this robust safety station offers reliable decontamination and ease of use when seconds matter most.

Freestanding Design: Easily install this shower anywhere in your workspace without the need for wall support, giving you flexibility and fast accessibility.
Rapid Emergency Activation: The shower activates instantly, delivering a strong and even flow that quickly removes hazardous substances from skin and clothing.
Hand-Held Eye Shower: Equipped with a convenient hand-held unit, it allows targeted washing of the eyes or face, ensuring thorough and gentle cleaning during emergencies.
Dual Spray Heads at 45° Angle: The two spray heads provide wide coverage, maximizing rinsing effectiveness and comfort for users of all heights.
Solid Construction: Built with industrial-grade materials for durability, this safety shower withstands demanding environments and intensive use.
Visible and Accessible: Vibrant design ensures the station is easily visible in high-traffic work areas, saving precious time in an emergency.

The Industrial safety shower, freestanding, with hand-held eye shower with 2 spray heads 45° - ClassicLine - BR 834 085 | B-Safety offers peace of mind for workers in laboratories, factories, and any setting where hazardous materials are present. Its user-friendly operation means anyone can respond quickly, while the double spray head and precise hand-held feature ensure effective decontamination. Investing in this safety solution demonstrates a strong commitment to workplace health and safety, keeping your team protected at all times.

Datasheet and documents

Datasheet

Description

Technical Specifications

Material: stainless steel, plastic
Color: green, black
Total height: 2300 mm
Projection: 630 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: 1 ¼” female

Norms / Approvals

EN 15154-2:2006
EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
DIN-DVGW, DVGW, NW-0417CL0263
GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcificationand maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
base plate with 4 mounting holes of stainless steel, chemical resistant green powder coated, diameter 200 mm
stand pipe 1 ¼” of stainless steel three-part, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female, total height 2300 mm
connection piece of stainless steel, for easy installation and alignment of the shower
ball valve ¾” made of dezincification-resistant brass, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 630 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
inclusive ClassicLine hand-held eye shower with two spray heads 45°, for mounting on standpipe, position and orientation freely selectable
ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
high-performance spray heads for large-scale dispersion of water, 45° angled, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism
integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2 to 5 bar flow pressure
integrated backflow preventer to protect the drinking water
stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
sturdy wall bracket with positioning of the shower, including mounting kit for mounting on the standpipe
sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
