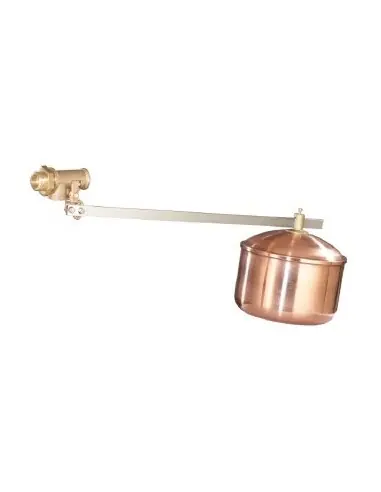

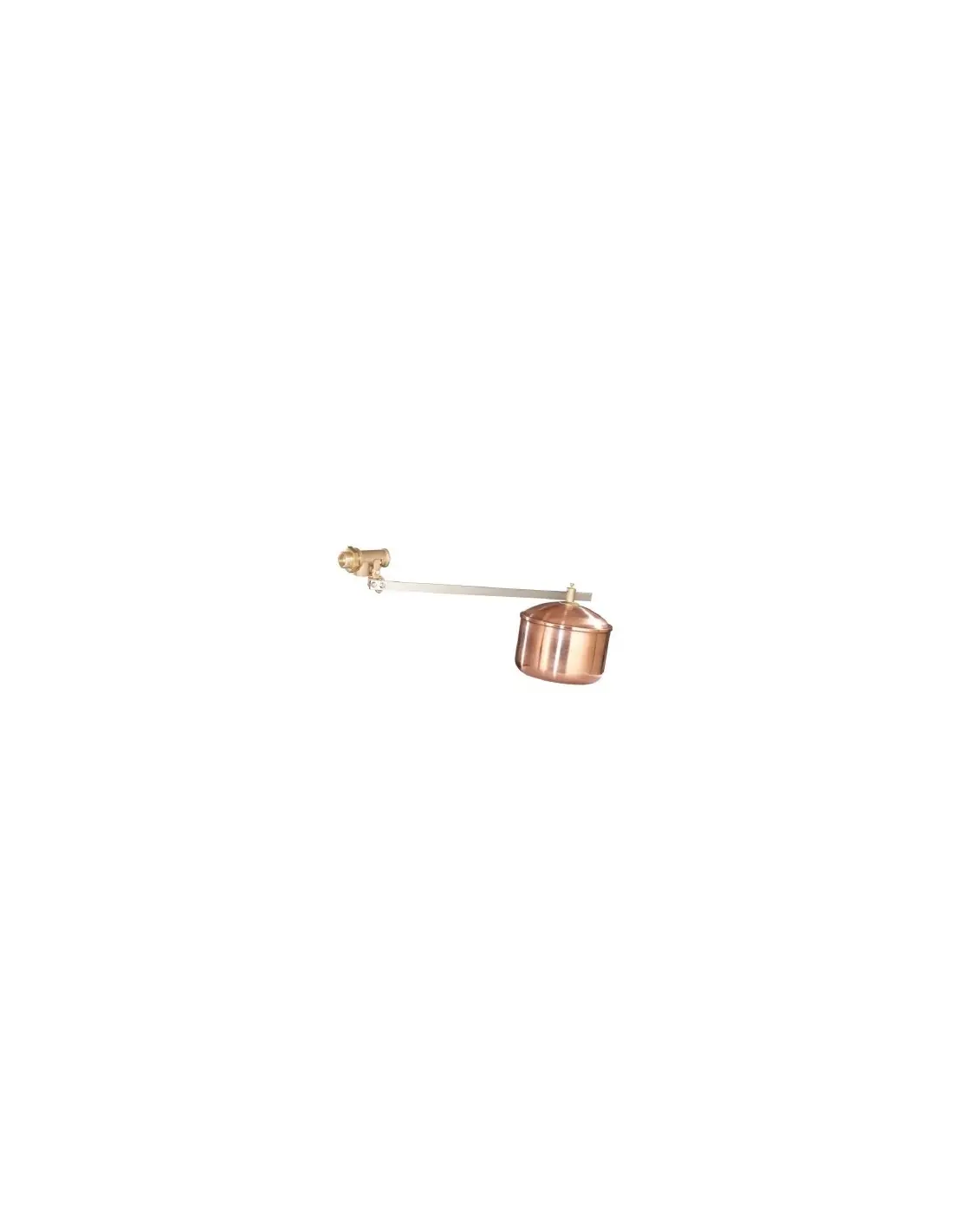

The KSV 10 is a mechanically actuated float valve, utilizing a float and piston mechanism for level control. It is designed for filling tanks with neutral, non-viscous liquids where no electrical level signal or motorized actuator is required. Liquid level is adjusted via the float position on the lever arm and the lever angle.
Floats are available in HDPE, copper, or V4A stainless steel. Selection impacts temperature resistance, buoyancy, and media compatibility. For temperatures above 80 °C, stainless steel float is required.
Seat and seals are replaceable. The control piston can be removed for inspection by loosening a single screw, facilitating maintenance in installations with frequent deposit or seat wear checks.
When to select KSV 10 over KSV 80?
Use KSV 10 for neutral, non-viscous media, sizes DN 15–DN 25, and when red brass construction is compatible with the process fluid.
Certifications available?
Manufacturer or product certifications include CE/PED, DVGW, and ISO 9001. Applicability must be verified per part number, installation country, and process media.

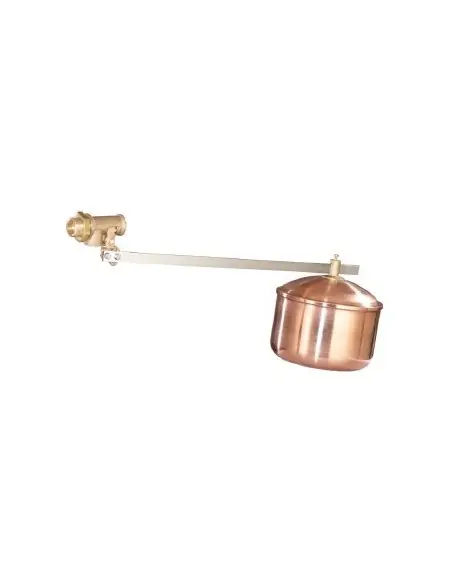

KSV 10
Float valves of this series are ideal for filling medium to large storage tanks or for level control. A desired liquid level can be precisely adjusted by moving the float. The valves have a high flow rate.
Nominal size DN 15 up to DN 25
Inlet pressure up to 12 bar
Kvs-value 2.7 - 6.7 m³/h
Temperature range up to 80°C up to 190°C with VA float
Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
