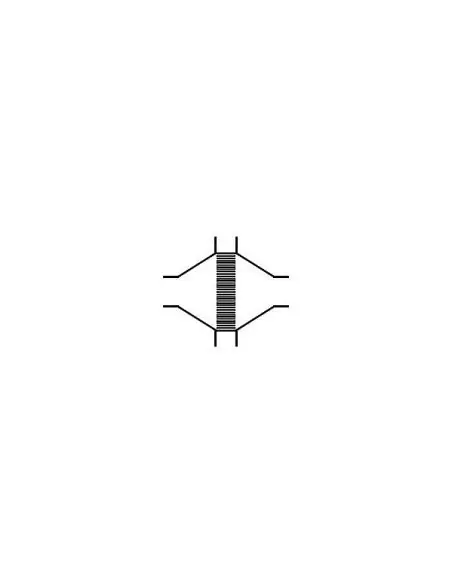

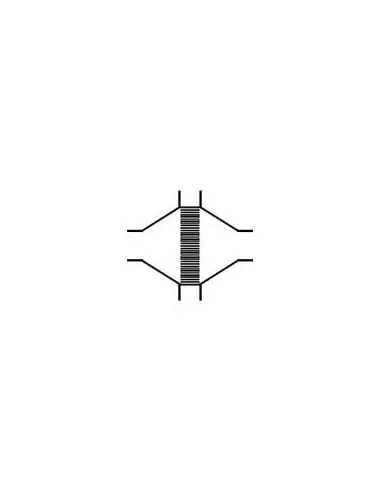

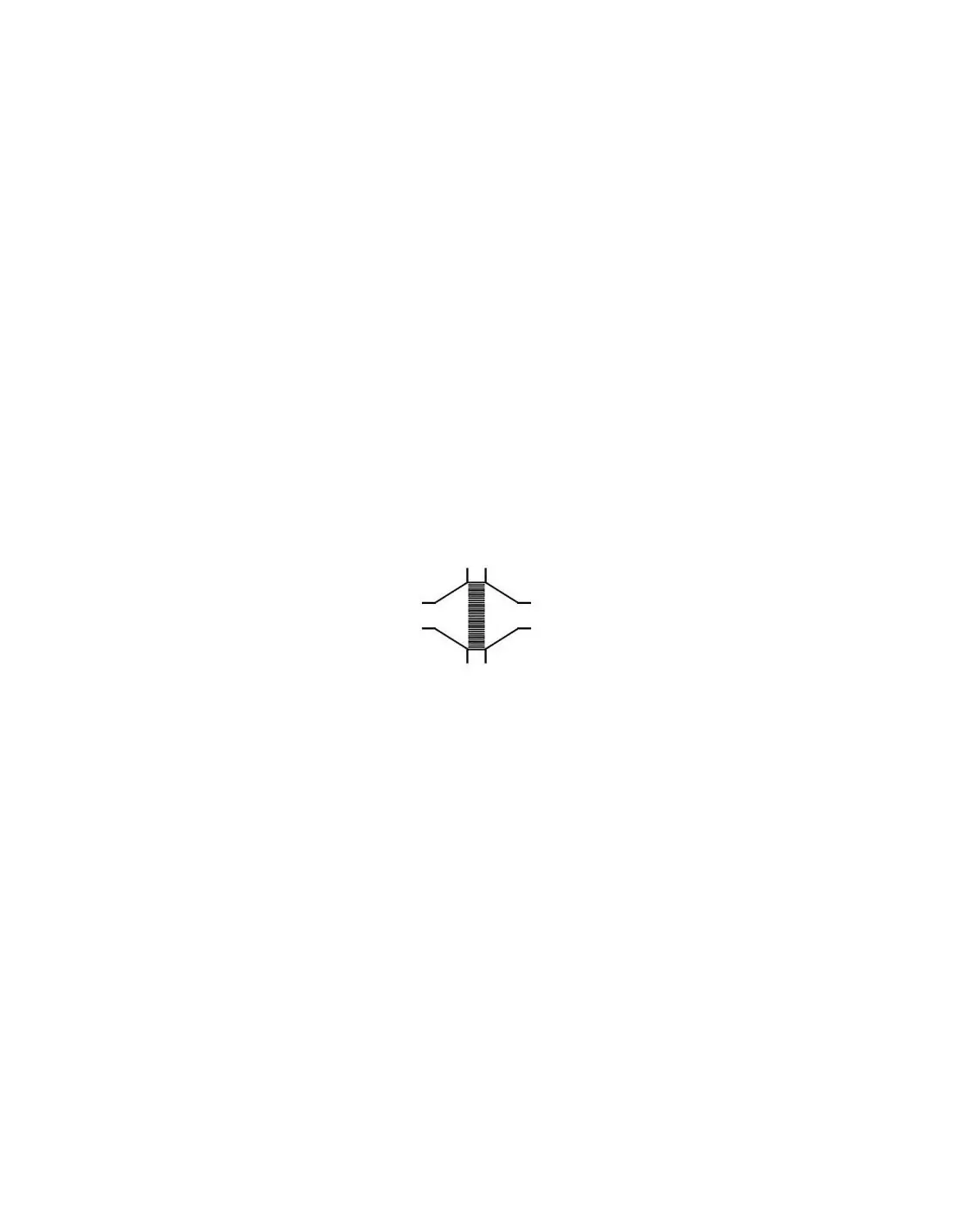

KITO G 26 N – Bidirectional Inline Detonation Flame Arrester with Threaded Connection

The KITO® RG-Det4-IIA-…-1.2 / -T / -TT is a bidirectional inline detonation flame arrester designed for the protection of vessels and process equipment against stable detonation in piping systems conveying flammable gases or vapors of flammable liquids. Certified as a detonation flame arrester type 4, it is suitable for installation in both horizontal and vertical pipelines.

Operating Limits

  • Explosion Groups: IIA1 to IIA
  • MESG: > 0.9 mm
  • Max Operating Pressure: 1.2 bar abs.
  • Max Operating Temperature: 60 °C
  • Endurance to Stabilized Burning: BT ≤ 30 min
  • Connection: Threaded G 1/8" to G 2"

Thermal Monitoring

Variants -T and -TT are equipped with PT100 temperature sensors. For stabilized burning detection, a sensor is required on each side exposed to potential flame. The PT100 is intended for monitoring (alarm or interlock) and not as an actuator.

Materials and Sealing

Standard construction includes a carbon steel body, HD 3822 gasket, fully replaceable KITO element, and stainless steel mesh 1.4310. Optional materials: body 1.4571, gasket PTFE, mesh 1.4571, bolts/nuts A4.

Application Selection

The G 26 N differs from flanged G 22–G 25 series by its threaded connection and smaller nominal sizes. Selection must consider explosion group, MESG, pressure, temperature, pressure drop, gas flow, and PT100 requirement. Flow curves are provided for air ρ = 1.29 kg/m³ at 273 K; correction is required for other gases.

FAQ

Covers IIB or IIC?
No. Certification is limited to IIA only.

Vertical installation?
Yes, installation is permitted in any orientation.

Certification?
Type tested to EN ISO 16852 and CE marked per ATEX 2014/34/EU.

Datasheet and documents

Description

KITO® RG-Det4-IIA-…-1.2

KITO® RG-Det4-IIA-…-1.2-T (-TT)

  • For installation into pipes to the protection of vessels and components against stable detonation of flammable liquids and gases.
  • Tested and approved as detonation flame arrester type 4.
  • Approved for all substances of explosion groups IIA1 to IIA with a maximum experimental safe gap (MESG) > 0.9 mm.
  • Bi-directionally working in pipes, whereby an operating pressure of 1.2 bar abs. and an operating temperature of 60 °C must not be exceeded.
  • All sizes are tested against “stabilized burning” and withstand this up to a max. burn time BT ≤ 30.0 min.
  • To detect a “stabilized burning” a temperature sensor must be installed at each endangered side.
  • Mounting is acceptable in any position, in horizontal as well as in vertical pipes.
