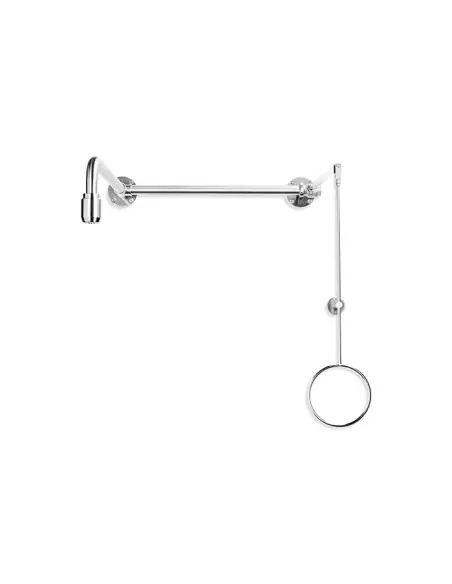

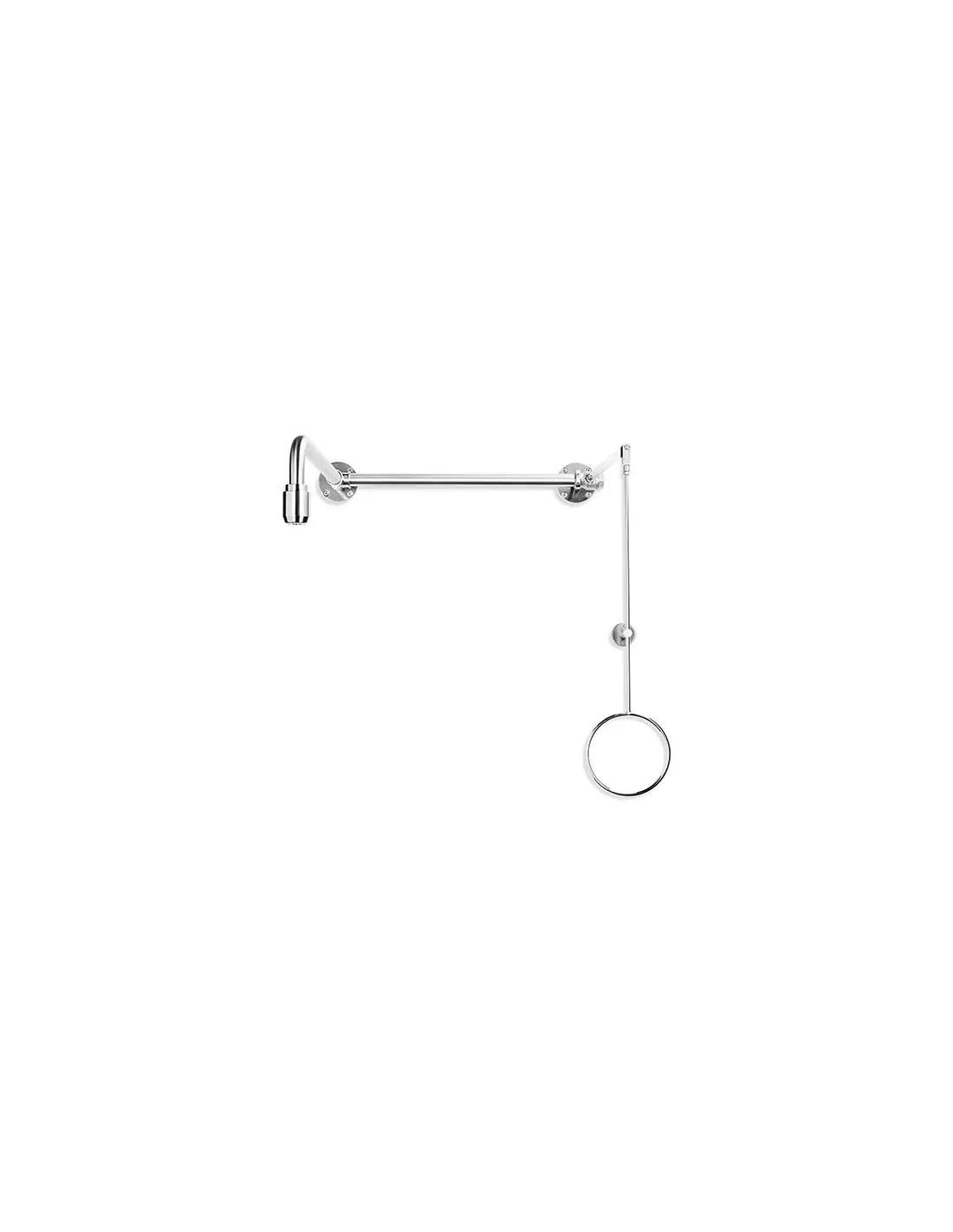

Body safety shower stainless steel, above door installation - PremiumLine - BR 084 095 | B-Safety: Advanced Protection, Effortlessly Delivered

Stay one step ahead in workplace safety with the Body safety shower stainless steel, above door installation - PremiumLine - BR 084 095 | B-Safety. Specially engineered for industrial environments, this premium emergency shower offers advanced features to safeguard your team when it matters most. Made entirely from high-grade stainless steel, it delivers durability and reliability, even in the toughest settings.

Features & Benefits of Body safety shower stainless steel, above door installation - PremiumLine - BR 084 095 | B-Safety

  • Robust Stainless Steel Design: Constructed with superior stainless steel, this shower stands up to corrosion, impact, and time. It’s built for heavy-duty industrial use, providing long-lasting protection where you need it most.
  • Above Door Installation: Maximize your workspace efficiency by installing directly above any door. This smart design ensures immediate accessibility in emergencies without taking up extra floor space.
  • Easy Activation Mechanism: The shower features a user-friendly pull rod, enabling ultra-fast response in critical moments—a simple action delivers a powerful flow for comprehensive body rinsing.
  • Consistent, Full Coverage Spray: The advanced showerhead is engineered for even water distribution, ensuring complete coverage and rapid decontamination.
  • Reliable Performance: Every time you need it, the PremiumLine shower delivers constant, high-volume water flow, offering immediate relief in hazardous scenarios.
  • Effortless Maintenance: Smooth surfaces and minimalistic design make cleaning and upkeep straightforward, reducing downtime and keeping safety standards high.
  • Industrial Grade Quality: Specially designed for use in factories, laboratories, and workshops, this unit meets demanding safety regulations and provides peace of mind for both workers and managers.

In emergencies, speed and reliability are crucial. The Body safety shower stainless steel, above door installation - PremiumLine - BR 084 095 | B-Safety guarantees instant access, broad coverage, and enduring toughness, helping to protect people from chemical spills, burns, and other industrial accidents.

Empower your safety plans with a solution tailored for industrial needs. Choose the PremiumLine BR 084 095 from B-Safety and take the guesswork out of emergency response.

Datasheet and documents

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Projection: 525 mm
  • Installation height: 2345 mm (± 100 mm)
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

DVGW
ISO9001_D_72

Technical Description

  • ball valve with pull rod actuation on wall flange, can be mounted either on the right or left side of the door, of stainless steel, DIN-DVGW tested and certificated, water inlet ¾” female
  • pull rod with ring handle of stainless steel, polished, length 700 mm
  • holder for pull rod made of stainless steel, polished
  • connection pipe ¾“ of stainless steel, polished, length 500 mm
  • wall flange with 4 mounting holes of stainless steel, polished
  • wall shower arm ¾“ of stainless steel, polished, projection 525 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 2345 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated

Certification

DVGW    ISO9001_D_72
