Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety

Stay Protected with Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety

Ensure maximum workplace safety with the Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety. Designed for industrial settings, this innovative safety solution provides immediate and effective body rinsing in the event of hazardous exposure. Easy to install above any door, it guarantees rapid access and peace of mind for your entire team.

Key Features & Benefits of Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety

  • Ultra-Fast Response: Positioned directly above doors, this emergency shower allows for instant activation, reducing response time when every second counts.
  • Space-Saving Design: The above-door installation makes the most of your available space, without blocking walkways or work areas.
  • Robust Construction: Built from high-quality materials, the ClassicLine shower withstands harsh industrial environments, ensuring long-lasting reliability.
  • Simple Activation: Designed for quick and easy use, even for those under stress. The intuitive pull rod guarantees fast water flow, aiding efficient decontamination.
  • Consistent Water Coverage: Engineered to provide thorough rinsing from head to toe, helping remove harmful substances from the entire body surface.
  • Universal Compatibility: Suitable for chemical plants, laboratories, manufacturing sites, and more.

The Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety is a smart investment for any industrial workspace that prioritizes safety. Its clever above-door mount keeps the unit accessible yet out of the way, making it ideal for busy, high-traffic areas. Thanks to the sturdy ClassicLine build, you can trust it to be ready at all times, providing fast relief and minimizing potential injuries.

Simple installation means you can upgrade your safety measures without disrupting your workflow. The unmistakable operating handle is easy to spot and effortless to use, even in emergencies. Delivering a powerful, even water spray, rinsing is both effective and efficient.

Choose the Body safety shower above door installation - ClassicLine - BR 084 085 | B-Safety for reliable, immediate, and lasting body protection exactly where you need it most.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Projection: 525 mm
  • Installation height: 2345 mm (± 100 mm)
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

DVGW
ISO9001_D_72

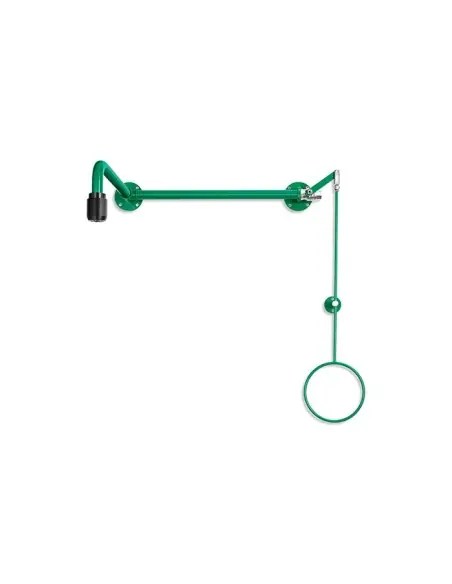

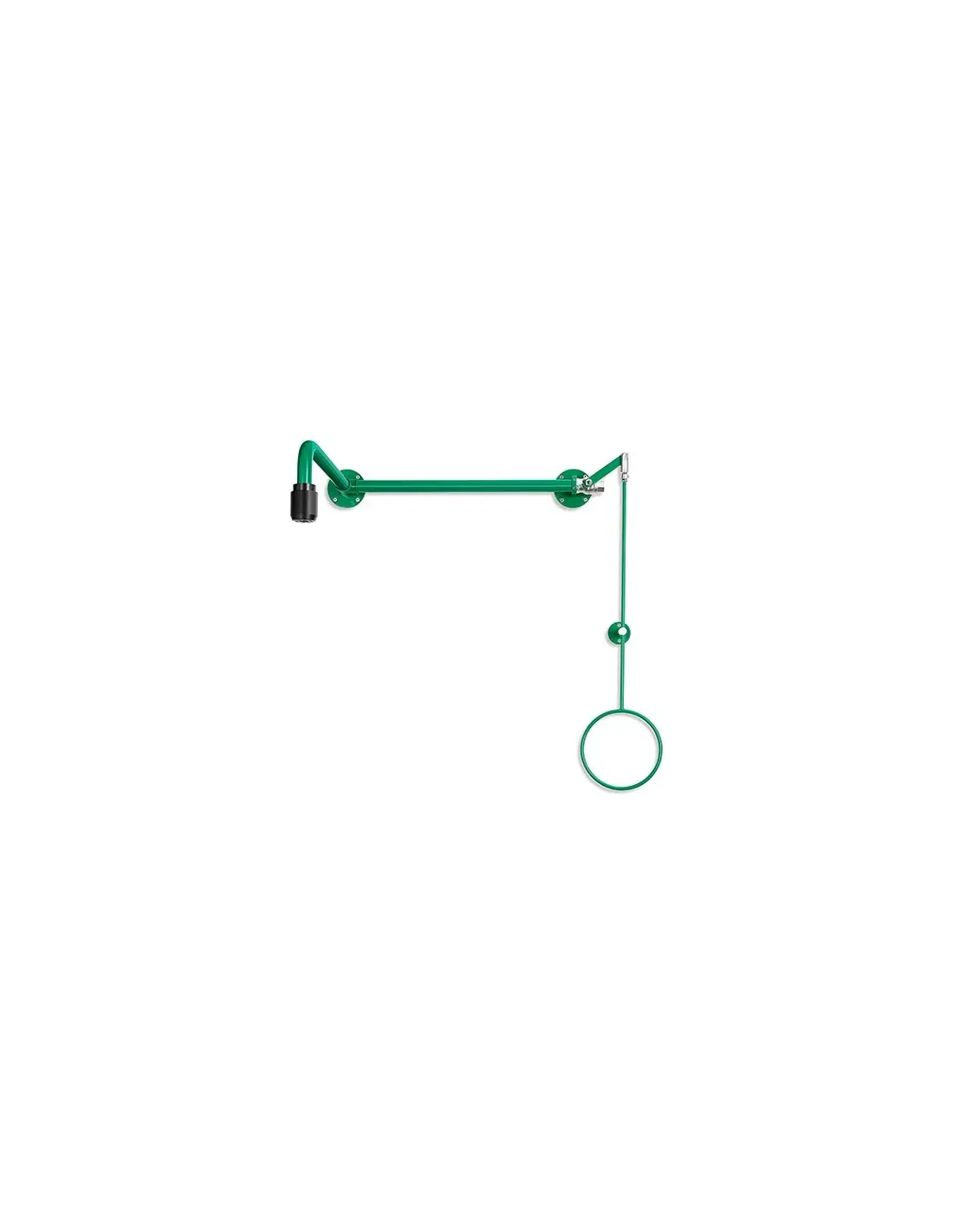

Technical Description

  • ball valve made of dezincification-resistant brass with pull rod actuation on wall flange, can be mounted either on the right or left side of the door, DIN-DVGW tested and certificated, water inlet ¾” female
  • pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
  • holder for pull rod made of steel, chemical resistant green powder coated
  • connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 500 mm
  • wall flange with 4 mounting holes of stainless steel, chemical resistant green powder coated
  • wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 525 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height 2345 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
