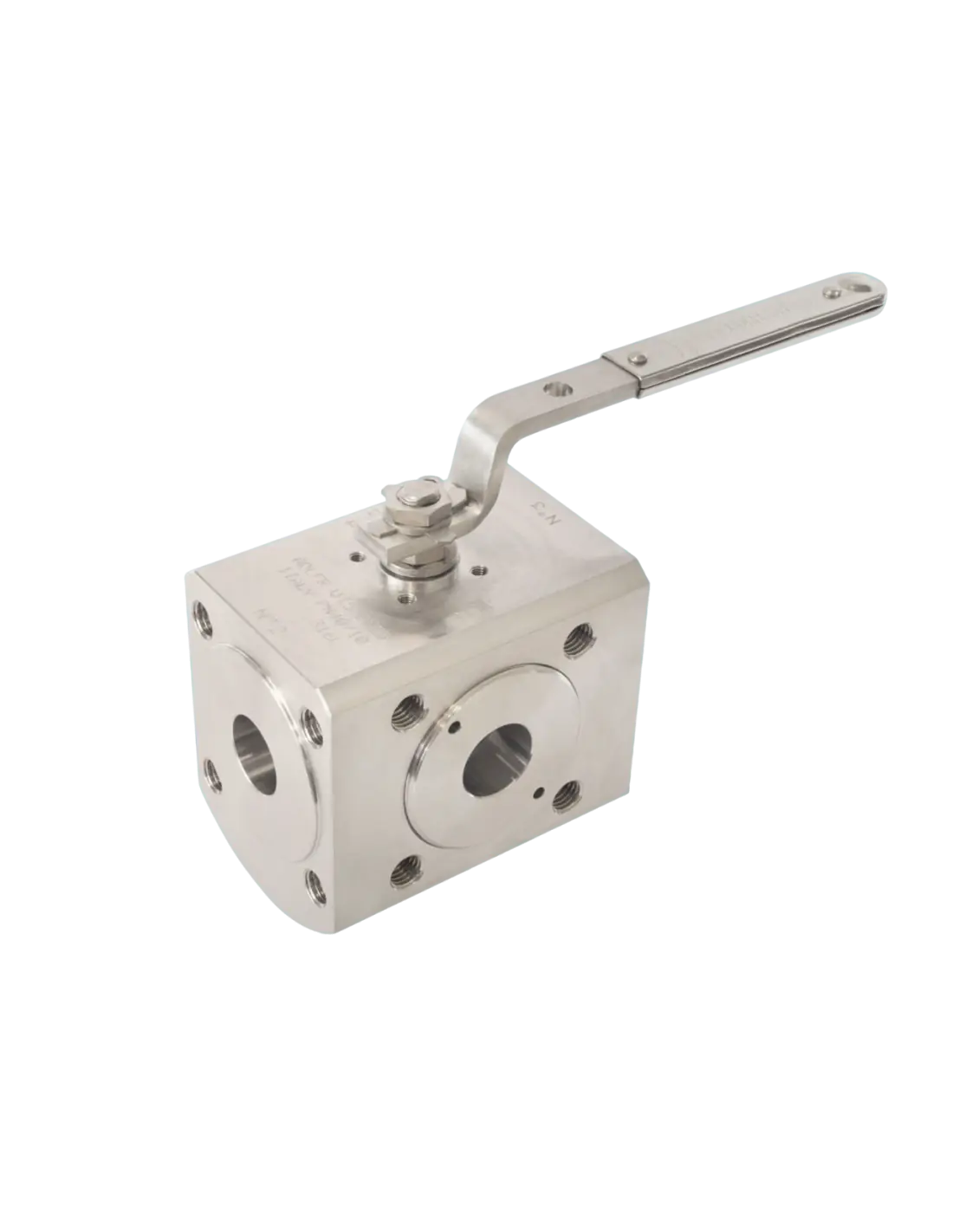

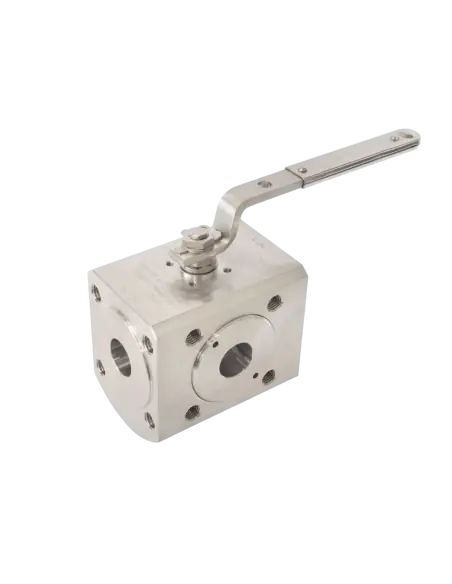

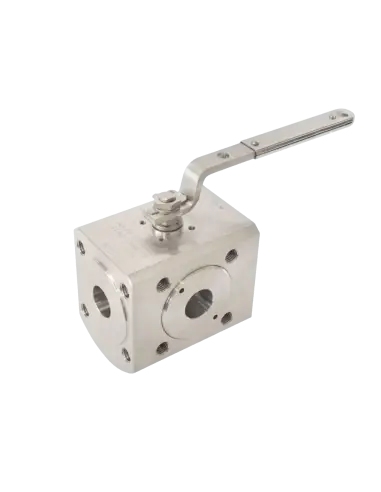

Adler VT5 4-Way Ball Valve

The Adler VT5 is a four-way, full-bore wafer-type ball valve with an X-port ball and 90° rotation. It is used for flow switching between four branches, replacing multiple two-way valves in process circuits. Flow configuration must be defined in the P&ID, as the X-port geometry allows specific port communication patterns only.

Technical Data

  • Type: 4-way ball valve, X-port
  • Construction: machined from bar, wafer pattern
  • Sizes: DN15 to DN150
  • Pressure: PN25 to PN63 (VT5 series)
  • Flanges: EN 1092-1 or ANSI B16.5
  • Body: ASTM A105 or ASTM A479 316/316L
  • Ball: ASTM A479 304/304L, ASTM A351 CF8, ASTM A479 316/316L, or ASTM A351 CF8M
  • Seats: PTFE, optional RPTFE
  • Stem sealing: PTFE / graphite chevron rings
  • Stem O-ring: FKM / Viton optional
  • Top flange: ISO 5211
  • Antistatic device: BS 5146
  • Stem: anti blow-out

Operational Use

VT5 is applied in line switching, bypass circuits, flow distribution, tank selection, or heat exchanger circuits requiring synchronized switching of two paths. Not suitable for throttling; primarily for on/off position switching.

Standards and Options

Manufactured to ANSI B16.34, BS EN 12516-2, and full bore per ISO 14313. On request: PED 2014/68/EU, ATEX 2014/34/EU, fire-safe ISO 10497 / API 607, ISO 15848 class A, oxygen cleaning per ISO 23208, cryogenic execution, stem extension, pneumatic/electric actuator, gear operator, limit switches, solenoid valves.

FAQ

When to select VT5 over RT7?
When a flanged wafer 4-way configuration is required, for larger DN, or for EN/ANSI flange connections.

What should be checked before selection?
DN, PN/Class, X-port configuration, allowed operating positions, body material, PTFE/RPTFE seat, actuator torque, and requirements for ATEX, fire-safe, or ISO 15848.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 63
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Four way 90° ball valve “wafer type”, manufactured from round bar, according to ASME B16.34; ISO 14313.

Available size from DN 15 to DN 150 in carbon steel, stainless steel and special steel

Rating PN 10 ÷ 40 (On request ANSI 150).

With “X” bore type ball.

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– according to  PED 14/68/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS 5146 / 74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Certificates

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– EAC CERTIFICATION by B.V
