Inox-val 2 Piece Ball Valves - 701000 | Valpres

Name: Inox-val 2 Piece Ball Valves - 701000 | Valpres
Brand: Valpres S.R.L.
SKU: Inox-val 2 Piece Ball Valves - 701000 | Valpres

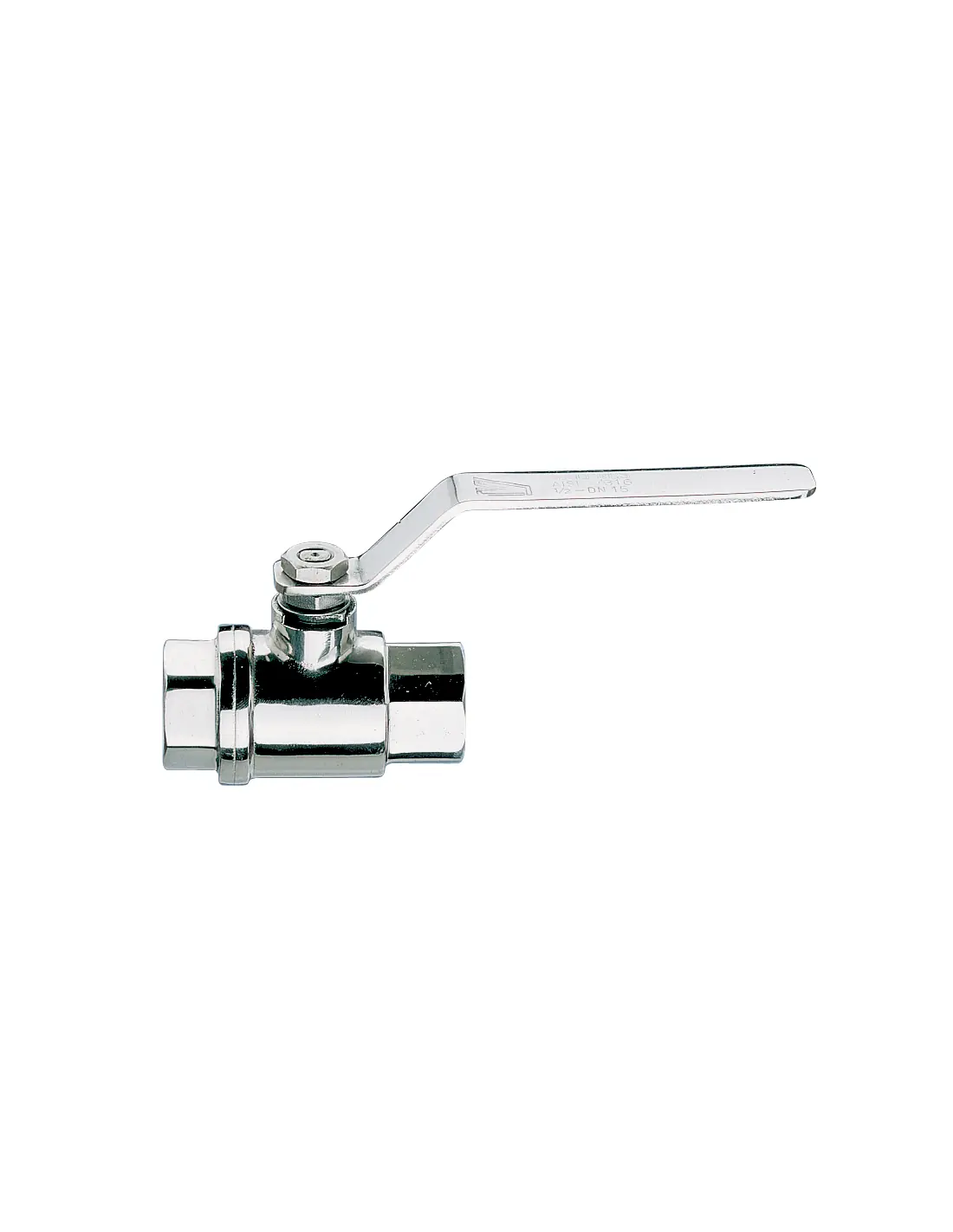

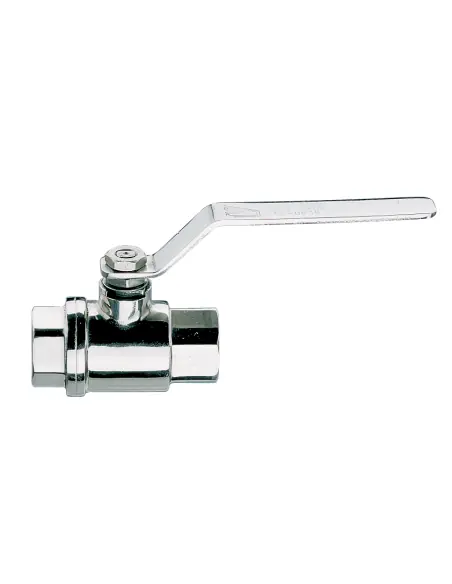

Inox-val 2 Piece Ball Valves - 701000 | Valpres: The Reliable Choice for Industrial Flow Control

Upgrade your industrial processes with the trusted Inox-val 2 Piece Ball Valves - 701000 | Valpres. Built for durability and precision, this valve ensures safe, consistent control of liquids and gases in demanding environments. Valpres brings Italian engineering excellence together with robust stainless steel construction to deliver a product that stands up to time and tough conditions.

Features and Benefits of Inox-val 2 Piece Ball Valves - 701000 | Valpres

Stainless Steel Strength: Constructed from high-grade stainless steel, this valve resists corrosion, rust, and chemical wear, ensuring long-lasting service and lower maintenance costs.
Two-Piece Design: The innovative two-piece body makes installation, inspection, and cleaning easier, ensuring efficient maintenance without long downtimes.
Full Bore Advantage: The full bore design allows maximum flow with minimal pressure drop, making it perfect for applications where flow efficiency is critical.
Smooth Operation: The quarter-turn lever handle provides smooth, straightforward opening and closing, letting you control flow with ease — even with gloves on.
Reliable Sealing: Designed with precision-engineered seals, leaks are virtually eliminated, keeping your workplace safe and your system running at its best.
Wide Compatibility: Compatible with a range of industrial systems, the Inox-val 2 Piece Ball Valve fits neatly into existing setups thanks to standard connection points.
Pressure and Temperature Resilience: Built to perform reliably under high pressures and a broad temperature range, this valve handles real-world industrial demands with confidence.

The Inox-val 2 Piece Ball Valves - 701000 | Valpres is purpose-built for industrial use, whether you’re moving water, oil, gas, or chemicals. Its rugged design means a longer service life and fewer replacements, making your investment go the distance. The simple handle mechanism is easy for anyone to use, reducing training time for your staff and keeping things running smoothly.

Choose Inox-val 2 Piece Ball Valves - 701000 | Valpres for an industrial ball valve that gets the job done, every time. Simple, strong, and built to last — it’s the smart choice for reliable flow control in any tough environment.

Datasheet and documents

Valpres 252000 Catalogue

Description

Technical specifications

Temperature range: -20°C +160°C.

Vacuum: 10-2 torr.

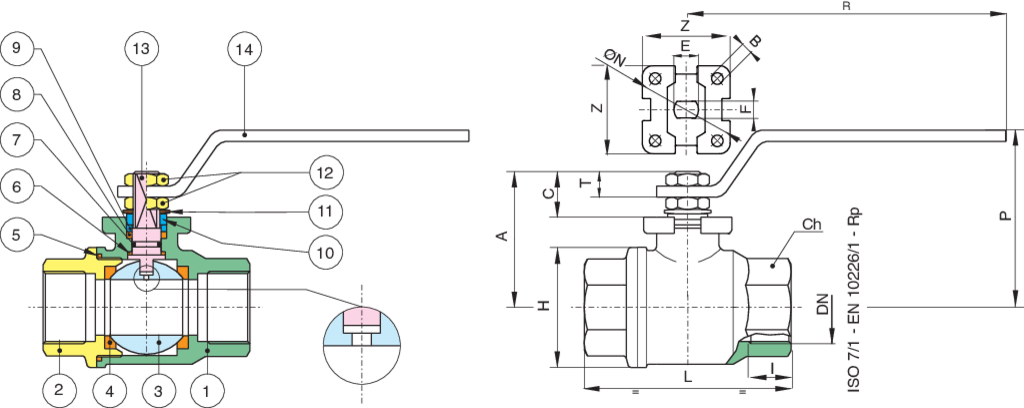

Position	Part name	Material	N.° pieces
1	BODY	A351-CF8M	1
2	END CONNECTION	A351-CF8M	1
3	BALL	A479-TP316/A351-CF8M	1
4	BALL SEAT	PTFE	2
5	SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	STEM SEAT	PTFE	1
9	PACKING GLAND	INOX AISI 316	1
10	END STOP	INOX AISI 316 (1/8”-2”)-(2’’1/2-4’’)	2-1
11	SPRING WASHER	STAINLESS STEEL (2’’1/2-4’’)	2
12	NUT	A182-F304	2
13	STEM	A479-TP316/17-4-PH	1
14	HANDLE	INOX AISI 316	1

SIZE	DN	CODE	BOX	I	L	H	Ch	R	P	A	C	T	E	F	ØN	B	Z	Kv	PN	Kg
1/8"	6	70100001	15	7,4	55	30	22	110	50	35	13,5	9	8	5	36	5,5	36	5	140	0,29
1/4"	8	70100002	15	11	55	30	22	110	50	35	13,5	9	8	5	-	-	-	5,5	140	0,27
3/8"	10	70100003	15	11,4	55	30	22	110	50	35	13,5	9	8	5	-	-	-	8,5	140	0,26
1/2"	15	70100004	10	15	66	36	27	110	53	38	13,5	9	8	5	-	-	-	19,2	140	0,35
3/4"	20	70100005	5	16,3	79	45	32	131	68	55	15	10	10	7	-	-	-	35	105	0,65
1"	25	70100006	6	19,1	93	54	41	174	79	60	19,5	12,5	12	8	-	-	-	64,5	105	1,02
1"1/4	32	70100007	2	21,4	100	64	50	174	83	64,5	19,5	12,5	12	8	42	5,5	42	103,8	64	1,40
1"1/2	40	70100008	2	21,4	110	80	55	250	100	79	24	16,5	16	10	50	6,5	50	174	64	2,35
2"	50	70100010	2	25,7	131	95	70	250	107	86	24	16,5	16	10	50	6,5	50	301,3	64	3,54
2"1/2	65	70100012	1	30,2	159	122	90	321	126	104	28,5	18,5	20	14	70	M8	64	545,7	25	6,95
3"	80	70100014	1	33,3	185	144	105	321	137	114	28	18	20	14	70	M8	64	872,5	25	10,53
4"	100	70100018	1	39,3	222	177	130	381	156	137	34,5	22	24	18	102	M10	92	1363,3	25	18,70

Certifications

TUV

ATEX FIRE-SAFE (On request)
