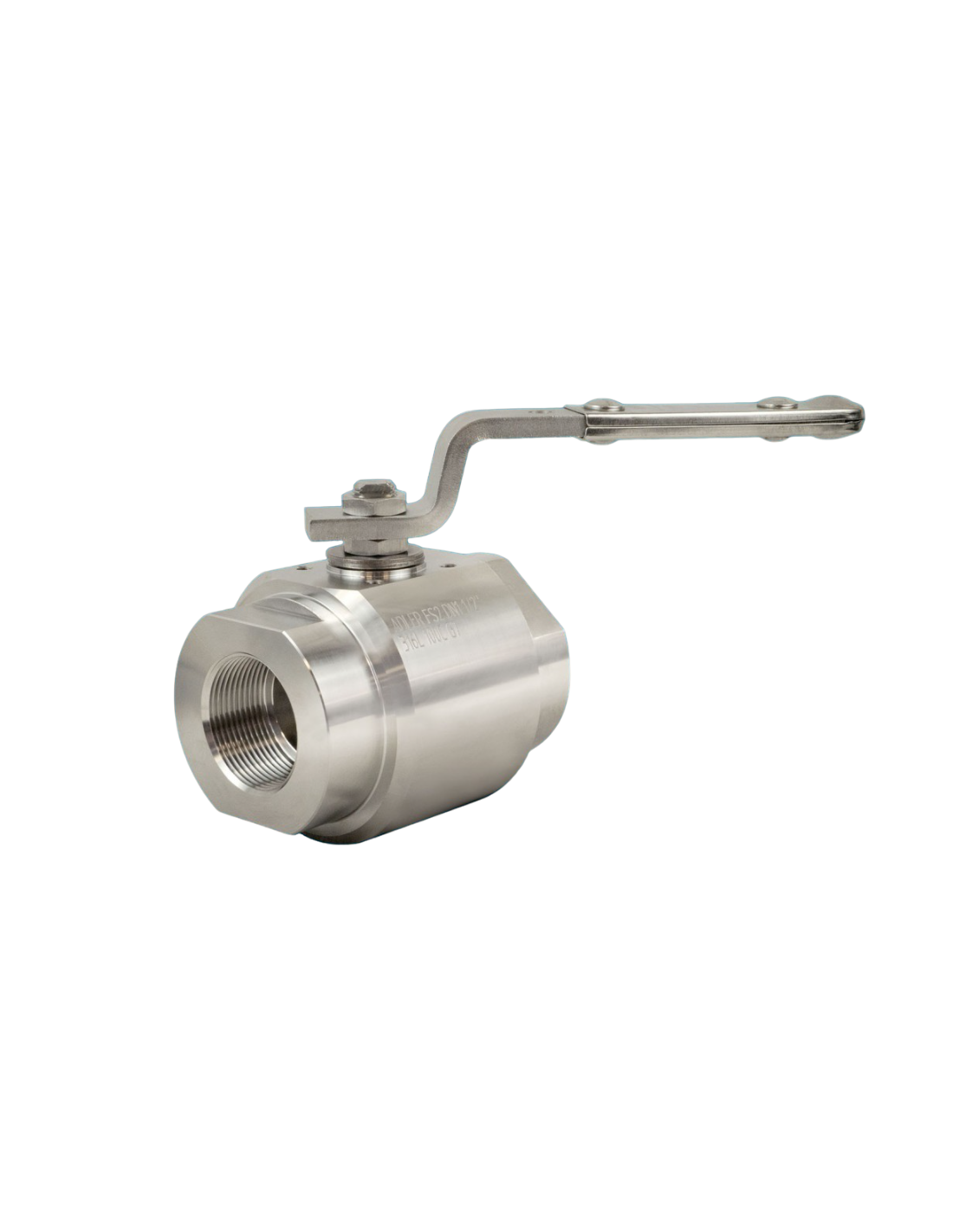

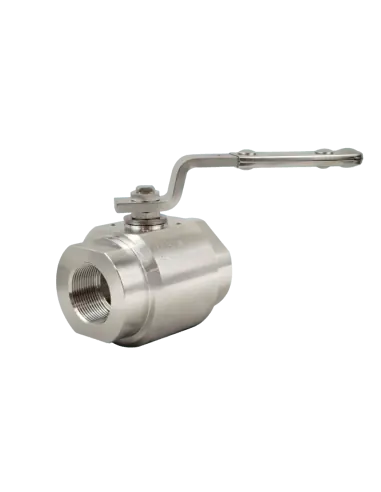

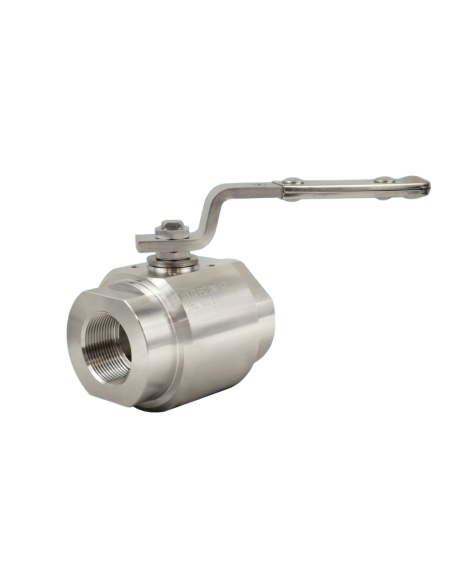

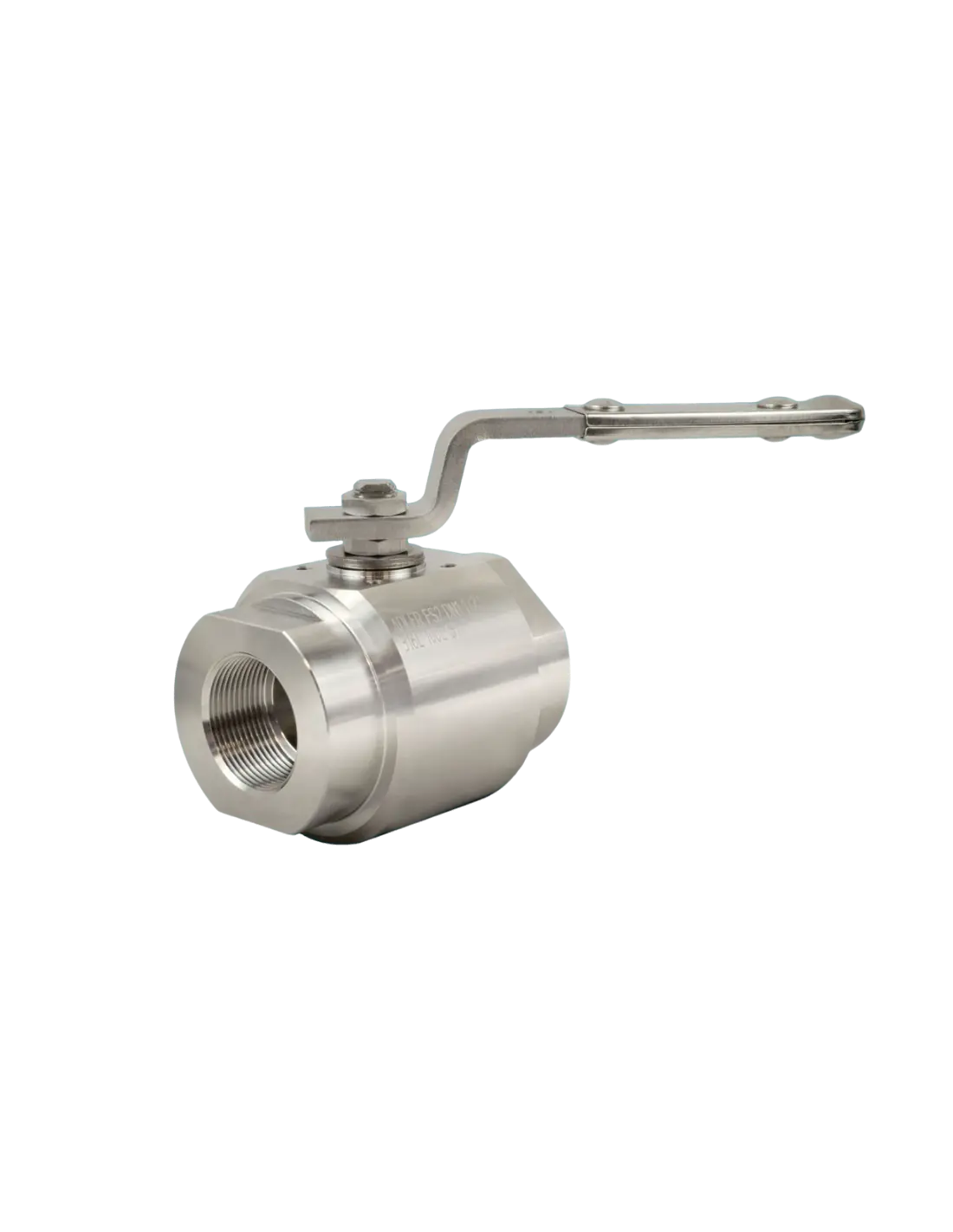

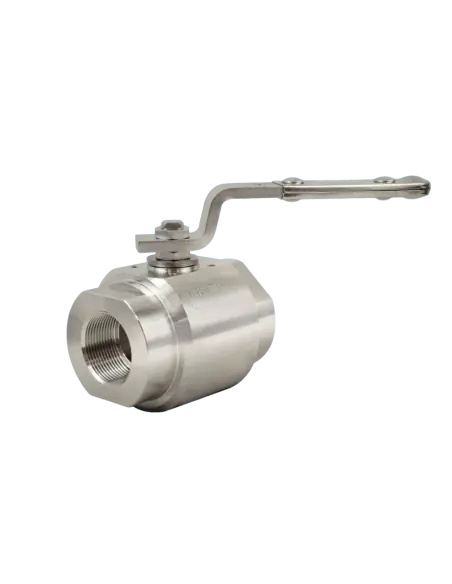

Ball Valve Threaded - Type FS2 | ADLER

Reliable Industrial Performance: Ball Valve Threaded - Type FS2 | ADLER

When it comes to ensuring smooth and secure flow control in your industrial systems, the Ball Valve Threaded - Type FS2 | ADLER stands out as the smart choice. This robust valve is engineered for consistent performance and hassle-free installation, delivering value and peace of mind even in demanding work environments.

Features & Benefits of the Ball Valve Threaded - Type FS2 | ADLER

  • Precision Flow Control: The advanced ball mechanism ensures tight shut-off and precise regulation of liquids or gases. This means you get dependable performance, every time.
  • Durable Construction: Built from top-quality, corrosion-resistant materials, it withstands harsh environments and heavy use without wearing out quickly.
  • Easy to Install: The threaded ends make setup quick and straightforward, so you can upgrade your system with minimal downtime or disruption.
  • Low Maintenance: With a simple design and reliable body, the valve reduces the need for frequent servicing, saving you both time and money.
  • Leak-Proof Operation: Engineered gaskets and seals keep your work area safe by minimizing the risk of leaks.
  • Versatile Applications: Suitable for use with water, chemicals, or air, the Ball Valve Threaded - Type FS2 | ADLER fits a wide range of industrial processes.

Every feature of this valve is designed with practical use in mind. Its ergonomic lever offers smooth and clear control, while the full-bore design minimizes pressure drop. These details ensure steady and reliable function in any industrial setting, whether you’re handling basic pipelines or complex system networks.

The Ball Valve Threaded - Type FS2 | ADLER is more than just a component—it’s a dependable solution for your flow management needs. Count on it to perform exactly as you need, no matter the challenge.

Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 40
  • PN 63
  • PN 100
  • PN 160
  • PN 210
Seat (Options)
  • PTFE

Datasheet and documents

Description

Threaded ball valve 2 piece full bore, manufactured from round steel bar, construction in according to EN 12516-2; ISO 14313; ANSI B1.1; DIN 3202 M3; ASME B16.34.

Available size from DN ¼” to DN 3” in carbon steel white galvanized,  stainless steel and special steel

Galvanized treatment standard on carbon steel mateterial

Rating PN 40 ÷ 210 / Class 800 ÷ 3000.

Double seals on body/end junction

Thread available ISO 7RP (GAS); ASME B1.20.1 (NPT).

Chevron ring on stem.

On request:

– with  o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– according to  PED 14/68/UE directive

– according to  ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

antistatic device BS 5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

special alloy (i.e. hastelloy-titanium-monel etc.)

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

pneumatic/electro-pneumatic positioner

special alloy (i.e. hastelloy-titanium-monel etc.)

Certifications

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
