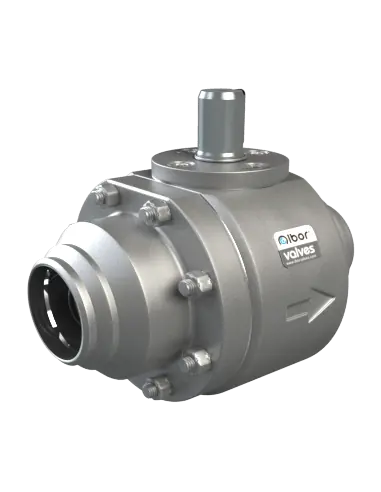

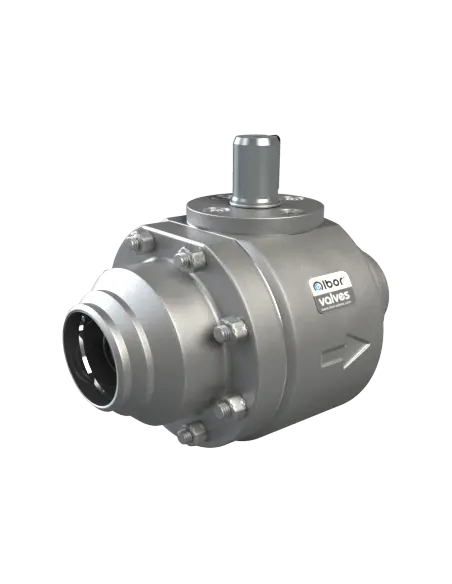

Ball Valve - Type 32001 | Ibor Valves

Ball Valve - Type 32001 | Ibor Valves: Reliable Control for Industrial Performance

The Ball Valve - Type 32001 | Ibor Valves is designed to offer robust control, safety, and effortless operation in demanding industrial settings. Built with durability and precision in mind, this valve stands out as a smart choice for managing the flow of liquids or gases in your system.

Features & Benefits of Ball Valve - Type 32001 | Ibor Valves

  • High-Quality Construction: Manufactured using premium stainless steel, the valve resists corrosion and heavy wear, ensuring long service life even under tough conditions.
  • Secure Tight Shut-Off: The advanced ball mechanism inside guarantees a complete seal, preventing leaks and maintaining system integrity with every use.
  • Simple Operation: With a quarter-turn handle, turning the flow on or off is quick and effortless—ideal for frequent use and emergency shut-offs.
  • Versatile Application: Perfect for a variety of industries, including chemical processing, water treatment, and manufacturing plants, the Type 32001 adapts seamlessly to most systems.
  • Low Maintenance: Thanks to its reliable internal design, the valve requires minimal upkeep, saving time and maintenance costs over its working life.
  • Pressure and Temperature Resistant: Engineered to handle high pressures and a wide range of temperatures, it delivers stable performance in challenging environments.
  • Compact Design: The space-saving profile allows for easy installation even in tight or crowded setups, improving workflow and accessibility.

Choose the Ball Valve - Type 32001 | Ibor Valves to enhance the efficiency, reliability, and safety of your industrial pipeline systems. Its blend of advanced features and straightforward design ensures dependable control every day, making it an invaluable asset in any industrial operation.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Bidirecctional
  • Secondary Soft Seat

Stem

  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
