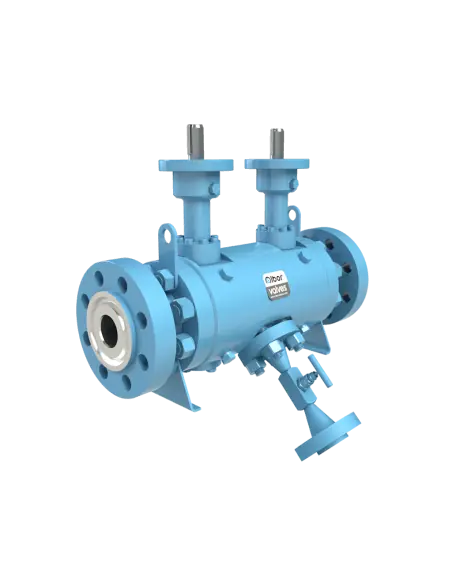

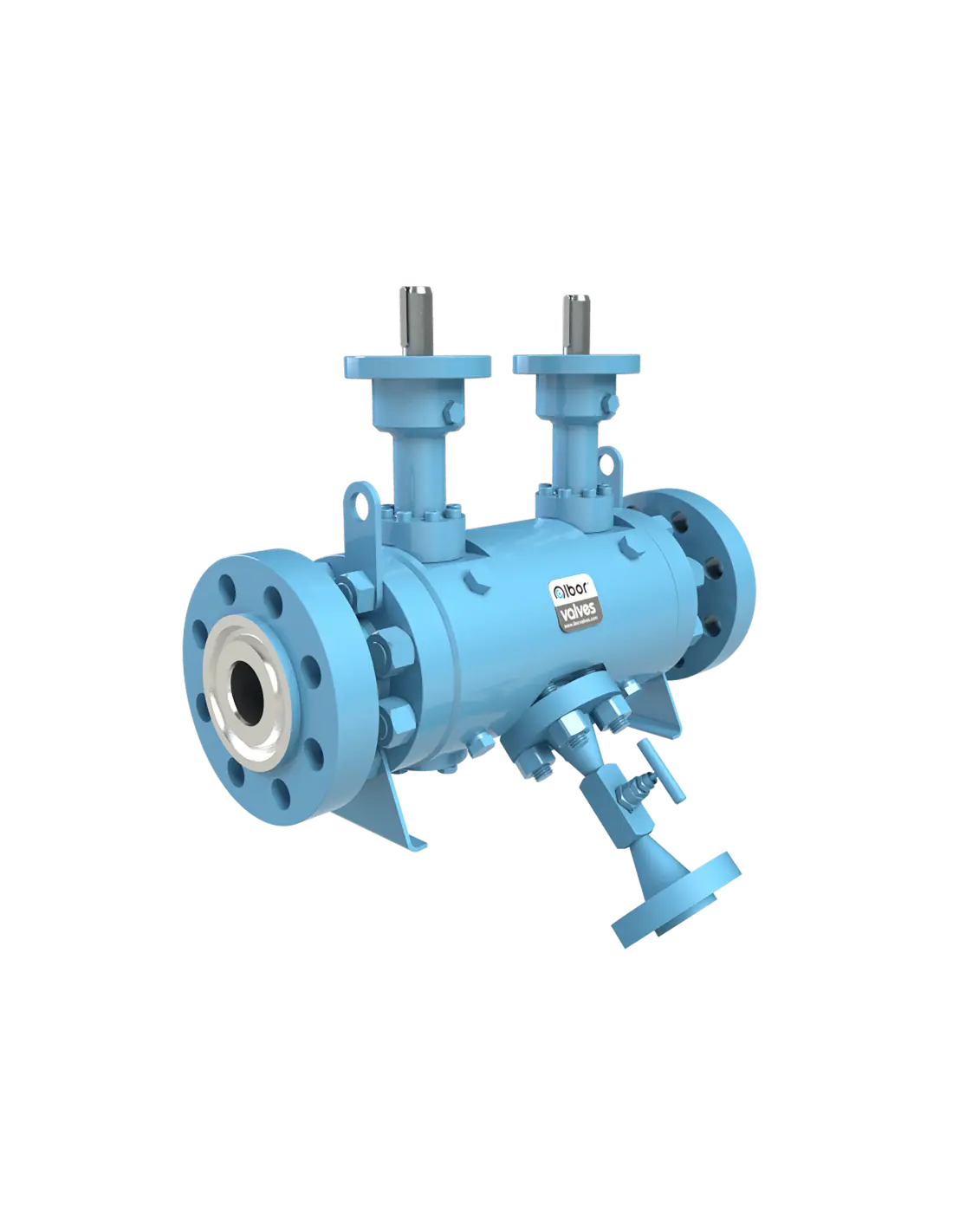

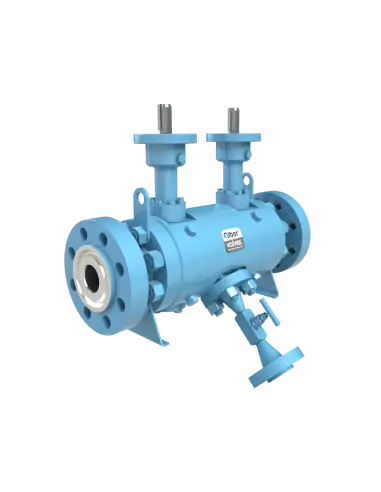

Ball Valve - Type 29001 | Ibor Valves

Ball Valve - Type 29001 | Ibor Valves: Precision Flow Control for Industrial Excellence

Unlock seamless performance in demanding environments with the Ball Valve - Type 29001 | Ibor Valves. Designed for industrial professionals seeking reliability and efficiency, this valve delivers robust flow control where it matters most.

Features and Benefits of the Ball Valve - Type 29001 | Ibor Valves

  • Durable Construction: Engineered from high-grade stainless steel, this valve stands up to corrosion, pressure, and everyday wear, even in tough industrial settings.
  • Full-Bore Flow: The full-bore design enables maximum flow with minimal pressure drop, ensuring consistent delivery of liquids or gases without loss of efficiency.
  • Leak-Free Performance: Advanced sealing technology keeps the system tight and secure, greatly reducing the risk of leaks and costly downtime.
  • Simple Operation: Easy-to-use manual handle makes opening and closing the valve quick and intuitive, saving time during routine operations or emergencies.
  • Versatile Application: Suitable for a wide variety of industrial uses, from chemical processing to water treatment, ensuring flexibility across projects.
  • Easy Installation: Thoughtfully designed with standard connections, it integrates smoothly into existing systems with minimal adjustments.
  • Reliable Under Pressure: Built to handle high pressures and temperatures, the Ball Valve - Type 29001 excels in demanding industrial environments.

With the Ball Valve - Type 29001 | Ibor Valves, maintenance becomes simpler and less frequent thanks to its sturdy build and clever design. Its resistance to harsh chemicals and extreme temperatures means you can rely on uninterrupted operation, day after day.

Choose this valve for peace of mind, knowing that your process flow is protected by cutting-edge engineering. Whether you’re upgrading existing systems or building new ones, the Ball Valve - Type 29001 offers value you can count on, making it an essential addition to any industrial operation.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Secondary Soft Seat

Stem

  • Stem sealing injector
  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1, 3.1, (3.2 upon request)
