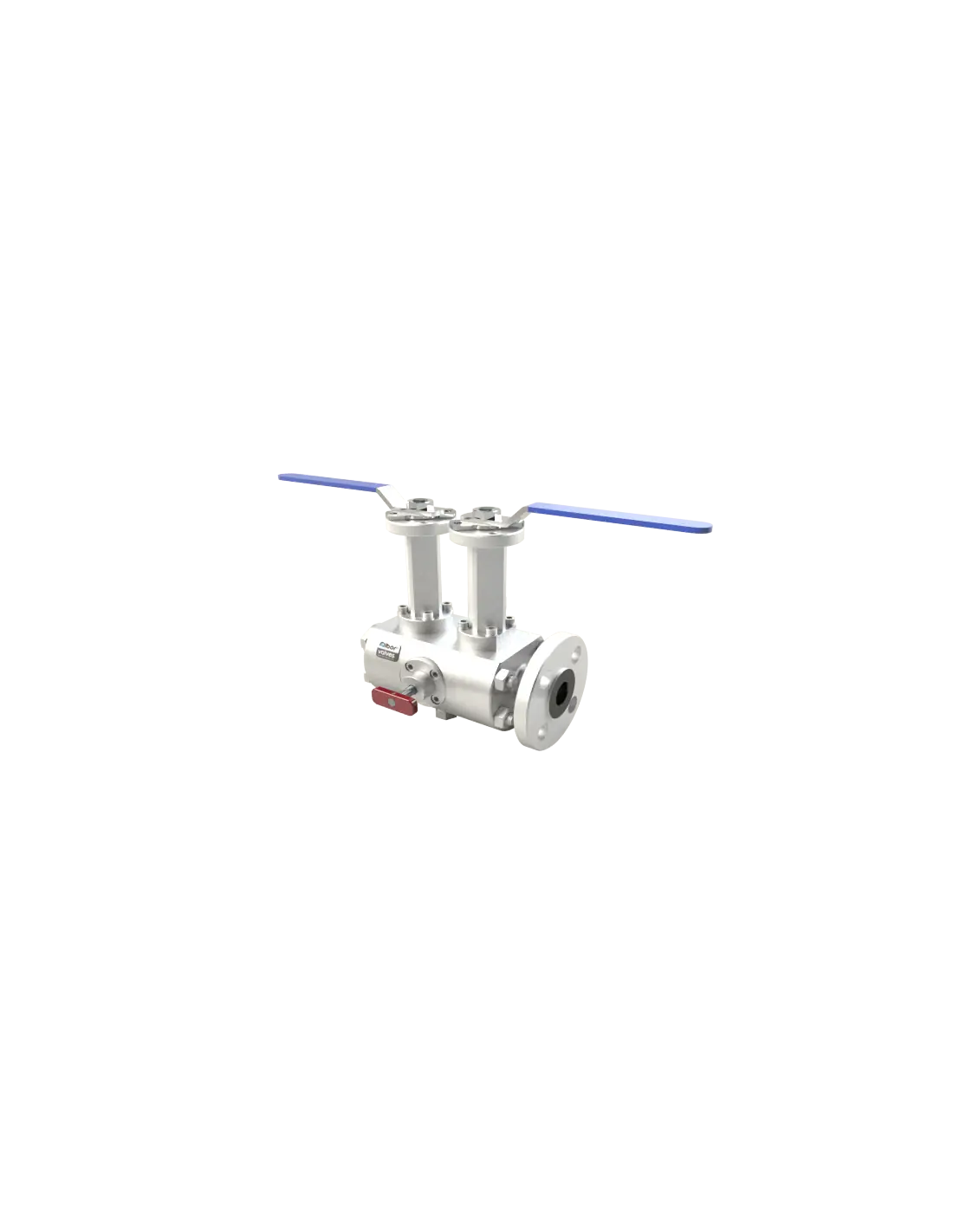

Ball Valve - Type 28001 | Ibor Valves

Ball Valve - Type 28001 | Ibor Valves: Advanced Control for Industrial Performance

Experience superior flow management with the Ball Valve - Type 28001 | Ibor Valves, designed for demanding industrial systems. This reliable ball valve ensures consistent performance, making it an essential choice for modern operations. Its smart engineering and robust construction bring convenience and trustworthy operation to any industrial application.

Features & Benefits of Ball Valve - Type 28001 | Ibor Valves

  • Smooth Operation: The lever handle provides effortless control, letting you open or close the valve with a simple turn. No special tools are needed, ensuring quick operation every time.
  • Precision Engineering: Manufactured with high-grade materials, this valve guarantees tight sealing and leak-free performance. It withstands high pressure and temperature, making it suitable for tough environments.
  • Long-lasting Durability: The Type 28001 resists corrosion and wear, reducing maintenance needs. Its solid construction means fewer replacements and less downtime for your operation.
  • Secure Flow Control: The full-bore design permits maximum flow, minimizing restrictions in your pipelines. This feature supports efficiency and helps maintain steady system pressure.
  • Hassle-Free Installation: Compact and lightweight, the Ball Valve - Type 28001 fits easily into various industrial setups. Standard connections make integration quick and easy, saving you time and effort.
  • Trusted Safety: Designed to handle harsh conditions, this valve keeps your system protected. The strong locking mechanism ensures the position stays fixed, reducing the risk of accidental movement.

Choose the Ball Valve - Type 28001 | Ibor Valves for a straightforward yet powerful solution to your flow control needs. Its balance of efficiency, dependability, and user-friendly design supports smooth operation and safer workplaces. Invest in this advanced ball valve and enjoy consistent and reliable performance in every task.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Secondary Soft Seat

Stem

  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts
  • Heating or cooling jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: Manufacture

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1, 3.1, (3.2 upon request)
