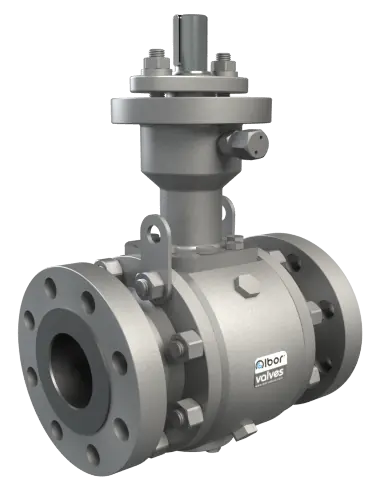

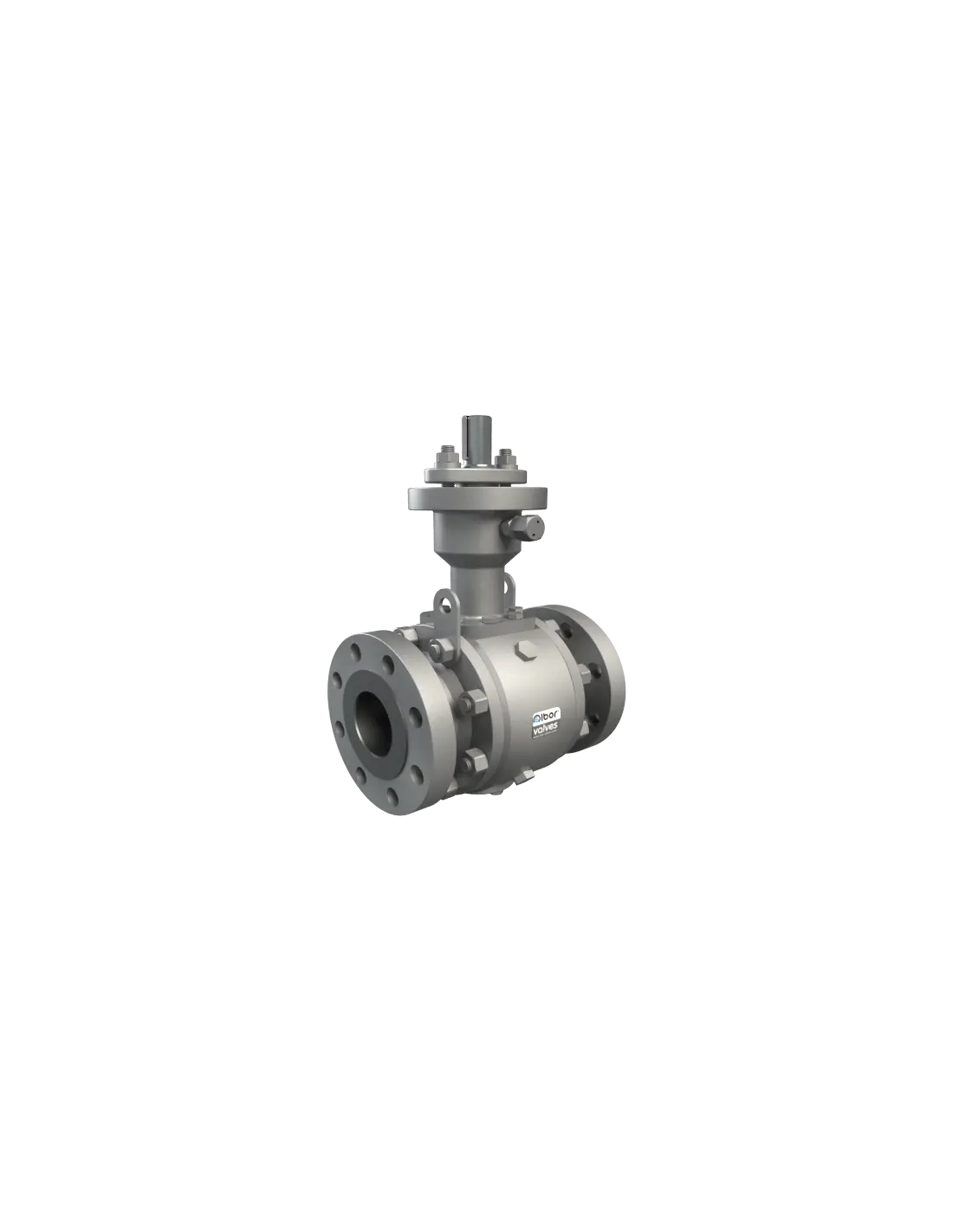

Ball Valve - Type 19001 | Ibor Valves: Reliable Industrial Flow Control

The Ball Valve - Type 19001 | Ibor Valves is engineered for absolute reliability and efficient operation in demanding industrial environments. Its robust design ensures consistent performance, making it an essential piece of equipment for controlling the flow of liquids and gases safely and easily.

Key Features & Benefits of Ball Valve - Type 19001 | Ibor Valves

  • Rugged Durability: Constructed with high-quality materials, this ball valve can withstand high pressure and tough conditions, making it ideal for industrial use.
  • Simple Operation: The handle mechanism provides quick and precise control. You can easily open or shut off the flow with a single movement.
  • Leak-Proof Performance: The advanced seal design effectively prevents leaks, protecting equipment, and minimizing downtime.
  • Low Maintenance: The design reduces the need for frequent servicing, saving both time and maintenance costs.
  • Corrosion Resistant: Built to resist rust and corrosion, it delivers long-lasting performance even in harsh, moisture-rich settings.
  • Versatile Application: Perfect for a wide range of industrial settings, including water treatment, chemical processing, and manufacturing operations.

With its compact form, the Ball Valve - Type 19001 | Ibor Valves fits seamlessly into existing pipelines. The tight shutoff ensures that there is no waste or accidental release of materials, protecting both your workspace and the environment.

Every component of this valve is designed for strength and efficiency. The smooth internal surface enables fast, unobstructed flow, while the ergonomic handle allows users to control the valve with minimal effort. No special training or complicated tools are needed—just a straightforward, reliable solution to keep processes moving smoothly.

Choose the Ball Valve - Type 19001 | Ibor Valves for your facility and experience a new level of confidence in your flow control system. Dependable, practical, and built to last, this valve is the smart choice for any industrial operation.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Secondary Soft Seat

Stem

  • Stem sealing injector
  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
