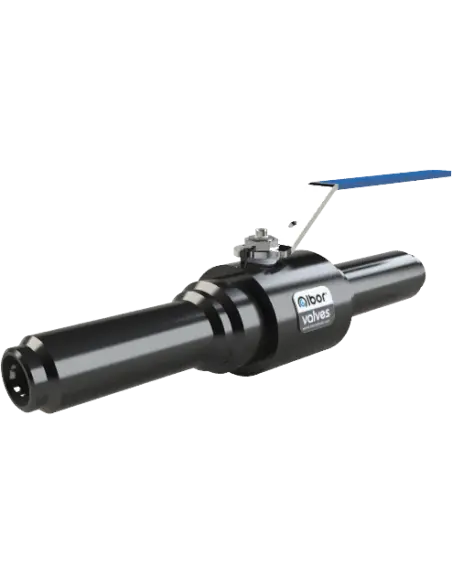

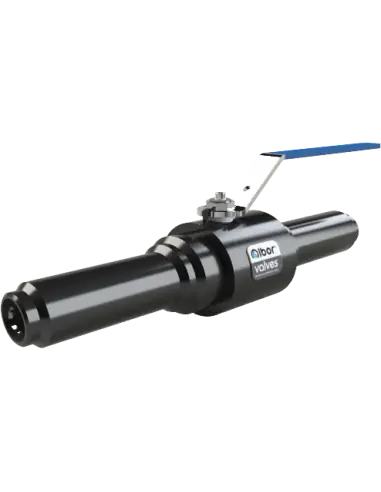

Ball Valve - Type 13000 | Ibor Valves

Ball Valve - Type 13000 | Ibor Valves: Reliable Performance for Industrial Demands

Discover dependable flow control with the Ball Valve - Type 13000 | Ibor Valves, engineered to deliver safety, efficiency, and lasting durability in demanding industrial settings. This valve is an essential component for any system that requires precise shut-off, minimal maintenance, and long-term reliability.

Features & Benefits of Ball Valve - Type 13000 | Ibor Valves

  • Sturdy Construction: Built from high-quality materials, this valve resists corrosion and withstands tough working conditions, ensuring a long service life.
  • Leak-Proof Sealing: Advanced design delivers a tight seal every time, preventing leaks and maintaining system integrity under high pressure.
  • Effortless Operation: The handle provides smooth and quick rotation, making manual control easy and reducing user fatigue.
  • Low Maintenance: With a simple structure and few moving parts, the valve minimizes downtime and keeps maintenance costs low.
  • Versatility: Suitable for a wide range of fluids, including water, oil, and gas, making it an adaptable solution for different industrial processes.
  • Precision Engineering: The ball mechanism is carefully engineered for accurate open and close positions, guaranteeing consistent results in critical applications.

The Ball Valve - Type 13000 | Ibor Valves stands out for its ability to maintain optimal flow rates without restriction. Its full-port design allows fluids to pass through with minimal resistance, improving system efficiency. Whether used in manufacturing, chemical processing, or water treatment plants, this valve delivers performance you can trust.

Installation is straightforward even in tight spaces, thanks to its compact profile. The robust sealing system drastically reduces the risk of operational mishaps, offering peace of mind to operators. Experience fewer breakdowns and a safer workplace, all while optimising system productivity.

Choose Ball Valve - Type 13000 | Ibor Valves for your industrial flow control needs and invest in technology that gets the job done safely, efficiently, and reliably, every time.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Metal to metal seats

Stem

  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts

Connections

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: ISO 17292

Face to Face: Manufacture

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
