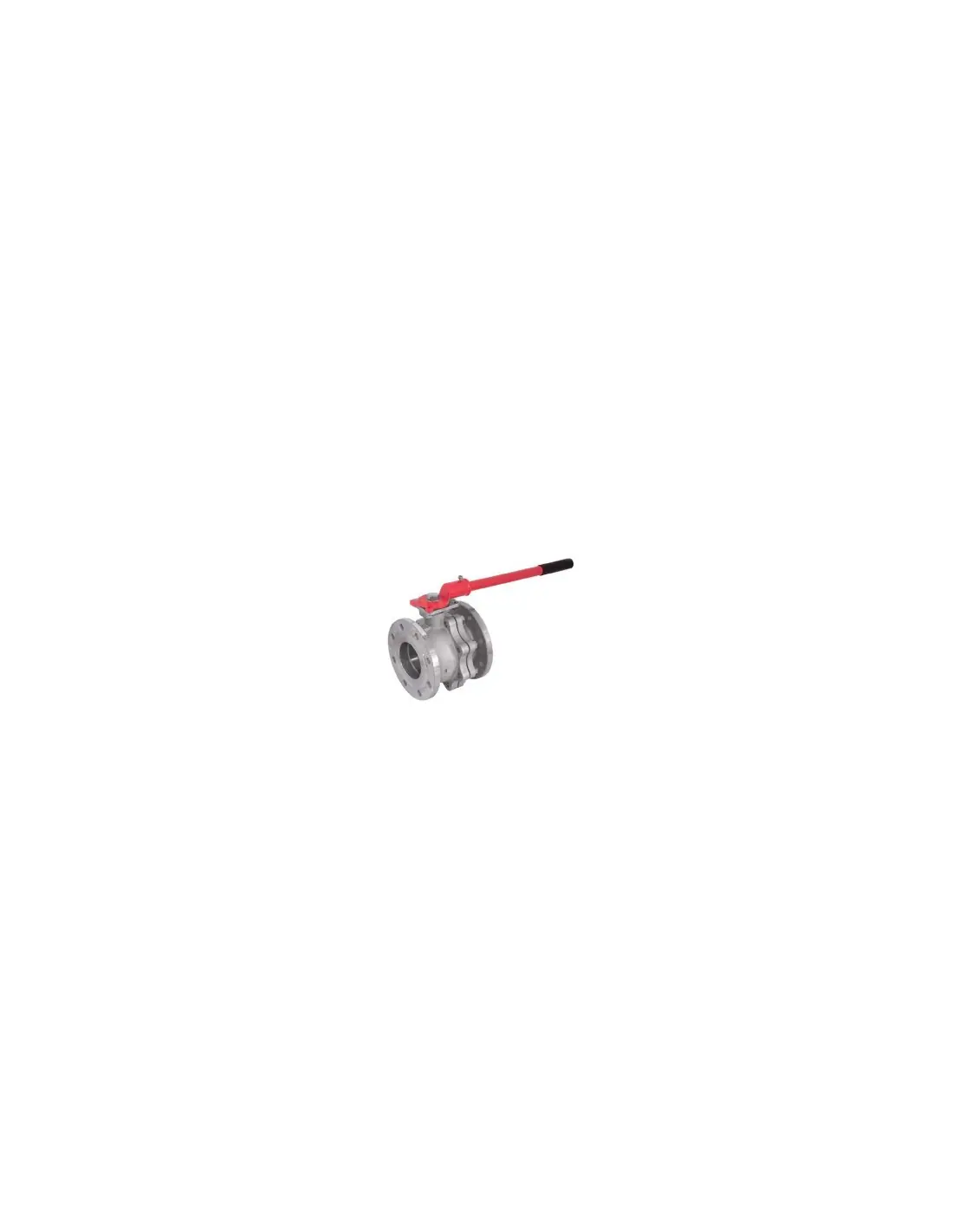

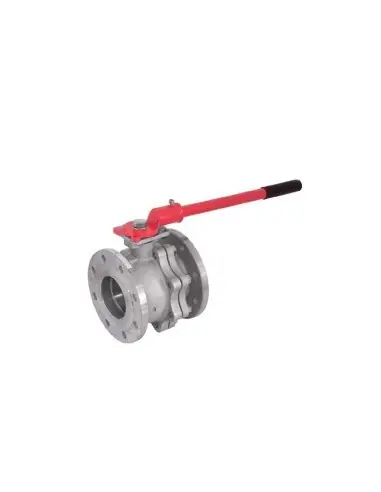

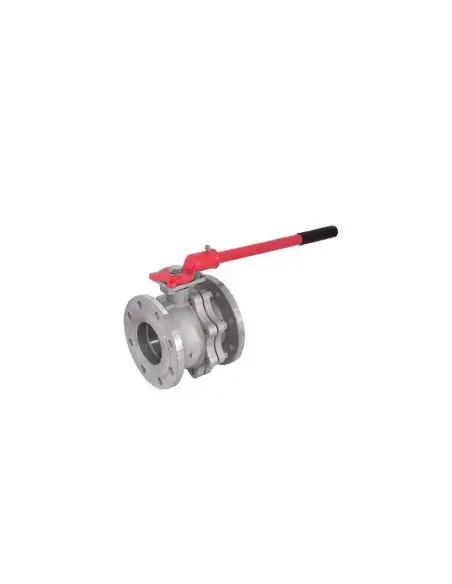

Ball Valve PN16/40 - Type 254/256 | ICP: Exceptional Performance, Reliable Control

The Ball Valve PN16/40 - Type 254/256 | ICP is designed for industrial reliability where safety and efficiency matter most. This robust valve is the ideal solution for those who need a dependable shut-off mechanism for liquids or gases under varying pressure conditions. Built with attention to detail, it ensures smooth operation and long-lasting durability in any production environment.

Key Features & Benefits of Ball Valve PN16/40 - Type 254/256 | ICP

  • Precision Control: The easy-to-turn handle allows for accurate, quick shut-off. Open or close flow instantly with a simple movement, making operation intuitive even for beginners.
  • High Pressure Capacity: Rated for PN16 and PN40, this valve handles tough jobs, managing both medium and high pressure systems without leaks or loss of performance.
  • Robust Construction: Built from corrosion-resistant materials, it performs reliably in demanding industrial settings, whether exposed to chemicals, heat, or heavy use.
  • Versatility: Compatible with various pipe systems and suitable for water, oil, gas, or other industrial fluids, offering great flexibility for diverse installations.
  • Low Maintenance: Designed for ease of use, the valve requires minimal upkeep. Its sturdy design reduces wear and tear, saving time and maintenance costs in the long run.
  • Safe and Secure: Features a tight seal to prevent leaks, protecting your workplace and ensuring safe operation during every cycle.

The Ball Valve PN16/40 - Type 254/256 | ICP is an efficient, trustworthy choice for professionals. It enhances system performance, gives you control at your fingertips, and stands up to the toughest environments. With this valve, you gain peace of mind, knowing your operation is running smoothly and safely.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE

Description

Two pieces Ball Valves, Full Bore, Flanges PN40 and PN16, from DN15 to DN200.

Stainless Steel (1.4408) and Carbon Steel (1.0619) Body, AISI-316 Ball and Modified PTFE seats. Antistatic Device. Locking Device.

The valve is equipped with ISO 5211 connection to mount pneumatic or electrical actuators. The stem is according EN 15081.

The face-to-face of the valve is according with EN 558-1.

The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006).
