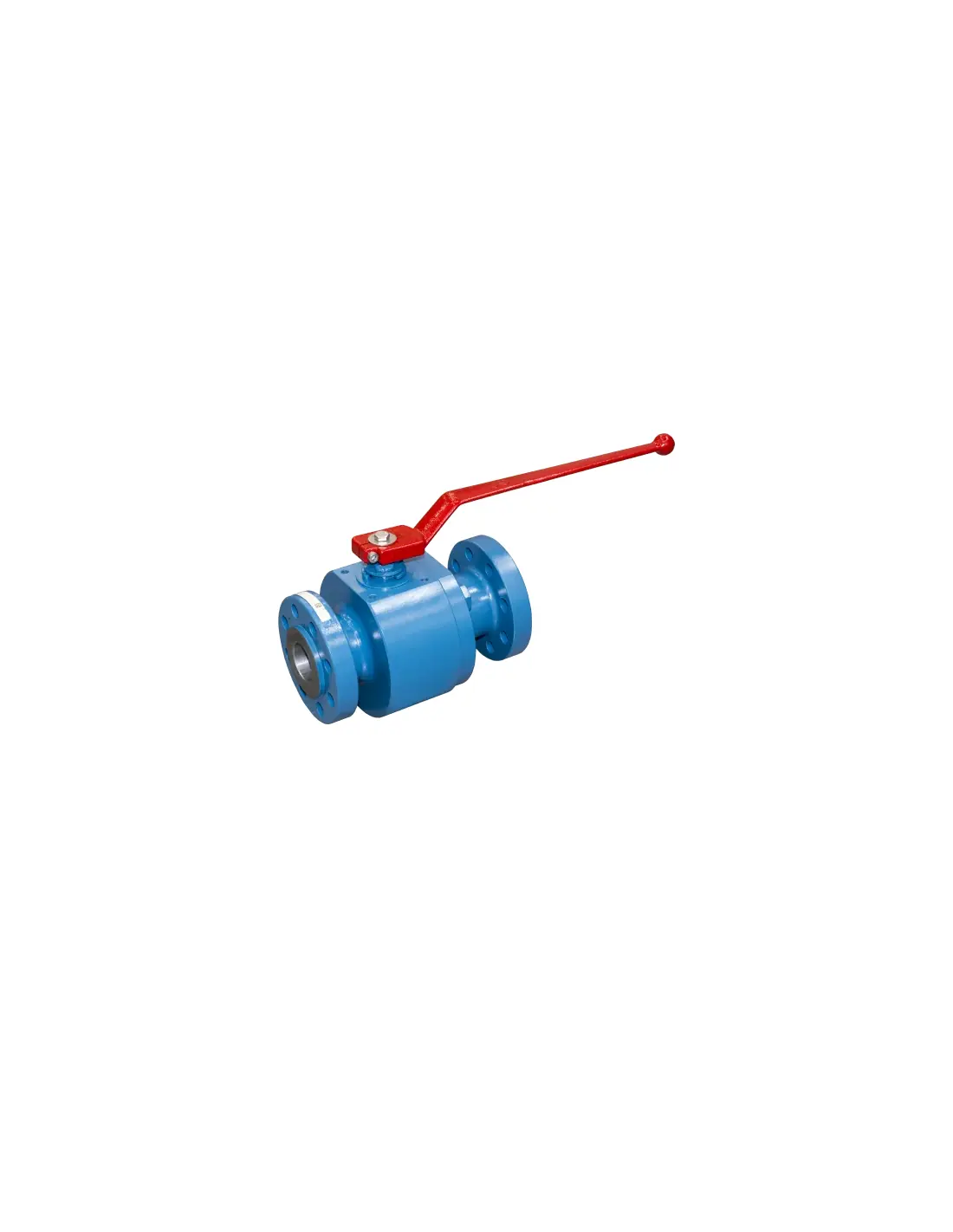

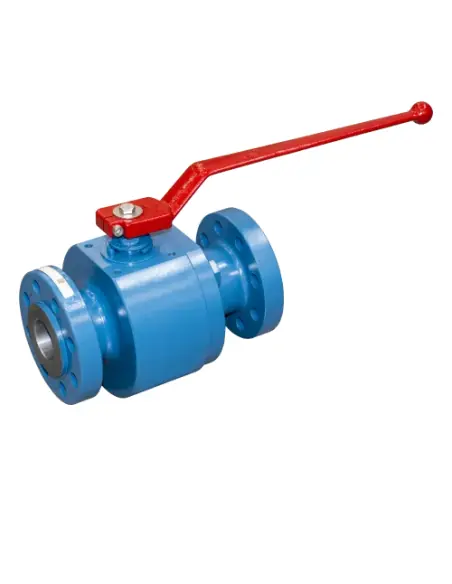

Ball Valve Class 900/1500 - Type 590/550 B | JC: Trusted Flow Control With Exceptional Performance

The Ball Valve Class 900/1500 - Type 590/550 B | JC delivers high performance and reliable flow control for demanding industrial applications. This advanced ball valve is carefully engineered to provide outstanding durability, leak-tight operation, and easy handling, making it the preferred choice for industries that value efficiency and safety.

Features and Benefits of the Ball Valve Class 900/1500 - Type 590/550 B | JC

  • Robust Construction: Designed with premium materials, this valve stands up to intense pressures, ensuring longevity and dependable function even in harsh working environments.
  • High Pressure Ratings: Specifically built for Class 900 and 1500, it delivers unwavering performance in high-pressure systems without compromising the integrity of your operations.
  • Leak-Free Assurance: Thanks to precision engineering and tight shut-off capabilities, you benefit from minimal leakage and enhanced workplace safety across your entire system.
  • Low Maintenance: Engineered for simplicity, the ball valve’s design requires less maintenance, reducing downtime and keeping your operations running smoothly.
  • Easy Operation: The ball mechanism allows for smooth opening and closing, making flow adjustments straightforward and user-friendly, even for those new to industrial equipment.
  • Versatile Application: Ideal for oil & gas, chemical, and energy sectors, this valve adapts to a wide range of fluids and temperatures, adding flexibility to your system design.
  • Top-Level Safety: Built to strict standards, it provides peace of mind by offering robust isolation, reducing the risks often associated with high-pressure environments.

With the Ball Valve Class 900/1500 - Type 590/550 B | JC, you gain a product that handles tough tasks with ease. Its advanced design means fewer worries about leaks or malfunctions, so you can focus on productivity. The straightforward installation and friendly operation make it easy for teams to integrate this valve into new or existing systems.

Choose the Ball Valve Class 900/1500 - Type 590/550 B | JC for long-lasting reliability, efficiency, and safe performance in all your industrial flow control needs.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • S.S. 316L
  • ASTM A105N
  • ASTM A352 LF2
Pressure Rating (Options)
  • 900 lbs
  • 1500 lbs
Seat (Options)
  • Devlon

Description

PRODUCT FEATURES

Split body, Full bore
Flanged connections
Blowout-proof stem
Non-removable antistatic devices
Cavity pressure balancing hole
Live Loaded Packing

STANDARDS

API 6D
PED
Quality Standard MSS SP 55
All wetted component materials meet NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945
Fire-Safe API 607, ISO 10497, API 6FA
Fugitive Emissions : ISO 15848 / TA-LUFT
ATEX

INDUSTRIES

Oil & Gas
Chemical & Petrochemical
Pulp & Paper
Energy & Renewable
Food & Pharma
Marine
Mining
Special fluids transport

Certificates

Fire Safe API 607, ISO 10497, API 6FA

PED 2014/68/EU - CE marking

ATEX 2014/34/EU– (II2GD)

Russian Federation Certificate TRCU 10, TRCU 12, TRCU 32

Food processing and pharmaceutical industry FDA, USP CLASS VI COMPLIANCE (CE 1935/2004)

Safety Integrity Level (SIL) LEVEL 3 IEC 61508

Fugitive Emissions ISO 15848, TA LUFT (VDI 2440)
