List of products by brand JC Valves

JC Valves – Technical profile of an industrial ball valve manufacturer

JC Valves is a Spanish manufacturer of industrial ball valves for oil & gas, chemical, petrochemical, energy, marine, tank storage, mining, wastewater and special fluid applications. The company focuses mainly on floating, guided, semi-trunnion and metal-seated ball valves in ANSI and EN / DIN executions.

The product range represented through Philippopoulos S.A. includes flanged ball valves in Class 150, 300, 600, 900 and 1500, as well as PN16 / PN40 configurations.

Main product categories include:

  • floating ball valves,
  • guided ball valves,
  • semi-trunnion ball valves,
  • compact ball valves,
  • threaded and welded ball valves,
  • metal-seated ball valves,
  • Fire Safe and fugitive emission-tested executions.

Floating ball valves are used in smaller and medium sizes where pressure forces are transferred to the downstream seat. For higher pressure differentials or larger sizes, semi-trunnion or guided ball designs may be required to control seat loading and operating torque.

Metal-seated ball valves are selected for high temperature, abrasive fluids, slurries, sticking products or applications where soft polymer seats are not suitable. Selection must consider leakage class, coating, erosion, operating torque and actuator sizing.

JC valves may include features such as anti-static stem design, ISO 5211 actuator interface, Fire Safe testing, ATEX compliance, NACE material options, fugitive emission testing and PED documentation, depending on the specific model and project requirements.

Technical selection requires:

  • full bore or reduced bore,
  • DN / NPS and pressure class,
  • body, ball, stem, seat and packing materials,
  • service fluid and temperature,
  • leakage requirement,
  • Fire Safe, ATEX, SIL, NACE or fugitive emission requirements,
  • actuator interface and torque,
  • hydrostatic, seat, gas, PMI or NDE tests.

JC valves should be evaluated as engineered isolation components, not as generic commodity ball valves.

Ball Valve Class 150/300 - Type 515/530 FB | JC | Philippopoulos s.a.

Ball Valve Class 150/300 - Type 515/530 FB | JC

Ball Valve Class 150/300 - Type 515/530 FB | JC
JC Valves
JC Type 515/530 FB Class 150/300 Flanged Full Bore Ball Valve Two-piece full-bore ball valve with ANSI flanged ends for positive isolation in industrial liquid and gas lines. Available in ASME Class 150 and Class 300, with ASTM A216 WCB, ASTM A351 CF8M or ASTM A352 LCC body materials and PTFE seats. Construction Split-body construction, full-bore flow...
View

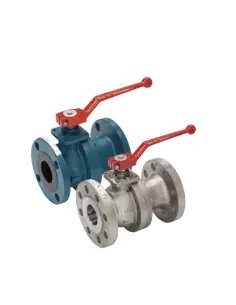

Ball Valve Class 150/300 - Type 3515/3530 FB | JC | Philippopoulos s.a.

Ball Valve Class 150/300 - Type 3515/3530 FB | JC

Ball Valve Class 150/300 - Type 3515/3530 FB | JC
JC Valves
JC Type 3515/3530 FB Ball Valve, Class 150/300 Two-way split-body, full-bore ball valve with ANSI flanged ends. Available in ASME Class 150 and Class 300, with ASTM A216 WCB carbon steel or ASTM A351 CF8M stainless steel body. Seat configuration: Aflas with metal seat support for services requiring higher thermal, chemical, or wear resistance than...
View
Ball Valve Class 150/300 - Type 715/730 | JC | Philippopoulos s.a.

Ball Valve Class 150/300 - Type 715/730 | JC

Ball Valve Class 150/300 - Type 715/730 | JC
JC Valves
JC Type 715/730 Ball Valve Class 150/300 Two-way end-entry ball valve with reduced bore and ANSI flanged ends for industrial isolation of liquids and gases. Available in ASME Class 150 and Class 300. Standard seat material is PTFE, with body options including WCB, CF8M, LCC, LF2, A105N and stainless steel 316L. Construction Reduced bore design for...
View
Ball Valve Class 150/300 Guided Ball - Type 1515/1530 FB | JC | Philippopoulos s.a.

Ball Valve Class 150/300 Guided Ball - Type 1515/1530 FB | JC

Ball Valve Class 150/300 Guided Ball - Type 1515/1530 FB | JC
JC Valves
JC 1515/1530 FB Guided Ball Valve Class 150/300 Two-way split-body, full-bore ball valve with ANSI flanged ends and guided ball construction for isolation service in industrial liquid and gas systems. Available in ASME Class 150 and Class 300, with ASTM A216 WCB, ASTM A351 CF8M or ASTM A352 LCC body materials and PTFE seats. Construction Full bore...
View
Ball Valve Class 600 - Type 560/560 B | JC | Philippopoulos s.a.

Ball Valve Class 600 - Type 560/560 B | JC

Ball Valve Class 600 - Type 560/560 B | JC
JC Valves
JC Class 600 Ball Valve Type 560/560 B Two-way flanged ANSI ball valve for isolation duties in higher-pressure industrial piping. The JC 560/560 B series is specified in Class 600, with body materials ASTM A216 WCB, ASTM A351 CF8M or ASTM A352 LCC and Nylon seats. Construction End connection: ANSI flanged, typically ASME B16.5 Class 600 Pressure class:...
View
Ball Valve Class 600 - Type 660 | JC | Philippopoulos s.a.

Ball Valve Class 600 - Type 660 | JC

Ball Valve Class 600 - Type 660 | JC
JC Valves
JC Type 660 Class 600 Ball Valve Two-way end-entry ball valve, reduced bore, with ANSI flanged ends for isolation service on high-pressure process lines. Available in ASME Class 600 with ASTM A216 WCB, ASTM A351 CF8M, or ASTM A352 LCC body materials and Nylon seats. Construction Reduced-bore floating ball design for lower valve weight and reduced...
View
Ball Valve Class 900/1500 - Type 590/550 B | JC | Philippopoulos s.a.

Ball Valve Class 900/1500 - Type 590/550 B | JC

Ball Valve Class 900/1500 - Type 590/550 B | JC
JC Valves
JC Type 590/550 B Ball Valve, Class 900/1500 Two-way split-body ball valve, full bore, with ANSI flanged ends for high-pressure process lines. Available in ASME Class 900 and Class 1500, with body materials including S.S. 316L, ASTM A105N and ASTM A352 LF2. Standard seat material: Devlon. Construction Full-bore flow path for low pressure drop and...
View

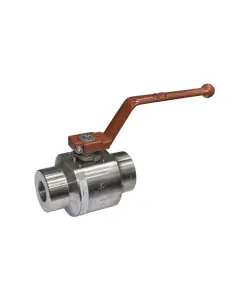

Ball Valve Class 800/1500 - Type 3411/31511 FB | JC | Philippopoulos s.a.

Ball Valve Class 800/1500 - Type 3411/31511 FB | JC

Ball Valve Class 800/1500 - Type 3411/31511 FB | JC
JC Valves
JC Ball Valve Type 3411/31511 FB Class 800/1500 Two-way monoblock ball valve for high-pressure process lines with NPT threaded ends. The valve is supplied in Class 800 or Class 1500, with ASTM A105 carbon steel or ASTM A479 Type 316 stainless steel body construction. The specified seat arrangement is AISI 316 metal seat with HT-65 hard treatment....
View
Ball Valve PN16/40 - Type 1516/1540 | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 1516/1540 | JC

Ball Valve PN16/40 - Type 1516/1540 | JC
JC Valves
JC Type 1516/1540 PN16/40 Flanged Ball Valve Two-way split-body full-bore ball valve with DIN flanged ends. Available in PN 16 and PN 40 pressure classes, with carbon steel 1.0619 or stainless steel 1.4408 body construction and PTFE seats. Construction Full-bore flow path for low pressure drop and pigging compatibility where applicable Blowout-proof...
View
Ball Valve PN16/40 - Type 316/340 | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 316/340 | JC

Ball Valve PN16/40 - Type 316/340 | JC
JC Valves
JC Ball Valve Type 316/340 PN16/40 Two-piece, full-bore flanged ball valve for on/off isolation in liquid and gas services. The valve is available in PN 16 and PN 40 pressure classes, with DIN flanged ends, PTFE seats, and body materials 1.0619 carbon steel or 1.4408 stainless steel. Construction Split body, full-bore design for low pressure drop...
View

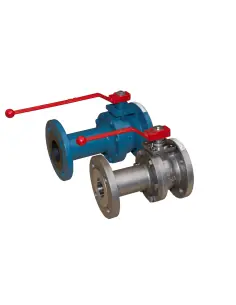

Ball Valve PN16/40 - Type 3316/3340 | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 3316/3340 | JC

Ball Valve PN16/40 - Type 3316/3340 | JC
JC Valves
JC Ball Valve Type 3316/3340 PN16/40 Two-way split-body, full-bore ball valve with DIN flanged ends. Available in PN 16 and PN 40 pressure classes, with body materials 1.0619 carbon steel or 1.4408 stainless steel. The metal seat configuration is AISI 316 + TCC for services where soft seats are not suitable. Construction Full-bore flow path for low...
View

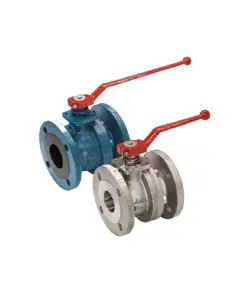

Ball Valve PN16/40 - Type 3516/3540 | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 3516/3540 | JC

Ball Valve PN16/40 - Type 3516/3540 | JC
JC Valves
JC Ball Valve Type 3516/3540 PN16/40 Two-way split-body, full-bore ball valve with DIN flanged ends. The valve is available in PN 16 and PN 40 pressure classes, with body materials 1.0619 carbon steel or 1.4408 stainless steel. The metallic seat configuration is AISI 316 + TCC for services where soft seats are not suitable. Construction Full-bore flow...
View
Ball Valve PN16/40 - Type 516/540 | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 516/540 | JC

Ball Valve PN16/40 - Type 516/540 | JC
JC Valves
Spherical Ball Valve JC Type 516/540 PN16/40 Two-piece, full-bore flanged ball valve for on/off isolation in industrial liquid, gas and steam services. The valve is supplied in PN 16 or PN 40 pressure classes, with body material 1.0619 carbon steel or 1.4408 stainless steel and PTFE seats. Construction Split-body design with full-bore flow passage DIN...
View
Ball Valve PN16/40 - Type 516Q/540Q/316Q/340Q | JC | Philippopoulos s.a.

Ball Valve PN16/40 - Type 516Q/540Q/316Q/340Q | JC

Ball Valve PN16/40 - Type 516Q/540Q/316Q/340Q | JC
JC Valves
JC Full-Bore Flanged Ball Valve Type 516Q/540Q/316Q/340Q PN16/PN40 Two-piece split-body ball valve with full-bore flow path and DIN flanged ends, used for isolation in industrial liquid, gas and special-fluid lines. Available in pressure classes PN16 and PN40, with 1.0619 carbon steel or 1.4408 stainless steel body materials and TFM-1600 seats....
View
Ball Valve PN63/100 - Type 563/599 | JC | Philippopoulos s.a.

Ball Valve PN63/100 - Type 563/599 | JC

Ball Valve PN63/100 - Type 563/599 | JC
JC Valves
JC Type 563/599 PN63/100 Flanged Ball Valve Two-way split-body full-bore ball valve with DIN flanged ends for high-pressure isolation service. Available in PN 63 and PN 100 pressure classes, with body materials in S.S. 316L, ASTM A105N or ASTM A352 LF2 and RPTFE seats. Construction Full-bore flow path for low pressure drop and piggable or high-flow...
View
Ball valve Class 800/1500 - Type 400/41500 | JC | Philippopoulos s.a.

Ball valve Class 800/1500 - Type 400/41500 | JC

Ball valve Class 800/1500 - Type 400/41500 | JC
JC Valves
JC Type 400/41500 Class 800/1500 Ball Valve Two-way monoblock ball valve with welded body construction and full bore flow path for high-pressure process lines. Available with BSP, NPT, socket weld or butt weld ends. Pressure classes are Class 800 and Class 1500. Body materials include ASTM A105N, ASTM A352 LF2 and ASTM A479 Type 316. Standard seat...
View
3 Way Ball Valve - Class 150 - 915 | JC | Philippopoulos s.a.

3 Way Ball Valve - Class 150 - 915 | JC

3 Way Ball Valve - Class 150 - 915 | JC
JC Valves
JC 915 Three-Way Ball Valve, Class 150, L-bore The JC 915 is a flanged, three-way ball valve with floating ball and full bore, designed for flow diversion using an L-port configuration. It is applied where a common line must be alternately connected to two branches, without mixing function. Available sizes: 1”–8” / DN25–DN200, pressure class ASME Class...
View
3 Way Ball Valve - PN16 - 916 | JC | Philippopoulos s.a.

3 Way Ball Valve - PN16 - 916 | JC

3 Way Ball Valve - PN16 - 916 | JC
JC Valves
JC 916 Three-Way Ball Valve PN16, L-Port Configuration The JC 916 is a flanged, three-way ball valve with floating ball and full bore design, intended for flow diversion between two lines via 90° rotation. The L-port configuration is used where a common line must be alternately connected to two branches without mixing. Available in DN25–DN200, PN16, with...
View
Ball Valve Class 800/1500 - Type 800/81500 FB | JC | Philippopoulos s.a.

Ball Valve Class 800/1500 - Type 800/81500 FB | JC

Ball Valve Class 800/1500 - Type 800/81500 FB | JC
JC Valves
JC Type 800/81500 FB Ball Valve Class 800/1500 Two-way, three-piece, bolted-body, full-bore ball valve for high-pressure process lines. Available in ASME Class 800 and Class 1500 with BSP, NPT, socket-weld or butt-weld ends. Body materials include ASTM A105N, ASTM A352 LF2 and ASTM A479 Type 316. Standard seat configuration: TFM + 25% glass fibre....
View
Ball Valve Trunnion Mounted Class 150/300/600 - 2015/2030/2060 FB | JC Valves | Philippopoulos s.a.

Ball Valve Trunnion Mounted Class 150/300/600 - 2015/2030/2060 FB | JC Valves

Ball Valve Trunnion Mounted Class 150/300/600 - 2015/2030/2060 FB | JC Valves
JC Valves
JC Valves Trunnion Mounted Ball Valve FB Class 150/300/600 Trunnion mounted, split body, full bore ball valve with flanged ends, designed for isolation service in oil, natural gas, chemical, petrochemical, energy, tank terminals, and other industrial fluid applications. Available in Class 150 / 300 / 600. Body materials: ASTM A216 WCB (carbon steel) or...
View
Ball Valve Trunnion Mounted Class 150/300/600 - 6015/6030/6060 FB | JC Valves | Philippopoulos s.a.

Ball Valve Trunnion Mounted Class 150/300/600 - 6015/6030/6060 FB | JC Valves

Ball Valve Trunnion Mounted Class 150/300/600 - 6015/6030/6060 FB | JC Valves
JC Valves
JC Valves Trunnion Mounted Ball Valve FB 6015/6030/6060 Types 6015 / 6030 / 6060 are trunnion mounted, 3-piece forged, full bore ball valves with flanged ends for Class 150 / 300 / 600. The 6000 series differs from cast designs by utilizing a three-piece forged body, suitable for lines with higher pressure, increased cycle demands, and material...
View
Ball Valve Trunnion Mounted Class 150/300/600 - 7015/7030/7060 RB | JC Valves | Philippopoulos s.a.

Ball Valve Trunnion Mounted Class 150/300/600 - 7015/7030/7060 RB | JC Valves

Ball Valve Trunnion Mounted Class 150/300/600 - 7015/7030/7060 RB | JC Valves
JC Valves
JC Valves 7015/7030/7060 RB Trunnion Ball Valve The 7015 / 7030 / 7060 RB series are trunnion-mounted, 3-piece forged, reduced bore ball valves with ANSI flanged ends for Class 150 / 300 / 600. RB (Reduced Bore) is selected where full bore is not required and higher pressure drop is acceptable compared to full bore valves. Technical Specifications Types:...
View
Ball Valve Trunnion Mounted Class 900/1500/2500 - 6090/6050/6042 FB | JC Valves | Philippopoulos s.a.

Ball Valve Trunnion Mounted Class 900/1500/2500 - 6090/6050/6042 FB | JC Valves

Ball Valve Trunnion Mounted Class 900/1500/2500 - 6090/6050/6042 FB | JC Valves
JC Valves
JC Valves 6090/6050/6042 FB Trunnion Ball Valves The 6090 / 6050 / 6042 FB series are trunnion-mounted, 3-piece forged, full bore ball valves designed for high pressure classes ASME Class 900 / 1500 / 2500. These valves are specified for primary isolation in natural gas, hydrocarbons, petrochemical processes, tank terminals, and other demanding industrial...
View
Ball Valve Trunnion Mounted Class 900/1500/2500 - 7090/7050/7042 RB | JC Valves | Philippopoulos s.a.

Ball Valve Trunnion Mounted Class 900/1500/2500 - 7090/7050/7042 RB | JC Valves

Ball Valve Trunnion Mounted Class 900/1500/2500 - 7090/7050/7042 RB | JC Valves
JC Valves
JC Valves 7090/7050/7042 RB Trunnion Ball Valves The 7090 / 7050 / 7042 RB series are trunnion-mounted, 3-piece forged, reduced bore ball valves, available in ASME Class 900 / 1500 / 2500. Designed for main isolation in natural gas, hydrocarbon, chemical, and petrochemical pipelines where design pressure requires forged bodies and controlled seat...
View
