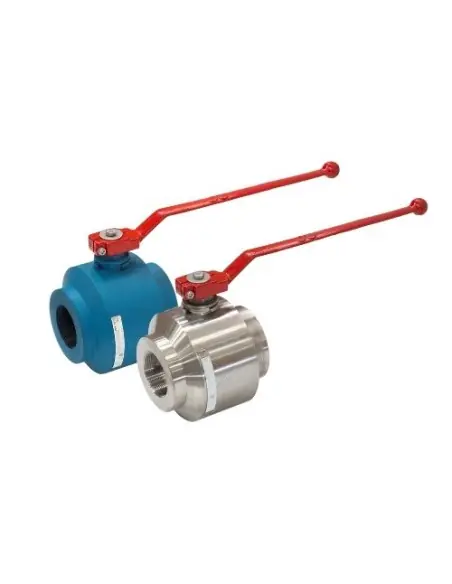

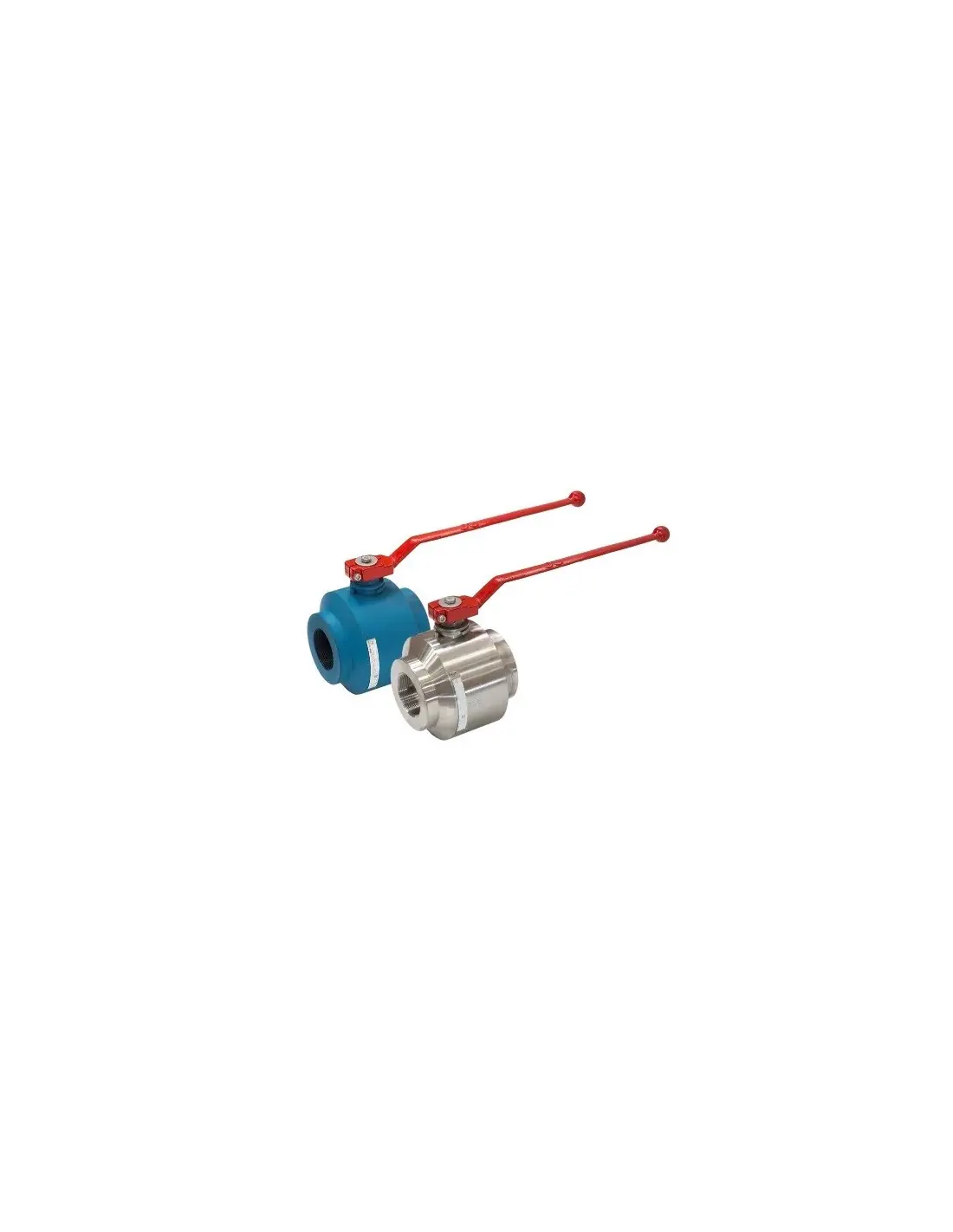

Ball valve Class 800/1500 - Type 400/41500 | JC | Philippopoulos s.a.
Ball valve Class 800/1500 - Type 400/41500 | JC | Philippopoulos s.a.

Ball valve Class 800/1500 - Type 400/41500 | JC

Unmatched Performance & Reliability: Ball valve Class 800/1500 - Type 400/41500 | JC

Discover next-level flow control with the Ball valve Class 800/1500 - Type 400/41500 | JC, an industrial solution designed for those demanding maximum durability and safety. Built for seamless handling of high-pressure environments, this valve brings you robust engineering in a compact, easy-to-use form.

Features & Benefits of Ball valve Class 800/1500 - Type 400/41500 | JC

  • High-Pressure Endurance: With pressure classes 800 and 1500, this ball valve stands up to tough conditions, making it perfect for challenging industrial systems.
  • Leak-Proof Design: The advanced sealing mechanism prevents leaks, ensuring that fluids and gases stay exactly where they should—enhancing workplace safety and efficiency.
  • Streamlined Operation: Enjoy quick and simple open/close action thanks to the user-friendly lever handle, reducing downtime and boosting productivity.
  • Corrosion-Resistant Body: Fabricated from premium materials, the valve resists rust and wear even in harsh industrial settings, offering long-term service life.
  • Easy Maintenance: Designed with accessibility in mind, routine servicing is straightforward, saving valuable time and minimizing operational interruptions.
  • Wide Application Range: Ideal for oil, gas, chemical, and power generation applications, its versatility ensures you can rely on one valve for various needs.

The Ball valve Class 800/1500 - Type 400/41500 | JC is crafted for those who refuse to compromise on accuracy and reliability. Its precise engineering guarantees consistent flow control, whether working with liquids or gases, always delivering stable and secure operation.

From initial installation to ongoing use, every aspect is designed to reduce complexity and add value to your workflow. Choose the Ball valve Class 800/1500 - Type 400/41500 | JC for dependable performance, robust protection, and smooth control—making it a smart investment in any demanding industrial environment.

Standard (Options)
  • ANSI
Connection (Options)
  • BSP
  • NPT
  • Socket Weld
  • Butt Weld
Material (Options)
  • ASTM A105N
  • ASTM A352 LF2
  • ASTM A479 Type 316
Pressure Rating (Options)
  • 800 lbs
  • 1500 lbs
Seat (Options)
  • 25% G.F. PTFE

Datasheet and documents

Description

PRODUCT FEATURES

Monoblock, Welded body, Full bore

Blowout-proof stem

Non-removable antistatic devices

Cavity pressure balancing hole

Live Loaded Packing

STANDARDS

PED

Quality Standard MSS SP 55

All wetted component materials meet NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945

Fire-Safe API 607, ISO 10497, API 6FA

Fugitive Emissions : ISO 15848 / TA-LUFT

ATEX

INDUSTRIES

Oil & Gas

Chemical & Petrochemical

Pulp & Paper

Energy & Renewable

Food & Pharma

Marine

Mining

Waste treatment

Special fluids transport

Certificates

Fire Safe API 607, ISO 10497 / API 6FA

PED 2014/68/EU - CE marking

ATEX 2014/34/EU– (II2GD)

Russian Federation Certificate TRCU 10, TRCU 12, TRCU 32

Food processing and pharmaceutical industry FDA, USP CLASS VI COMPLIANCE (CE 1935/2004)

Safety Integrity Level (SIL) LEVEL 3 IEC 61508

CRN (Canadian Registration Number)

Fugitive Emissions ISO 15848 TA LUFT (VDI 2440)
