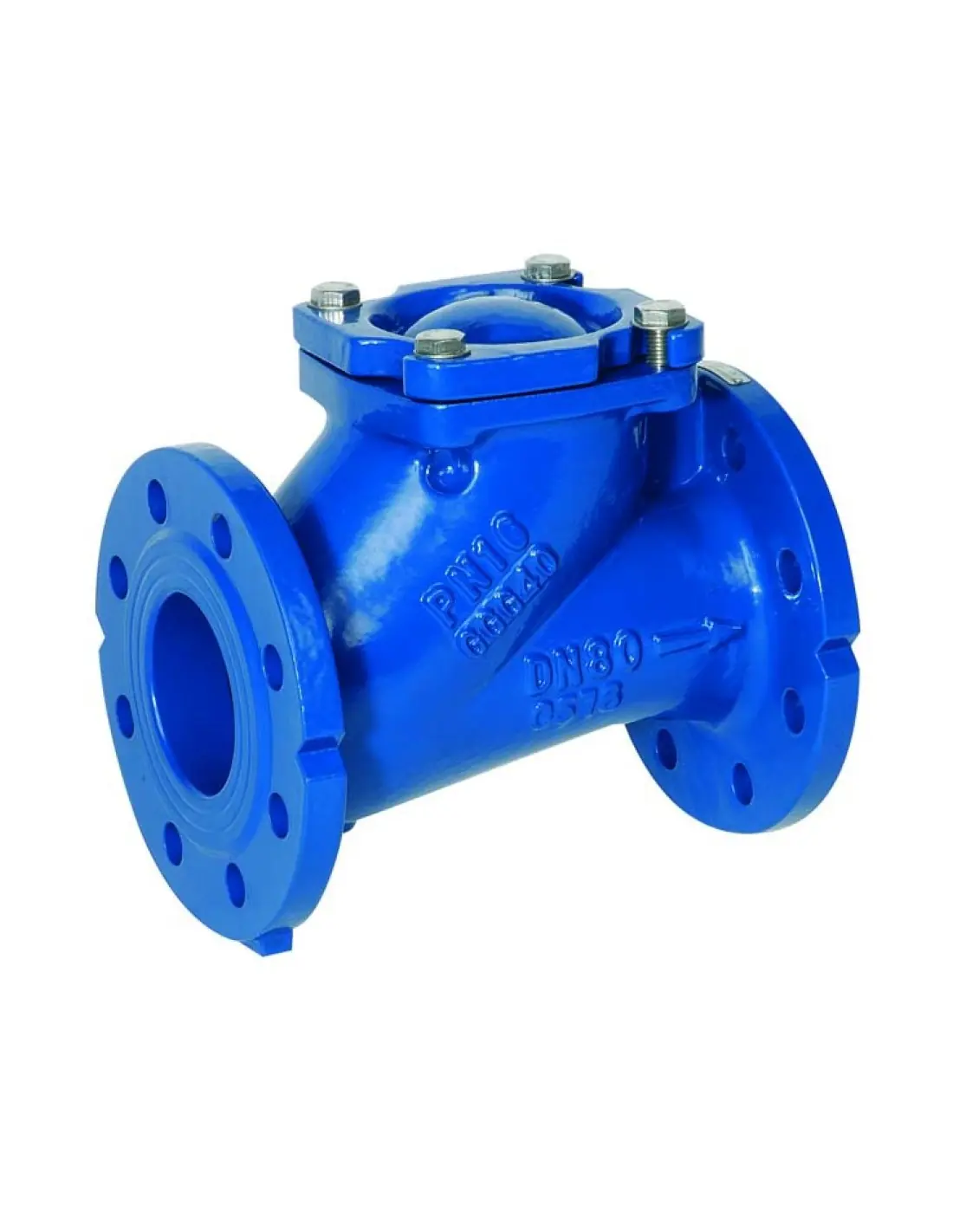

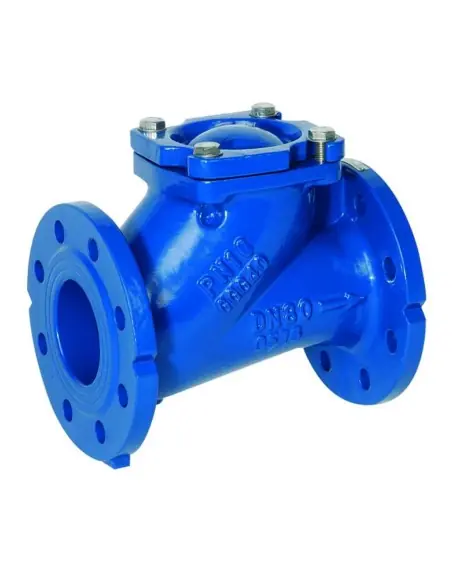

Genebre 2453 – Flanged Ball Check Valve

The Genebre 2453 is a flanged-end ball check valve designed for liquid lines where suspended solids, increased viscosity, or viscous media are present. The ball is actuated by differential flow pressure and reseats when flow decreases or reverse pressure occurs. No actuator is required.

Construction

Body and cover: EN-GJS-400 / GGG-40 ductile iron
Internal and external epoxy coating
Flanged ends: DIN 2501 PN16
Face-to-face: DIN 3202 F6
Ball 2"–6": aluminium with NBR coating
Ball 8"–10": carbon steel with NBR coating
Gasket: NBR
Bolting: stainless steel

Operating Limits

Maximum working pressure: 16 bar. Operating temperature: -10°C to +80°C. Not suitable for steam service.

Dimensions and Hydraulic Data

Available sizes: 2" to 10", all PN16. Kv values range from 95 m³/h (2") to 3000 m³/h (10") for water. Minimum opening pressure (vertical installation): 2.5 mbar (2") to 38 mbar (10"). In horizontal installations, opening pressure is effectively near zero.

Applications

Suitable for wastewater, industrial water, viscous or contaminated liquids, and pump discharge lines requiring full bore flow. Selection should verify compatibility of GGG-40, NBR, epoxy coating, and ball material with the process fluid.

FAQ

When is a ball check valve preferred over a swing check?
For applications with solids or high viscosity, where a simplified flow path and self-cleaning action of the ball are required.

Can it be installed horizontally and vertically?
Yes, technical documentation supports both horizontal and vertical installation.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJS-400-18U-LT

Pressure Rating (Options)

PN 16

Pattern (Options)

Straight Through

Seat (Options)

Datasheet and documents

Technical Sheet

Description

Body and disk: cast iron GGG-40. Ball: with NBR coated. Max. pressure: 16 BAR. Temp.: -10ºC +80ºC. Dimensions between sides DIN 3202 F6.

Reference: 2453

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2453 09	CHECK VALVE BALL FLANGES 2"	1	7.589	1/1
2453 10	CHECK V. BALL FLANGES 2 1/2"	1	10.705	1/1
2453 11	CHECK V. BALL FLANGES 3"	1	15.079	1/1
2453 12	CHECK VALVE BALL FLANGES 4"	1	20.047	1/1
2453 13	CHECK VALVE BALL FLANGES 5"	1	33.9	1/1
2453 14	CHECK VALVE BALL FLANGES 6"	1	45.06	1/1
2453 16	CHECK VALVE BALL FLANGES 8"	1	86.03	1/1
2453 18	CHECK VALVE BALL FLANGES 10"	1	140	1/1
