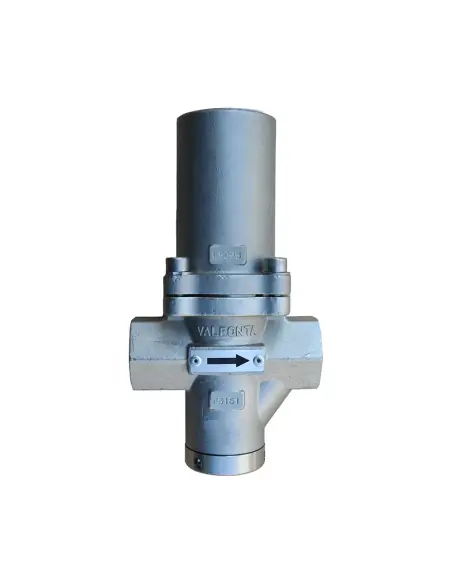

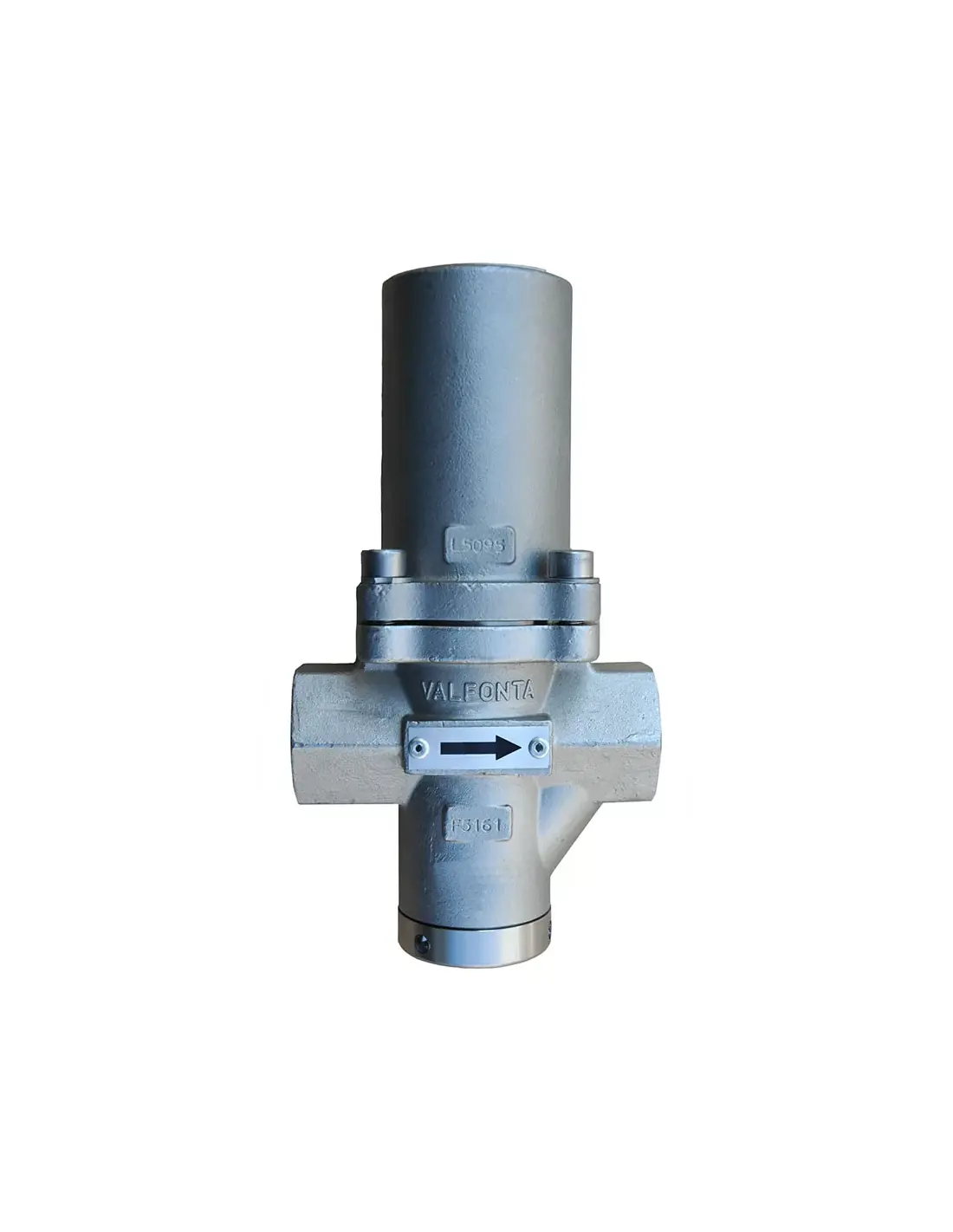

Valfonta PRV54 – Inlet Pressure Retaining Valve

The PRV54 is a self-acting pressure relief valve, fully balanced, designed to maintain upstream pressure. When the inlet pressure exceeds the set point, the valve opens proportionally, discharging flow to the downstream line or bypass without external energy.

Technical Specifications

• DN15–DN25 / ½”–1”
• Connections: BSP, NPT, flanges EN PN16/25 or ANSI Class 150
• Body, cover, and trim: Stainless steel AISI 316L
• Kvs: 2.0 / 2.5 / 3.5 m³/h, special Kv upon request
• Max inlet pressure: up to 16 bar in technical datasheet; commercial page states 12 barg, confirmation required before procurement
• Adjustment ranges: 0.2–2 / 1–4 / 3–8 bar
• Operating temperature: -30 to 210°C

Media and Sealing

The PRV54 is applicable for Group 1 and Group 2 fluids, such as steam, water, compressed air, nitrogen, inert gases, oil, and fuel-oil. Available with soft seals NBR, EPDM, FKM/Viton, and special versions with PEEK or metal seat. The 0.2–2 bar range is available only with soft sealing.

Installation and Adjustment

Flow direction follows the body arrow. For liquids and gases below 150°C, installation can be in any position. For steam above 150°C, horizontal installation with actuator downwards is recommended. Clean piping, upstream filter, pressure gauges, and slow start-up are advised to avoid water hammer.

Typical Applications

• Pump and thermal circuit bypass
• Steam networks, exchangers, and distillers
• Compressed air, nitrogen, and fuel-oil
• Sprinklers, washers, chemical labs, and auxiliary process supplies

Standards

Documentation indicates compliance with PED 2014/68/EU and potential ATEX marking II 2 GD for zones 1/21, with restrictions based on temperature class.
