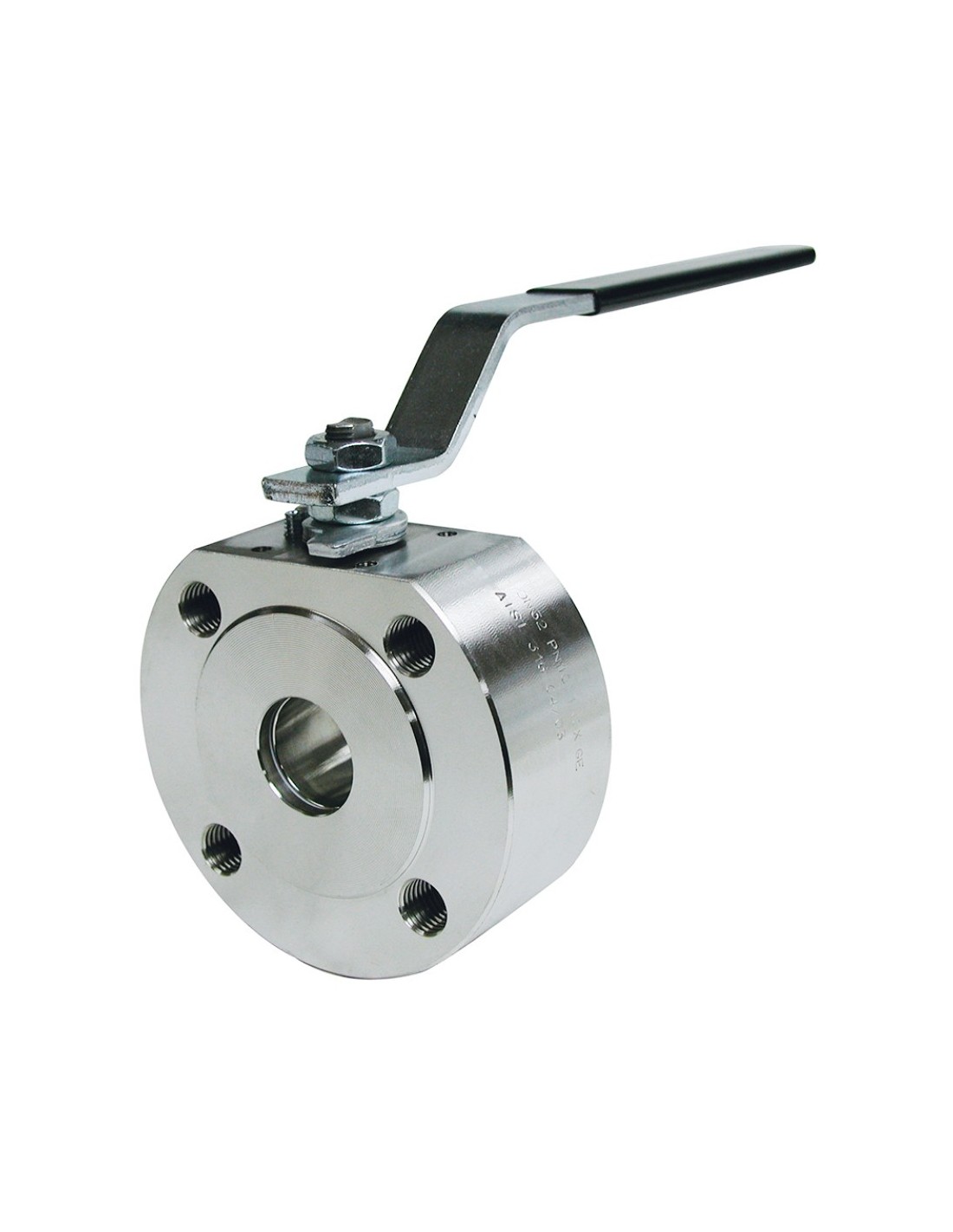

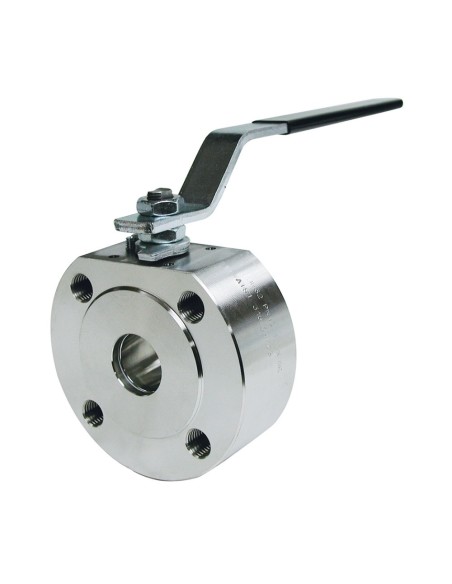

Σφαιρικός κρουνός Genebre Wafer type. 1 pc full bore ball valve mounting between flanges PN 16 - 2110

Name: Σφαιρικός κρουνός Genebre Wafer type. 1 pc full bore ball valve mounting between flanges PN 16 - 2110
Brand: Genebre
SKU: Ball Valve Wafer type 1 pc full bore ball valve mounting between flanges PN 16 - 2110 | Genebre

Ο σφαιρικός κρουνός τύπου Wafer της Genebre είναι ένας μονοκόμματος (1 pc) πλήρους διατομής κρουνός, σχεδιασμένος για τοποθέτηση μεταξύ φλαντζών με πίεση PN 16. Η κατασκευή του επιτρέπει την εύκολη εγκατάσταση και αφαίρεση, ενώ η πλήρης διατομή εξασφαλίζει ελάχιστη απώλεια πίεσης και βέλτιστη ροή υγρών. Είναι ιδανικός για εφαρμογές όπου απαιτείται αξιόπιστη και ανθεκτική λύση για τη ρύθμιση της ροής.

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Body ball and stem: stainless steel AISI 316.

Seats and seals: PTFE Temp. -20ºC +180ºC.

Manually operated by handle.

Reference: 2110

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2110 04	MOUNTING BETWEEN FLANGED PN16	1	1.5	1/1
2110 05	MOUNTING BETWEEN FLANGES PN16	1	2.181	1/8
2110 06	MOUNTING BETWEEN FLANGED PN16	1	3	1/1
2110 07	WAFER 1PC FULL BORE B.V 1 1/4" BETWEEN FLANGES PN-16	1	5	1/1
2110 08	WAFER 1PC FULL BORE B.V 1 1/2" BETWEEN FLANGES PN-16	1	6.46	1/3
2110 09	WAFER 1PC FULL BORE B.V. 2" BETWEEN FLANGES PN-16	1	5.82	1/2
2110 10	WAFER 1PC FULL BORE B.V 2 1/2" BETWEEN FLANGES PN-16	1	16	1/1
2110 11	WAFER 1PC FULL BORE B.V. 3" BETWEEN FLANGES PN-16	1	21.12	1/1
2110 12	WAFER 1PC FULL BORE B.V. 4" BETWEEN FLANGES PN-16	1	30	1/1
