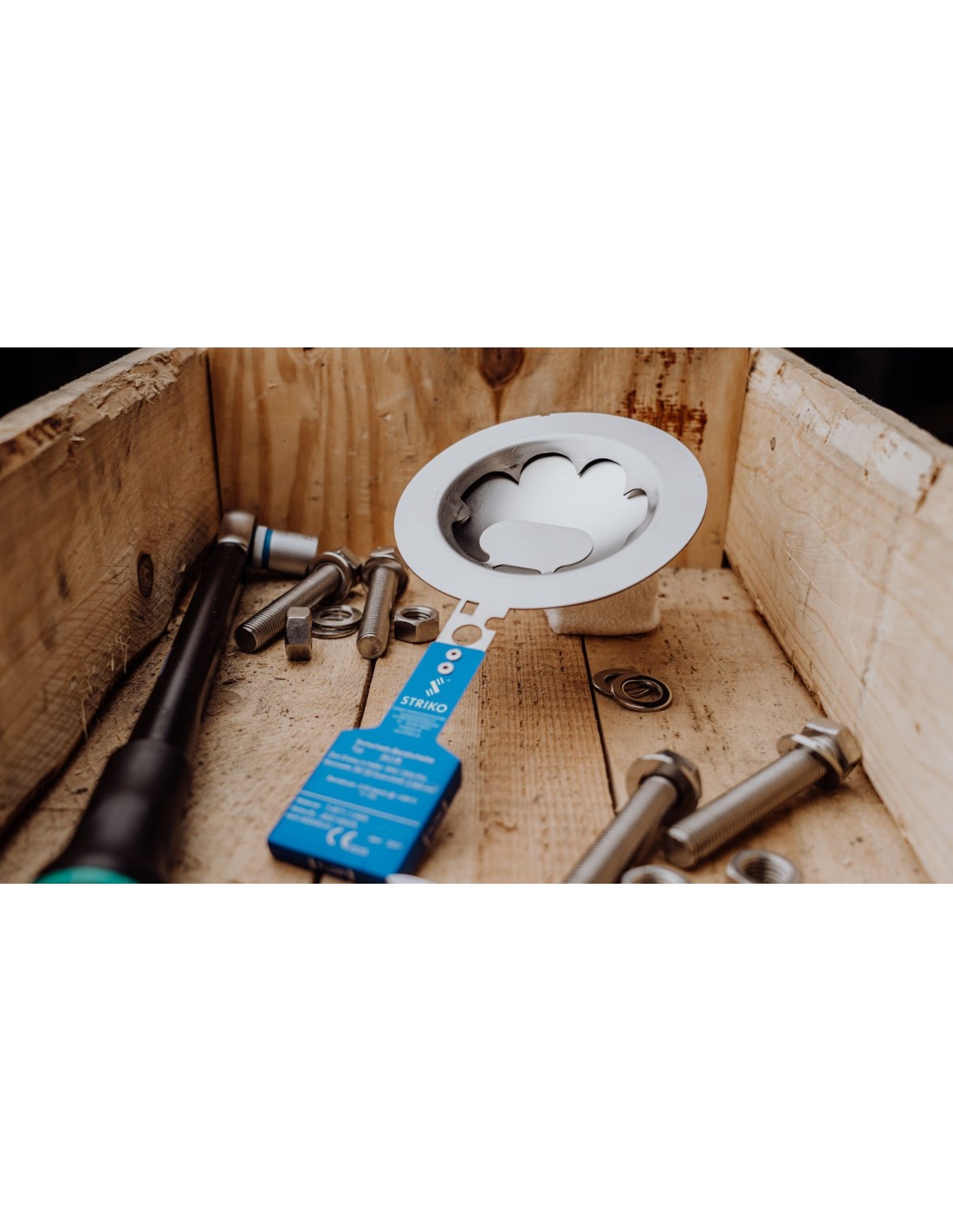

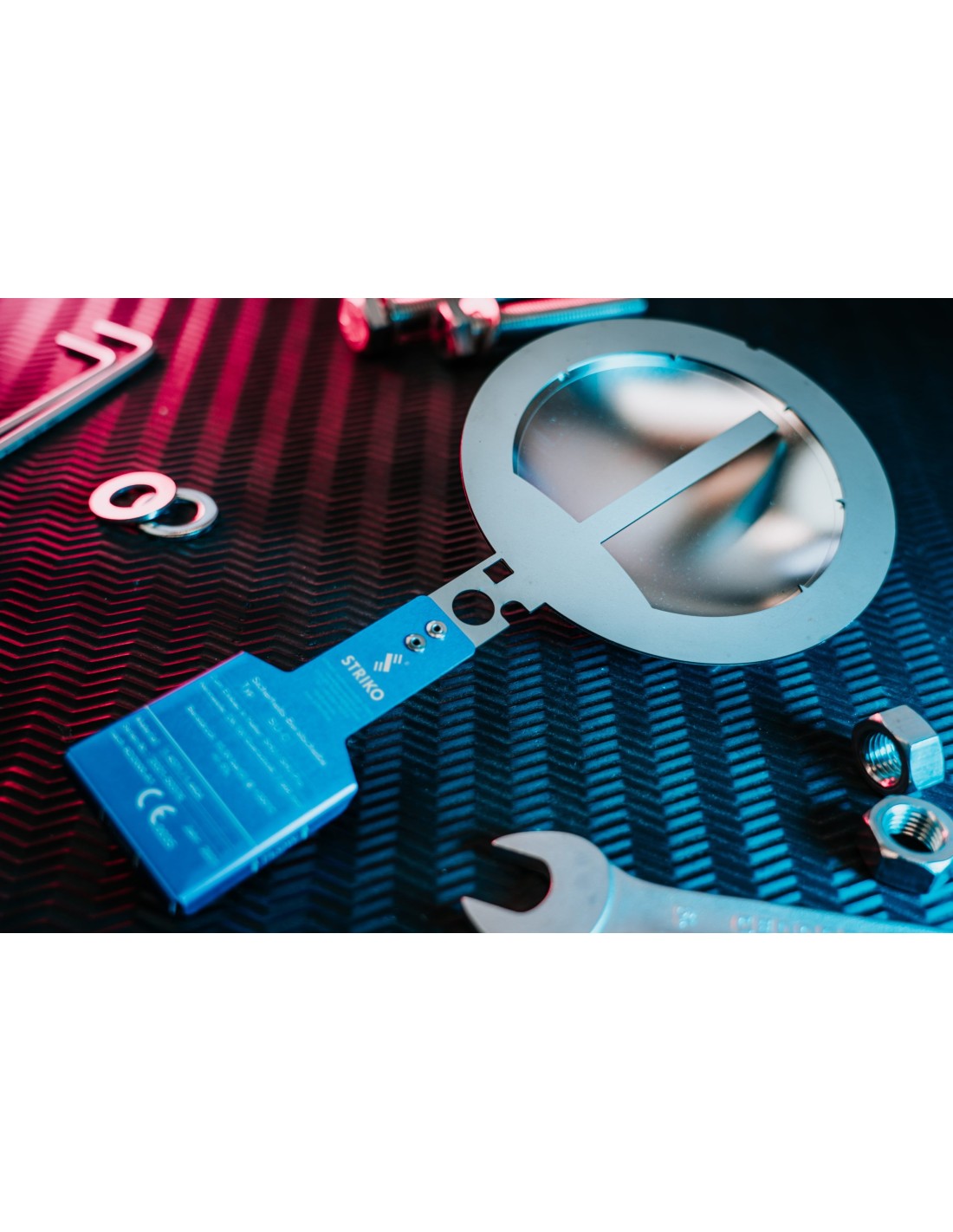

Reverse Acting Metal Rupture Disc
STRIKO reverse acting metal rupture discs are installed in a standard holder SHU or in a pre-torqued holder SHU Pro between flanges. They are especially suitable for securing pulsating working pressures of medium to high strength.
Advantages in the application
- fragment-free opening behaviour
- ideal as single pressure relief unit or used in combination with safety valve
- vacuum resistant design
- optimum working ratio: 90%
- counter pressures up to min 1.4 times of the burst pressure are possible
- testing safety valves without time consuming removal
- high pressure change resistance
- equipped with a 3D name-plate for safe detection of correct direction of installation as a standard
- ideal for securing media that tend to “cake”
Specifications:
Materials
Stainless steels, Inconel, nickel, special materials such as hastelloy
Nominal widths
DN 25 – DN 250
Burst pressures
from 0.3 bar (g) to 70 bar (g)
Working ratio
90 %
Burst tolerance
min. +/- 5 %
Utilisation temperature range
-200 ℃ to +480 ℃

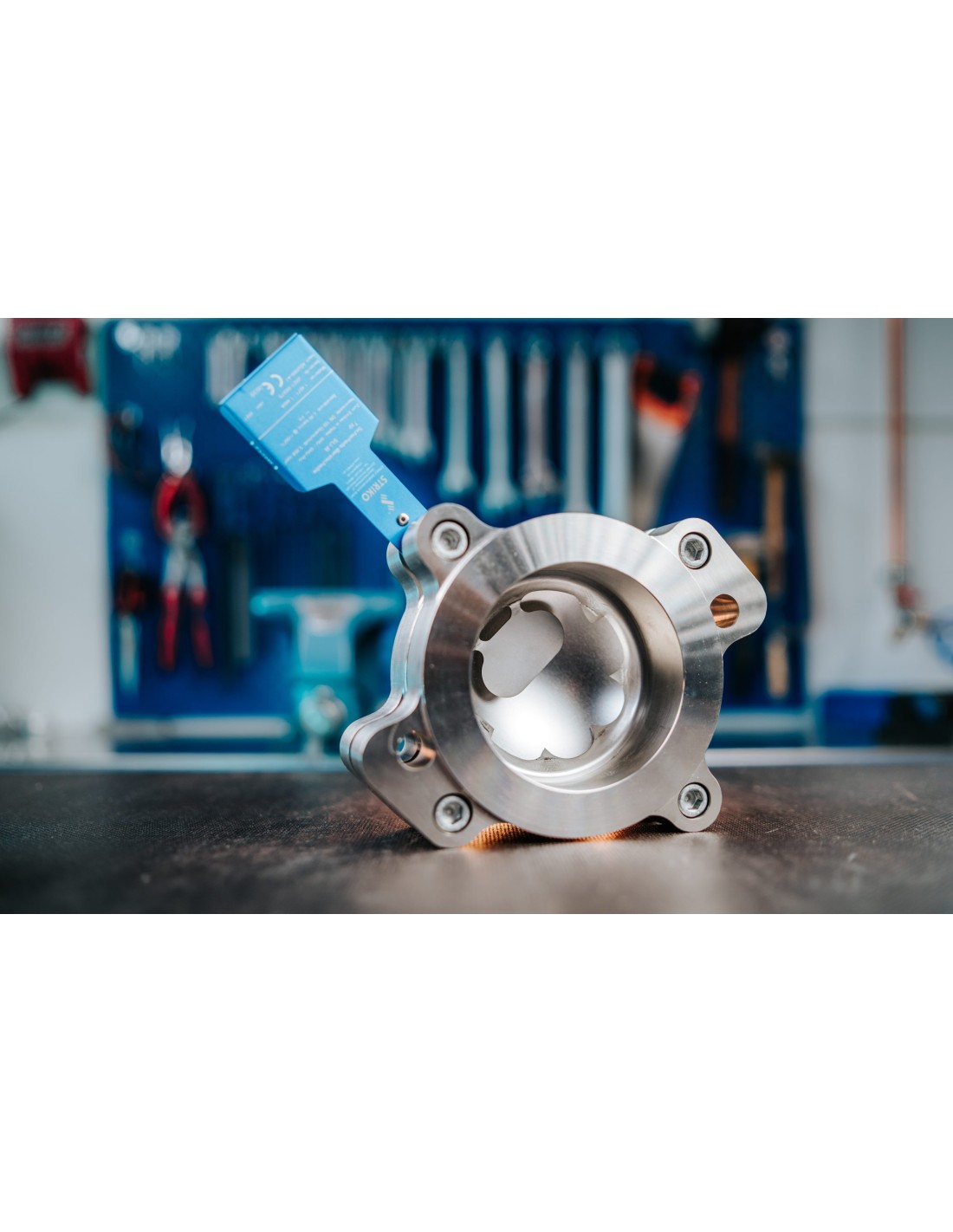

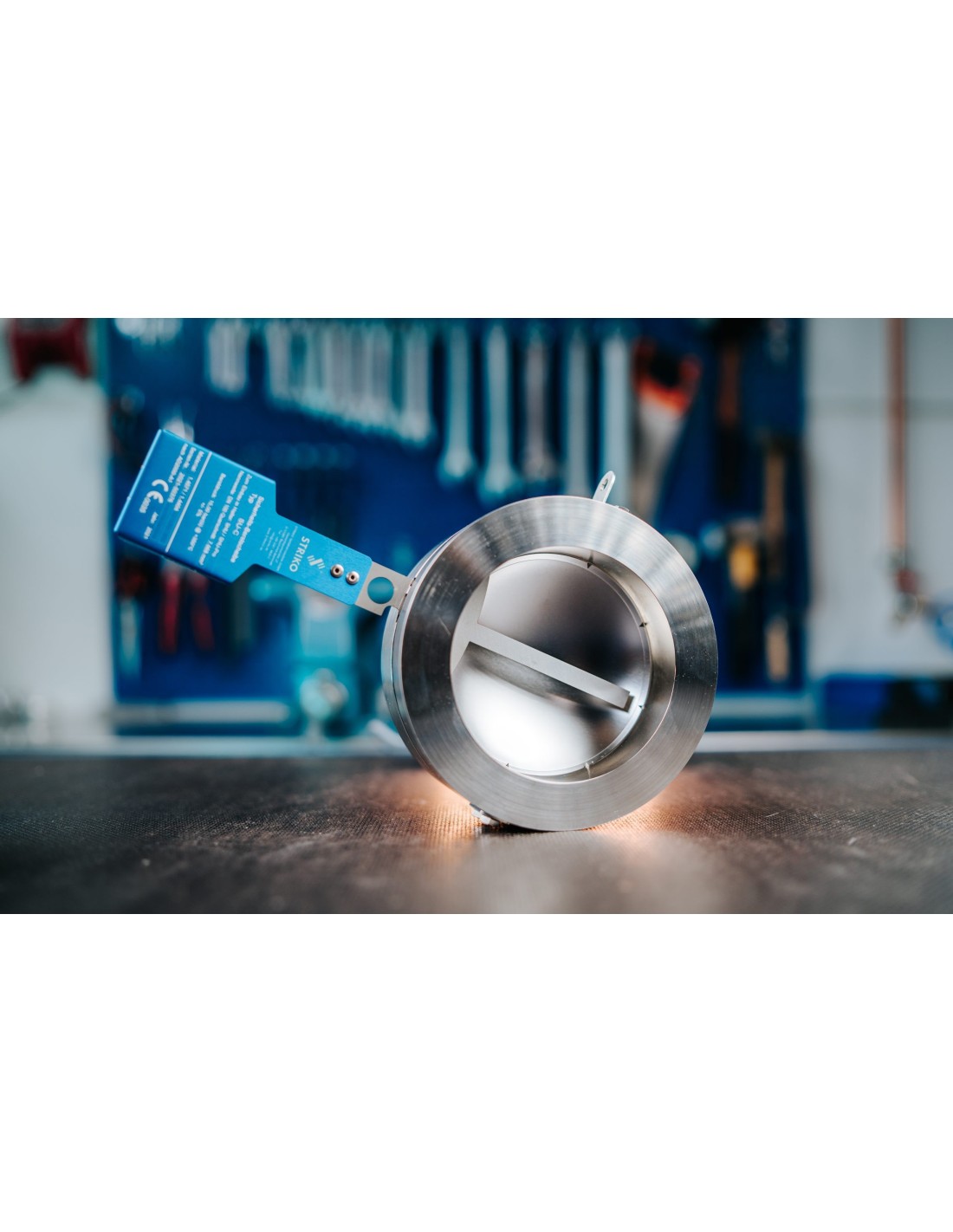

Bursting disk holder
SHU and SHU Pro
Vacuum support
not necessary
Burst indicator
optionally installed on discharge side
Installation before safety valve?
yes
