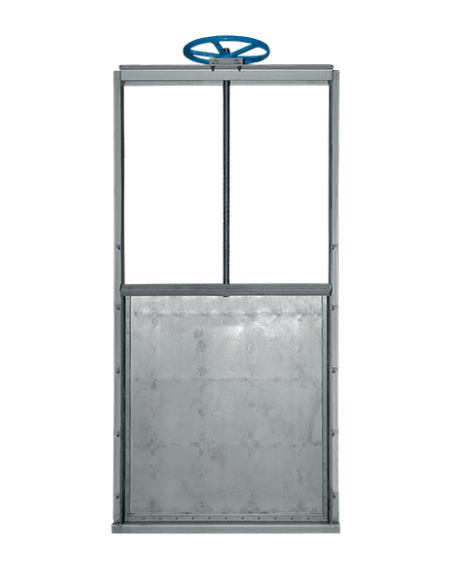

Θυρίδα Υδαταγωγού Καναλιού Zubi τύπος VCTL

Zubi VCTL Channel Penstock Valve

Η Zubi VCTL είναι θυροφράγμα καναλιού με τετράγωνη ή ορθογωνική συρόμενη θυρίδα, για έλεγχο στάθμης και απομόνωση ροής σε ανοικτά κανάλια, φρεάτια και υδραυλικά έργα. Διατίθεται για ενσωμάτωση σε σκυρόδεμα, τοποθέτηση σε τοίχο ή εγκατάσταση σε υφιστάμενο κανάλι.

Τεχνικά στοιχεία

  • Διαστάσεις: 150×150 έως 2000×2000 mm
  • Κατασκευή: συγκολλητό πλαίσιο
  • Εκδόσεις: unidirectional ή bidirectional
  • Πίεση λειτουργίας: έως το ύψος της θυρίδας
  • Στεγανότητα: DIN 19569-4 Class 5, AWWA C561
  • Υλικά σώματος/θυρίδας: AISI 304L, 316L, 316Ti, 254SMO, Duplex SAF2205, Superduplex SAF2507, AISI 310, 904L
  • Έδρα: EPDM ή NBR

Χειρισμός και παρελκόμενα

Ο χειρισμός μπορεί να είναι χειροκίνητος, ηλεκτρικός, πνευματικός ή υδραυλικός. Διατίθενται gearbox, square end, chain-wheel, limit switches, proximity sensors, solenoid valves, locking devices και extension.

Εφαρμογές

Χρησιμοποιείται σε ΕΕΛ, αρδευτικά κανάλια, υδροληψίες, δεξαμενές, έργα αντιπλημμυρικής διαχείρισης και βιομηχανικές εγκαταστάσεις νερού ή αποβλήτων.

Πρότυπα

Συμμόρφωση με DIR 2006/42/CE, PED 2014/68/EU και ATEX 2014/34/EU για Ζώνες 2 & 22.

Περιγραφή

Main Features

  • Welded construction design.
  • Special designs and adaptations according customers´ requirements.
  • Unidirectional or bidirectional versions.
  • Square or rectangular sliding channel gate.
  • Different mounting options: Embedded in concrete, wall mounted and mounted in existing channel.
  • The drives in the channel penstocks can be manual, electrical, pneumatic or hydraulic, and are interchangeable.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

SIZES & PRESSURES

150x150 up to 2000x2000

PRESSURES

The maximum working pressure is the height of the gate of the penstock. The fluid will overflow if water level is higher than the gate.

TIGHTNESS

As per DIN19569-4 (Class 5) and AWWA C561

MATERIALS

BODY  AISI304L, AISI316L, AISI316Ti, 254SMO, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI310, AISI904L

GATE AISI304L, AISI316L, AISI316Ti, 254SMO, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI310, AISI904L

SEAT

EPDM, NITRILE (NBR)

ACTUATORS

Manual, pneumatic, hydraulic, electric, gear box, square end, chain-wheel, pneumatic with security hand wheel, pneumatic with security gear box

ACCESSORIES AND OPTIONS

Limit switches, proximity sensors, solenoid valves, locking devices, extension.
