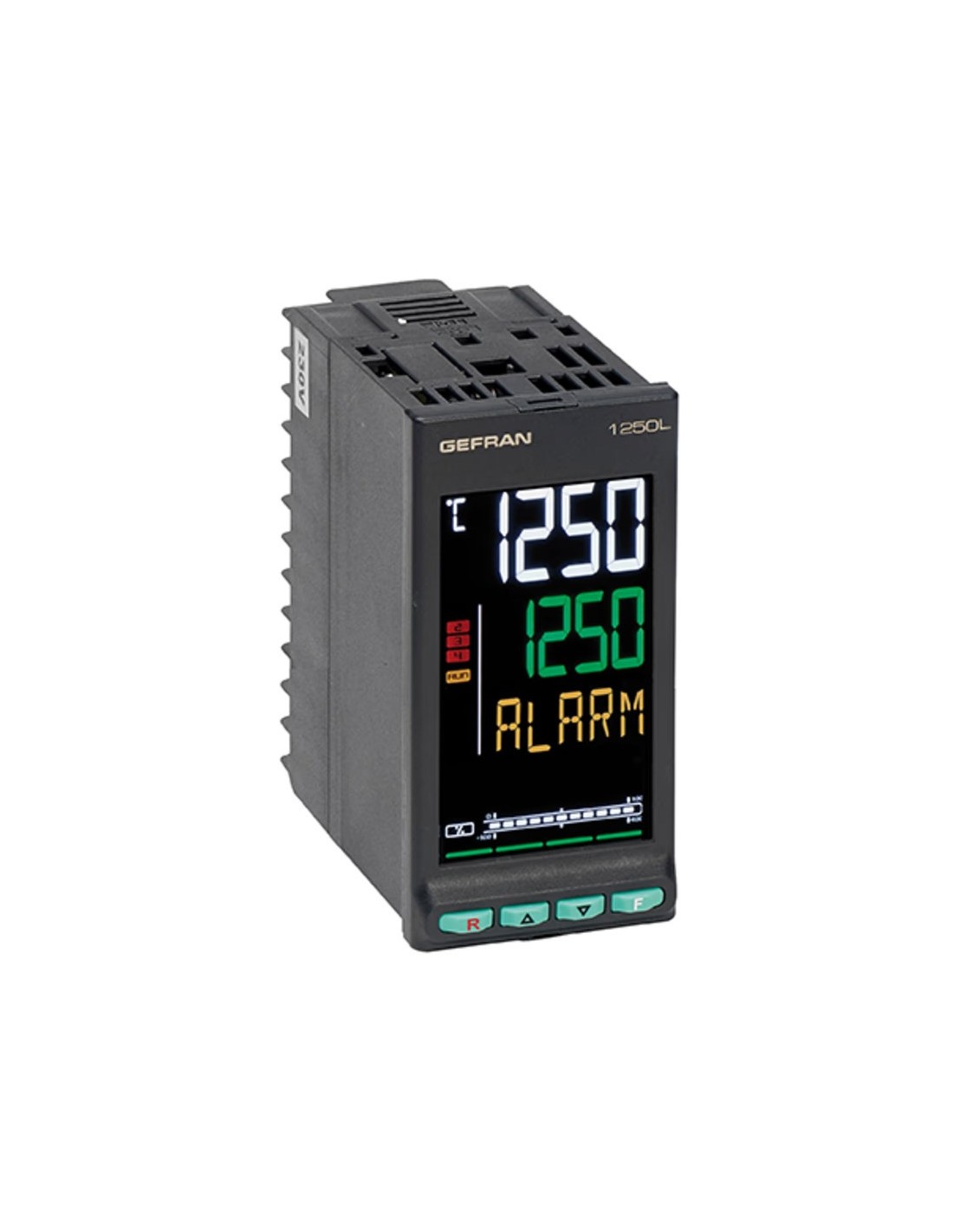

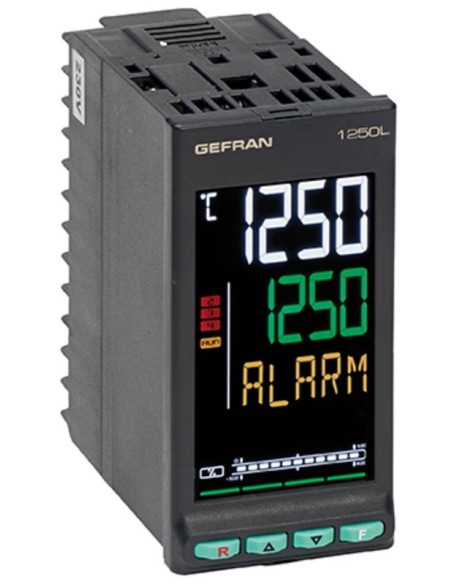

Μονάδα Ενδείξης & Συναγερμού Gefran τύπος 1250L

Μονάδα Ενδείξης & Συναγερμού Gefran τύπος 1250L – Εμπιστοσύνη στην Αυτοματοποιημένη Ασφάλεια

Η Μονάδα Ενδείξης & Συναγερμού Gefran τύπος 1250L προσφέρει την ιδανική λύση για αξιόπιστη παρακολούθηση και έγκαιρη ειδοποίηση σε κάθε περιβάλλον βιομηχανικού αυτοματισμού. Σχεδιασμένη για να καλύπτει τις απαιτήσεις κάθε σύγχρονης παραγωγικής μονάδας, διασφαλίζει αδιάλειπτη λειτουργία και άμεση ανταπόκριση σε κάθε αλλαγή ή δυσλειτουργία.

Χαρακτηριστικά & Οφέλη Μονάδας Ενδείξης & Συναγερμού Gefran τύπος 1250L

  • Άμεση και Καθαρή Ένδειξη: Εύχρηστη οθόνη LED με μεγάλη διακριτική ευκρίνεια, για γρήγορη ανάγνωση ακόμη και από απόσταση.
  • Ταχύτατη Απόκριση: Η μονάδα αντιδρά άμεσα σε κάθε μεταβολή της παραμέτρου που παρακολουθεί, διασφαλίζοντας ότι κάθε συμβάν θα ανιχνευθεί έγκαιρα.
  • Απλή Ρύθμιση: Με φιλικό μενού και απλή διαμόρφωση, κάθε χρήστης μπορεί εύκολα να προσαρμόσει τις ειδοποιήσεις και τα όρια συναγερμού στις απαιτήσεις της εφαρμογής του.
  • Πολλαπλά Σήματα Εισόδου: Υποστηρίζει μια ευρεία γκάμα αισθητήρων και πηγών σήματος, διευκολύνοντας τη συμβατότητα με κάθε σύστημα αυτοματισμού.
  • Αξιοπιστία & Ανθεκτικότητα: Κατασκευασμένη με κορυφαία ποιότητα υλικών, αντέχει στη συνεχή χρήση και τις απαιτήσεις του βιομηχανικού περιβάλλοντος.
  • Εξοικονόμηση Χρόνου: Με έξυπνες λειτουργίες συναγερμού, αποτρέπει τις ανεπιθύμητες διακοπές και συμβάλλει στη μείωση του χρόνου συντήρησης.

Η Gefran 1250L είναι το ιδανικό εργαλείο για όσους επιθυμούν να έχουν πάντα τον έλεγχο των κρίσιμων παραμέτρων της παραγωγής τους, χωρίς να ανησυχούν για απρόσμενα συμβάντα. Ενσωματώνει εξελιγμένη τεχνολογία, ενώ παραμένει απλή και εύχρηστη στην καθημερινή λειτουργία.

Επιλέξτε τη Μονάδα Ενδείξης & Συναγερμού Gefran τύπος 1250L και αποκτήστε σιγουριά, ευκολία και ασφάλεια στην επιχείρησή σας!

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Technical specifications

Overview

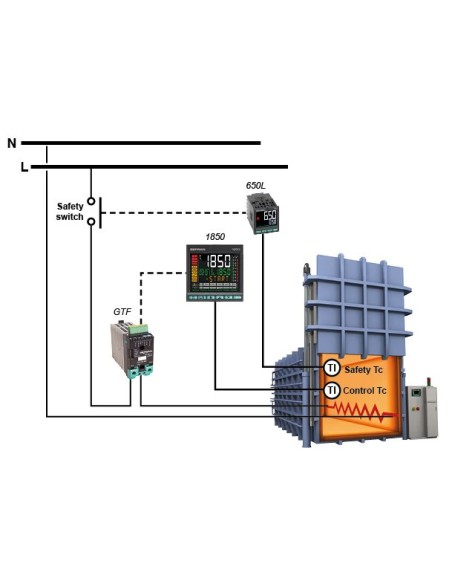

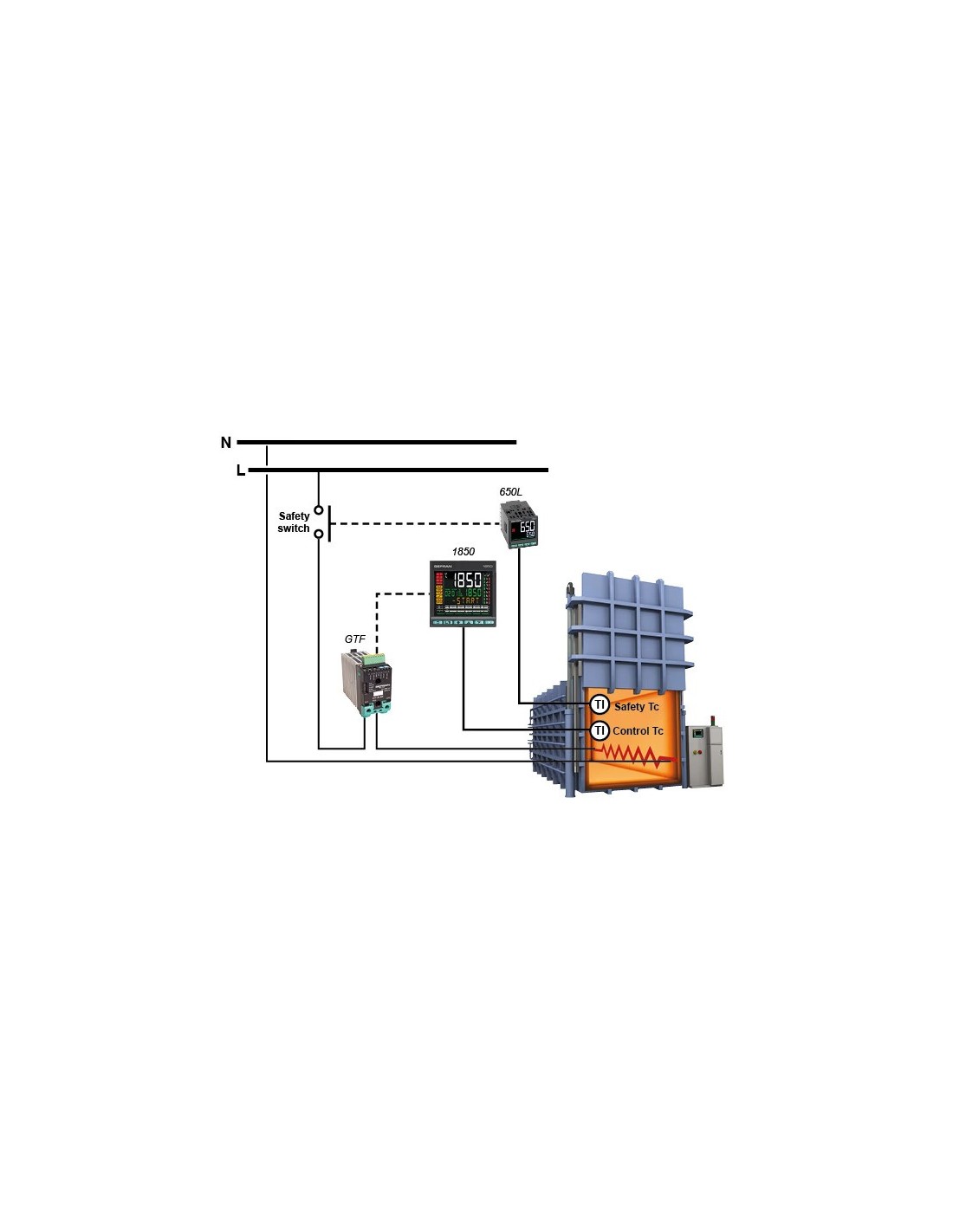

Indicators 1250 L used to limit overheating in industrial processes.

In the event of alarm, the instrument latches the fault conditions until reset by the operator. Reset can be run by the operator from the front key (red R), from the digital input (optional) or serial line (optional).

As an additional feature, the instrument counts the number of times the alarm limit is exceeded and total amount of time the alarm is active.

This information can help to evaluate furnace deterioration and plan maintenance work.

The displays show the process values, plus multilingual scrolling messages for diagnostics and alarms.

The 1250 L model includes a segmented bar that graphically displays the temperature deviation from the alarm limit.

Configuration and unit operation is done with the front keys.

The keys have dual-function LEDs indicating pressing of the keys. The LEDs provide feedback for pressed key and also provide guidance for permitted operations.

Initial commissioning is simplified by guided configuration text prompts that cover the commonly used base parameters accompanied by in line help messages.

With GF_eXpress software and PC, you can program the extended configuration, create recipes and update the firmware

without having to apply power to the instrument.

Thanks to the Smart Configurator function, you obtain the required configuration by answering a few simple questions. The initial parameters can always be reset, both from the keypad and from the GF_eXpress software.

The devices offer complete diagnostics (broken or incorrect connection of sensor), operation count, settable alarm limits (useful for scheduling preventive maintenance) A trigger meter and alarm memory reset timer are available

for alarm 1.

Maintenance of the system in which the device is installed is made easier by the ability to replace the instrument at any time simply by removing it from the faceplate.

No additional steps are needed.

Description

• Safety high temperature alarm threshold with relay output

• Retained alarm output with manual operator acknowledge

• Dedicated frontal button for alarm reset

• Counting of high temperature alarm tripping

• Time totalisation of high temperature alarm tripping

• Operator interface with large LCD Display, customizable, with choice of colors

• Scrolling diagnostic messages, configurable, in the selected language

• Easy, guided configuration, copy/paste parameters even with power off

• Different password levels

• Universal input configurable for thermocouples, RTDs, Current/Voltage inputs

• Relay, logic

• RS485 serial communication in Modbus RTU

• Removable faceplate for quick replacement

• Sampling time 60 ms

Certifications
