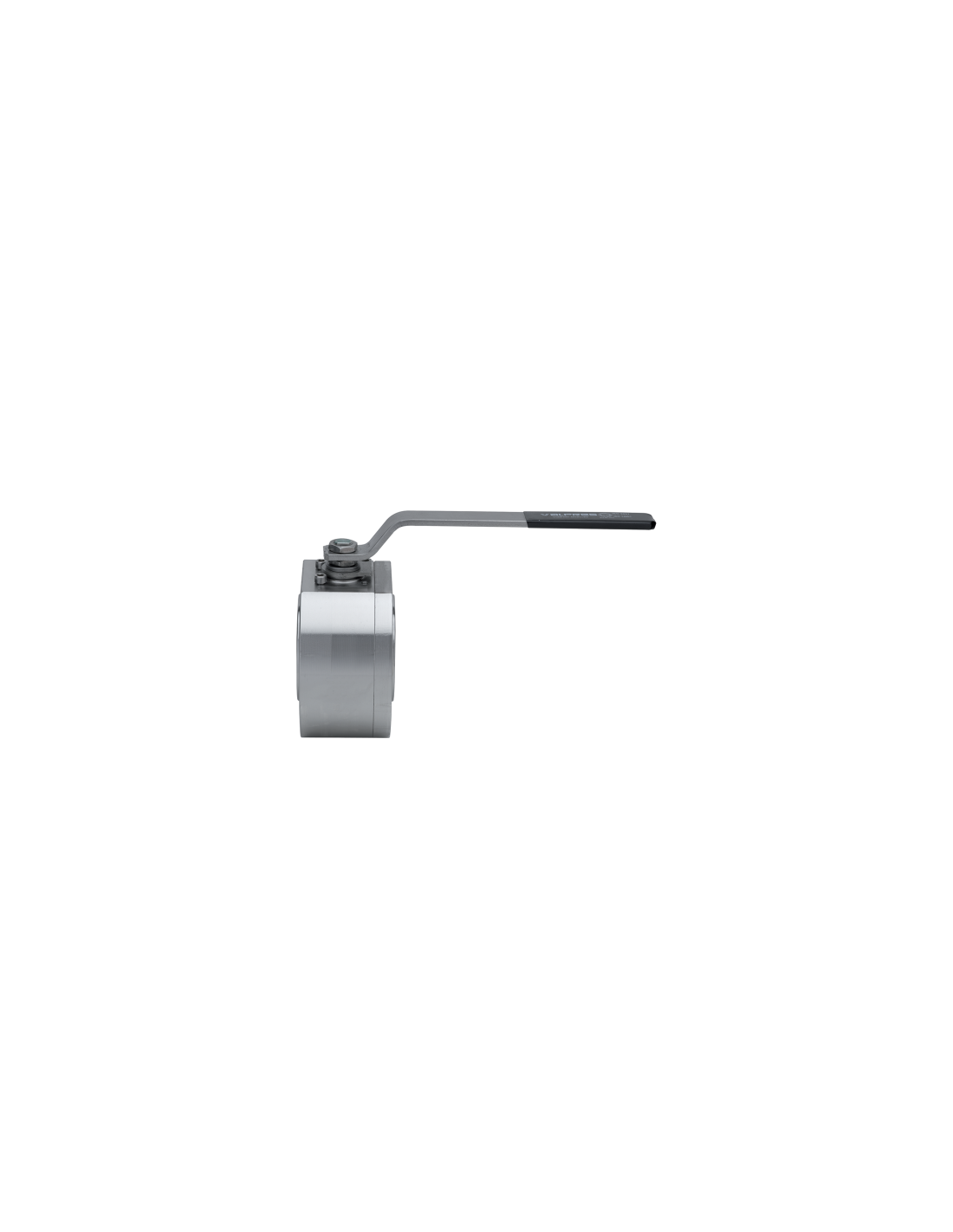

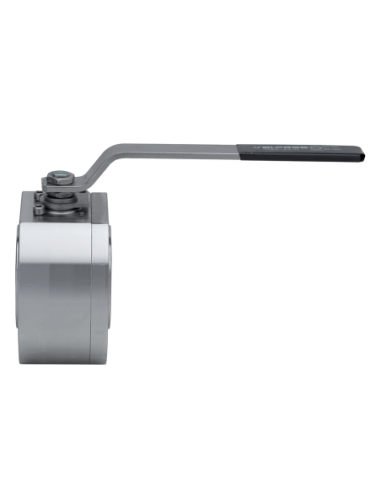

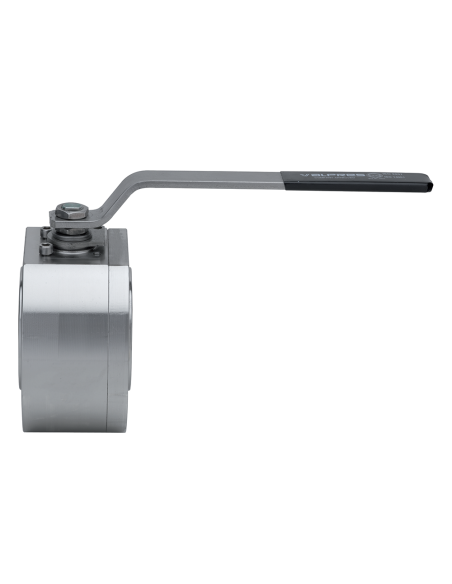

Valpres - Wafer-Split Ball Valves - Wafer-Split PN100 - 764024

Temperature range: -20°C +250°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A105/A350-LF2	1
2	END CONNECTION	ASTM A105/A350-LF2	1
3	BALL	A351-CF8M/A479-Tp316+ENP	1
4	BALL SEAT	PEEK	2
5	BODY SEATS	RPTFE	1
6	THRUST WASHER	PEEK	1
7	O-RING	FFKM	1
8	BUSH	A479-TP316/316L	1
9	BUSH	AISI 316	2
10	SCREW	A2-70 ISO 3506-1	2
11	SPRING WASHER	51CrV4+Z/P	4
12	NUT	6S+Z/P	2
13	STEM	17-4-PH	1
14	HANDLE	A37+Z/P	1
15	SCREW	8.8+Z/P	4
16	BODY SEAT	GRAPHOIL	1
17	90° STOP	A37+Z/P	1
18	STEM SEAT	GRAPHOIL	1
19	WASHER	C60S+Z/P	2
20	O-RING	FFKM	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76402404	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76402405	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76402406	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76402407	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,6
1"1/2	40	76402408	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,5
2"	50	76402410	150	125	4xM16	42	84	250	126	102	31	11,5	M16	10	50-F05	M6	301,3	40	10,00
2"1/2	65	76402412	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,70	16	17,60
2"1/2*	65	76402712	180	145	8xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,70	40	17,50
3"	80	76402414	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16-40	27,5
4"	100	76402418	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,30	16	36,8
4"*	100	76402718	235	190	8xM20	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,30	40	41,3

Also available with ANSI 150 flange.

*CS 764027.

Valpres - Wafer-Split Ball Valves - Wafer-Split PN100 - 763029

Temperature range: -20°C +250°C.

Vacuum: 10-2 torr.

Position	Part name	Material	N.° pieces
1	BODY	A479 316	1
2	END CONNECTION	A479 316	1
3	BALL	A351-CF8M/A479-Tp316+ENP	1
4	BALL SEAT	PEEK	2
5	BODY SEATS	RPTFE	1
6	THRUST WASHER	PEEK	1
7	O-RING	FFKM	1
8	BUSH	A479-TP316/316L	1
9	BUSH	AISI 316	2
10	SCREW	A2-70 ISO 3506-1	2
11	SPRING WASHER	AISI 304	4
12	NUT	A2-70 ISO 3506-1	2
13	STEM	17-4-PH	1
14	HANDLE	AISI 316	1
15	SCREW	A2-70 ISO 3506-1	4
16	BODY SEAT	GRAPHOIL	1
17	90° STOP	AISI 316	1
18	STEM SEAT	GRAPHOIL	1
19	WASHER	AISI 304	2
20	O-RING	FFKM	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76302904	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76302905	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76302906	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76302907	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,6
1"1/2	40	76302908	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,5
2"	50	76302910	150	125	4xM16	42	84	250	126	102	31	11,5	M16	10	50-F05	M6	301,3	40	10,00
2"1/2	65	76302912	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,70	16	17,60
2"1/2*	65	76305512	180	145	8xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,70	40	17,50
3"	80	76302914	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16-40	27,5
4"	100	76302918	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,30	16	36,8
4"*	100	76305518	235	190	8xM20	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,30	40	41,3

Also available with ANSI 150 flange.

*SS 763055

Valpres - Wafer-Split Ball Valves - Wafer-Split PN100 - 764150

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A350-LF2	1
2	END CONNECTION	A350-LF2	1
3	BALL	A351-CF8/A479-TP304	1
4	BALL SEAT	PTFE+MET/RPTFE	2
5	STEM	A479-TP304/17-4-PH	1
6	NUT	CARBON STEEL	2
7	SPRING WASHER	CARBON STEEL	2
8	90° STOP	CARBON STEEL	1
9	BUSH	A182-F316	2
10	STEM SEAT	PTFE	1
11	HANDLE	CARBON STEEL	1
12	STEM SEAT	GRAPHOIL	1
13	O-RING	FKM	1
14	O-RING	FKM	1
15	WASHER	A182-F304	2
16	BODY SEAT	GRAPHOIL	1
17	BODY SEAT	PTFE	1
18	THRUST WASHER	PTFE	1
19	SCREW	CARBON STEEL	3-4-7
20	SCREW	STAINLESS STEEL	2
21	NUT	STAINLESS STEEL	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76415004	105	75	4xM12	24	55	131	71	52,5	17	7,5	M10	7	42-F04	M5	19,2	100	3,00
3/4"	20	76415005	130	90	4xM16	25	60	174	88	67,5	22,6	9	M12	8	42-F04	M5	35	100	4,90
1"	25	76415006	140	100	4xM16	28	65	174	92	72,5	23,5	9,5	M12	8	42-F04	M5	64,5	100	6,20
1"1/4	32	76415007	155	110	4xM20	33	75	251	101	94	31	11	M16	10	50-F05	M6	103,8	100	10,00
1"1/2	40	76415008	170	125	4xM20	41	85	251	131	107	31,5	11,5	M16	10	50-F05	M6	174	100	13,30
2"	50	76415010	195	145	4xM24	50	100	321	143	123	38	17,5	M20	14	70-F07	M8	301,3	100	21,00
2"1/2	65	76415012	220	170	8xM24	64	125	321	158	133	35	14,5	M20	14	70-F07	M8	545,7	100	30,50
3"	80	76415014	230	180	8xM24	75	150	381	172	152	43,5	19	M24	18	70-F07	M8	872,5	100	42,20
4"	100	76415018	265	210	8xM27	92,5	185	381	185	165	43,5	19,5	M24	18	102-F10	M10	1363,3	100	66,80

Valpres - Wafer-Split Ball Valves - Wafer-Split PN100 - 763030

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A479-TP316	1
2	END CONNECTION	A479-TP316	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	PTFE+MET/RPTFE	2
5	STEM	A479-TP316/17-4-PH	1
6	NUT	STAINLESS STEEL	2
7	SPRING WASHER	STAINLESS STEEL	2
8	90° STOP	STAINLESS STEEL	1
9	BUSH	A182-F316	2
10	STEM SEAT	PTFE	1
11	HANDLE	STAINLESS STEEL	1
12	STEM SEAT	GRAPHOIL	1
13	O-RING	FKM	1
14	O-RING	FKM	1
15	WASHER	A182-F304	2
16	BODY SEAT	GRAPHOIL	1
17	BODY SEAT	PTFE	1
18	THRUST WASHER	PTFE	1
19	SCREW	STAINLESS STEEL	3-4-7
20	SCREW	STAINLESS STEEL	2
21	NUT	STAINLESS STEEL	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76303004	105	75	4xM12	24	55	131	71	52,5	17	7,5	M10	7	42-F04	M5	19,2	100	3,00
3/4"	20	76303005	130	90	4xM16	25	60	174	88	67,5	22,6	9	M12	8	42-F04	M5	35	100	4,90
1"	25	76303006	140	100	4xM16	28	65	174	92	72,5	23,5	9,5	M12	8	42-F04	M5	64,5	100	6,20
1"1/4	32	76303007	155	110	4xM20	33	75	251	101	94	31	11	M16	10	50-F05	M6	103,8	100	10,00
1"1/2	40	76303008	170	125	4xM20	41	85	251	131	107	31,5	11,5	M16	10	50-F05	M6	174	100	13,30
2"	50	76303010	195	145	4xM24	50	100	321	143	123	38	17,5	M20	14	70-F07	M8	301,3	100	21,00
2"1/2	65	76303012	220	170	8xM24	64	125	321	158	133	35	14,5	M20	14	70-F07	M8	545,7	100	30,50
3"	80	76303014	230	180	8xM24	75	150	381	172	152	43,5	19	M24	18	70-F07	M8	872,5	100	42,20
4"	100	76303018	265	210	8xM27	92,5	185	381	185	165	43,5	19,5	M24	18	102-F10	M10	1363,3	100	66,80

Valpres - Wafer-Split Ball Valves - Wafer-Split ANSI600 - 764100

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A350-LF2	1
2	END CONNECTION	A350-LF2	1
3	BALL	A351-CF8/A479-TP304	1
4	BALL SEAT	PTFE+MET/RPTFE	2
5	STEM	A479-TP304/17-4-PH	1
6	NUT	CARBON STEEL	2
7	SPRING WASHER	CARBON STEEL	2
8	90° STOP	CARBON STEEL	1
9	BUSH	A182-F316	2
10	STEM SEAT	PTFE	1
11	HANDLE	CARBON STEEL	1
12	STEM SEAT	GRAPHOIL	1
13	O-RING	FKM	1
14	O-RING	FKM	1
15	WASHER	A182-F304	2
16	BODY SEAT	GRAPHOIL	1
17	BODY SEAT	PTFE	1
18	THRUST WASHER	PTFE	1
19	SCREW	CARBON STEEL	3-4-7
20	SCREW	STAINLESS STEEL	2
21	NUT	STAINLESS STEEL	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76410004	95	66,7	4xM14	23,5	55	131	71	52,5	17,5	7,5	M10	7	42-F04	M5	19,2	100	2,40
3/4"	20	76410005	115	82,6	4xM16	24	60	174	88	67,5	22,6	10,1	M12	8	42-F04	M5	35	100	3,80
1"	25	76410006	125	88,9	4xM16	26,5	65	174	92	72,5	23,5	9,5	M12	8	42-F04	M5	64,5	100	4,80
1"1/2	40	76410008	155	114,3	4xM20	38	85	251	131	107	32	11	M16	10	50-F05	M6	174	100	11,20
2"	50	76410010	165	127	8xM16	48	100	321	134	109	34	13	M20	14	70-F07	M8	301,3	100	14,00
3"	80	76410014	210	168,3	8xM20	75	150	381	155	132	39,5	16	M24	18	70-F07	M8	872,5	100	32,00
4"	100	76410018	275	215,9	8xM24	92,5	185	381	185	165	43,5	19	M24	18	102-F10	M10	1363,3	100	70,00

ANSI 300 drilling same as ANSI 600 up to DN 80.

Valpres - Wafer-Split Ball Valves - Wafer-Split ANSI600 - 763100

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A479-TP316	1
2	END CONNECTION	A479-TP316	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	PTFE+MET/R PTFE	2
5	STEM	A479-TP316/17-4-PH	1
6	NUT	STAINLESS STEEL	2
7	SPRING WASHER	STAINLESS STEEL	2
8	90° STOP	STAINLESS STEEL	1
9	BUSH	A182-F316	2
10	STEM SEAT	PTFE	1
11	HANDLE	STAINLESS STEEL	1
12	STEM SEAT	GRAPHOIL	1
13	O-RING	FKM	1
14	O-RING	FKM	1
15	WASHER	A182-F304	2
16	BODY SEAT	GRAPHOIL	1
17	BODY SEAT	PTFE	1
18	RONDELLA ASTA	PTFE	1
19	SCREW	STAINLESS STEEL	3-4-7
20	SCREW	STAINLESS STEEL	2
21	NUT	STAINLESS STEEL	1

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76310004	95	66,7	4XM14	23,5	55	131	71	52,5	17,5	7,5	M10	7	42-F04	M5	19,2	100	2,40
3/4"	20	76310005	115	82,6	4XM16	24	60	174	88	67,5	22,6	10,1	M12	8	42-F04	M5	35	100	3,80
1"	25	76310006	125	88,9	4XM16	26,5	65	174	92	72,5	23,5	9,5	M12	8	42-F04	M5	64,5	100	4,80
1"1/2	40	76310008	155	114,3	4XM20	38	85	251	131	107	32	11	M16	10	50-F05	M6	174	100	11,20
2"	50	76310010	165	127	8XM16	48	100	321	134	109	34	13	M20	14	70-F07	M8	301,3	100	14,00
3"	80	76310014	210	168,3	8XM20	75	150	381	155	132	39,5	16	M24	18	70-F07	M8	872,5	100	32,00
4"	100	76310018	275	215,9	8XM24	92,5	185	381	185	165	43,5	19	M24	18	102-F10	M10	1363,3	100	70,00

ANSI 300 drilling same as ANSI 600 up to DN 80.

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 764023

Carbon steel temperature range: -20° +160°

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A105/A350-LF2	1
2	END CONNECTION	ASTM A105/A350-LF2	1
3	BALL	A351-CF8	1
4	BALL SEAT	PEEK	2
5	BODY SEAT	RPTFE	1
6	ANTIFRICTION RING	PEEK	1
7	O-RING	FFKM	1
8	O-RING	FFKM	1
9	O-RING BUSH	PTFE	1
10	PACKING GLAND	AISI 316	2
11	SCREW	A2-70	2
12	SPRING WASHER	51CrV4+Z/P	2
13	NUT	6S+Z/P	2
14	STEM	17-4-PH	1
15	HANDLE	A37+Z/P	1
16	SCREW	8.8+Z/P	4-6
17	BODY SEAT	GRAPHITE	1
18	90° STOP	A37+Z/P	1
19	STEM SEAT	GRAPHITE	1
20	WASHER	C60S+Z/P	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76402304	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76402305	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76402306	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76402307	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	76402308	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	76402310	150	125	4xM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	76402312	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	76402314	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
4"	100	76402318	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 764026

Carbon steel temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A105	1
2	END CONNECTION	ASTM A105	1
3	BALL	A351-CF8/A479-TP304	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	O-RING	FKM	1
9	STEM SEAT	PTFE	1
10	PACKING GLAND	A182-F316	2
11	SCREW	CARBON STEEL	2
12	SPRING WASHER	CARBON STEEL	2
13	NUT	CARBON STEEL	2
14	STEM	A479-TP304/17-4-PH	1
15	HANDLE	CARBON STEEL	1
16	SCREW	CARBON STEEL	3-4
17	BODY SEAT	GRAPHOIL	1
18	90° STOP	CARBON STEEL	1
19	STEM SEAL	GRAPHOIL	1
20	WASHER	STAINLESS STEEL	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76402604	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76402605	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76402606	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76402607	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	76402608	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	76402610	150	125	4xM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	76402612	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	76402614	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
4"	100	76402618	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 763026

Stainless steel Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A182-F316/F316L	1
2	END CONNECTION	A182-F316/F316L	1
3	BALL	A351-CF8M+ENP	1
4	BALL SEAT	PEEK	2
5	BODY SEAT	RPTFE	1
6	ANTIFRICTION RING	PEEK	1
7	O-RING	FFKM	1
8	O-RING	FFKM	1
9	O-RING BUSH	A479-TP316/316L	1
10	PACKING GLAND	AISI 316	1
11	SCREW	A2-70	2
12	SPRING WASHER	AISI 304	2
13	NUT	A2-70	2
14	STEM	17-4-PH	1
15	HANDLE	AISI 316	1
16	SCREW	A2-70	4-6
17	BODY SEAT	GRAPHITE	1
18	90° STOP	AISI 316	1
19	STEM SEAT	GRAPHITE	1
20	WASHER	AISI 304	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76302604	89	60,5	4XM14	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	20	2,35
3/4"	20	76302605	95	69,8	4XM14	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	20	2,55
1"	25	76302606	109	79,2	4XM14	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	20	3,75
1"1/4	32	76302607	128	88,9	4XM14	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	20	5,65
1"1/2	40	76302608	139	98,6	4XM14	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	20	8,65
2"	50	76302610	150	120,6	4XM16	42	84	250	126	102	31	11,5	M16	10	50-F05	M6	301,3	20	10,15
2"1/2	65	76302612	179	139,7	4XM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	20	17,65
3"	80	76302614	190	152,4	4XM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	20	27,55
4"	100	76302618	220	190,5	8XM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	20	36,85

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 764001

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A105	1
2	END CONNECTION	ASTM A105	1
3	BALL	A351-CF8/A479-TP304	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	O-RING	FKM	1
9	STEM SEAT	PTFE	1
10	PACKING GLAND	A182-F316	2
11	SCREW	CARBON STEEL	2
12	SPRING WASHER	CARBON STEEL	2
13	NUT	CARBON STEEL	2
14	STEM	A479-TP304/17-4-PH	1
15	HANDLE	CARBON STEEL	1
16	SCREW	CARBON STEEL	3-4
17	BODY SEAT	GRAPHOIL	1
18	90° STOP	CARBON STEEL	1
19	STEM SEAL	GRAPHOIL	1
20	WASHER	STAINLESS STEEL	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76400104	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76400105	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76400106	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76400107	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	764001108	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	76400110	150	125	4xM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	76400112	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	76400114	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
4"	100	76400118	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 763V00

Temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A479-TP316	1
2	END CONNECTION	A479-TP316	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	O-RING	FKM	1
9	STEM SEAT	PTFE	1
10	PACKING GLAND	A182-F316	2
11	SCREW	STAINLESS STEEL	2
12	SPRING WASHER	A182-F304	2
13	NUT	STAINLESS STEEL	2
14	STEM	A479-TP316/17-4-PH	1
15	HANDLE	A182-F316	1
16	SCREW	STAINLESS STEEL	3-4
17	BODY SEAT	GRAPHOIL	1
18	90° STOP	A182-F316	1
19	STEM SEAL	GRAPHOIL	1
20	WASHER	STAINLESS STEEL	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	763V0004	90	65	4XM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	763V0005	95	75	4XM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	763V0006	110	85	4XM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	763V0007	130	100	4XM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	763V0008	140	110	4XM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	763V0010	150	125	4XM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	763V0012	180	145	4XM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	763V0014	190	160	8XM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
4"	100	763V0018	220	180	8XM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80

Available in the ANSI 150 up to DN80.

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 764000

Temperature range: -10°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	ASTM A105	1
2	END CONNECTION	ASTM A105	1
3	BALL	A351-CF8/A479-TP304	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	O-RING	FKM	1
9	STEM SEAT	PTFE	1
10	PACKING GLAND	A182-F316	2
11	SCREW	CARBON STEEL	2
12	SPRING WASHER	CARBON STEEL	2
13	NUT	CARBON STEEL	2
14	STEM	A479-TP304/17-4-PH	1
15	HANDLE	CARBON STEEL	1
16	SCREW	CARBON STEEL	3-4
17	BODY SEAT	GRAPHOIL	1
18	90° STOP	CARBON STEEL	1
19	STEM SEAL	GRAPHOIL	1
20	WASHER	STAINLESS STEEL	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76400004	90	65	4xM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76400005	95	75	4xM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76400006	110	85	4xM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76400007	130	100	4xM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	76400008	140	110	4xM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	76400010	150	125	4xM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	76400012	180	145	4xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
2"1/2*	65	76400012	180	145	8xM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	76400014	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
3"*	80	76400014	190	160	8xM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	40	27,5
4"	100	76400018	220	180	8xM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80
4"*	100	76400018	235	190	8xM20	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	40	41,30

*763019/764002 - Available in the ANSI 150 up to DN80.

Valpres - Wafer-Split Ball Valves - Wafer-Split PN16 - 763000

Stainless steel temperature range: -20°C +160°C.

Vacuum: 10-3 torr.

Position	Part name	Material	N.° pieces
1	BODY	A479-TP316	1
2	END CONNECTION	A479-TP316	1
3	BALL	A351-CF8M/A479-TP316	1
4	BALL SEAT	PTFE	2
5	BODY SEAT	PTFE	1
6	THRUST WASHER	PTFE	1
7	O-RING	FKM	1
8	O-RING	FKM	1
9	STEM SEAT	PTFE	1
10	PACKING GLAND	A182-F316	2
11	SCREW	STAINLESS STEEL	2
12	SPRING WASHER	A182-F304	2
13	NUT	STAINLESS STEEL	2
14	STEM	A479-TP316/17-4-PH	1
15	HANDLE	A182-F316	1
16	SCREW	STAINLESS STEEL	3-4
17	BODY SEAT	GRAPHOIL	1
18	90° STOP	A182-F316	1
19	STEM SEAL	GRAPHOIL	1
20	WASHER	STAINLESS STEEL	2

SIZE	DN	CODE	D	Y	Z	I	L	R	P	A	C	T	E	F	ØN	B	Kv	PN	Kg
1/2"	15	76300004	90	65	4XM12	22	53	131	69	52,5	19,5	8	M10	7	42-F04	M5	19,2	40	2,30
3/4"	20	76300005	95	75	4XM12	22	53	131	74	56	18	7,5	M10	7	42-F04	M5	35	40	2,45
1"	25	76300006	110	85	4XM12	24	57	174	92	72,5	25,5	10	M12	8	42-F04	M5	64,5	40	3,80
1"1/4	32	76300007	130	100	4XM16	30	65	174	97	76	23	8,5	M12	8	42-F04	M5	103,8	40	5,60
1"1/2	40	76300008	140	110	4XM16	37,5	79	250	118	93	31	11	M16	10	50-F05	M6	174	40	8,50
2"	50	76300010	150	125	4XM16	42	84	250	126	102	31	11,5	M16	14	50-F05	M6	301,3	40	10,00
2"1/2	65	76300012	180	145	4XM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,6
2"1/2*	65	76300012	180	145	8XM16	50,5	103	321	143	121	37,5	17	M20	14	70-F07	M8	545,7	16	17,50
3"	80	76300014	190	160	8XM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	16	27,50
3"*	80	76300014	190	160	8XM16	61	122	381	153	132	42	18	M24	18	70-F07	M8	872,5	40	27,5
4"	100	76300018	220	180	8XM16	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	16	36,80
4"*	100	76300018	235	190	8XM20	77,5	155	381	166	145,5	43	18	M24	18	102-F10	M10	1363,3	40	41,3

*763019/764002 - Available in the ANSI 150 up to DN80.

Πιστοποιήσεις

SIL 3

TUV

FIRE-SAFE Acc. EN ISO 10497/API 607

F.E. TESTED ISO15848-1

Σφαιρικός κρουνός φέτας Valpres με θερμαντικό μανδύα

Σφαιρικός κρουνός φέτας Valpres με θερμαντικό μανδύα – Τεχνολογία & Αξιοπιστία στη Βιομηχανία

Χαρακτηριστικά & Οφέλη του Σφαιρικού κρουνού φέτας Valpres με θερμαντικό μανδύα

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Πιστοποιήσεις

Κατάστημα Αθήνας

Κατάστημα Θεσσαλονίκης
