Valvosider ASME Pressure Seal – Tilting Disc Check Valve

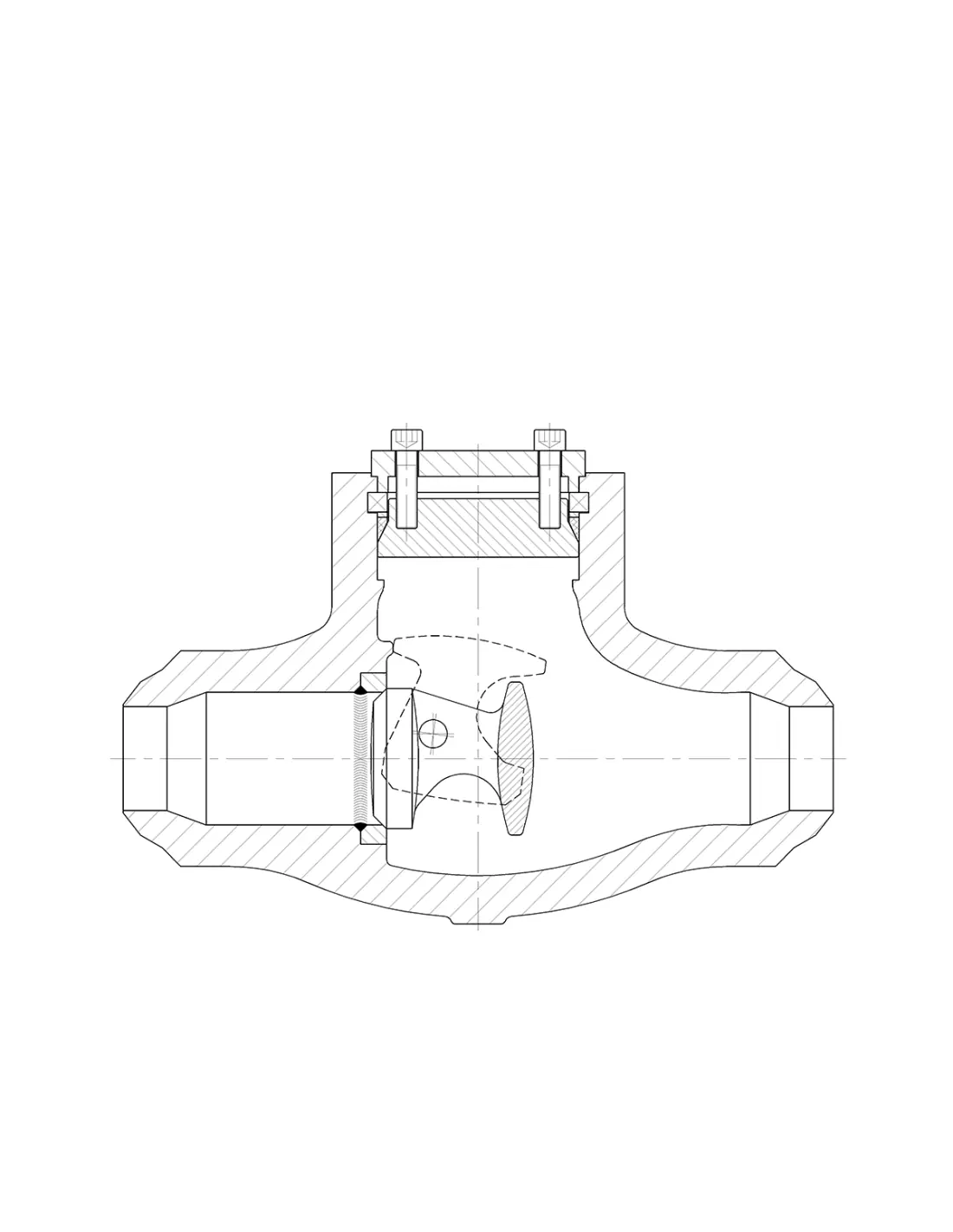

The Valvosider ASME Pressure Seal is a tilting disc check valve designed for high-pressure pipelines in accordance with ASME standards. The disc rotates with the flow and closes automatically when the differential pressure decreases or reverses. No actuator is required for operation.

Pressure Classes and Sizes

• Class 600: 2"–24", Fig. P72T
• Class 900: 2"–24", Fig. P73T
• Class 1500: 2"–24", Fig. P74T
• Class 2500: 2"–12", Fig. P75T
• Available end connections: RF, RTJ, and BW, depending on version.

Construction and Materials

Design includes a pressure seal bonnet, lapped disc/seat, and integral seat. Body and bonnet materials: ASTM A216 WCB, ASTM A217 WC1 / WC6 / WC9, ASTM A351 CF8M. Disc/seat surfaces: A105+HF, F6A+HF, or F316+HF, per metallurgical specification.

Standards

Design per MSS SP 144, BS 1873, ASME B16.34. Face-to-face: ASME B16.10. Flanges: ASME B16.5. Weld ends: ASME B16.25. Testing: API 598, EN 12266. Marking: MSS-SP 25. Compliance: CE/PED. Certification: EN 10204 3.1 / 3.2.

Options

Available: PTFE or elastomer disc, lever with counterweight, shock absorber, locking device, drain plug, bypass, flanged ends, RTJ flanges, DIN connections.

Applications

Used in high-pressure steam, boiler feedwater, condensate, thermal fluids, and compatible process liquids or gases. Selection of class and material should consider pressure-temperature rating, temperature, corrosion, flow velocity, and seat leakage requirements.

FAQ

When is a tilting disc design selected? When a high-rating check valve is required with lower flow resistance than a conventional lift type.
When are counterweight or shock absorber needed? For large diameters, pulsating flow, or pump stations with transient conditions.
