Eyewash station with mobile stainless steel tank - ClassicLine - BR 960 005 | B-Safety | Philippopoulos s.a.

Eyewash station with mobile stainless steel tank - ClassicLine - BR 960 005 | B-Safety

Eyewash station with mobile stainless steel tank - ClassicLine - BR 960 005 | B-Safety: Features & Benefits

The Eyewash station with mobile stainless steel tank - ClassicLine - BR 960 005 | B-Safety is an essential safety solution for any industrial environment where rapid response to eye injuries is critical. Designed for reliability and user-friendliness, this mobile eyewash station ensures immediate and effective decontamination, providing peace of mind in demanding workplaces.

Highly Durable Construction: Built with a robust stainless steel tank, this eyewash station offers excellent resistance to corrosion and harsh chemicals. The premium material ensures a long lifespan, even in the toughest environments.
Mobility That Matters: Equipped with smooth gliding wheels, the station can be quickly moved to any location within your facility. This flexibility ensures fast access when it matters most, reducing downtime and maximising workplace safety.
Reliable Water Flow: The powerful gravity-fed system delivers a steady and gentle stream of water to the eyes, flushing away hazardous substances with ease. The intuitive activation handle makes operation straightforward, even under pressure.
Optimal Tank Capacity: Holding enough water for extended rinsing, the tank provides ample resources for thorough eye washing, ensuring compliance with safety standards and effective treatment until professional help arrives.
Simple Maintenance: The stainless steel surface is easy to clean and disinfect, supporting hygienic use every time. The design allows for effortless refilling, so the station is always ready for emergencies.
Clear and Visible Instructions: The station features easy-to-read signage, helping even first-time users respond confidently in a crisis. Clear indicators and color-coded parts make operation straightforward.

With its blend of mobility, durability, and user-friendly features, the Eyewash station with mobile stainless steel tank - ClassicLine - BR 960 005 | B-Safety delivers vital protection for your team. It stands ready to deliver fast and efficient eye care, making it an indispensable addition to any industrial safety system.

Datasheet and documents

Description

Technical Specifications

Dimensions (H x W): 850 x 450 mm
Filling volume: 14 litre
Filling pressure: 7 bar
Flow rates: 7 l/min / 1.7 l/min (0.45 GPM)
Flush times: about 2 minutes / 5 minutes
Water filling: flap lid
Compressed air connection: tyre inflation valve

Norms / Approvals

EN 15154-4:2009
ANSI Z358.1-2014
GOST-R, Certificate-No. 0615463 0615463

Product description

Tank eye showers can be used to provide economical first aid in these locations as well. Transportable eye showers with a tank capacity of 16 liters are most commonly used. However, showers with a flushing time of less than 15 minutes should only be used to bridge the gap until a permanently installed shower is reached.

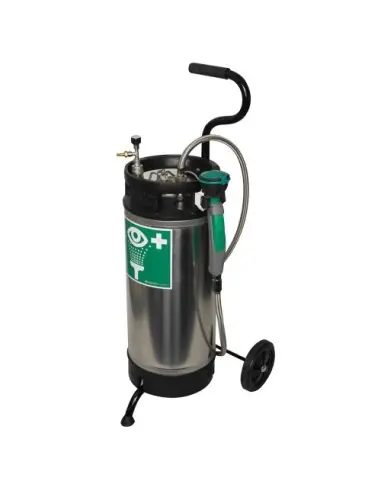

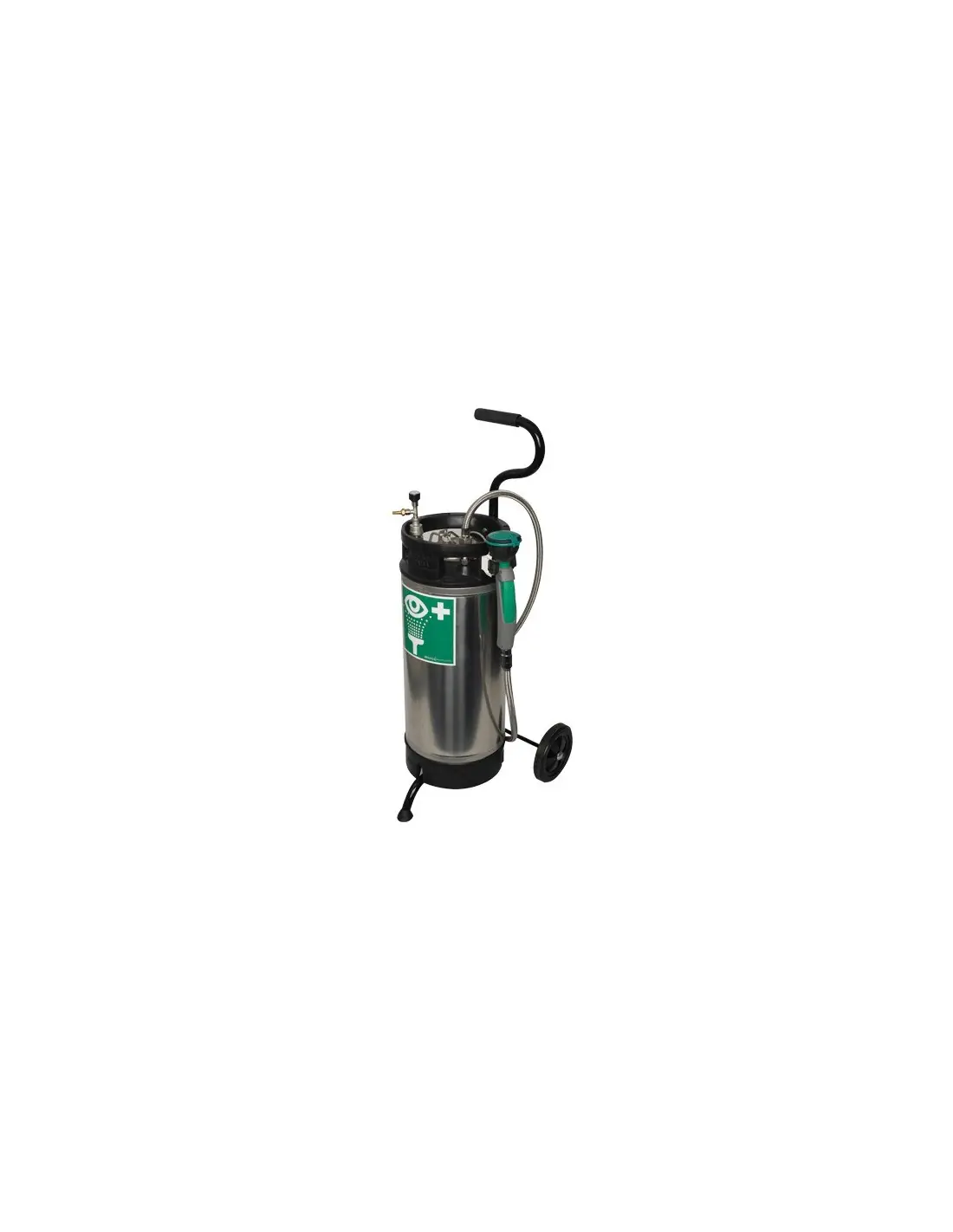

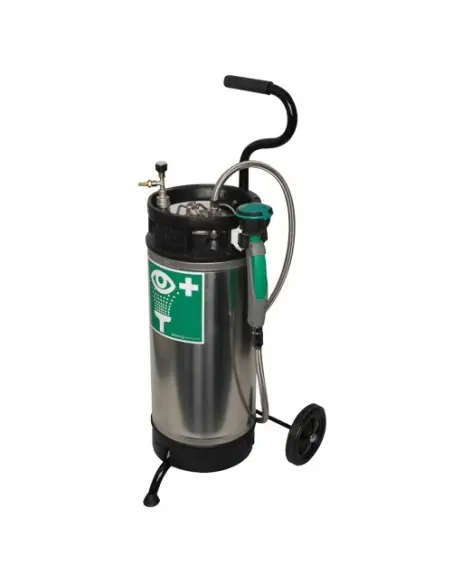

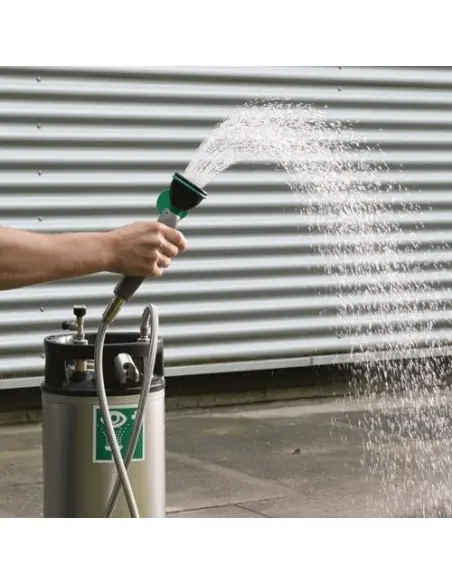

The B-SAFETY ClassicLine tank eye shower BR960005 has a 16-liter tank made of stainless steel. The filling takes place via the large hinged lid attached at the top. A minimum filling pressure of 7 bar must then be reached via the tire filling valve located on the side of this. The shower is then triggered by actuating the connected hand-held eye shower and the filled water is completely drained via the hand-held eye shower.

Technical Description

tank of stainless steel, with a capacity of 16 litres, on handcart with solid rubber tyres
water inlet via large flap lid on the tank, compressed air connection tyre inflation valve
for mobile use or when no water connection is available

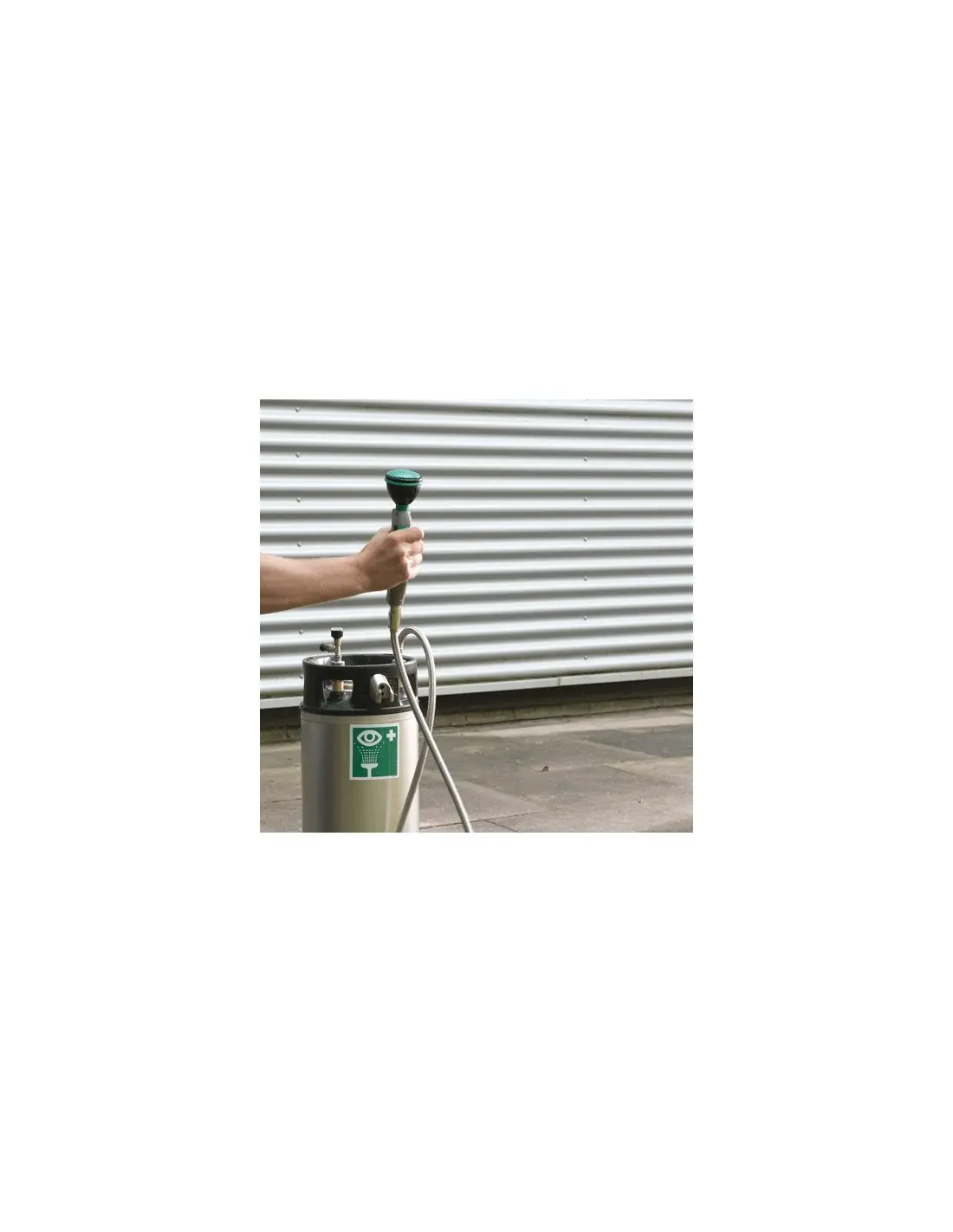

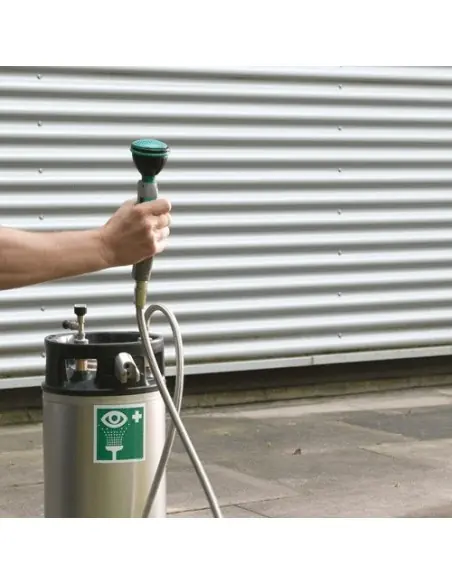

actuation by activation of the hand-held eye shower
hand-held eye shower with one spray head, mounting by wall bracket on the tank
ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing

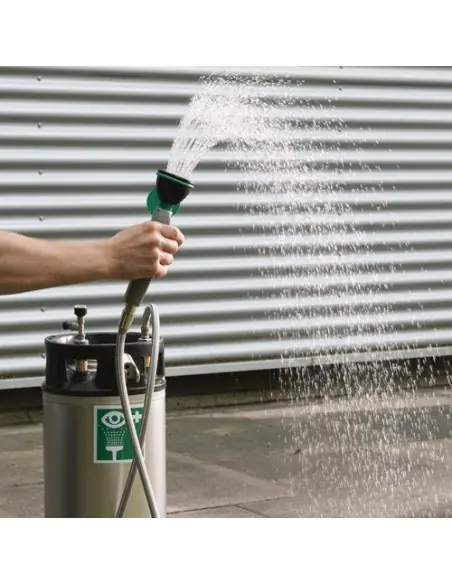

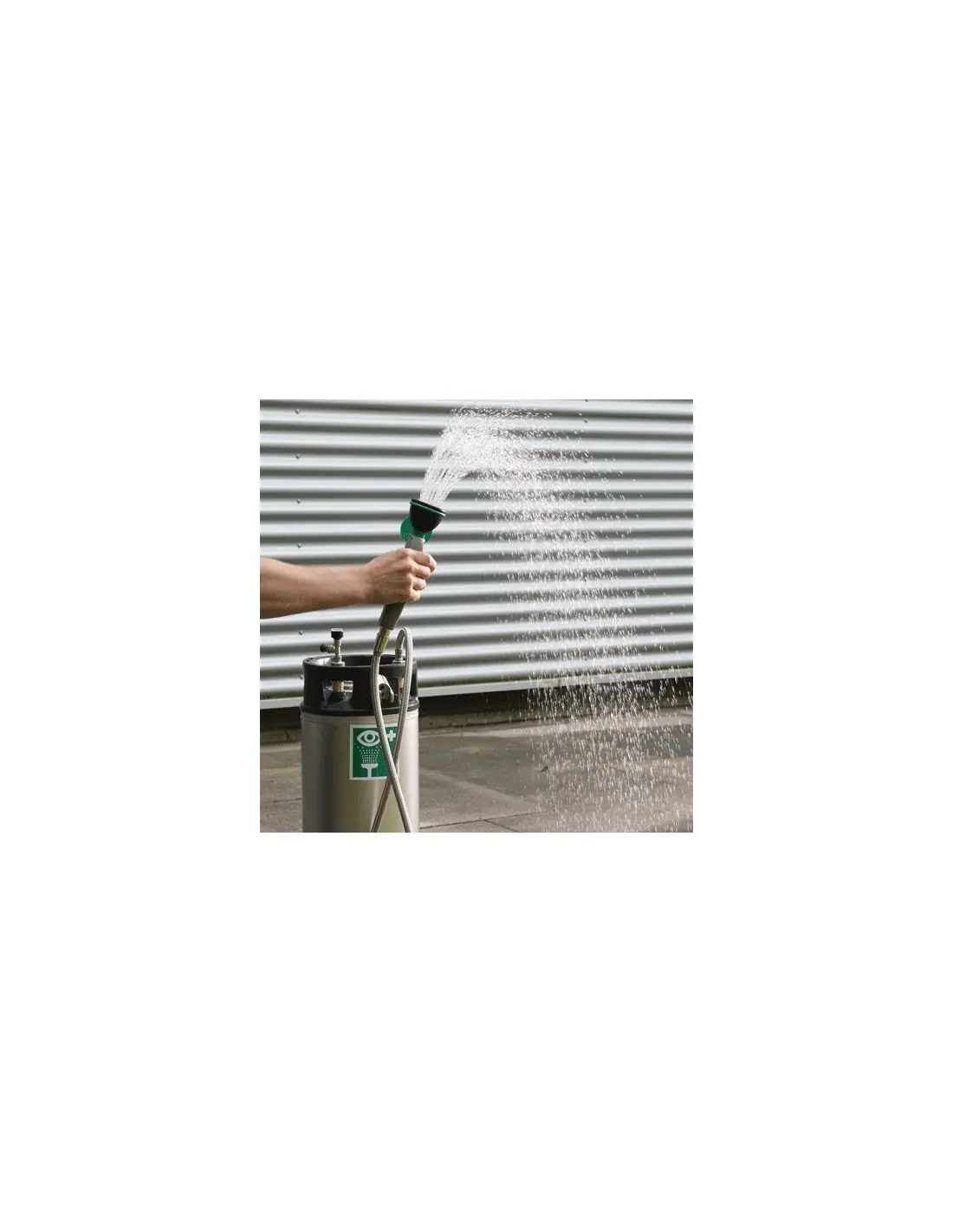

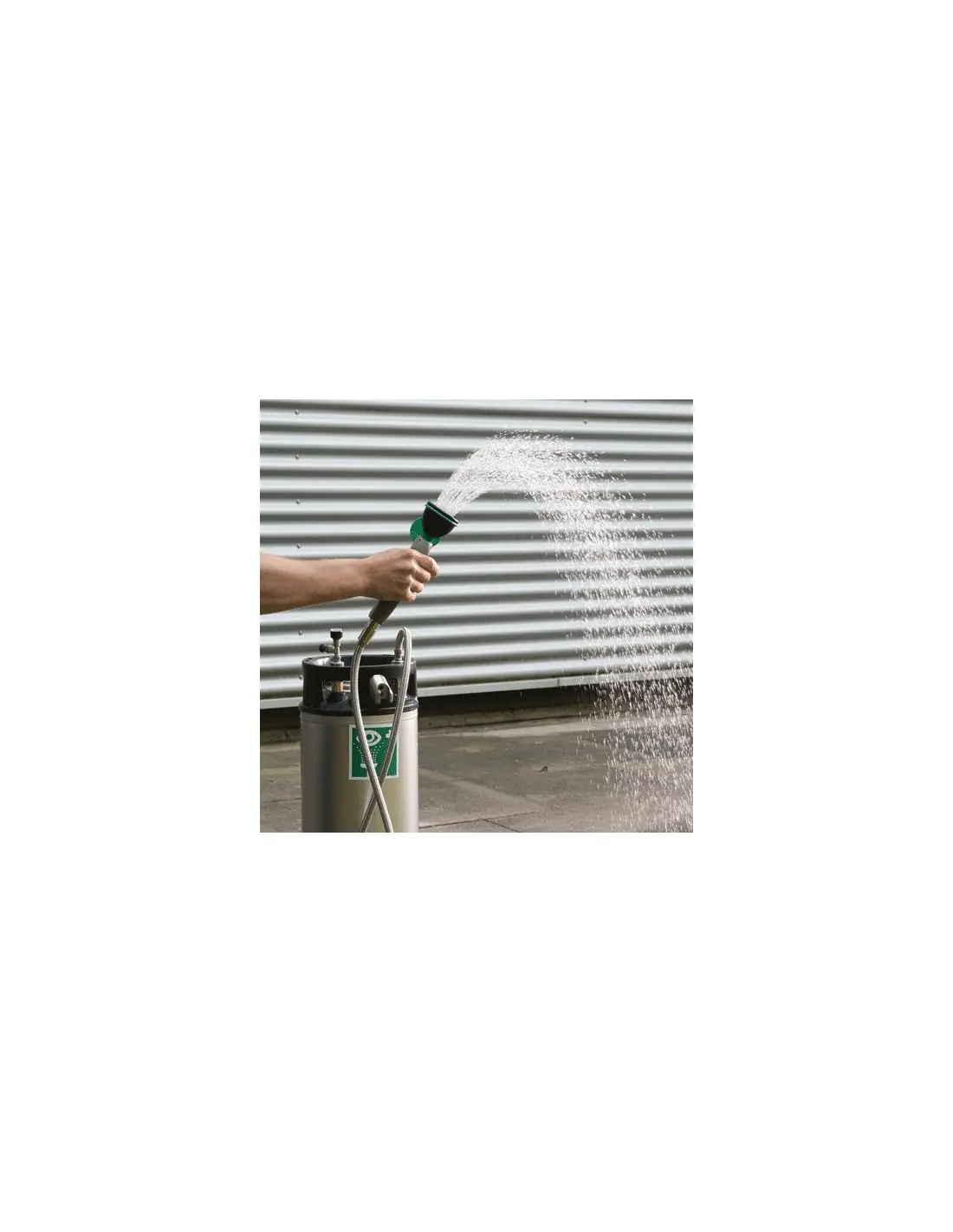

high-performance spray head for large-scale dispersion of water, with plastic spray plate, low calcification incl. with rubber sleeves and sealed dust caps with folding mechanism
integrated automatic flow regulator 7 litres / minute (1.7 litres / minute / 0.45 GPM) for a standard-compliant spray pattern
integrated backflow preventer
stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
sign for eye shower according to EN ISO 7010 und ASR A1.3 mounted on the tank, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
Dimensions (H x W x D): 850 x 450 x 225 mm
according to ANSI Z358.1-2014 and EN 15154-4:2009

Certification

DVGW ISO9001_D_72
