Globe Valve Cast Steel with non return plug JIS 10K - F7471

Unmatched Performance for Marine Applications: Globe Valve Cast Steel with non return plug JIS 10K - F7471

Designed specifically for marine use, the Globe Valve Cast Steel with non return plug JIS 10K - F7471 delivers reliable performance where it matters most. Built from premium cast steel, this valve ensures robust durability and excellent resistance to the harsh conditions at sea. Its non-return plug feature plays a key role in preventing backflow, guarding vital systems and maintaining operational integrity onboard.

Features and Benefits of Globe Valve Cast Steel with non return plug JIS 10K - F7471

  • Built for Marine Environments: This valve is engineered to withstand saltwater, corrosion, and high pressure commonly found in marine systems, extending the life of your equipment.
  • Non-return Plug Protection: The smart non-return plug prevents the reverse flow of liquids, ensuring your system functions smoothly while protecting pumps and critical components from accidental damage.
  • Reliable Cast Steel Body: Crafted from quality cast steel, this valve offers strength and reliability, performing steadily even under demanding conditions.
  • Easy to Install and Maintain: The simple yet efficient design allows for straightforward installation and hassle-free maintenance, saving you precious time and resources on board.
  • Universal JIS 10K Compliance: Manufactured to Japanese Industrial Standards (JIS 10K), the valve guarantees compatibility with a wide range of marine piping systems, offering versatile use across many vessels.
  • Enhanced Control: The globe valve mechanism provides precise flow regulation, allowing fine adjustments for optimal performance in different maritime operations.

The Globe Valve Cast Steel with non return plug JIS 10K - F7471 is the trusted choice for marine professionals. Its advanced features provide confidence in system protection, simplified handling, and a robust build built to last voyage after voyage. Secure your onboard systems with this reliable and efficient valve—guaranteed to deliver peace of mind at sea.

Description

Description

DESIGN STANDARDJIS F 7471-1996
TESTJIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPABODY2.1
SEAT1.54-0.4

Specification

8HANDWHEELFC200

Qingdao I-Flow Co., Ltd

7GASKETNON-ASBESTES
6PACKING GLANDBC6
5STEMCA771BDSUS403
4VALVE SEATBC6SCS2
3DISCBC6SCS2
2BONNETFC200
1BODYFC200
NO.NAME OF PARTCLASS BCLASS S
MATERIAL

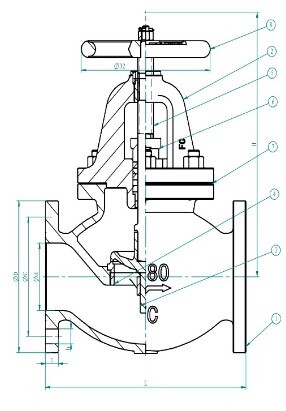

CAST STEEL 10K SCREW-DOWN CHECK GLOBE VALVE

Dimensions data(mm)

DNdLDCNO.htHD2
505022015512041916264160
656527017514041918294200
808030018515081918299200
10010035021017581918344250
12512542025021082320409280
15015049028024082322455315
200200570330290122322530355
