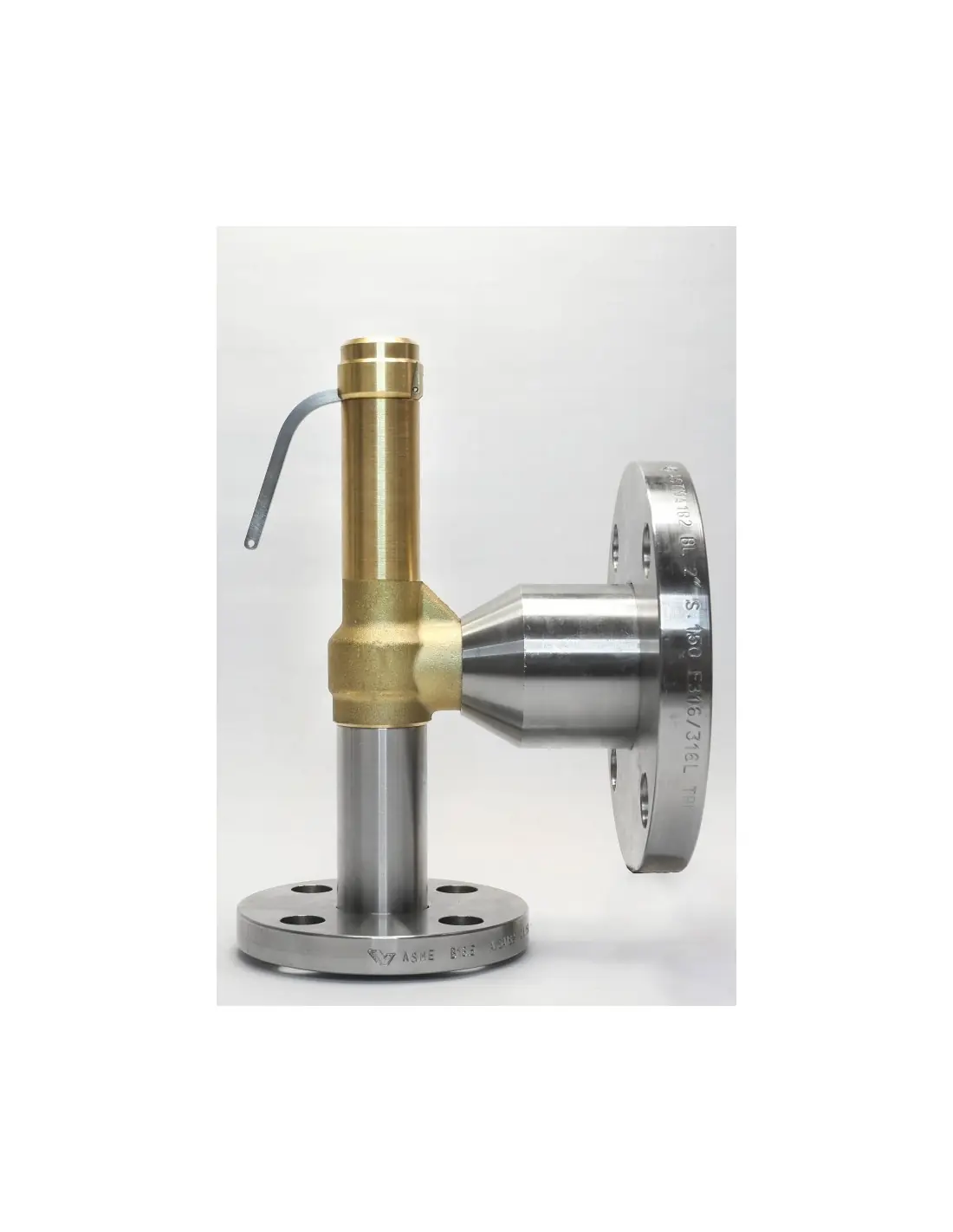

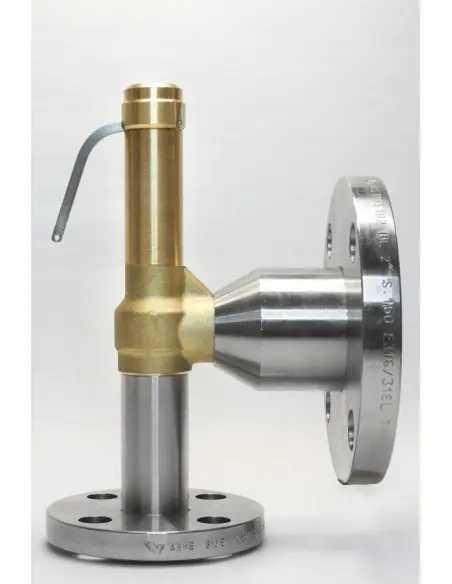

Safety Valves API526 Flanged - G15-API | Nuova | Philippopoulos s.a.

Safety Valves API526 Flanged - G15-API | Nuova

Name: Safety Valves API526 Flanged - G15-API | Nuova
Brand: Nuova General Instruments
SKU: Safety Valves API526 Flanged - G15-API | Nuova

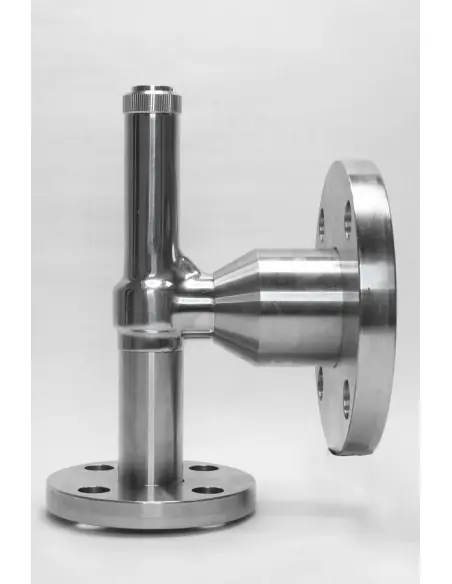

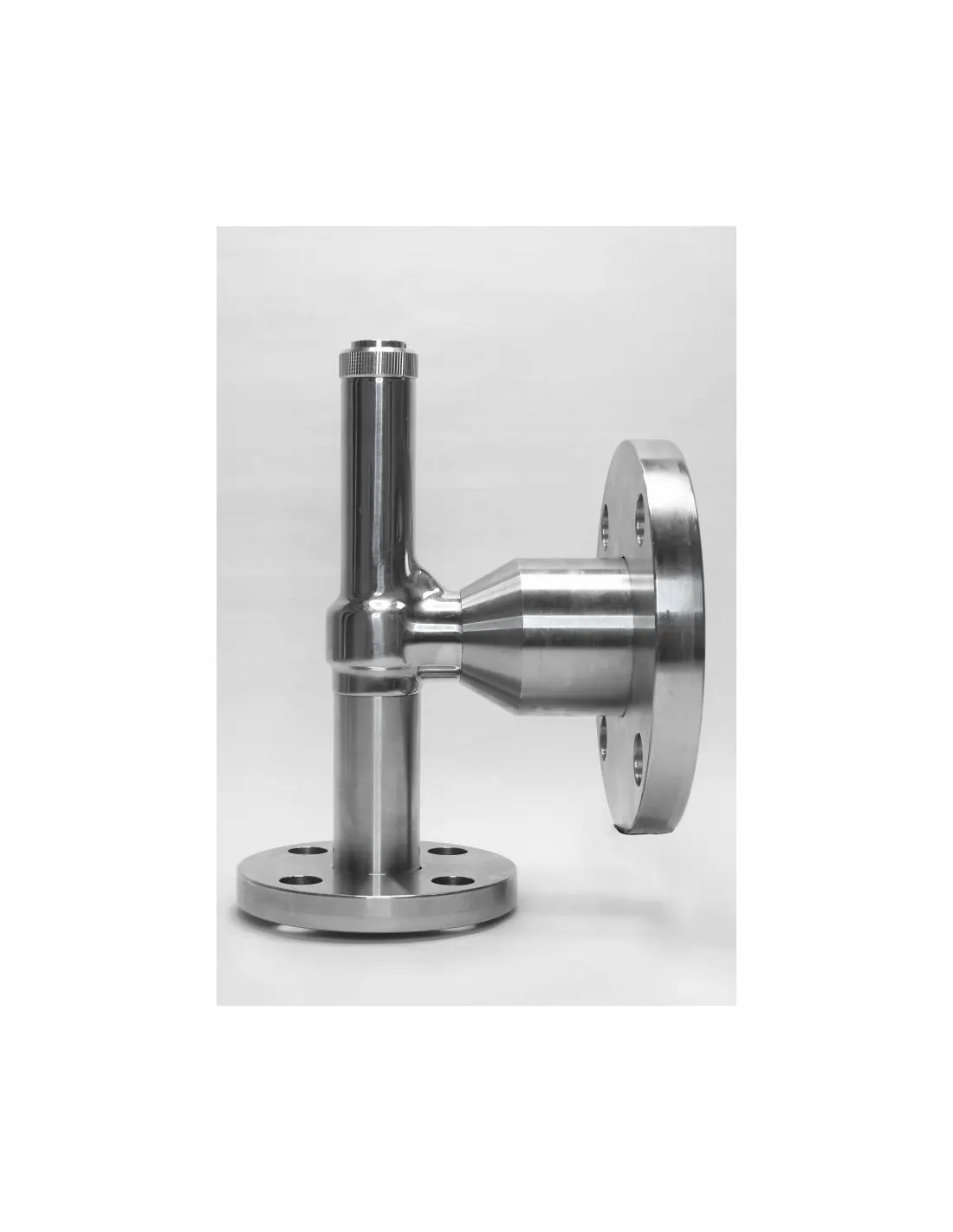

Reliable Protection with Safety Valves API526 Flanged - G15-API | Nuova

Experience peace of mind and efficient performance with the Safety Valves API526 Flanged - G15-API | Nuova. Designed for industrial use, these safety valves deliver essential pressure relief to protect your equipment and environment. Built to API526 standards, they combine strength, reliability, and advanced engineering, making them indispensable in any modern industrial setup.

Features & Benefits of Safety Valves API526 Flanged - G15-API | Nuova

Tested to API526 Standards: Assures consistent and trustworthy operation under demanding conditions. These valves meet strict industry regulations for enhanced safety.
Flanged Design: Easy to install and integrate with your current piping systems, minimizing downtime and simplifying maintenance routines.
Durable Construction: Manufactured from top-quality materials that withstand corrosion, temperature changes, and high pressures. This long-lasting build keeps your operation running smoothly over time.
Accurate Pressure Relief: Delivers rapid and precise pressure release when needed, preventing potential overpressure incidents and minimizing risk to personnel and assets.
Versatile Application: Suitable for various industrial applications, from petrochemical plants to energy production, these valves adapt seamlessly to multiple environments and process requirements.
Low Maintenance: Designed for efficiency, these valves require minimal upkeep, meaning fewer interruptions and lower total cost of ownership.

The Safety Valves API526 Flanged - G15-API | Nuova stand out for their user-friendly installation and robust protection. The flanged connection ensures a reliable, leak-free fit, while the proven API526 compliance means you can rely on performance and safety at every stage.

With their advanced engineering, these valves provide both operational excellence and safety assurance. They are easy for technicians to use and maintain, thanks to their straightforward design and accessible servicing features. When overpressure arises, you can trust these safety valves to act instantly, preventing damage and keeping your workplace secure.

Choose the Safety Valves API526 Flanged - G15-API | Nuova for dependable pressure protection, long-term durability, and simple integration. Invest in a safer, more resilient industrial process today.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

Stainless Steel

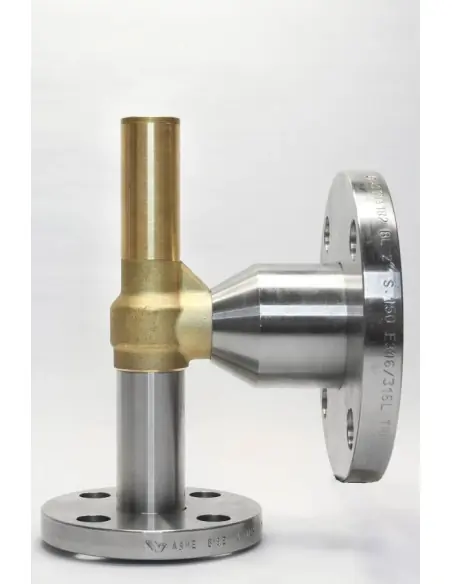

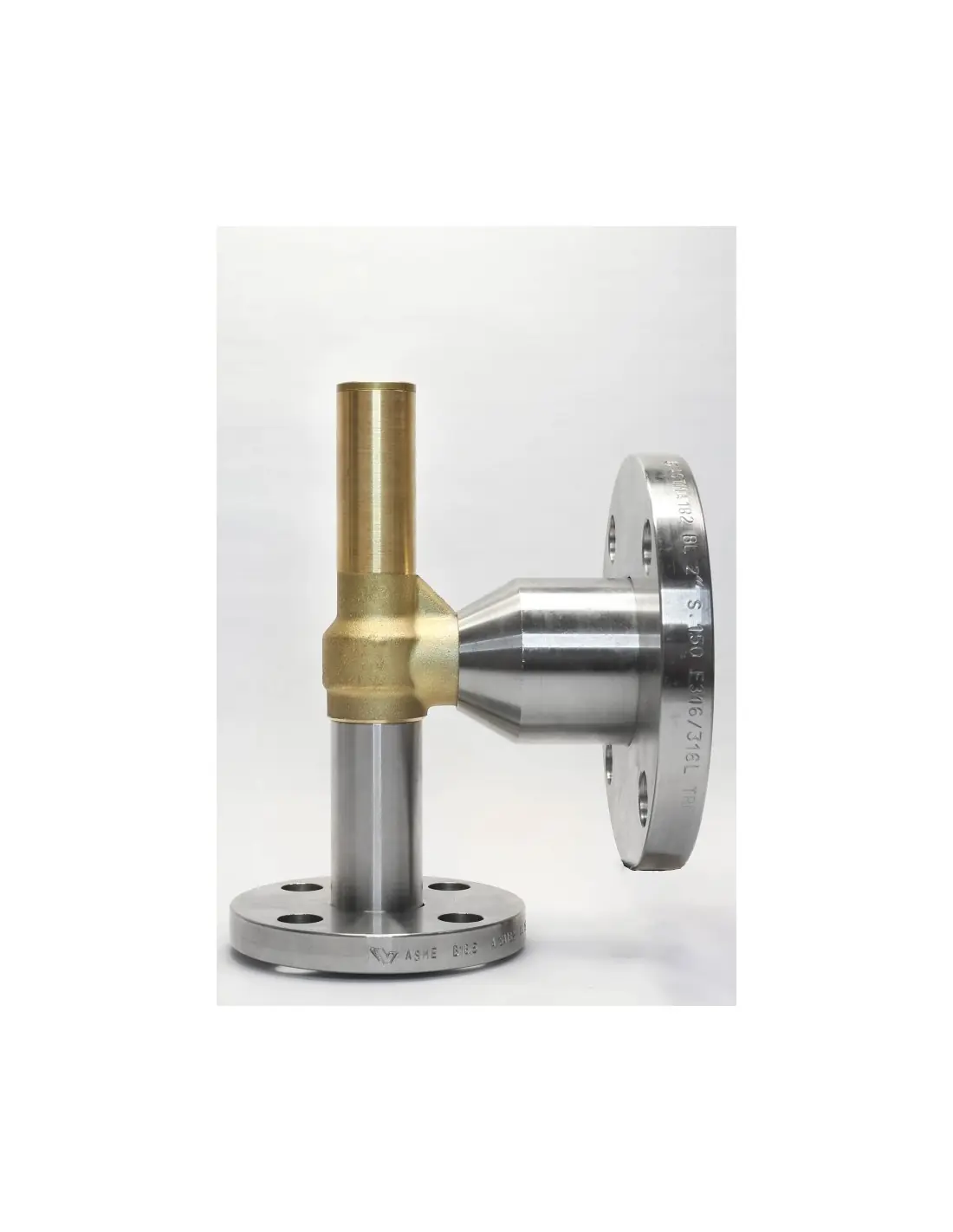

Mixed Brass-Stainless steel

Pressure Rating (Options)

PN 60

Datasheet and documents

Manual

Description

Tipo : Type :	G14-API	do: 13,5mm (Orifice E)	Area: 143,07mm²
Omologazione Homologation	PN	Coefficiente efflusso ridotto Reduced flow coefficient	Campo di taratura Setting range
CE - UKCA	60	0,81; >3 bar 0,86	0,3 - 60,0 bar
EAC	60	0,81; >3 bar 0,86	0,3 - 60,0 bar
ATEX Ex h II 2 Gb - UKEX	60	0,81; >3 bar 0,86	0,3 - 60,0 bar
ATEX Ex h II 2 Db - UKEX (1)	60	0,81; >3 bar 0,86	0,3 - 60,0 bar
ASME XIII - CRN (Canada)	60	0,629	1,0 - 60,0 bar
SELO - TSG	60	0,629	1,0 - 60,0 bar
CONFIGURAZIONE - CONFIGURATION
Materiale Material	Ottone *Brass*	Mista Ottone-Acciaio inox *Mixed Brass-Stainless steel*	Acciaio inox *Stainless steel*
Modelli Model	/	Con ghiera	Con ghiera
	/	With ring nut	With ring nut

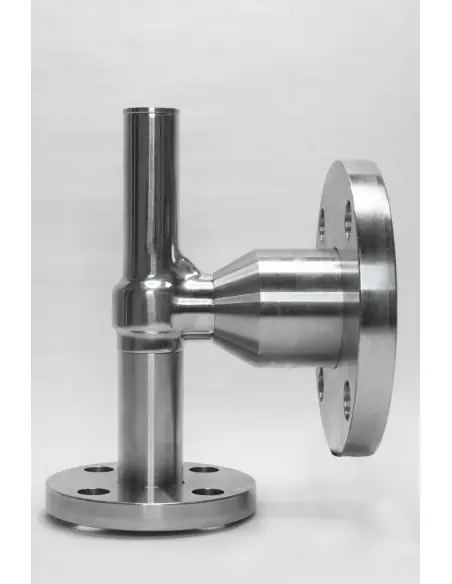

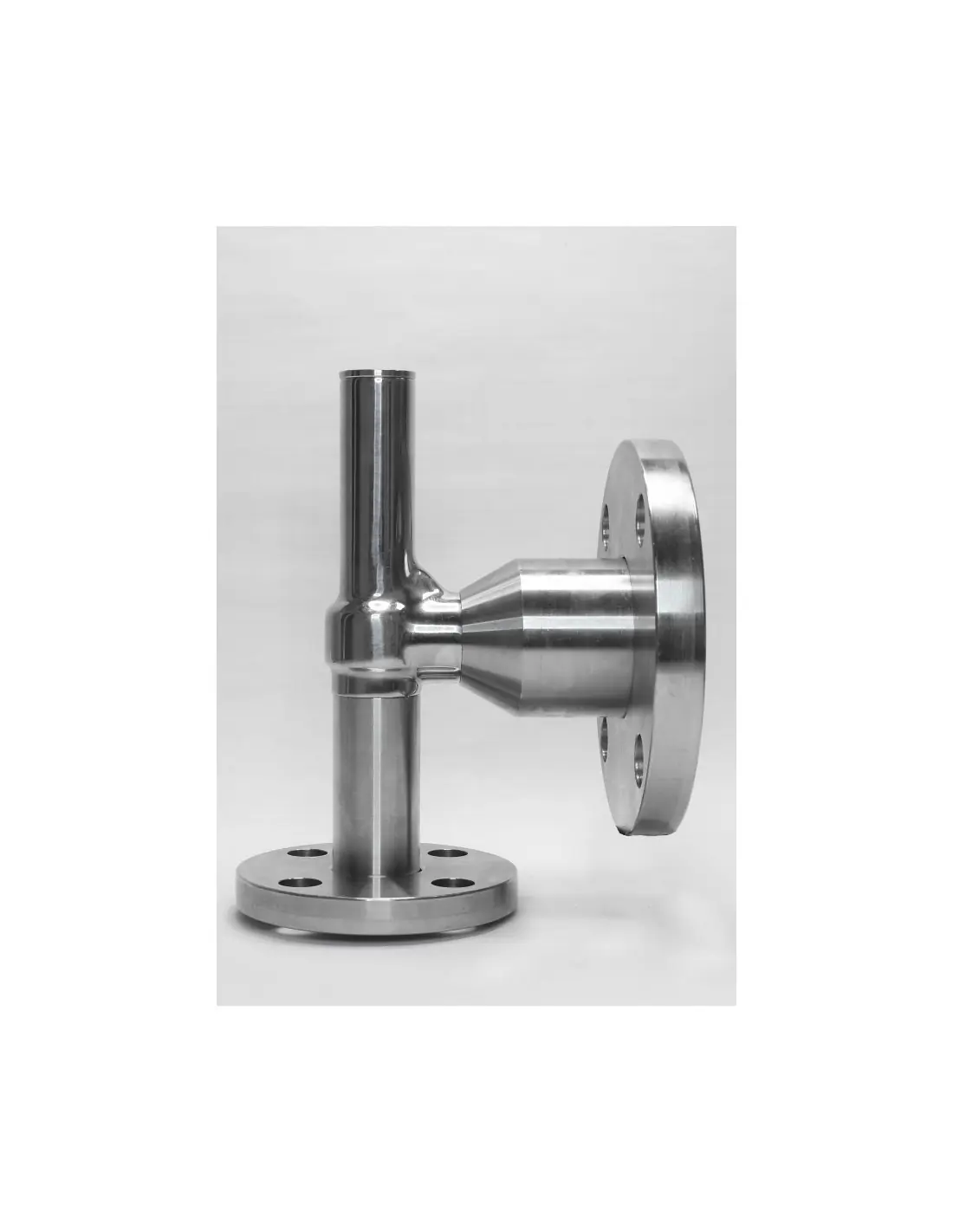

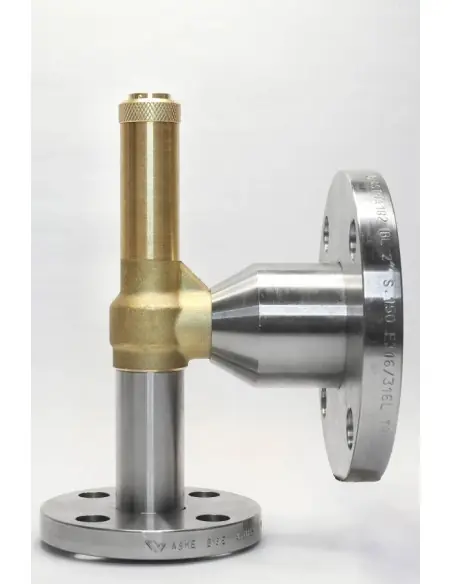

	/	Senza Ghiera	Senza Ghiera
	/	Without ring nut	Without ring nut

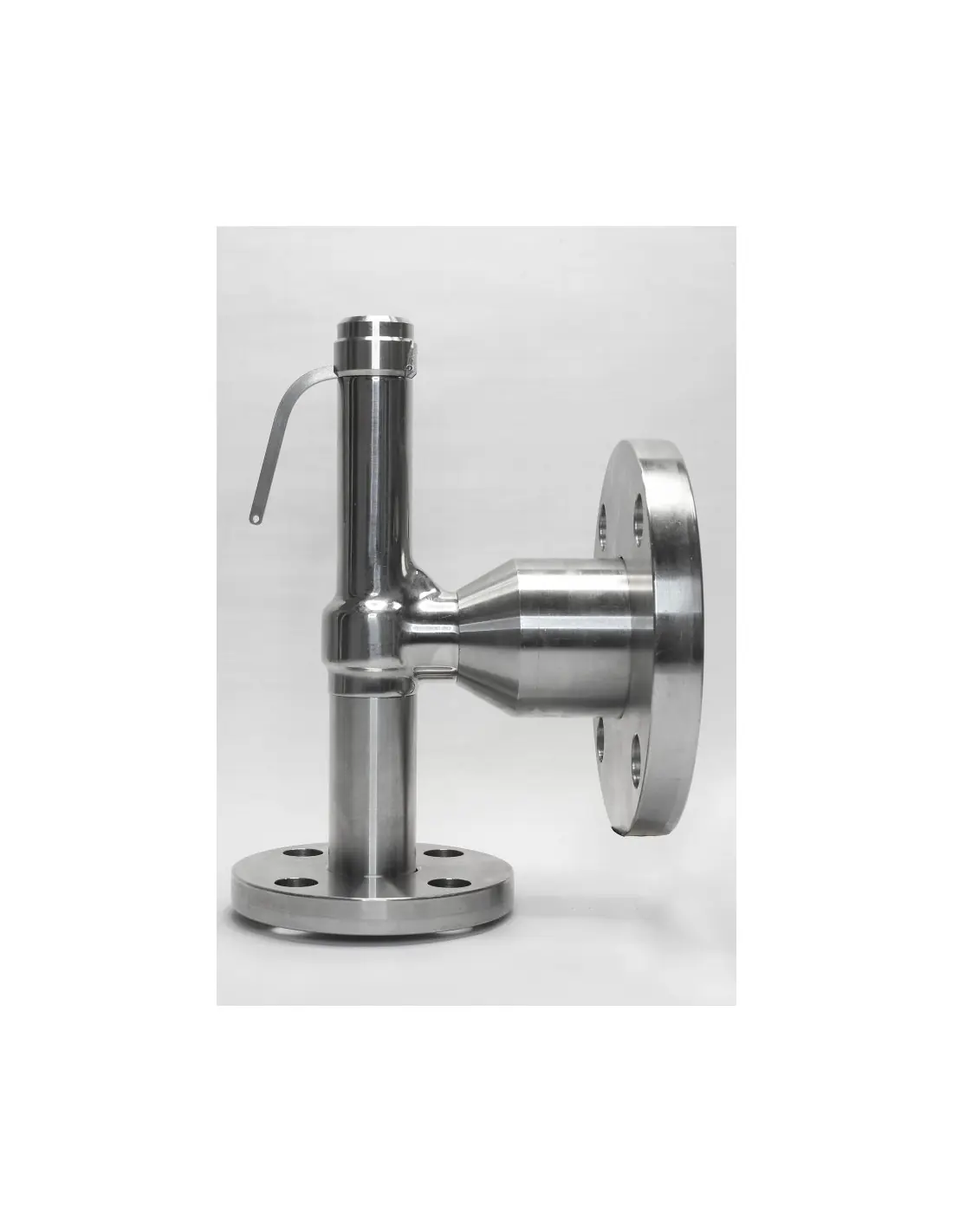

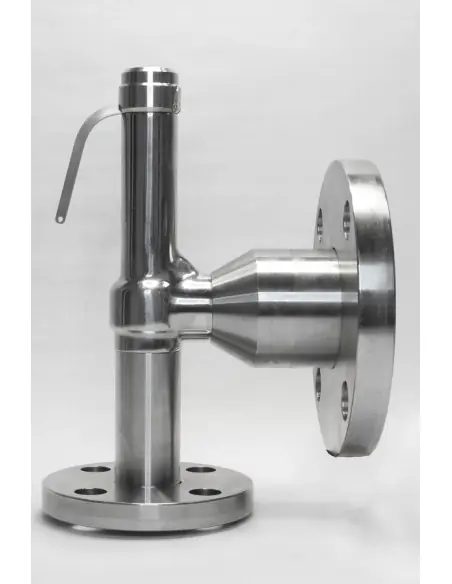

	/	Con leva	Con leva
	/	With lever	With lever
	/	/	/
	/	/	/
	/	/	/
	/	/	/
Sedi di Tenuta Seal System	/	N.B.R. (Std) -10 / + 100 °C	N.B.R. (Std) -10 / + 100 °C
	/	E.P.D.M. -50 / + 150 °C	E.P.D.M. -50 / + 150 °C
	/	VITON -20 / +200 °C	VITON -20 / +200 °C
	/	SILICONE -60 / +200 °C	SILICONE -60 / +200 °C
	/	PTFE -196 / +250 °C	PTFE -196 / +250 °C
	/	KALREZ -20 / +250 °C	KALREZ -20 / +275 °C
	/	Metal -196 / +250 °C	Metal -196 / +450 °C
Connessione Entrata Inlet Connection	/	1" ANSI150	1" ANSI150
	/	1" ANSI300	1" ANSI300
	/	1" ANSI600	1" ANSI600
	/	/	/
	/	/	/
	/	/	/
	/	/	/
	/	/	/
Connessione Uscita Outlet Connection	/	2" ANSI150	2" ANSI150
	/	/	/
	/	/	/
	/	/	/
	/	/	/
	/	/	/
	/	/	/
A richiesta possono essere eseguiti collaudi dai più prestigiosi enti quali: INAIL (area ISPESL), TÜV, RINA, Bureau Veritas, ABS e Lloyd On request tests can be made by the most prestigious societies, such as: INAIL (area ISPELS), TÜV, RINA, Bureau Veritas, ABS and Lloyd Register.
*Note:* *(1) No Modello Con leva / No Model With lever*

Certifications

Nuova General Instruments safety valves are homologated and conform to:

E.D.2014/68/EU (PED), ASME XIII, SELO, UKCA, EAC TR CU 032-010-012, ATEX, UKEX, Canadian Registration.

On request we can manage third party inspection type 3.2 by official notified bodies like:

TÜV, RINA, Bureau Veritas, ABS e Lloyd's Register.

CE (PED)

The certification and marking CE is applied to all the components installed in Europe where the pressure design is above 0,5barg.

The European Directive 2014/68/EU (PED) has been made to harmonize all the regulations of the European States, this allowed the free circulation of pressure equipment and its accessories including the Nuova General Insturments safety valves.

The CE mark certifies that the PSV has successfully passed all the design and certification tests required by the PED, this is therefore a symptom of an approved, verified, safe and reliable product.

The PED approval is issued by notified European bodies following quality audits and product tests.

Nuova General Insturments safety valves are PED approved for fluid group 1 and 2, both in the gaseous, steam and liquid state.

PED_2024.pdf

ASME

The ASME certification is the reference standard for pressure equipment manufacturers who sell their products in America.

The ASME XIII, ASME VIII, API520, API521 standards include mandatory construction, control, testing and certification requirements for safety valves with a setting pressure greater than 1barg. This conformity is issued directly by the American notified body National Board. Product tests are carried out in the official NoBo laboratories in Columbus (Ohio) and frequent quality audits are necessary to grant an excellent product quality.

ASME approval is recognized not only in the USA but also in Brazil (NR-13), Mexico (NOM-093), the Middle East and is required in the main engineering specifications of the most important projects in various fields.

Nuova General Insturments safety valves are ASME approved for gaseous and steam state.

ASME Safety Valve Leak Test: All safety valves are leak tested with the use of a hydrogen leak detector. The acceptability criterion is 1 X 10-5 cc/s which is equal to "0" leaks, this meets or exceeds the limits defined in API 527.

ASME---NB.pdf

SELO (TSG)

The SELO License (China Special Equipment Licensing Office) is the authorization valid for pressure equipment above 0.5barg placed in the Republic of China.

The TSG - GB/T regulation defines the guidelines for obtaining Chinese certification on safety valves, SELO certification requires quality audits and strict functional tests to be conducted at the Beijing laboratories of the official notified body CSEI (China Special Equipment Inspection and Research Institute).

Nuova General Insturments safety valves are SELO approved for gaseous and steam state.

SELO.pdf

UKCA (PER)

Great Britain's exit from the European Union led to the creation of a pressure equipment directive valid for the UK, this regulation is defined as PER (Pressure Equipment Regulation) and has the UKCA marking for pressures above 0.5 barg.

Although UKCA approval is not yet mandatory, Nuova General Instruments has already obtained this certification thanks to quality audits and functional tests. The UKCA certification is an added value for all those products provided in the UK.

Nuova General Insturments safety valves are UKCA approved for gaseous, steam and liquid state.

UKCA.pdf

EAC (TR CU032/2013)

The EAC certification is the regulation valid for pressure equipment installed and used in the territories of the Eurasian Economic Union (Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan).

Safety valves with calibration higher than 0.5barg must therefore comply with the Technical Regulations of the Eurasian Customs Union (TR CU032/2013), be provided with a technical passport written in Russian and be provided with the EAC marking.

The EAC approval is issued by an official Russian notified body following quality audits and product tests.

Nuova General Insturments safety valves are EAC approved for gaseous, steam and liquid state.

EAC-TR-CU-032-2013.pdf

ATEX

The ATEX certification is the reference directive for equipment and protection systems for use in potentially explosive atmospheres.

Obtaining ATEX approval is the result of an in-depth study of all the components of the safety valve in order to guarantee the absence of ignition sources due to the intervention of the PSV.

The Nuova General Instruments safety valves are compliant for group 1, 2 fluids, both in the gaseous, vapor and liquid state and suitable for installation in areas classified as explosive 1, 2, 21, 22.

ATEX.pdf

UKEX

Great Britain's exit from the European Union led to the creation of a directive on equipment intended for use in potentially explosive atmospheres valid for the UK, this regulation is defined as UKEX.

Although UKEX approval is not yet mandatory, Nuova General Instruments has already obtained this certification thanks to quality audits and product checks. UKEX certification is an added value for all those products marketed in the UK.

The Nuova General Instruments safety valves are compliant for group 1, 2 fluids, both in the gaseous, vapor and liquid state, and are suitable for installation in areas classified as explosive 1, 2, 21, 22.

UKEX.pdf

EAC (TR CU012/2011)

The TR CU 012/2013 certification is the Technical Regulation of the Eurasian Customs Union for equipment and protection systems for use in potentially explosive atmospheres.

Obtaining this approval is the result of an in-depth study of all the components of the safety valve in order to guarantee the absence of ignition sources due to the intervention of the PSV.

The Nuova General Instruments safety valves are compliant for group 1, 2 fluids, both in the gaseous, vapor and liquid state and suitable for installation in areas classified as explosive 1, 2, 21, 22.

EAC-TR-CU-012-2011.pdf

CRN (CANADIAN REGISTRATION NUMBER)

The Canadian Registration Number (CRN) is a code issued by each Canadian province where this license is necessary to place and use pressure equipment such as boilers, tanks or devices attached to them.

The Canadian license is issued for a project recognized by the major international standards such as ASME XIII and ASME VIII DIV.1.

The Canadian provinces that require the CRN for safety valves are:

Alberta (ABSA)
Ontario (TSSA)
Quebec (QUEBEC)
New Brunswick, Nova Scotia, Prince Edward Island, Newfoundland and Labrador, Yukon, Northwest Territories and Nunavut (ACIC)

For all other provinces, ASME approval is sufficient.

Nuova General Instruments safety valves are ASME certified for gaseous and steam state with calibration greater than 1barg can be supplied on request with CRN.

CRN.pdf

ISO 9001

ISO 9001:2015 Standard establishes the criteria for a quality management system that focuses on the effectiveness of quality processes.

With this certification, Nuova General Instruments confirms its solid production system based on a precise procedural scheme, implementing an effective cycle of internal audits, committing itself to continuous improvement and customer satisfaction, granting the ability to supply products that comply with relevant regulations with a full traceability of processes and products.

ISO9001-2024.pdf

ISO 45001

The Standard 2018 UNI ISO 45001 "Occupational health and safety management systems - Requirements and guidance for use" is the first international standard to define the minimum standards of good practice for the protection of workers worldwide.

With this certification, Nuova General Instruments is therefore committed to safety, to reducing risks in the workplace and to improving the health and well-being of workers, thus allowing it to increase performance in terms of health and safety.

ISO45001.pdf
