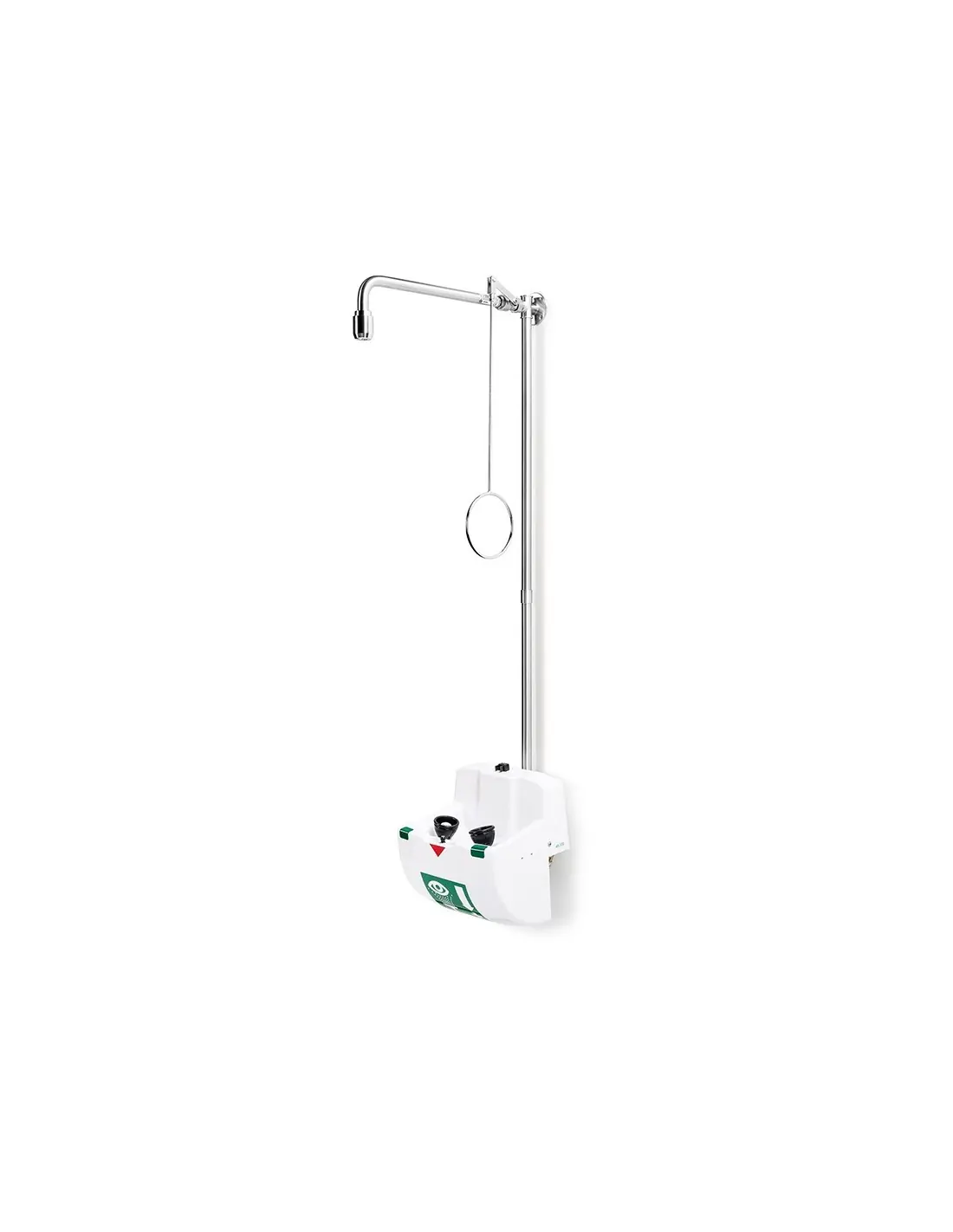

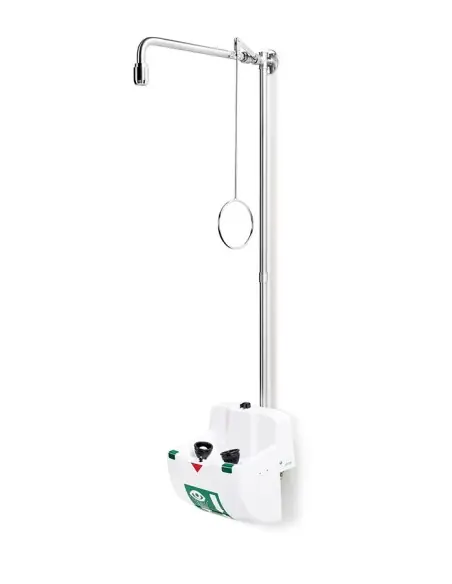

Emergency shower with eye/face wash unit with bowl and lid - PremiumLine - BR 868 095 | B-Safety

Safety Reinvented: Emergency shower with eye/face wash unit with bowl and lid - PremiumLine - BR 868 095 | B-Safety

When seconds count, reliable safety equipment can make all the difference. The Emergency shower with eye/face wash unit with bowl and lid - PremiumLine - BR 868 095 | B-Safety is specifically crafted for swift and effective response in hazardous industrial environments. Designed with quality materials and advanced features, this unit stands as a must-have solution for workplaces committed to employee safety.

Features and Benefits of the Emergency shower with eye/face wash unit with bowl and lid - PremiumLine - BR 868 095 | B-Safety

  • Comprehensive Protection: Offers both a full-body emergency shower and an integrated eye/face wash station, ensuring immediate aid for chemical splashes or contaminants.
  • High-Quality Bowl with Lid: The robust bowl shields the eye/face wash nozzles from dust and debris. The smart lid opens automatically when the unit is activated, keeping the water source clean and ready at all times.
  • Easy Activation: Large, accessible push plates and pull rods allow quick use even when seconds matter, minimizing delays in emergencies.
  • Consistent Flow: Engineered to deliver a steady and gentle water stream, the unit washes away contaminants efficiently without causing discomfort or further injury.
  • Durable Construction: Built from corrosion-resistant materials, the unit is ideal for industrial spaces, offering long-lasting durability under tough working conditions.
  • Simple Maintenance: The user-friendly design ensures that cleaning and maintenance can be done easily, reducing downtime and keeping the unit in prime operating condition.

This premium safety unit provides peace of mind and meets strict industrial standards. By installing the Emergency shower with eye/face wash unit with bowl and lid - PremiumLine - BR 868 095 | B-Safety, workplaces demonstrate a serious commitment to staff well-being and emergency readiness. The combination of innovative features, durable build, and reliable performance turns this safety station into a dependable solution, helping workers feel protected and confident every day.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 1625 mm
  • Projection: 630 mm
  • Installation height: 810 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • including top and bottom water inlet ¾” female for installation in circulation lines, plug ¾” of stainless steel
  • wall flange with 4 mounting holes of stainless steel, polished, water inlet ¾” female
  • connection piece of stainless steel, for easy installation and alignment of the shower
  • ball valve ¾” of stainless steel, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, polished, length 700 mm
  • wall shower arm ¾“ of stainless steel, polished, projection 630 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • two connection pipes ¾“ of stainless steel, polished, total length 1500 mm
  • wall flange with 4 mounting holes of stainless steel, polished, water inlet ¾” female
  • integrated PremiumLine eye-/face wash unit with bowl and lid, wall mounted
  • housing, lid and bowl made of UV and impact resistant ABS plastics, water outlet 1 ½“ male
  • integrated protective cover against dust
  • actuation by pulling down the lid
  • ball valve 3/8“ of brass, with lever actuation by lid, DIN-DVGW tested and certificated
  • aerators made of brass with a very limited spray pattern, chrome-plated
  • with integrated flow regulation valve 3/8” for setting the desired spray height and flow rate, water inlet 3/8” male
  • inclusive sign for eye shower according to EN ISO 7010 und ASR A1.3 on the lid, dimensions 170 x 170 mm, viewing distance 17 metre
  • mounting height 810 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
