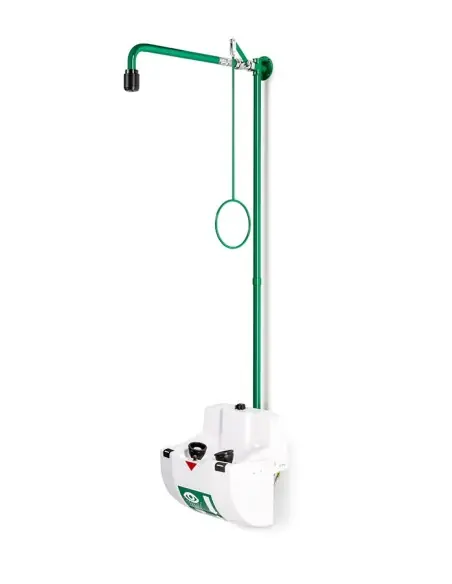

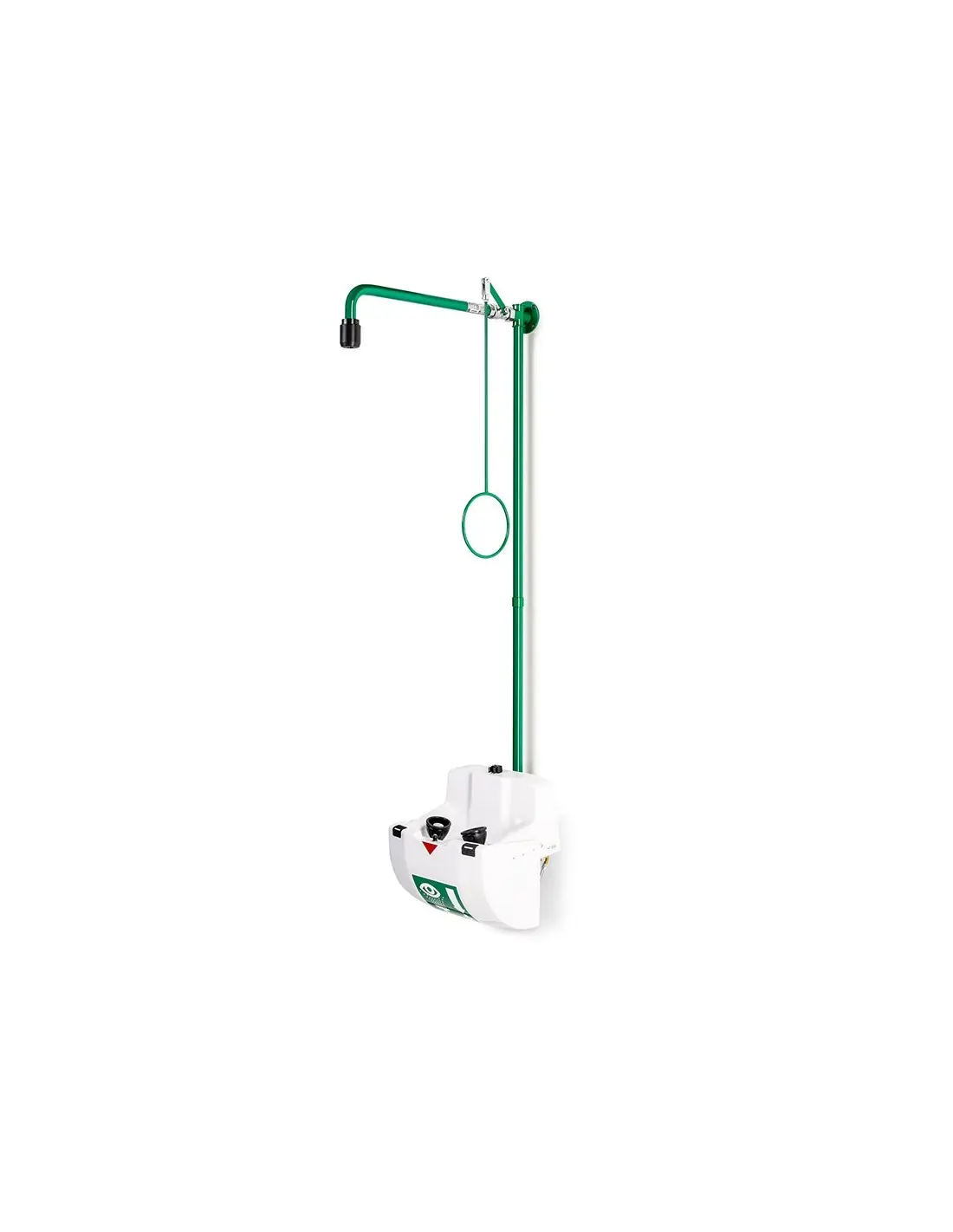

Emergency shower wall mounted, with eye/face wash unit with bowl & lid - ClassicLine - BR 868 085 | B-Safety

Features & Benefits of Emergency shower wall mounted, with eye/face wash unit with bowl & lid - ClassicLine - BR 868 085 | B-Safety

Ensure maximum safety at the workplace with the Emergency shower wall mounted, with eye/face wash unit with bowl & lid - ClassicLine - BR 868 085 | B-Safety. This essential safety fixture is designed to deliver immediate relief in case of chemical exposure, providing peace of mind in industrial environments. It combines practical design with advanced protection, making it a crucial addition to any site where hazardous materials are handled.

  • Rapid Response, Reliable Relief: The integrated wall-mounted emergency shower guarantees instant access. In seconds, the powerful, wide-flow showerhead thoroughly rinses harmful substances from the body, helping to minimize possible injuries and ensuring swift first aid.
  • Comprehensive Eye and Face Protection: Equipped with a dedicated eye/face wash unit, this system allows fast, gentle cleansing of sensitive areas. The ergonomic bowl captures water efficiently, while the handy lid keeps the nozzles dust-free, ensuring readiness whenever an emergency strikes.
  • Robust Construction for Demanding Environments: Built with high-quality, durable materials, the ClassicLine - BR 868 085 withstands daily industrial use. Its corrosion-resistant finish maintains performance and appearance, even in harsh conditions.
  • Easy Installation and Operation: The wall-mounted design saves valuable floor space and makes the unit easy to reach. Simple controls and intuitive operation ensure anyone can use the shower or eye wash quickly, even under stress.
  • Hygienic and Low Maintenance: The smart lid keeps the eye wash bowl clean, reducing the risk of contamination. The smooth surfaces make routine cleaning easy, supporting workplace cleanliness and safety standards.

For any industrial setting, safety comes first. The Emergency shower wall mounted, with eye/face wash unit with bowl & lid - ClassicLine - BR 868 085 | B-Safety delivers on reliability and ease of use. Its advanced features work seamlessly to provide effective, rapid first aid, protecting your team when it counts the most. Choose proven protection—choose ClassicLine safety.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Total height: 1625 mm
  • Projection: 630 mm
  • Mounting height: 810 mm
  • Operating pressure: 1.5 to 3 bar
  • Volume flow: 50 l/min (75/110 l/min)
  • Water connection: 3/4-inch IG

Norms / Approvals

  • EN 15154-1:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI-Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate No. 0615463

Product description

The B-SAFETY emergency showers from the ClassicLine series are made from high-quality materials and are suitable for use in laboratories and research as well as for rough industrial use. The green chemical-resistant polyester powder coating from B-SAFETY has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body emergency showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely calcification- and maintenance-free, and very robust and corrosion-resistant. The limited, even and, above all, soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • including upper and lower water connection 3/4-inch IG for installation in circulation lines, plug 3/4-inch made of stainless steel
  • Wall flange with 4 mounting holes made of stainless steel, chemical-resistant green powder-coated, water connection 3/4-inch IG
  • Stainless steel connector for quick on-site installation and easy alignment of the shower arm
  • Ball valve 3/4-inch made of dezincification-resistant brass, with quick assembly system and pull rod operation, DIN-DVGW tested and approved
  • Pull rod with ring handle made of stainless steel, chemical-resistant green powder-coated, length 700 mm
  • Wall shower arm 3/4-inch made of stainless steel, chemical-resistant green powder-coated, projection 630 mm
  • Integrated automatic flow regulator 50 litres / minute for a standard jet pattern with a specified working range of 1.5 to 3 bar flow pressure
  • High-performance shower head made of chemical-resistant plastic, black, with improved jet pattern, corrosion-resistant, largely calcification-free and maintenance-free, very robust, self-draining
  • Information sign for body emergency shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, dimensions 150 x 150 mm, recognition range 15 meters
  • two connecting pipes 3/4-inch made of stainless steel, chemical-resistant green powder-coated, total length 1500 mm
  • Wall flange with 4 mounting holes made of stainless steel, chemical-resistant green powder-coated, water connection 3/4-inch IG
  • integrated PremiumLine eye/face shower with basin and cover, for wall mounting
  • Housing, cover and collecting basin made of impact-resistant and UV-resistant ABS plastic, drain connection 1 1/2-inch AG
  • integrated hinged protective cover against dirt
  • Released by swinging down the cover
  • Ball valve 3/8-inch made of brass, with lever operation via hinged protective cover, DIN-DVGW tested and approved
  • Brass jet regulator with a very limited spray pattern, chrome-plated
  • with integrated 3/8-inch flow control valve for adjusting the desired jet height and flow rate
  • including information sign for eye shower according to DIN EN ISO 7010 and ASR A1.3 on the cover, dimensions 170 x 170 mm, viewing distance 17 meters
  • Mounting height 810 mm (± 100 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
  • according to ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 and DIN EN 15154-5:2019
  • DIN-DVGW tested and approved
