Rupture Indicators - Inductive Rupture Indicators | DonadonSDD

Advanced Safety and Performance: Rupture Indicators - Inductive Rupture Indicators | DonadonSDD

Experience reliable pressure protection with Rupture Indicators - Inductive Rupture Indicators | DonadonSDD, engineered for precise monitoring in industrial environments. These innovative devices deliver immediate feedback when a rupture disc is triggered, giving you confidence and real-time assurance that your safety systems are always performing as expected.

Standout Features & Benefits of Rupture Indicators - Inductive Rupture Indicators | DonadonSDD

  • Instant Response: Know the moment your rupture disc activates. The inductive technology detects changes immediately, minimizing downtime and enabling swift action.
  • Non-Contact Sensing: The indicator utilizes non-contact sensors, reducing wear and tear. This ensures longer life and consistent performance, even in the harshest process conditions.
  • Easy Integration: Designed for compatibility with a wide range of rupture discs, it seamlessly integrates into your existing setup without the need for complex modifications.
  • Clear Status Signals: Receive straightforward electrical signals that can be easily linked to your control system or alarms, so you are always in control and informed.
  • Robust Construction: Built with industrial-grade materials, the indicator withstands challenging temperatures, aggressive fluids, and demanding environments.
  • Low Maintenance: With its contactless operation, regular servicing is kept to a minimum, reducing overall operational costs and ensuring ongoing reliability.

The Rupture Indicators - Inductive Rupture Indicators | DonadonSDD provide peace of mind by offering a dependable solution to monitor critical rupture events. In the event of overpressure, you can count on these indicators to send a prompt and accurate signal, helping to protect your equipment and personnel.

Ideal for process industries where safety is paramount, these indicators deliver advanced technology in an intuitive, user-friendly design. Effortless installation and clear alerts mean you can focus more on your operation and less on potential risks.

Choose Rupture Indicators - Inductive Rupture Indicators | DonadonSDD to elevate your plant’s safety standards and maintain constant oversight—simply and effectively.

Description

NAM05

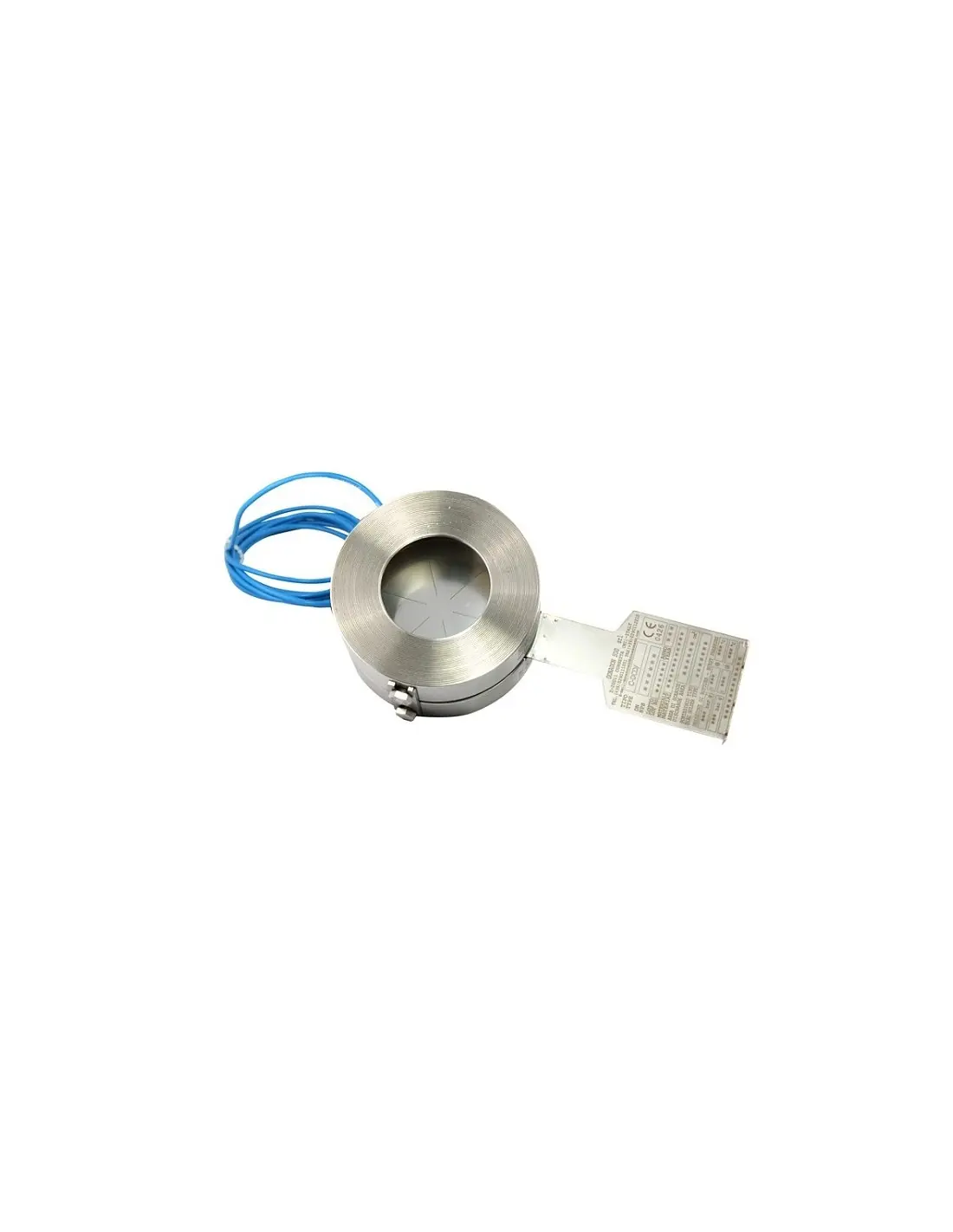

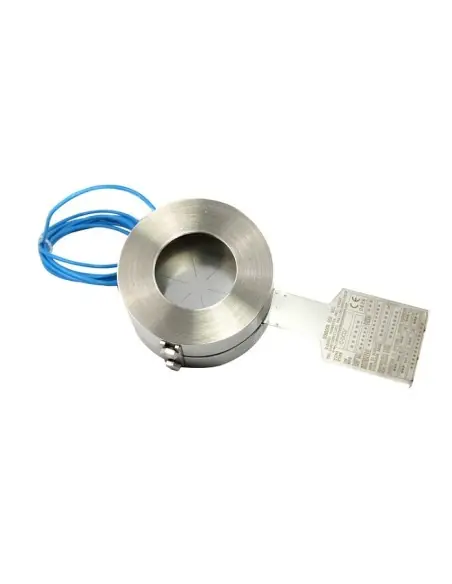

NAM 05 inductive rupture alarm systems are recommended for installation on rupture discs and explosion vent panels.

The NAM 05 indicator is composed of:

an inductive proximity sensor installed downstream the disc or panel

a target supplied with the disc or panel

When the disc opens, the target is moved and the sensor sends a signal to the plant safety system. The discs or panels are supplied with a new target.

NAM 05 is an intrinsic safety device certified:

ATEX II 1G Ex ia IIC T6

ATEX II 1D Ex iaD 20 T 108°C

It can therefore may be used in locations where potentially explosive atmospheres are present (classified zones 0, 20, 1, 21, 2, 22 according to European Directive 94/9/EC (ATEX)).

Zone installation also depends on barrier type:

Ex ia barrier zone 0; 20 ; 1; 21; 2; 22

Ex ib barrier zone 1; 21; 2; 22

NAM 05 is normally supplied with 2m bipolar cable that must be connected to the plant’s safety system through an intrinsic safety barrier.

Installation must be according to standard EN 60079-14.

ModelNAM 05
Storage temperatureFrom -40°C to +100°C
Nominal supply voltage8.2 V
Cable2 m in PVC
Degree of protectionIP 66/67
Rupture diskDCD, DIF, LPD, SCD, SCR, Y90, KRD
Explosion venting panelsPS/C, PS/R

Certifications

Quality certifications are a guarantee. DonadonSDD has obtained the following certifications.

DonadonSDD provides high-quality products that meet the safety requirements of the systems where they are installed. The organisation and procedures fully comply with the ISO 9001 standard to ensure the utmost quality for our products. Our quality system has also met the stringent requirements of the UNI EN 9100 standard concerning design, development, and manufacture of rupture discs for the aerospace industry.

DonadonSDD products – such as rupture discs, explosion venting panels, and rupture indicators – are certified in compliance with PED directive 2014/68/EU or ATEX directive 2014/34/EU. The rupture discs alone are manufactured, tested, and certified in compliance with ASME directive, Section VIII, Division 1 and carry the relative UD stamp.

DonadonSDD is subject to inspections carried out by 3-A Sanitary Standard, Inc. (3-A SSI) so that our rupture discs can meet the highest sanitary standards.

Upon request, our clients can ask independent inspectors to certify single batches.

DOWNLOAD CERTIFICATIONS
