Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val

Protect What Matters Most with the Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val

Ensure your fire protection system is always ready with the reliable Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val. Engineered for maximum efficiency, this valve is designed to maintain optimal suction pressure for fire pumps, protecting both equipment and property when it matters most. Its advanced build offers lasting performance, making it the ideal choice for anyone serious about fire safety.

Key Features & Outstanding Benefits of the Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val

  • Dependable Performance: Automatically controls and stabilizes suction pressure so your fire pump never runs dry or faces damaging pressure drops.
  • Optimal Flow Control: Keeps water flowing smoothly to provide consistent and reliable fire suppression on demand.
  • Easy Installation & Maintenance: Simple to install and service, this valve saves time and reduces hassle for maintenance teams.
  • Durable Construction: Built from high-quality materials, it stands up to extreme conditions and heavy use, ensuring years of safe operation.
  • Automatic Adjustments: Adapts effortlessly to system changes, so you get worry-free protection even if water demand fluctuates.
  • Protection for Pumps: Prevents costly pump damage by stopping harmful low-pressure situations and keeps your system running smoothly when urgency strikes.

The Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val is the silent guardian of your fire protection setup. It never sleeps, always on standby to maintain the perfect balance, even in high-stress emergencies. Forget about manual adjustments or constant monitoring; this valve takes care of the pressure, so you can focus on safety when every second counts.

Ideal for commercial, industrial, and residential fire protection systems, the 50B-5KG delivers trusted performance and peace of mind. With its straightforward design, clear operating instructions, and robust reliability, it's the smart solution for safeguarding people, property, and assets. Upgrade your fire safety system with a valve that puts your protection first—choose the Fire Protection Pump Suction Control Valve - 50B-5KG | Cla-Val for unwavering security and confidence.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Ductile Iron
Pressure Rating (Options)
  • 150 lbs
  • 300 lbs

Datasheet and documents

Description

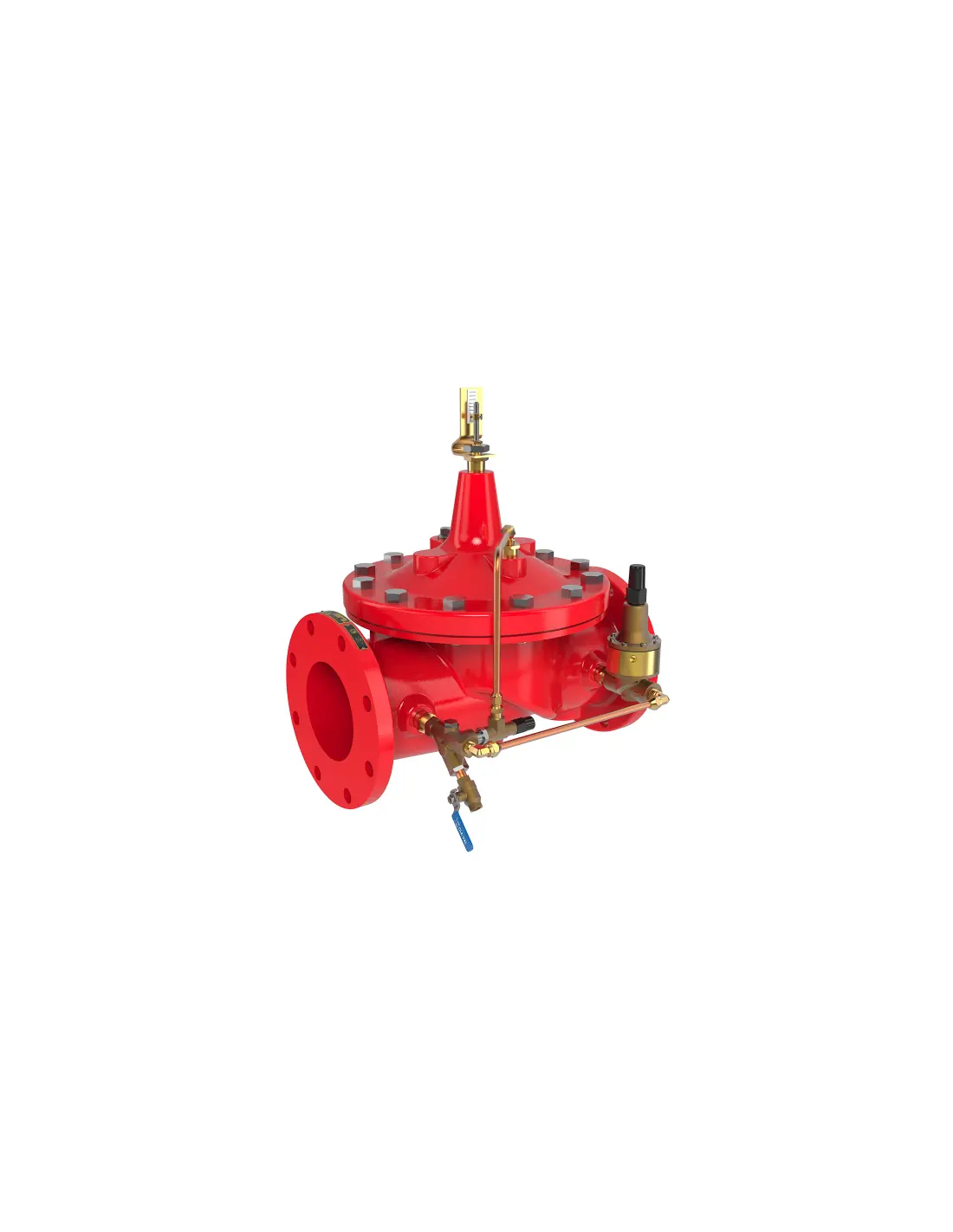

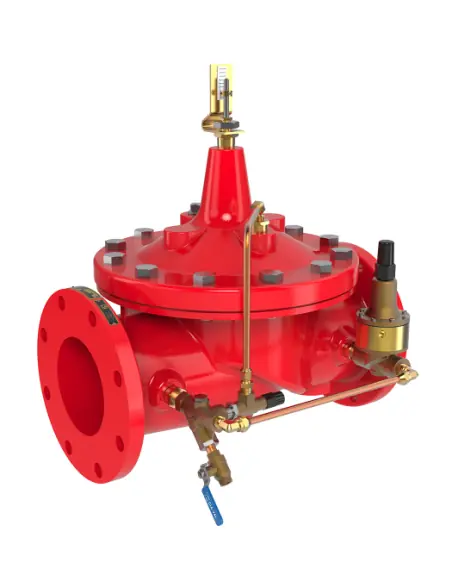

The Model 50B-5KG Pump Suction Control Valve is designed specifically for Fire Pump Suction Control Service in onshore industrial applications such as refineries and manufacturing facilities. Sizes 3-inch through 10-inch with standard disc guides are FM approved. The valve modulates to maintain the pump discharge in relation to the suction head available, thus assuring that the suction head pressure does not fall below the pre-set minimum. When there is a demand in the fire system, the pump is started, delivering water from the supply source to the area of demand.

By maintaining minimum pressure requirements in the supply main, the main is protected from possible damage or backflow conditions. Also, a minimum supply pressure is provided for local fire apparatus.
