KITO E 22.1 N – Pressure/Vacuum Valve with IIB3 Flame Arrestor

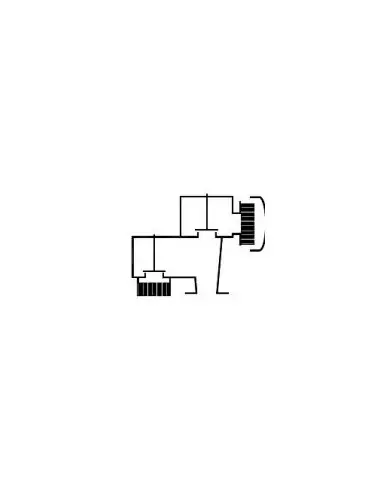

The KITO VD/KG-PA-IIB3-… is a terminal breather valve designed for tank vent openings. It is installed vertically on fixed-roof tanks and provides both overpressure relief and vacuum protection, incorporating an integrated flame arrestor element. The technical documentation specifies that the unit is tested and certified for atmospheric flame transmission in accordance with relevant standards.

Application

Suitable for Explosion Group IIB3 media with MESG ≥ 0.65 mm and a maximum operating temperature of 60 °C. Commonly used on fixed-roof storage tanks where pressure/vacuum control and emission limitation are required. Typical media include hydrocarbons and chemical vapors compatible with the specified explosion group.

Sizes and Settings

  • DN 50, 80, 100, 150: PN 16
  • DN 200, 250, 300: PN 10
  • Optional ASME 2" to 12"
  • Vacuum setting: 2–60 mbar
  • Pressure setting: 2–60 mbar
  • Flanges: EN 1092-1 Type B1 or ASME B16.5 Class 150 RF

Construction Materials

Upper body standard in cast steel 1.0619, optional in stainless steel 1.4408. Lower body in 1.0619 / carbon steel, optionally 1.4408 / 1.4571. Seat in stainless 1.4571, sealing flange in PTFE. The flame arrestor element is replaceable for maintenance.

Pallet and Sealing Options

Pallet material depends on setpoint:

  • 2 to <3.5 mbar: aluminum pallet
  • ≥3.5 to 60 mbar: stainless steel pallet 1.4571
  • Sealing: FEP & HD3822 up to 14 mbar, PTFE above 14 mbar

Flow Calculation

Flow rates are specified for air at ρ = 1.29 kg/m³ and 273 K. Values are based on a 20% accumulation above setpoint; recalculate for lower permissible overpressure.

Certification

Type-tested per EN ISO 16852 and marked according to ATEX 2014/34/EU.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 10
  • PN 16

Datasheet and documents

Description

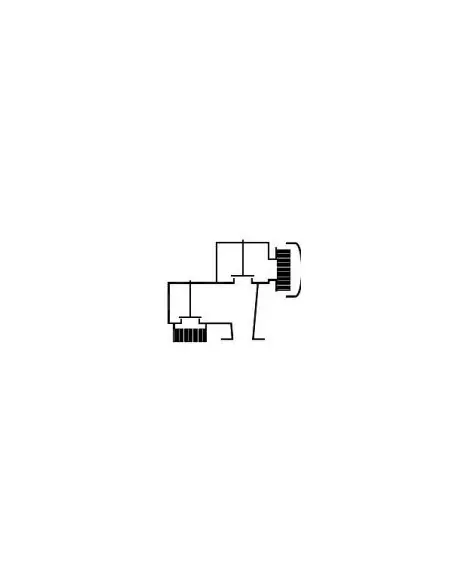

KITO® VD/KG-PA-IIB3-…

  • As end-of-line armature for venting apertures on tank installations, deflagration and endurance burning proof.
  • Tested and approved against atmospheric deflagrations for all materials of the explosion group IIB3 with a maximum experimental safe gap (MESG) ≥ 0.65 mm and an maximum operating temperature of 60 °C.
  • Used mainly as venting and breather device for fixed roof tanks.
  • Used to prevent inadmissible pressure and vacuum and to minimize unwelcome gas losses or inadmissible emissions respectively.
  • The housing is mounted perpendicularly on a tank roof.
