Pressure reducing valve Type DM 503 | Mankenberg

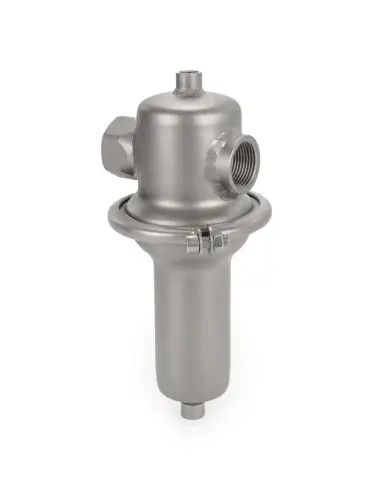

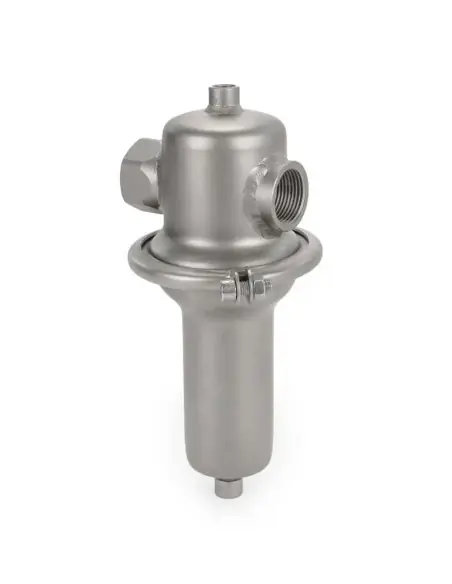

Pressure Reducing Valve Type DM 503 | Mankenberg – Reliable Pressure Control for Industrial Applications

The Pressure Reducing Valve Type DM 503 | Mankenberg is a cutting-edge solution designed for precise pressure regulation in demanding industrial environments. Engineered with exceptional attention to detail, this valve ensures your systems operate at optimal efficiency and safety, no matter the challenge. With its robust construction and advanced features, the DM 503 consistently delivers superior performance, making it a trusted choice across a wide range of industries.

Key Features & Benefits of Pressure Reducing Valve Type DM 503 | Mankenberg

  • Accurate Pressure Regulation: Maintains a stable and consistent outlet pressure, protecting your equipment from costly overpressure and sudden fluctuations.
  • Durable Construction: Built to withstand harsh industrial conditions, ensuring a long service life with minimal maintenance needs.
  • Easy Installation: The compact, user-friendly design makes setup straightforward, saving you time and reducing labor costs.
  • Corrosion-Resistant Materials: High-quality materials provide excellent protection against corrosion, ideal for demanding applications involving steam, gases, or aggressive fluids.
  • Energy Efficient: Reduces unnecessary energy consumption by maintaining efficient flow and preventing pressure loss.
  • Highly Responsive: Swiftly adapts to changes in inlet pressure, ensuring seamless operation even in dynamic processes.
  • Low Noise Operation: Operates quietly, supporting a safer and more comfortable working environment for your staff.

Designed for usability, the Pressure Reducing Valve Type DM 503 | Mankenberg is perfect for both experienced technicians and those new to pressure control technologies. Its clever engineering means you don’t need to be a specialist to benefit from reliable, efficient pressure management. Installation is simple, maintenance is minimal, and the results are immediate – stable processes, protected equipment, and peace of mind.

Whether you’re controlling steam, air, or a variety of industrial fluids, this valve adapts effortlessly to your process demands. Trust the DM 503 for exceptional safety, efficiency, and reliability every time.

Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
  • 1.4571
Pressure Rating (Options)
  • PN 100

Datasheet and documents

Description

Product features

Standard

  • Housing and media-exposed internal parts made of 1.4571/316Ti and 1.4404/316L stainless steel
  • Non-rising adjusting screw
  • Pressure gauge connection (G 1/4)

Options

  • For toxic or hazardous media: sealed bonnet complete with leakage line connection (incl. sealed adjusting screw). Must be installed with a leakage line capable of draining leaking medium safely and without pressure

Technical data

G
1/2 - 1 1/2
PN
100
p1
100 bar
p2
2 - 21 bar
Kvs
1.3 - 4.8 m³/h
T
-35 °C up to 130 °C

Advantages

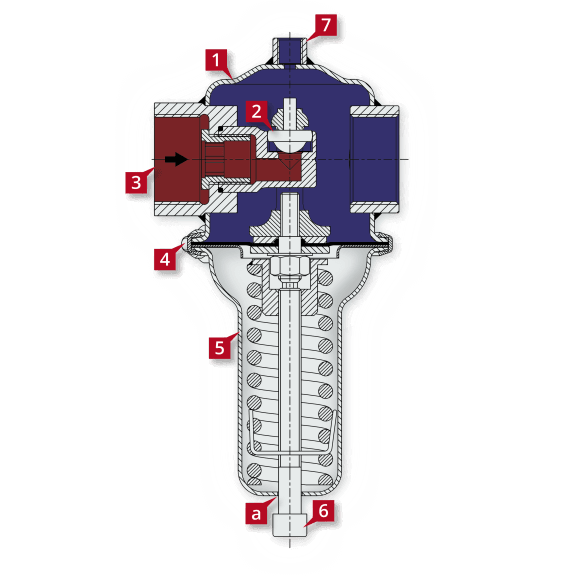

schnitt_dm503inet
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Cone with PEEK

Safe valve closure when conditions are critical

3

Inlet pressure up to 100 bar

4

Mankenberg clamp system

Easy maintenance

5

Excellent standard surface quality

Easy to clean

6

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

7

Pressure gauge connection

Options

a

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media

Inlet Pressure

Outlet Pressure
