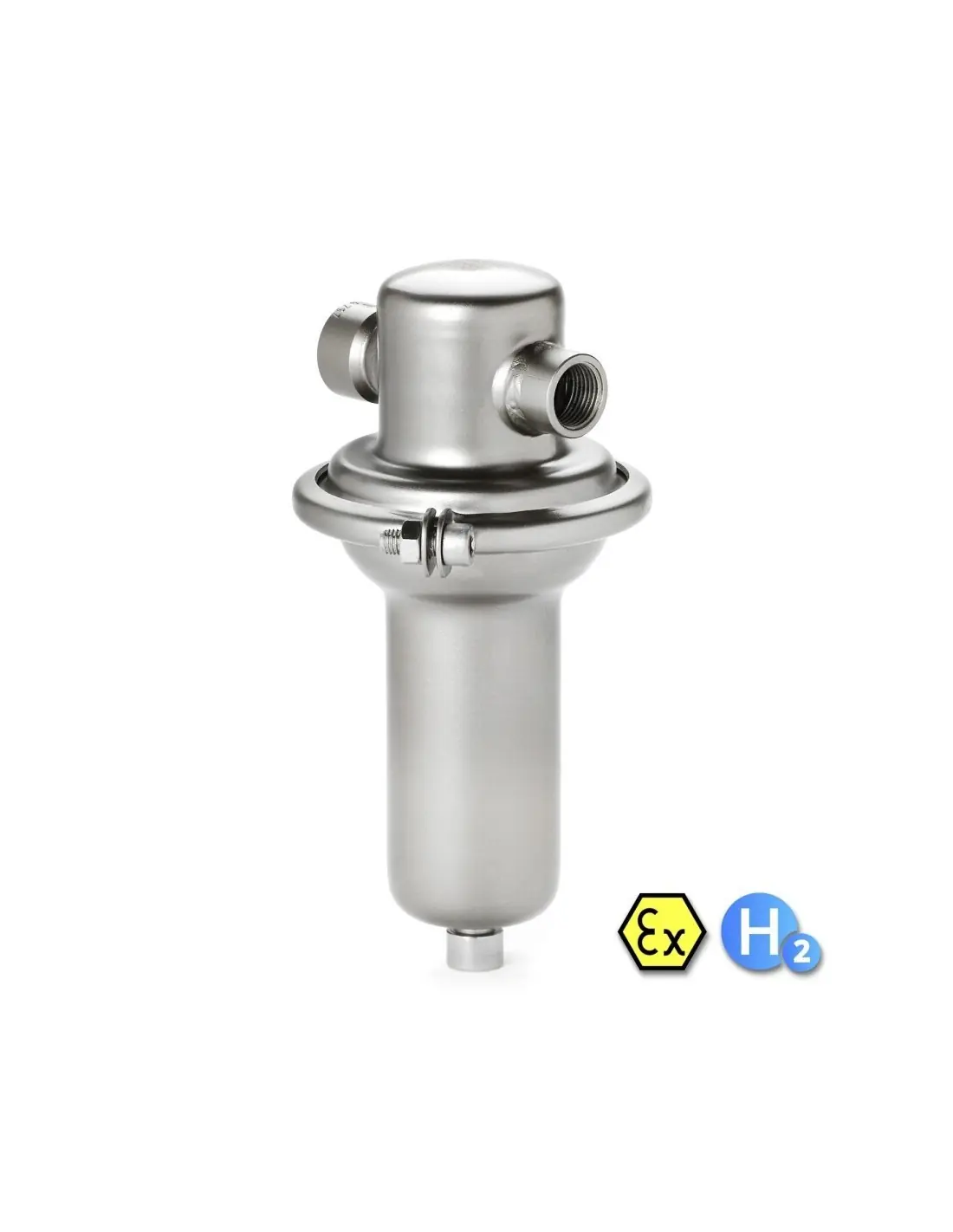

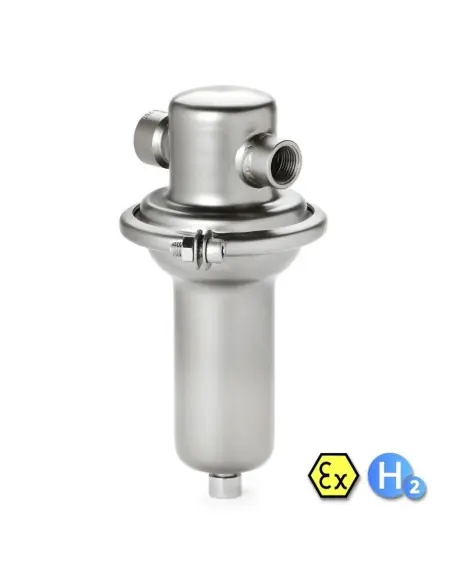

Pressure reducing valves - DM 505 | Mankenberg: Reliable Pressure Control for Industrial Efficiency

Experience ultimate peace of mind with the Pressure reducing valves - DM 505 | Mankenberg. Engineered for industrial environments, this valve ensures stable system pressure, protecting your equipment and maintaining smooth operation. Perfect for factories, processing plants, and large-scale machinery, the DM 505 delivers top-notch performance every day.

Features and Benefits of Pressure reducing valves - DM 505 | Mankenberg

  • Consistent Pressure Regulation: The DM 505 automatically maintains your desired downstream pressure, regardless of fluctuating inlet pressure. No more worries about sudden pressure spikes or drops that could damage your valuable equipment.
  • Easy Installation: This valve is designed for straightforward installation into existing pipework. Its compact build saves space and reduces setup time, keeping your project on schedule.
  • Durable Construction: Built using high-quality stainless steel, the DM 505 resists rust and wear, ensuring long-lasting performance even in demanding industrial settings.
  • Safe and Reliable Operation: With precision design, the DM 505 offers secure pressure control. Protect sensitive machinery and avoid costly downtime with dependable regulation day in, day out.
  • Low Maintenance: Designed for trouble-free operation, the DM 505 minimizes maintenance needs. Its robust internals resist clogging and leaks, so your staff can focus on productivity.
  • Adaptable for Many Applications: Whether you handle steam, gases, or liquids, the DM 505 performs efficiently. Its versatility makes it an ideal choice across a wide range of industrial processes.

With the Pressure reducing valves - DM 505 | Mankenberg, ensure constant pressure and dependable performance in your industrial system. Its advanced features help protect critical components, increase uptime, and reduce operational headaches. Choose the DM 505 for intelligent pressure control that works as hard as you do.

Standard (Options)
  • DIN
Connection (Options)
  • NPT
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 250

Datasheet and documents

Description

Product features

Standard

  • Completely made of stainless steel (1.4404 / 316L)
  • Excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Soft sealed
  • Non-rising adjusting screw
  • Quick-release body clamp ring

Options

  • ATEX version
  • Pressure gauge connection
  • Leakage line connection and sealed adjusting screw
  • Elastomers as per FDA and USP Class VI
  • Mid section for steam up to 200 °C
  • Electro-pneumatic control
  • Aseptic or ANSI flanges, NPT, welding ends

Technical data

DN
15 - 25
G
1/2
PN
250
p1
up to 250 bar
p2
0.005 - 20 bar
Kvs
0.05 - 1.4 m3/h
T
130 °C



Advantages

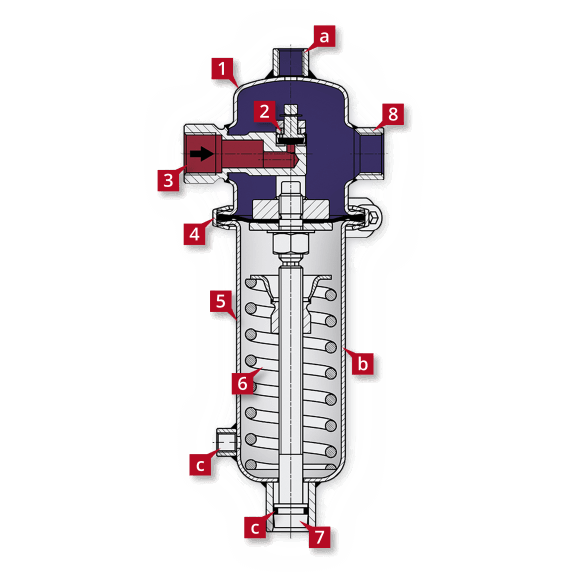

dm505-schnitt
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Soft or hard gasket

Also usable for abrasive media

3

Inlet pressure up to 250 bar

4

Mankenberg clamp system

Easy maintenance

5

Excellent standard surface quality

Easy to clean

6

Many control modules available

Most precise control, also millibar ranges

7

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

8

Versatile connection options: Aseptic flanges, clamp connections, DIN or ANSI flanges, welding ends ...

No adapters or fitting pieces required

Options

a

Pressure gauge connection

b

Electro-pneumatic control

c

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media
