Pressure reducing valves type DM 555 | Mankenberg

Reliable Control for Industrial Demands: Pressure reducing valves type DM 555 | Mankenberg

For any industrial process, maintaining the right pressure is crucial. The Pressure reducing valves type DM 555 | Mankenberg delivers precision and dependability, perfectly designed to safeguard your equipment and optimize your systems. This advanced valve is your trusted partner, ensuring a stable, safe, and efficient workflow wherever you need pressure regulation.

Key Features & Benefits of Pressure reducing valves type DM 555 | Mankenberg

  • Precise Pressure Control: Automatically keeps your downstream pressure steady, even when inlet pressures fluctuate. This means your production stays consistent and your machinery operates under optimal conditions.
  • Robust Construction: Built with high-quality, corrosion-resistant materials, the DM 555 stands up to demanding industrial settings and harsh environments, making downtime a thing of the past.
  • Simple Installation & Maintenance: Lightweight and compact, the valve is easy to handle and quick to install. Its clever design allows for effortless servicing, reducing both labor costs and time out of service.
  • Exceptional Versatility: Suitable for gases, liquids, or steam—the DM 555 adapts to your process, supporting a wide range of industrial applications.
  • Safety First: By preventing dangerous pressure spikes, this valve protects your infrastructure, assures workplace safety, and helps you comply with industry standards.
  • Energy Efficiency: Reducing excess pressure means less wasted energy, helping your business lower operational costs while supporting environmental goals.

Designed for busy industrial environments, the DM 555 guarantees smooth and uninterrupted operation. It comes equipped with intuitive controls so even those new to pressure regulation can set it up confidently. Its reliability reduces the risk of failures or shutdowns, ensuring your business runs efficiently and safely.

Choose the Pressure reducing valves type DM 555 | Mankenberg for your next industrial project and benefit from proven German engineering. Make pressure regulation hassle-free, extend the life of your equipment, and achieve top-level performance every day.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 20
  • PN 40

Datasheet and documents

Description

Product features

Standard

  • Modular design
  • Completely made of stainless steel (1.4404 / 316L)
  • Soft or metallic seal
  • DIN or ANSI flanges, threaded sockets G or NPT
  • Non-rising adjusting screw
  • Quick-release fastener for the body

Options

  • ATEX
  • Elastomer materials suitable for your medium
  • Aseptic or JIS flanges or welding ends

Technical data

DN 15 - 50G 1/2 - 2
PN 40p1 up to 40 bar
p2 0.5 - 20 barKvs 1.3 - 7.5 m³/h
T -40 up to 200 °C

Advantages

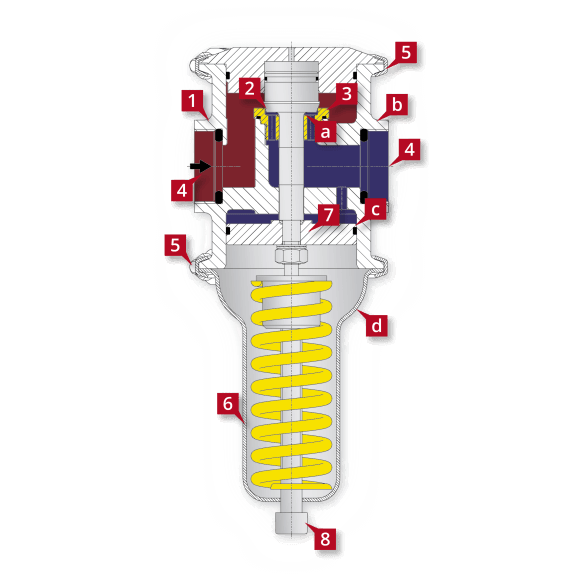

dm555-schnitt
1

Completely made of stainless steel (1.4404 / 316L)

Long operational lifespan, corrosion-resistant

2

Soft or hard gasket

Also usable for abrasive media

3

Exchangeable seat

Easy adjustment to changed flow rates

4

EASY-ADAPT – Connection adapter

5

Mankenberg clamp system

Easy maintenance

6

Exchangeable control parts

Easy change of pressure ranges

7

Balanced cone

Downstream pressure control independent from the upstream pressure

8

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

Options

a

Hard-faced valve cone and seat

Suitable for high pressure drops

b

Special material possible: Duplex, Super Duplex, Hastelloy® and titanium available

c

Elastomers made of FKM, NBR, PTFE or others, also compliant to FDA

d

Delivery in accordance with NACE
