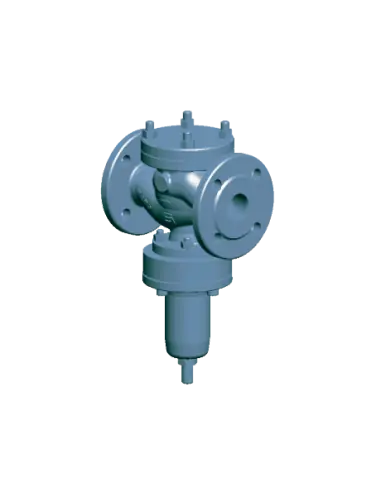

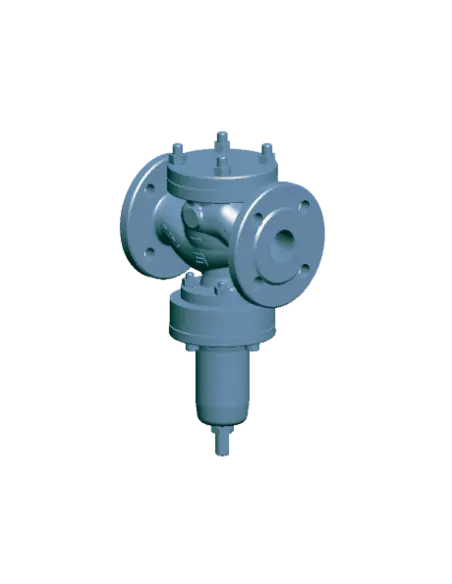

Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki

Name: Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki
Brand: Miyawaki
SKU: Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki

Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki: Reliable Precision for Industrial Steam Control

The Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki is expertly designed to deliver accurate and consistent steam pressure in industrial environments. Engineered for ease of use and built to last, this valve transforms complex pressure management into a straightforward process, making it an ideal choice for both new and established steam systems.

Features and Benefits of the Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki

Consistent Pressure Output: The REA20 ensures stable steam pressure, preventing dangerous surges or drops. Your equipment runs safer, smoother, and more efficiently.
Direct Acting Technology: Immediate response to pressure changes means less downtime and more reliable performance, even under fluctuating steam demand.
Robust Construction: Manufactured with high-quality materials, this valve resists corrosion and wear, ensuring long-term operation even in demanding industrial settings.
Simple Installation: With a compact design, the REA20 fits easily into existing systems, minimizing installation time and effort.
Low Maintenance: Designed for durability, the valve needs minimal servicing, reducing ongoing maintenance costs and interruptions.
Safe Operation: By automatically controlling and limiting steam pressure, the valve helps protect both your machinery and personnel.

This valve is perfect for industrial applications where reliable steam pressure is vital. It helps optimize energy use, extending the lifespan of your equipment and reducing operational risks. The intuitive direct acting mechanism means the valve works automatically, so you spend less time monitoring and more time focusing on productivity.

Choose the Pressure reducing valve - Direct Acting for steam - REA20 | Miyawaki for trustworthy performance, user-friendly operation, and lasting value in your industrial steam systems.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJS-400-15 (Nodular Cast Iron)
Ductile Cast Iron

Pressure Rating (Options)

PN 16
PN 25

Description

Features

Self-acting pressure reducing valves for liquids and gases

The model REA20 is a direct acting pressure reducinfgvalve designed for compressible media, such as air and various gasses and for incompressible media such as water, oil and others. The valve is self acting and does not require external energy.

Superb durability

Highly durable and carefully selected components, a 360° free rotating, conical plug and the lack of a sensitive diaphragm ensure outstanding lifetime of this valve.

Diaphram free design

The valve operates with an O-ring sealing and a piston design. Due to this design, no daiphragm and no external sensing line is required.

Wide range of pressure reduction

Due to careffully selected springs an outstanding reduction ratio of 25:1 is achieved.

Operating features of direct acting pressure reducing valves

Pressure changes on the downstream side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the downstream side at set pressure.

Options available

- additional pressure gauges

- tailored connections for special applications

- softsealing for leakage class VI

Typical applications

Ideally installed in any fluid system or technical gases, such as lube oil lines, pre-heater units, natural gas lines, pressurized air lines, LNG or gasoline tank systems. Fits perfectly for other technical gases such as Atzetylene, Ammonia, Carbondioxide.

Dimensions/Weight

Size (DN)	Dimensions (mm)			Kvs Value	Weight (kg)
Size (DN)	L	H	h	Kvs Value	Weight (kg)
15	130	289	82	1,8	13,0
20	150		66	3,2	13,0
25	160		66	5,0	14,5
32	180		81	7,9	16,0
40	200		83	13,0	18,0
50	230	416	100	20,0	34,0
65	290	445	113	34,0	45,0
80	310	553	140	51,0	61,0
100	350	582	154	80,0	87,0
125	400	715	210	130,0	125,0
150	480	720	235	180,0	150,0
200	600	950	285	320,0	245,0

Specifications

Body Material

Ductile cast iron

EN-GJS-400-15

(GGG-40,0.7040)

Body design conditions

	PN16	PN25
Max. design pressure (MPa) PMA	1,6	2,5
Max. design temperature (℃) TMA	350	350
Max. operating pressure (MPa) PMO	1,5	2,2
Max. operating temperature (℃) TMO	350	350

Pressure - Temperature rating

PN	Temperature ℃
	-10･･･+50	100	150	200	250	300	350
	Pressure MPa
PN16	1,6	1,6	1,6	1,5	1,4	1,3	1,1
PN25	2,5	2,5	2,4	2,3	2,2	2,0	1,8

Secondary pressure ranges

Secondary pressure range	DN15-DN40	DN50	DN65	DN80	DN100	DN125-DN200
MPa	Spring number per size
0,05-0,1	9	28	27	38	37	On request
0,1-0,16	8	27	26	37	36
0,16-0,25	7	26	25	36	35
0,25-0,4	6	25	24	35	34
0,4-0,63	5	24	23	34	33
0,63-1,0	4	23	22	33	32
1,0-1,6	3	22	21	32	32

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.

A minimum differential pressure of 0,05 MPa is required.
