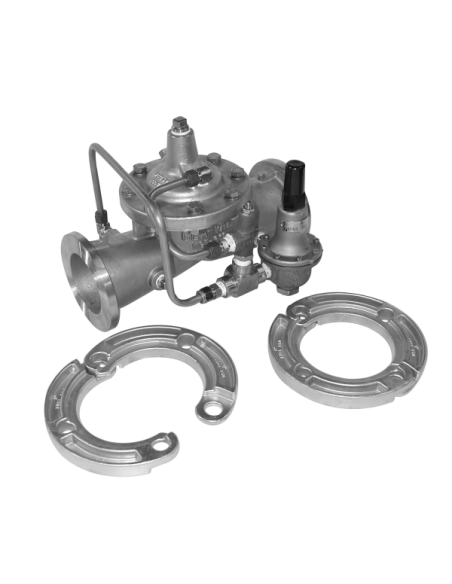

Cla-Val 590-01 / 6590-01

Hydraulic pressure reducing valve for water distribution networks. Maintains a constant downstream pressure regardless of upstream pressure or flow fluctuations, within sizing limits.

Operation

Main valve is pilot-operated and modulating. The pressure reducing pilot regulates the valve chamber, adjusting the opening to keep downstream pressure at the setpoint.

Applications

• Pressure zoning in municipal water networks
• Downstream pipeline and equipment protection
• Industrial water circuits
• Feed pressure stabilization
• Nighttime pressure reduction to minimize leakage

Variants

• 590-01: Full port design for higher flow capacity.
• 6590-01: Reduced port for lower flows or oversized pipelines.

Selection Criteria

Selection is based on peak and minimum flow, upstream pressure, required downstream pressure, allowable pressure drop, flow velocity, and cavitation risk. For high pressure reduction ratios, staged pressure control or anti-cavitation trim may be required.

Technical FAQ

Is this a sustaining valve?
No. The 590-01 / 6590-01 controls downstream pressure. Sustaining valves control upstream pressure.

Is electrical power required?
No. Operation is fully hydraulic via the pilot circuit.

Suitable media?
Potable water and fluids compatible with body, trim, and elastomer materials.

Additional Information

• Pressure class: consult manufacturer for available ratings
• Temperature range: typically 0–80°C (water service)
• Body materials: ductile iron, bronze, stainless steel (application dependent)
• Sealing options: EPDM, NBR, or FKM elastomers
• Certifications: WRAS, NSF/ANSI, or local potable water standards (on request)
• Actuation: hydraulic pilot standard; optional solenoid override available
