Hydraulic surge anticipation and pressure relief valve for pump stations and pressurized pipelines. Designed to protect pumps, piping, and associated equipment from transient overpressure events caused by rapid changes in flow velocity (hydraulic surge/water hammer).
The valve opens in a controlled manner when surge conditions are detected, allowing flow discharge before overpressure is transmitted to the pipeline. Operation is synchronized with pump start-up and shutdown sequences to mitigate transient pressure spikes.
Selection requires pump flow rate, pipeline length and profile, static pressure, shutdown time, relief set pressure, and allowable overpressure. Surge analysis is recommended for critical installations.
Is this a standard pressure relief valve?
No. It is engineered for surge anticipation, not just static overpressure relief.
Is electrical actuation required?
Basic operation is hydraulic via pilot circuit; no electrical signal needed.

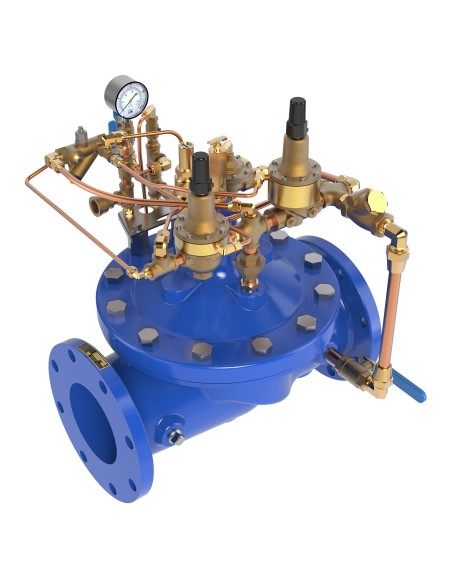

Cla-Val Models 52-03 and 652-03 Surge Anticipator Valves are indispensable for protecting pumps, pumping equipment and all applicable pipelines from dangerous pressure surges caused by rapid changes of flow velocity within a pipeline.
When using these valves, pumping systems are started and stopped gradually preventing harmful surges from occurring.
