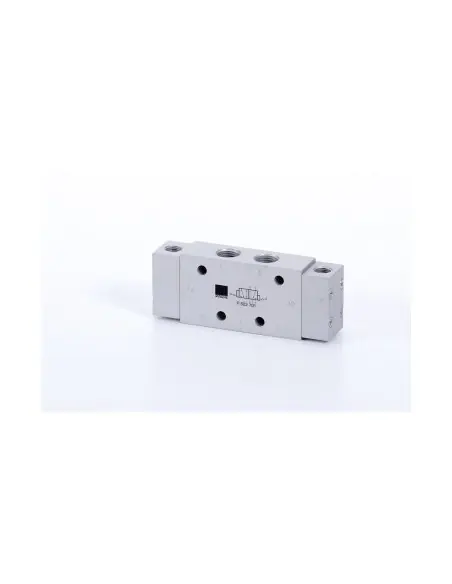

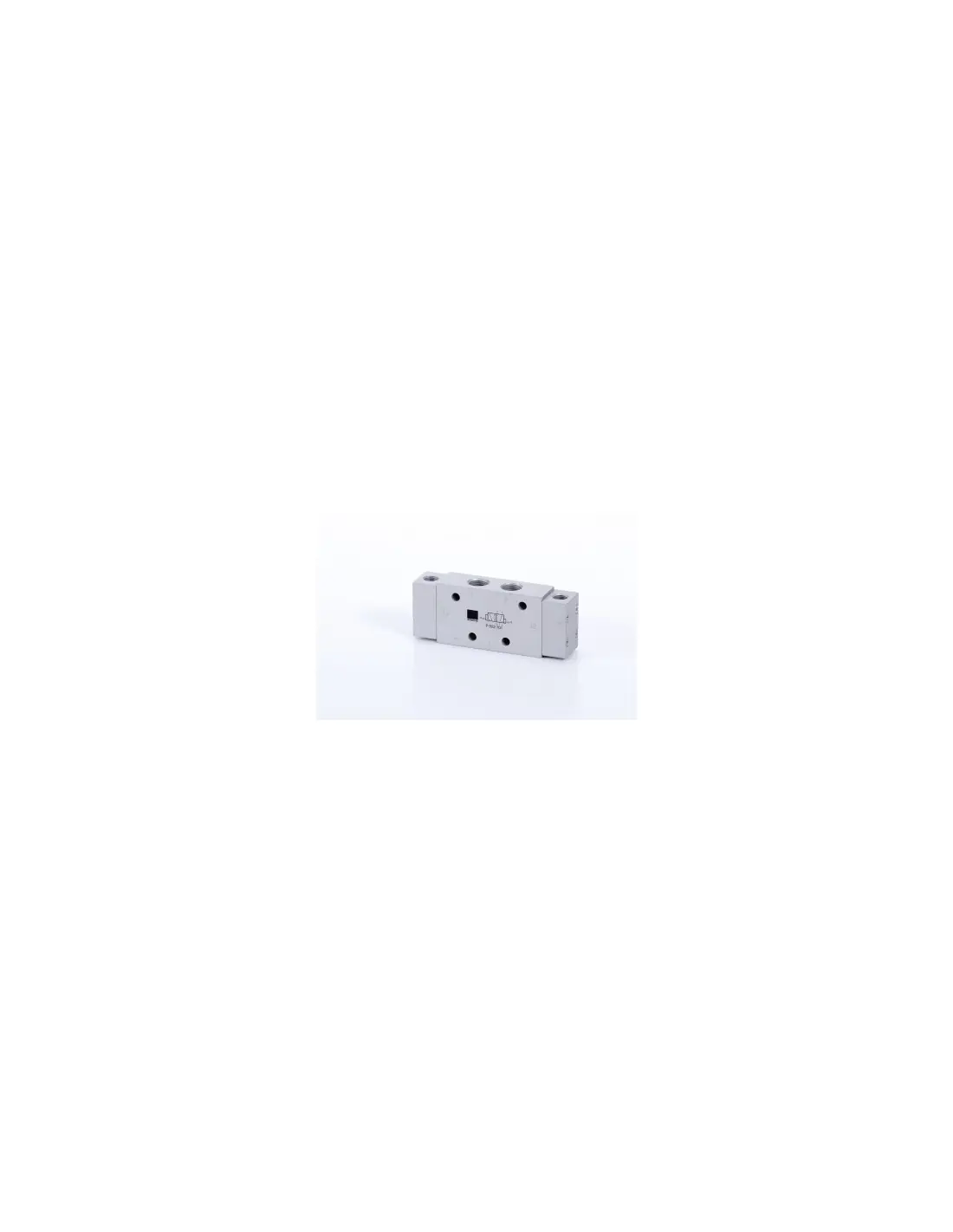

Pneumatically Actuated Valves - 5/2-way valves | Hafner: Precision Control for Industrial Efficiency

Upgrade your automation with the Pneumatically Actuated Valves - 5/2-way valves | Hafner. These valves are designed to control the flow of air or gas in complex machinery, offering reliable performance in demanding industrial environments. Their robust build and intuitive operation make them an essential choice for businesses looking for durability and efficiency.

Features and Benefits of Pneumatically Actuated Valves - 5/2-way valves | Hafner

Precise Flow Control: Achieve accurate direction and switching of air flow, ensuring smooth operation of pneumatic systems.
High Durability: Manufactured with premium materials for long-lasting use, even under heavy-duty conditions.
Quick Response: Fast actuation delivers immediate performance, reducing downtime and boosting productivity.
Easy Installation: Simple mounting options allow seamless integration into existing setups, saving time and effort.
Low Maintenance: Reliable sealing and construction minimize leaks and wear, keeping maintenance to a minimum.
Flexible Application: Ideal for controlling double-acting cylinders in industrial automation, packaging, or assembly lines.

The Pneumatically Actuated Valves - 5/2-way valves | Hafner use advanced mechanics to direct airflow between five ports and two positions. This means you can easily control the extension and retraction of cylinders with a single device. Built for industrial performance, these valves offer smooth transitions and consistent pressure, protecting equipment and improving overall process reliability.

Engineered for clarity and simplicity, they help cut down on installation errors and maintenance headaches. The sturdy design stands up to harsh conditions, while the responsive action means machinery runs exactly when and how you need it to. With Pneumatically Actuated Valves - 5/2-way valves | Hafner, you unlock greater control and peace of mind—giving you a smart, safe choice for all your industrial automation needs.

Datasheet and documents

Description

In-line valves
G-series | In-line valves / valves for manifolds

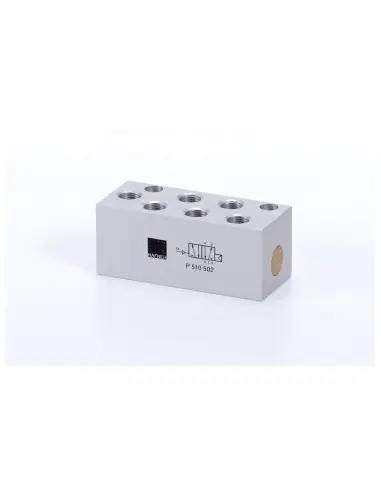

Pilot actuated valve | monostable | air spring return | all ports on one side

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 510 302	M 5	180 l/min	2...10 bar	Same as operating pressure	M 5	Single pilot

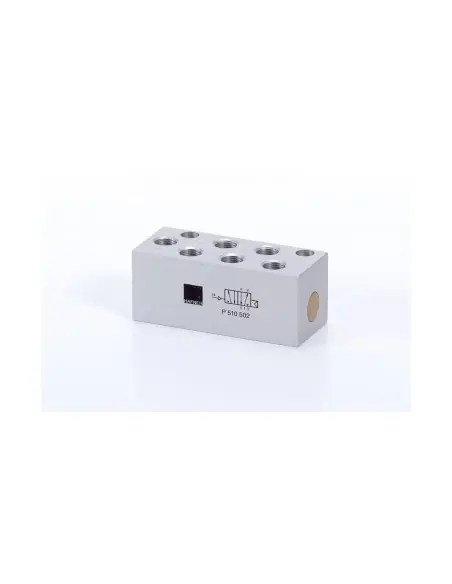

P 510 502	G 1/8"	650 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot

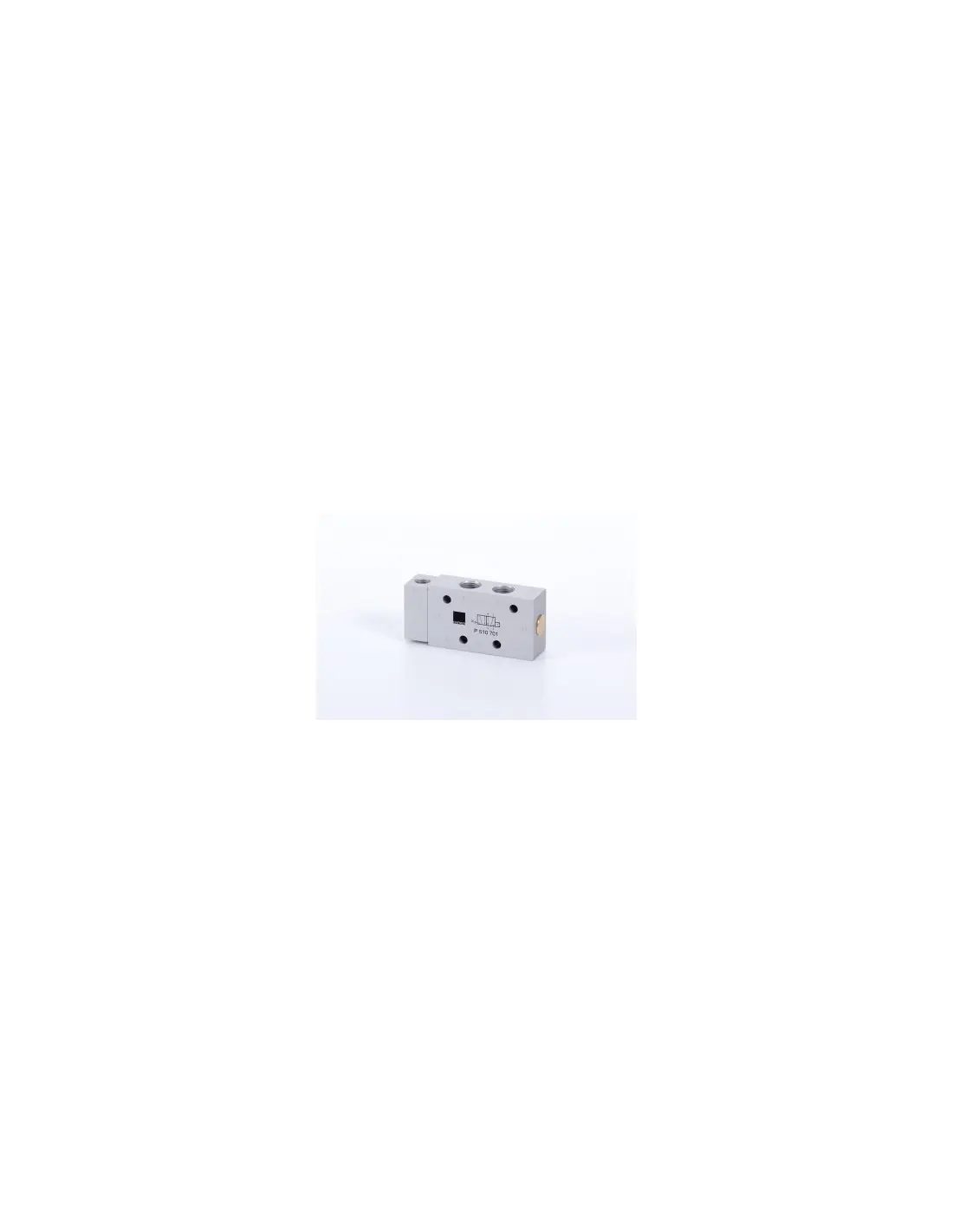

Pilot actuated valve | monostable | air spring return

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 510 501	G 1/8"	650 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot

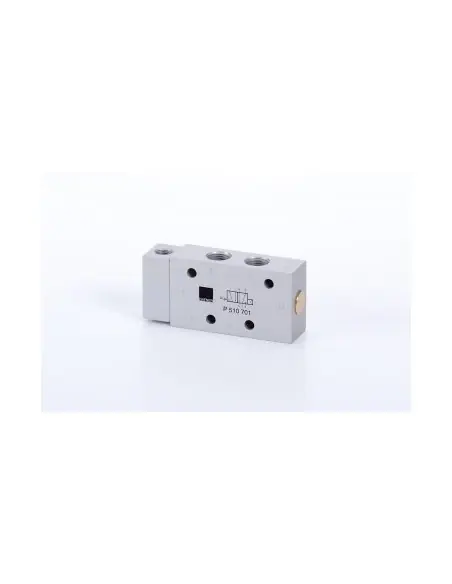

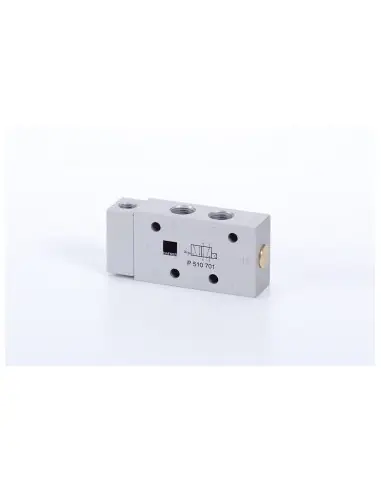

P 510 701	G 1/4"	1250 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 801	G 1/4"	1450 l/min	1,5...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 101	G 3/8"	2250 l/min	1,5...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 121	G 1/2"	3000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	Same as operating pressure	NPT 1/8"	Single pilot
P 510 181	G 3/4"	6000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot

Pilot actuated valve | monostable | mechanical spring return

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 511 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	3...10 bar	NPT 1/8"	Single pilot
P 511 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot

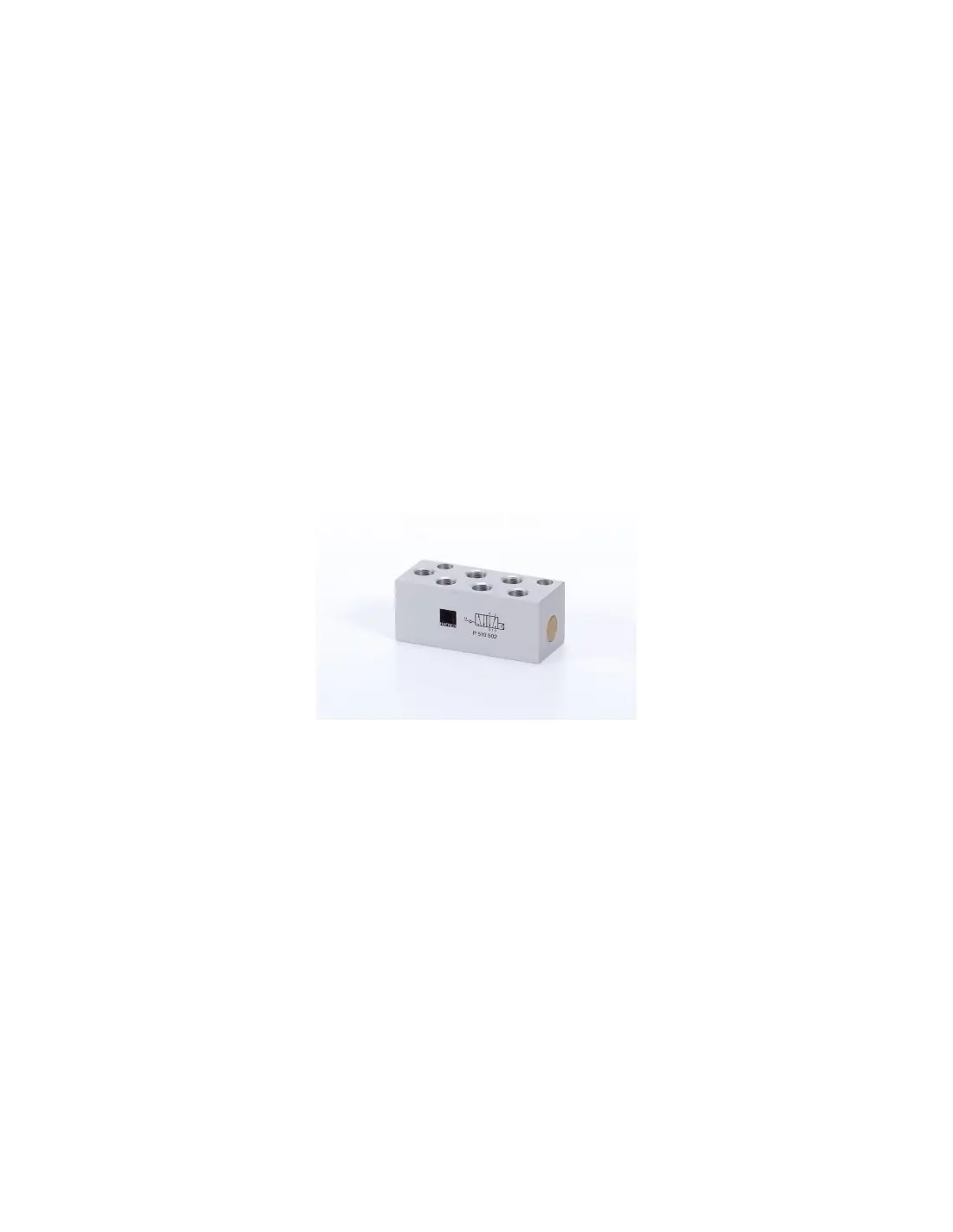

Pilot actuated valve | bistable | all ports on one side

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 520 302	M 5	180 l/min	1...10 bar	2,5...10 bar	M 5	Double pilot

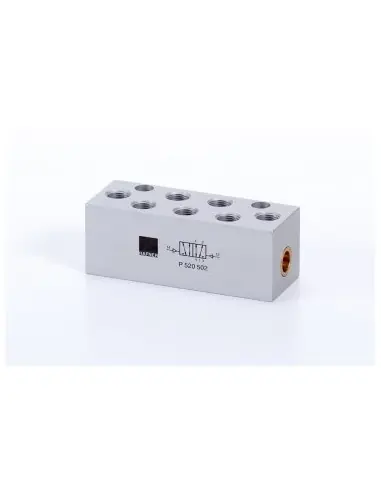

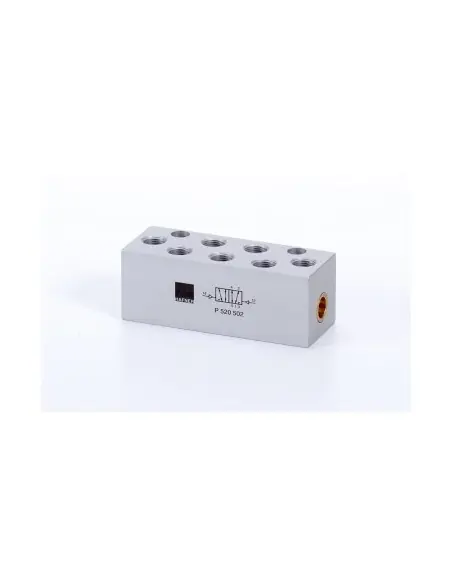

P 520 502	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 520 501	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 701	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 801	G 1/4"	1450 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 101	G 3/8"	2250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 121	G 1/2"	3000 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	2,5...10 bar	NPT 1/8"	Double pilot
P 520 181	G 3/4"	6000 l/min	1...10 bar	2...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable | dominating piston

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 522 501	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 14
P 522 701	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 14

Pilot actuated valve | monostable | air spring return | G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 510 501 G	G 1/8"	650 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 701 G	G 1/4"	1250 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot
P 510 701 G NPT	NPT 1/4"	1250 l/min	2...10 bar	Same as operating pressure	NPT 1/8"	Single pilot
P 510 121 G	G 1/2"	3000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot

Pilot actuated valve | monostable | mechanical spring return | G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 511 501 G	G 1/8"	650 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 701 G	G 1/4"	1250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot
P 511 701 G NPT	NPT 1/4"	1250 l/min	1...10 bar	3...10 bar	NPT 1/8"	Single pilot
P 511 121 G	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot

Pilot actuated valve | bistable | G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 520 501 G	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 701 G	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 520 701 G NPT	NPT 1/4"	1250 l/min	1...10 bar	2,5...10 bar	NPT 1/8"	Double pilot
P 520 121 G	G 1/2"	3000 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable | dominating piston| G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 522 501 G	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 14
P 522 701 G	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 14
