Pneumatically Actuated Valves - 3/2-way valves | Hafner: Reliable Control for Industrial Performance

Discover the advanced solution for pneumatic automation with the Pneumatically Actuated Valves - 3/2-way valves | Hafner. Designed for demanding industrial environments, these robust valves ensure reliable and efficient flow control, simplifying daily operations and maximizing productivity.

Features & Benefits of Pneumatically Actuated Valves - 3/2-way valves | Hafner

Precision Control: Achieve accurate flow management with 3 ports and 2 switching positions, perfectly suited for actuating cylinders or other pneumatic devices.
Fast Response: Experience immediate reaction times, ensuring seamless operation in critical applications where timing matters.
Durable Construction: Built with top quality materials, these valves withstand harsh conditions, offering dependable operation and minimal maintenance.
Flexible Installation: Compact and lightweight, the valves are easy to mount in any system layout, saving space and effort during setup.
Energy Efficient: Designed to minimize air consumption, reducing operating costs while maintaining optimal performance.
Simple Integration: Compatible with a wide range of pneumatic systems, making them a versatile choice for various industrial tasks.

With user-friendly design and advanced engineering, the Pneumatically Actuated Valves - 3/2-way valves | Hafner offer direct and smooth pneumatic control. Their clear switching function lets users easily choose between open or closed positions, making everyday operation straightforward.

Safety is enhanced thanks to reliable shut-off options, preventing unwanted leaks or malfunctions. The robust sealing technology ensures a tight fit every time, providing peace of mind for operators and maintenance teams alike.

Upgrade your automation system with a valve that combines efficiency, durability, and simple operation. Choose Pneumatically Actuated Valves - 3/2-way valves | Hafner for a trusted solution in every industrial application.

Datasheet and documents

Description

In-line valves
G-series | In-line valves / valves for manifolds

Pilot actuated valve | monostable | NC | air spring return | all ports on one side

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 310 302	M 5	180 l/min	2...10 bar	Same as operating pressure	M 5	Single pilot \| NC

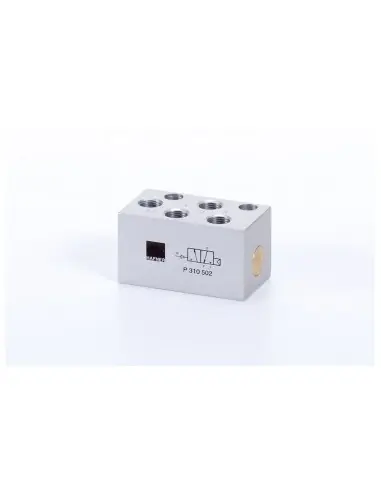

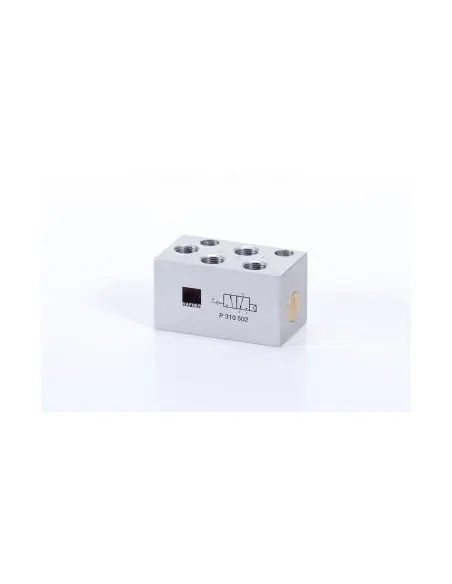

P 310 502	G 1/8"	650 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC

Pilot actuated valve | monostable | NC | air spring return

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 310 501	G 1/8"	650 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC

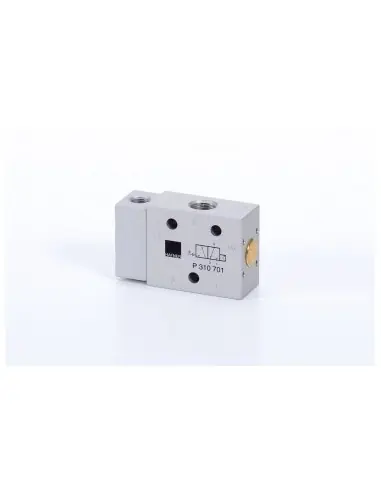

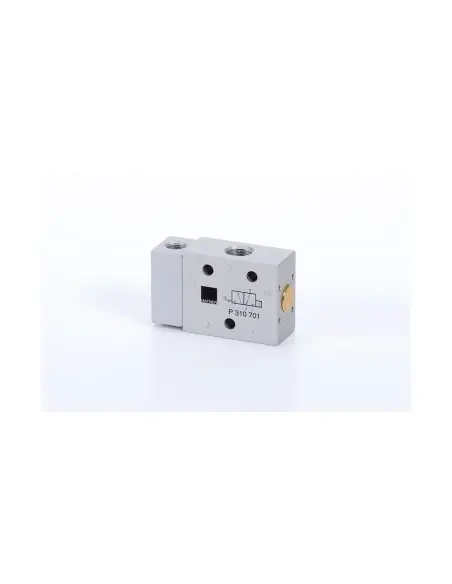

P 310 701	G 1/4"	1250 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC
P 310 801	G 1/4"	1450 l/min	1,5...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC
P 310 101	G 3/8"	2250 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC
P 310 121	G 1/2"	3000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC
P 310 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	Same as operating pressure	NPT 1/8"	Single pilot \| NC
P 310 181	G 3/4"	6000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC

Pilot actuated valve | monostable | mechanical spring return | universally usable - NC/NO

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 311 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	3...10 bar	NPT 1/8"	Single pilot \| NC/NO
P 311 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO

Pilot actuated valve | bistable | all ports on one side

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 320 302	M 5	180 l/min	1...10 bar	2,5...10 bar	M 5	Double pilot

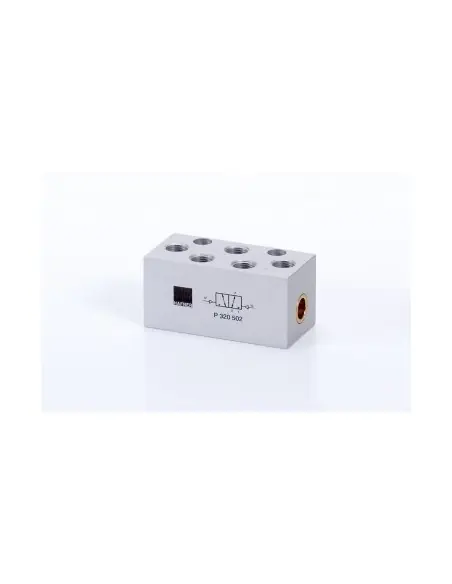

P 320 502	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 320 501	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot

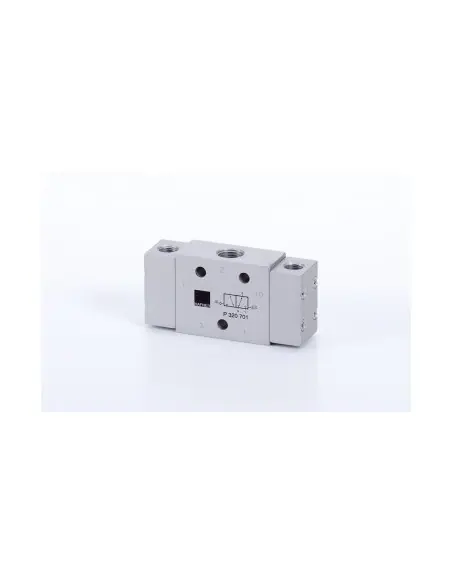

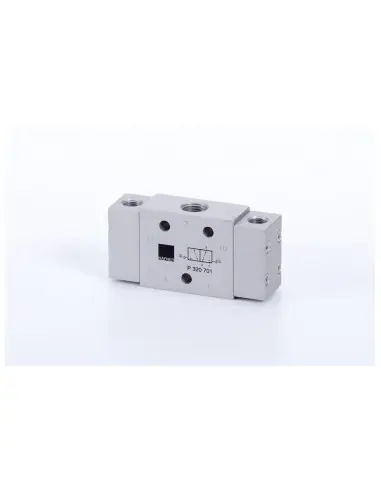

P 320 701	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 320 801	G 1/4"	1450 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 320 101	G 3/8"	2250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 320 121	G 1/2"	3000 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot
P 320 181	G 3/4"	6000 l/min	1...10 bar	2...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable | dominating piston| all ports on one side

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 322 302	M 5	180 l/min	1...10 bar	2,5...10 bar	M 5	Double pilot \| dominating at 12

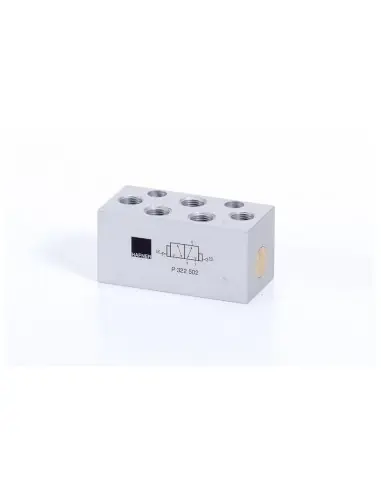

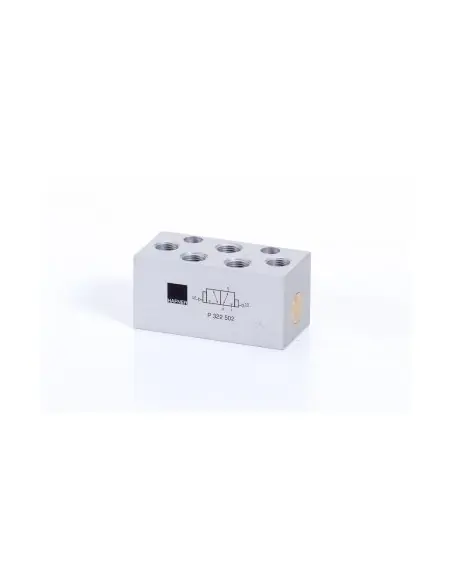

P 322 502	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 12

Pilot actuated valve | bistable | dominating piston

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 322 501	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 12
P 322 701	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 12

Pilot actuated valve | monostable | NC | air spring return | G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 310 701 G	G 1/4"	1250 l/min	2...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC
P 310 701 G NPT	NPT 1/4"	1250 l/min	2...10 bar	Same as operating pressure	NPT 1/8"	Single pilot \| NC
P 310 121 G	G 1/2"	3000 l/min	1...10 bar	Same as operating pressure	G 1/8"	Single pilot \| NC

Pilot actuated valve | monostable | mechanical spring return | G-series | universally usable - NC/NO

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 311 701 G	G 1/4"	1250 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO
P 311 701 G NPT	NPT 1/4"	1250 l/min	1...10 bar	3...10 bar	NPT 1/8"	Single pilot \| NC/NO
P 311 121 G	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	Single pilot \| NC/NO

Pilot actuated valve | bistable | G-series

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 320 701 G	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot

Pilot actuated valve | bistable | G-series | dominating piston

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Size of actuation port	Function
P 322 701 G	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double pilot \| dominating at 12
