Stainless Steel Valves - Valves with NAMUR-interface | Hafner | Philippopoulos s.a.

Stainless Steel Valves - Valves with NAMUR-interface | Hafner

Name: Stainless Steel Valves - Valves with NAMUR-interface | Hafner
Brand: Hafner
SKU: Stainless Steel Valves - Valves with NAMUR-interface | Hafner

Stainless Steel Valves - Valves with NAMUR-interface | Hafner: Advanced Control, Reliable Performance

Designed for demanding industrial environments, the Stainless Steel Valves - Valves with NAMUR-interface | Hafner offer a powerful solution for precise automation. Crafted from high-grade stainless steel, these valves stand out for their strength, durability, and ability to withstand harsh conditions.

Why Choose Stainless Steel Valves with NAMUR-interface | Hafner?

Corrosion Resistance: Made from stainless steel, these valves excel in wet, corrosive, or chemically aggressive settings. This ensures long-term reliability with minimal maintenance.
NAMUR Interface Compatibility: The NAMUR-interface simplifies fitting and swapping with a wide range of actuators and accessories, streamlining installation and reducing downtime.
Precision Control: Engineered for accurate flow management, these valves help boost process efficiency and reduce operational errors.
Leak-proof Performance: Precision-machined for tight sealing, preventing leaks and keeping your processes running smoothly and safely.
User-friendly Design: Their intuitive, compact build makes them easy to install and operate, even for those new to industrial automation.
Versatile Application: Ideal for industries such as food and beverage, pharmaceuticals, chemical processing, and water treatment—anywhere reliability is a must.

Key Features of Stainless Steel Valves - Valves with NAMUR-interface | Hafner

High-grade stainless steel body for outstanding durability
Optimized for low maintenance and extended service life
Fast, simple connection to NAMUR-compatible actuators
Built to handle extreme temperatures and pressures
Compact design saves space in tight installations
Supports safe operation in demanding industrial environments

Upgrade your process control systems with the Stainless Steel Valves - Valves with NAMUR-interface | Hafner and experience effortless integration, increased longevity, and trustworthy performance, even in the most challenging conditions.

Datasheet and documents

Description

3/2-way valves

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 310 701 VES	G 1/4"	1250 l/min	2...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 310 701 NPT VES	NPT 1/4"	1250 l/min	2...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 310 701 KES	G 1/4"	1250 l/min	2...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 310 701 NPT KES	NPT 1/4"	1250 l/min	2...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 311 701 VES	G 1/4"	1250 l/min	2,5...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 311 701 NPT VES	NPT 1/4"	1250 l/min	2,5...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 311 701 KES	G 1/4"	1250 l/min	2,5...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 311 701 NPT KES	NPT 1/4"	1250 l/min	2,5...10 bar	single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]

5/2-way valves

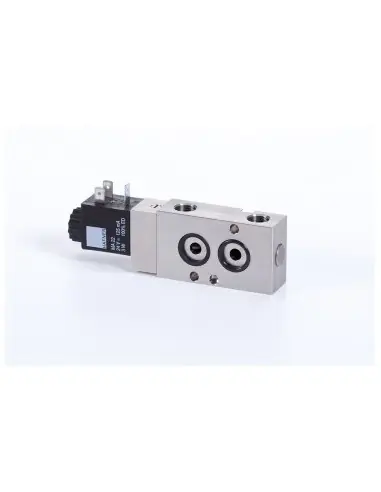

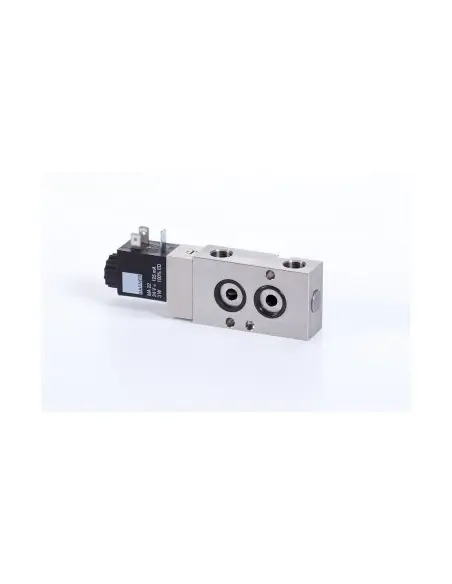

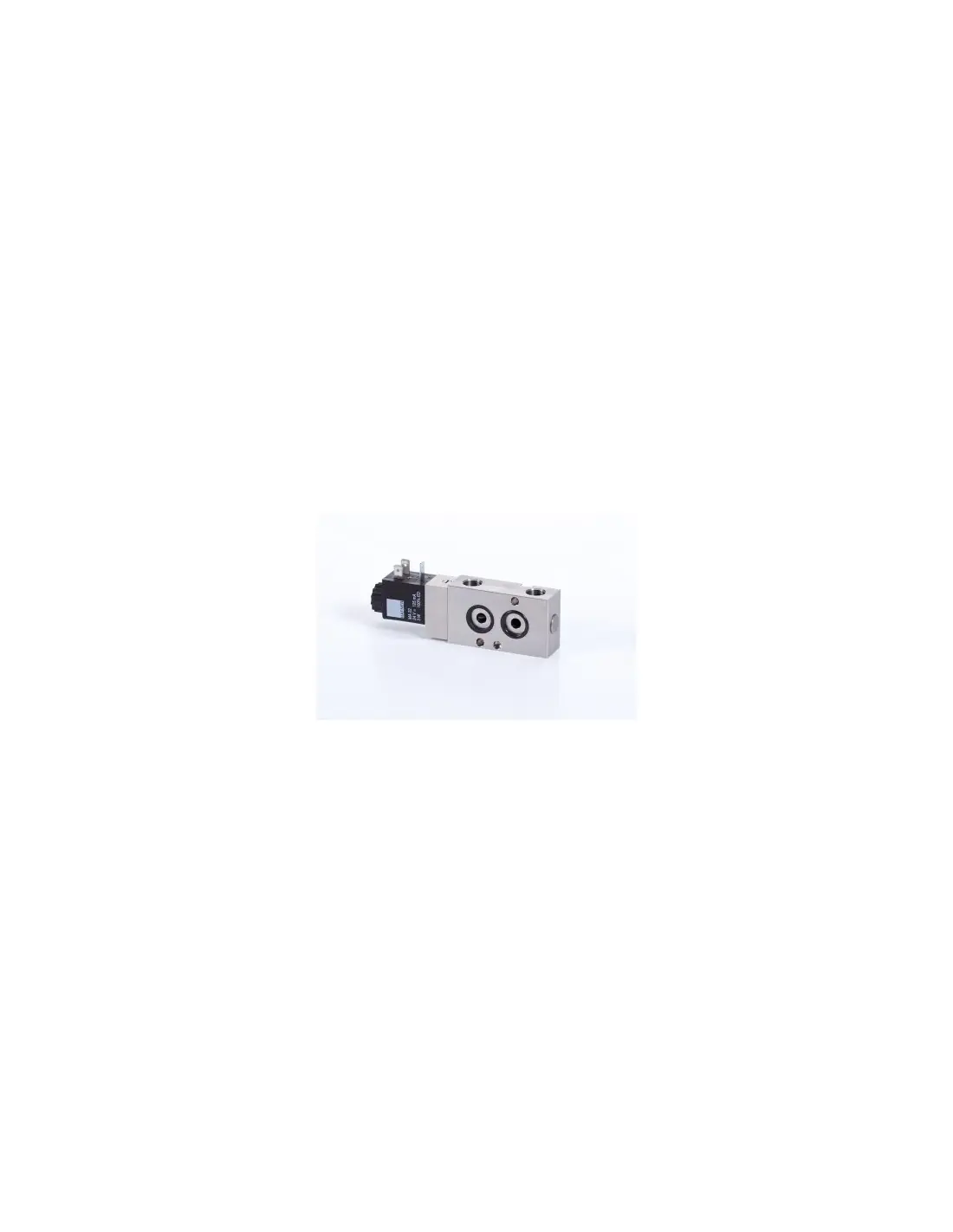

stainless steel solenoid valve with NAMUR interface | monostable | air spring return | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 510 701 VES	G 1/4"	1250 l/min	2...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 510 701 NPT VES	NPT 1/4"	1250 l/min	2...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]

stainless steel solenoid valve with NAMUR interface | monostable | air spring return | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 510 701 KES	G 1/4"	1250 l/min	2...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 510 701 NPT KES	NPT 1/4"	1250 l/min	2...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]

stainless steel solenoid valve with NAMUR interface | monostable | combined spring return | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 511 701 VES	G 1/4"	1250 l/min	2,5...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 511 701 NPT VES	NPT 1/4"	1250 l/min	2,5...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]

stainless steel solenoid valve with NAMUR interface | monostable | combined spring return | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 511 701 KES	G 1/4"	1250 l/min	2,5...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 511 701 NPT KES	NPT 1/4"	1250 l/min	2,5...10 bar	single solenoid	3 W / 5 VA	NAMUR [1/4"]

stainless steel solenoid valve with NAMUR interface | bistable | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 520 701 VES	G 1/4"	1250 l/min	2...10 bar	double solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 520 701 NPT VES	NPT 1/4"	1250 l/min	2...10 bar	double solenoid	3 W / 5 VA	NAMUR [1/4"]

stainless steel solenoid valve with NAMUR interface | bistable | with manual override | INOX

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 520 701 KES	G 1/4"	1250 l/min	2...10 bar	double solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 520 701 NPT KES	NPT 1/4"	1250 l/min	2...10 bar	double solenoid	3 W / 5 VA	NAMUR [1/4"]

NAMUR-Flex | 3/2 - 5/2 Ventile

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 350 701 VES	G 1/4"	1250 l/min	2...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]
MNH 350 701 NPT VES	NPT 1/4"	1250 l/min	2...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 350 701 KES	G 1/4"	1250 l/min	2...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]
MNH 350 701 NPT KES	NPT 1/4"	1250 l/min	2...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 351 701 VES	G 1/4"	1250 l/min	2,5...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]
MNH 351 701 NPT VES	NPT 1/4"	1250 l/min	2,5...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 351 701 KES	G 1/4"	1250 l/min	2,5...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]
MNH 351 701 NPT KES	NPT 1/4"	1250 l/min	2,5...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Stainless steel Flex-pack | converts the NAMUR-flex valve into a 3/2-way valve with exhaust-air recirculation | INOX

Type number	Interface	Material
FP 701 VES	NAMUR [1/4"]	Edelstahl

Stainless steel Flow regulator with NAMUR interface | for 3-way NAMUR valves | precise regulation | INOX

Type number	Port size	Air flow	Operating pressure	Működtetés	Interface
DRN 3 611 VES	NAMUR \| orifice 5	650 l/min	0,5...10 bar	screw-driver	NAMUR [G 1/4"]

Stainless steel Flow regulator with NAMUR interface | for 5-way NAMUR valves | precise regulation | INOX

Type number	Port size	Air flow	Operating pressure	Működtetés	Interface
DRN 5 611 VES	NAMUR \| orifice 5	650 l/min	0,5...10 bar	screw-driver	NAMUR [G 1/4"]

Stainless steel flex-regulator | converts the NAMUR-flex valve into a 3/2-way valve and offers very precise flow regulation | INOX

Type number	Port size	Air flow	Operating pressure	Működtetés	Interface
DRF 3 611 VES	NAMUR \| orifice 5	650 l/min	0,5...10 bar	screw-driver	NAMUR [1/4"]

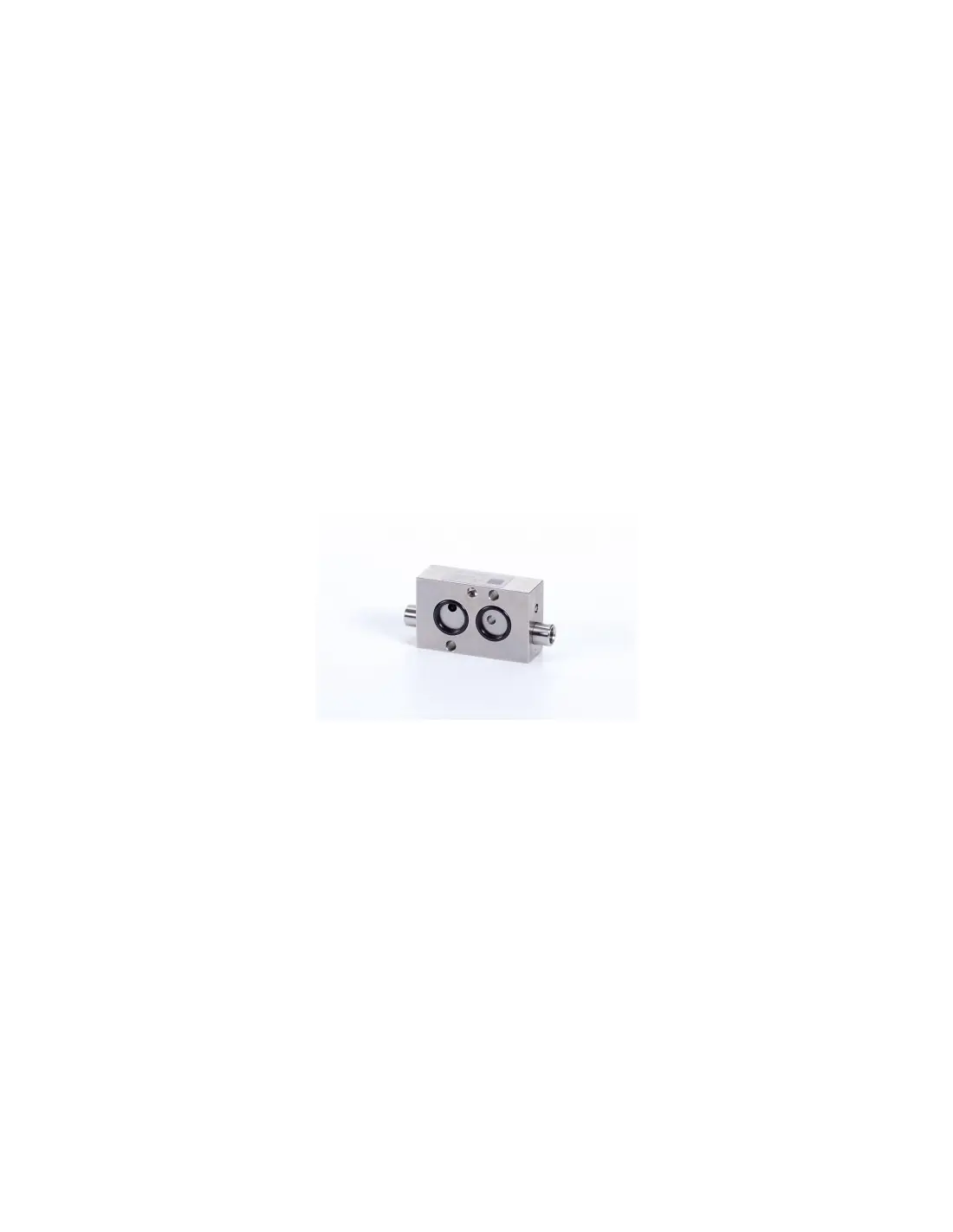

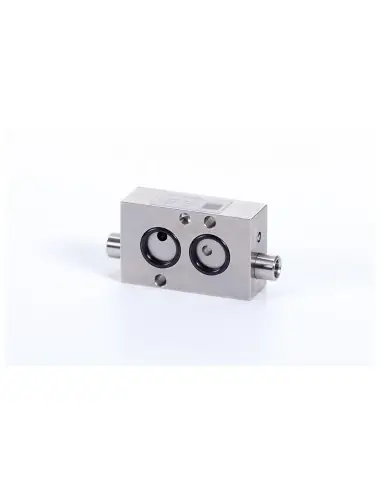

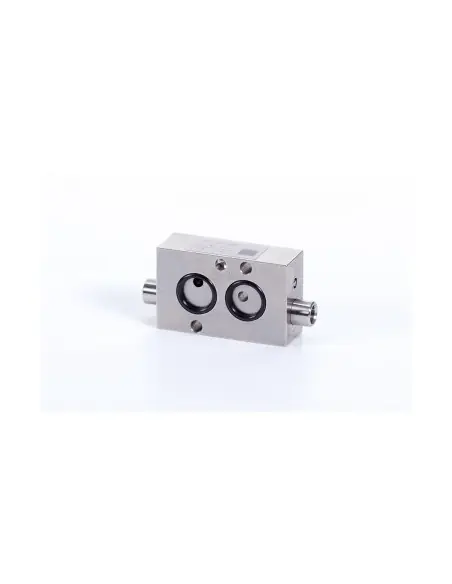

UB 701 VES Stainless steel air-recirculation block with NAMUR interface | INOX

Type number	Port size	Air flow	Operating pressure	Interface
UB 701 VES	G 1/4"	1250 l/min	1...10 bar	NAMUR [1/4"]
