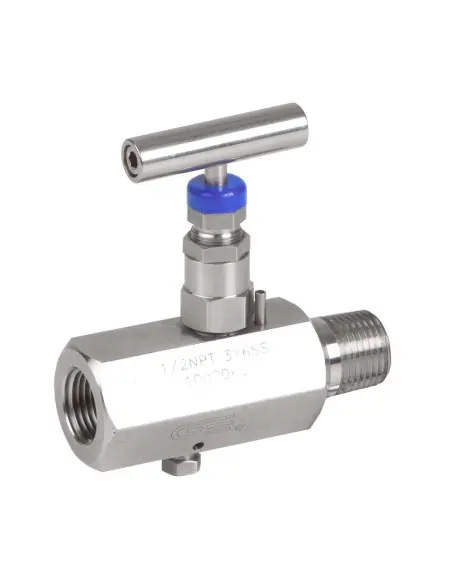

The Genebre 2226N is a manually operated needle valve featuring a side vent port for instrument lines and small process volumes. Main ends are NPT per ASME B1.20.1, while the vent port is M8 threaded. The body is ASTM A479-04 Grade 316, with a maximum working pressure of 6000 psi at 38°C.
The vent port is used for controlled depressurization or drainage of the downstream volume after isolation. It is useful in pressure gauges, transmitters, test points, and instrumentation loops where depressurization is required before calibration or instrument removal.
It should not be confused with a full block-and-bleed manifold. The 2226N is a single needle valve with a vent port, not a multi-valve isolation system with independent block and bleed functions.
Not the primary choice for slurries, suspended solids, or high viscosity fluids. The needle seat has a limited cross-section and may experience blockage or seat leakage in contaminated media.
The 6000 psi pressure rating should not be assumed constant across the temperature range; pressure-temperature curve verification is required. The technical sheet indicates a reduction in allowable rating as temperature increases.
What is the difference from the 2226?
The 2226N is the version with NPT threads. Selection between 2226 and 2226N depends on the piping standard and thread sealing method.
What is checked before supply?
NPT size, pressure, temperature, Kv, vent discharge direction, material compatibility, and packing/seat sealing requirements.
Construction: Stainless steel A182 F316 / Needle stainless steel A182 F316 + Heat treatment. NPT thread. Stem packing ptfe. Max. working pressure 410 bar. Working temperature -54ºC to 250ºC.
-65ºF + 482ºF
Reference: 2226N
| Reference | Size | Minimum purchase unit | Weight (Kg) | Box / carton |
| 2226N 02 | NPT NEEDLE V.6000LBS VENT P1/4 | 1 | 0.539 | 12/36 |
| 2226N 04 | NPT NEEDLE V.6000LBS VENT P1/2 | 1 | 0.568 | 12/36 |
