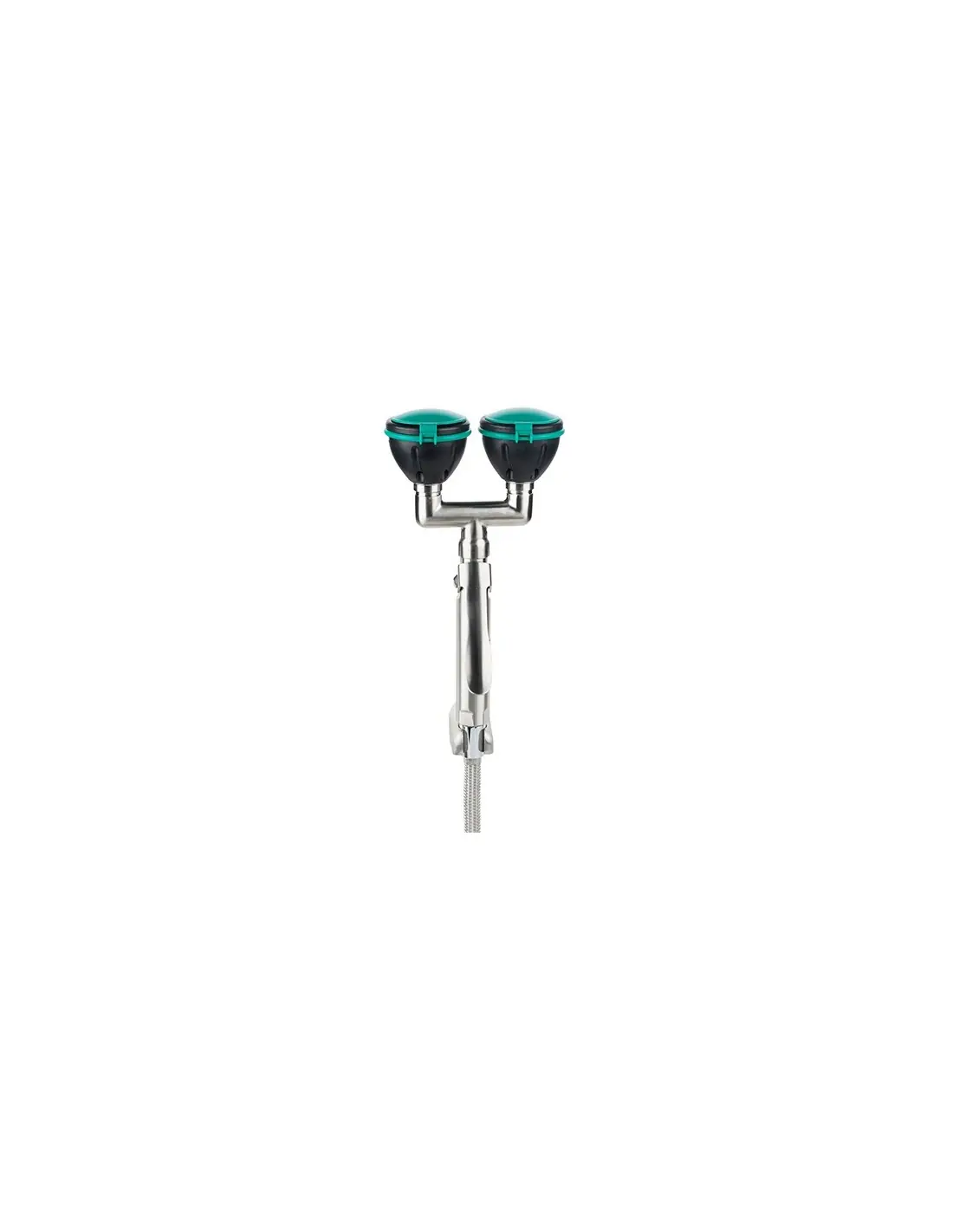

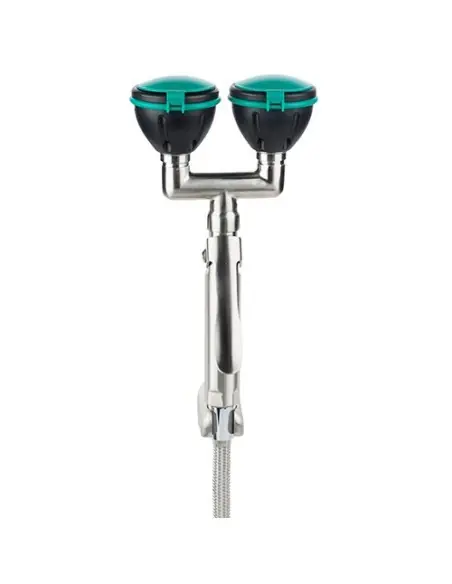

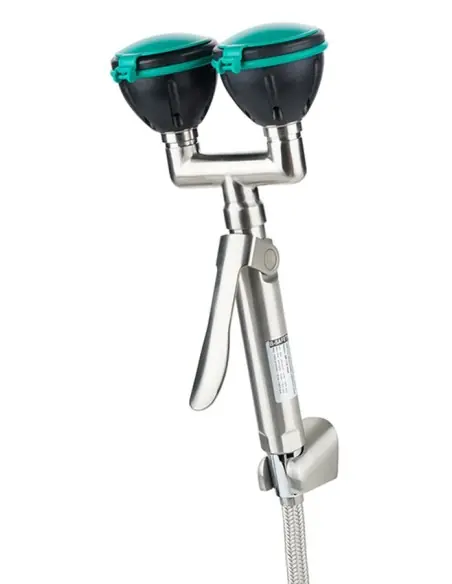

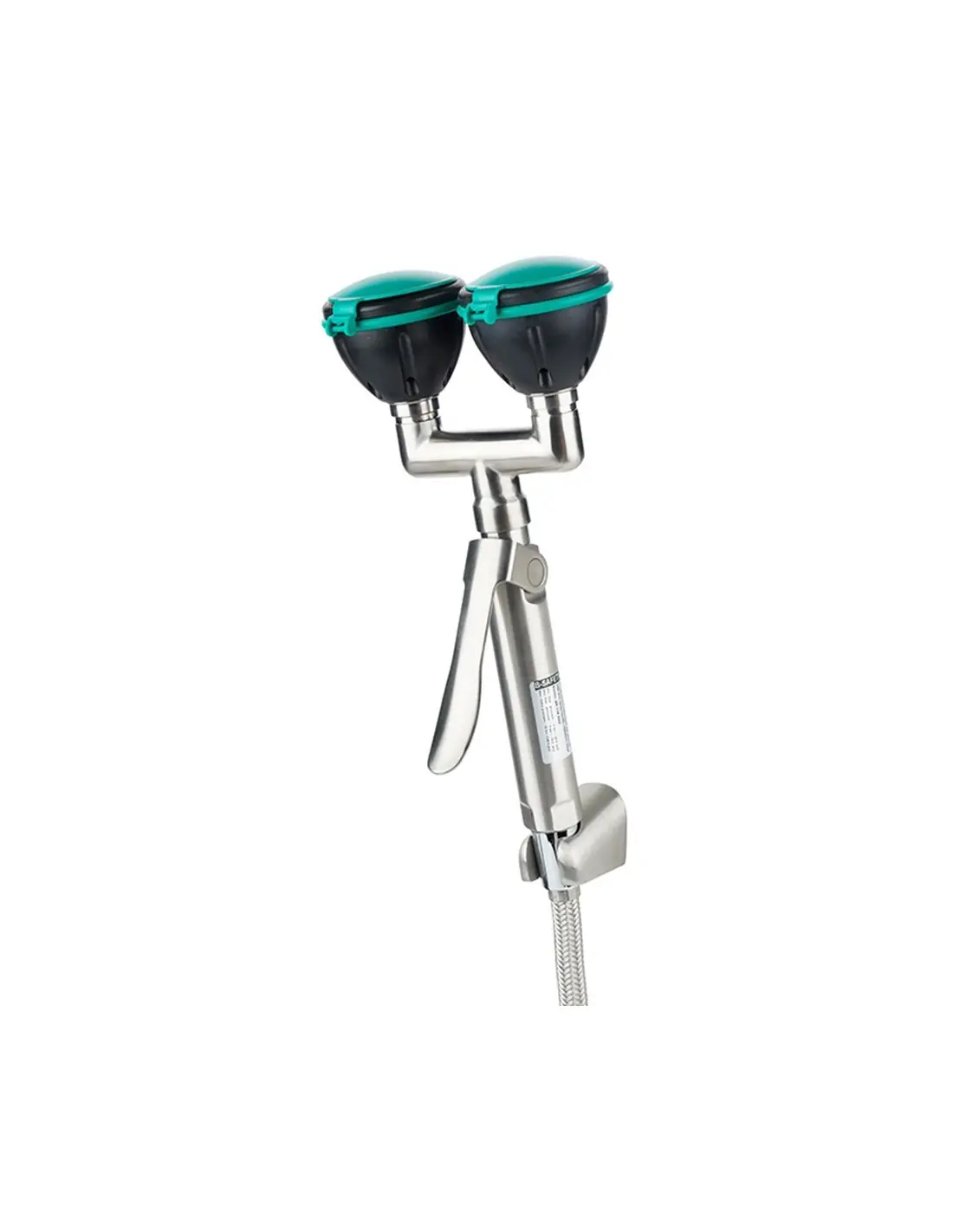

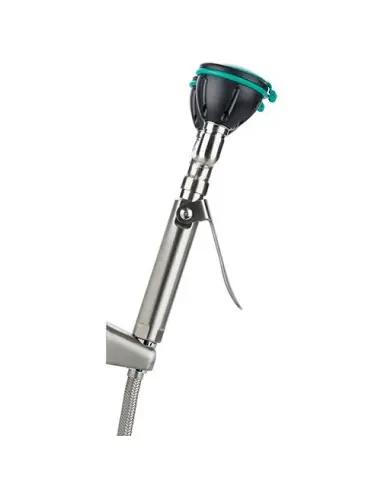

Hand-held eye shower with two spray head - PremiumLine - BR 719 030 | B-Safety: Safety at Your Fingertips

Discover unmatched eye protection with the Hand-held eye shower with two spray head - PremiumLine - BR 719 030 | B-Safety. Specially designed for demanding industrial environments, this cutting-edge eye shower combines convenience, efficiency, and reliability to ensure rapid first aid when you need it most. Its innovative design and robust construction make it an essential piece for every workplace where safety comes first.

Features and Benefits of the Hand-held eye shower with two spray head - PremiumLine - BR 719 030 | B-Safety

  • Dual Spray Heads: Covers both eyes at once for fast and thorough rinsing, reducing response time in emergencies.
  • Ergonomic Hand-held Design: Lightweight and comfortable to hold, allowing precise control where it's needed most.
  • High-quality Materials: Built with corrosion-resistant components for long-lasting performance in harsh industrial settings.
  • Easy Activation: Simple trigger mechanism guarantees immediate water flow, ensuring no delay in critical moments.
  • Soft, Gentle Flow: Delivers a smooth water stream that cleanses the eyes without causing additional discomfort or injury.
  • Flexible Connection: Easily affixes to standard water supplies, integrating seamlessly into your workplace safety system.
  • Maintenance-friendly: Designed for straightforward cleaning and servicing, helping to maintain hygiene and readiness.

With the Hand-held eye shower with two spray head - PremiumLine - BR 719 030 | B-Safety, you gain peace of mind knowing rapid response is always within reach. Its dual spray heads not only ensure both eyes are treated instantly, but also make it easy for any user to operate during high-pressure situations. The robust construction withstands daily use, while the ergonomic handle provides a secure grip, even with wet hands.

This eye shower is the smart choice for anyone seeking to upgrade their workplace safety. Designed with both performance and user experience in mind, it offers a combination of dependability and practical comfort. Install it wherever quick eye decontamination is needed and take confidence in superior safety.

Datasheet and documents

Description

Technical Specifications

  • Material: Stainless steel
  • Surface: polished
  • Dimensions (H x W): 260 x 145 mm
  • Hose-Length: 1500 mm
  • Operating pressure: 2.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water inlet: ½” female

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The hand-held eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

With the included sturdy stainless steel wall bracket, the hand-held eye shower can be mounted on the wall with an angle tilted 20° towards the user. The robust stainless steel-coated hose in 1.5 meter length ensures good usability of the shower. The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure present. The backflow preventer built into the handle of the shower provides additional protection of the drinking water network.

DVGW
ISO9001_D_72

Technical Description

  • water-bearing parts made of stainless steel
  • handle with large, adjusting push lever made of stainless steel, polished, valve not self-closing
  • high-performance spray heads made of stainless for large-scale dispersion of water, polished, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps with folding mechanism, mounted over distribution fork made of polished stainless steel
  • integrated automatic flow regulator 14 litres / minute for a standard-compliant blasting pattern at a specified working range of 2.5 to 5 bar flow pressure
  • integrated backflow preventer to protect the drinking water
  • stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
  • robust wall mounting bracket 20° made of stainless steel, polished, incl. 2x large mounting holes
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • Mounting height 680 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
