Description
| DESIGN STANDARD | JIS F 7301-1996 | |||
| TEST | JIS F 7400-1996 | |||
| HYDRAULTC INSPECTION | ||||
| TEST PRESSURE/MPA | BODY | 1.05 | ||
| SEAT | 0.77 | |||
Specification
| 5 | HANDWHEEL | FC200 |
|

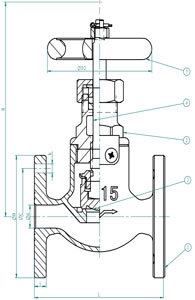

Dimensions data(mm)
Globe Valve Bronze JIS 5K - F7301

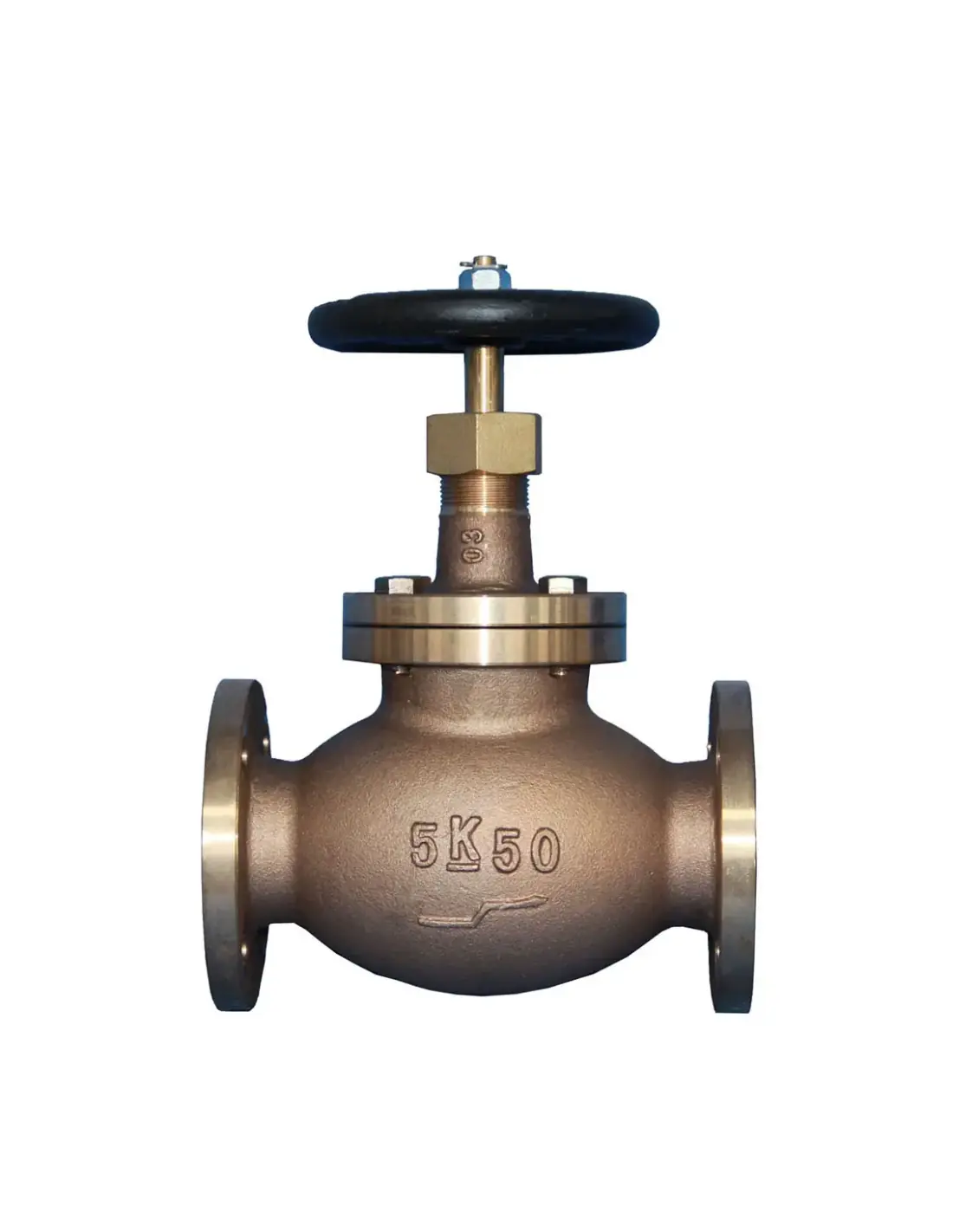

JIS 5K F7301 Bronze Globe Valve for Marine Piping Systems
The JIS F7301 is a straight-pattern globe valve with JIS 5K flanged ends, designed for manual throttling or isolation of flow in auxiliary shipboard piping. Construction is bronze/brass, with an FC200 handwheel. Available in nominal sizes DN15–DN40.
Technical Data
- Design Standard: JIS F 7301-1996
- Test Standard: JIS F 7400-1996
- Body Test Pressure: 1.05 MPa
- Seat Test Pressure: 0.77 MPa
- Connection: JIS 5K flanged
- Flow Pattern: straight-through
- Operation: manual handwheel
- Sizes: DN15, DN20, DN25, DN32, DN40
Suitable Media and Use
Applied in marine water, oil, and low-pressure steam lines where throttling or local isolation is required. Selection of JIS 5K must consider operating pressure, temperature, media compatibility, and flange matching with existing piping.
Applications
- Fresh or seawater lines
- Auxiliary engine room circuits
- Lube or fuel oil lines (after compatibility check)
- Low-pressure steam lines
- Networks requiring flow regulation, not just on/off isolation
Selection Considerations
Compared to a basic isolation valve, the F7301 globe valve provides improved flow control due to disc and seat geometry, but with higher pressure drop. For frequent throttling, monitor seat wear and ensure maintenance access. No pneumatic or electric actuator options are documented for this configuration; standard execution is manual.
FAQ
Is it suitable for isolation?
Yes, but primarily used where flow regulation is also needed.
What should be checked before procurement?
DN, JIS 5K flange standard, operating pressure/temperature, media, sealing material, and project certification requirements.
